Technical Specifications

FAQ

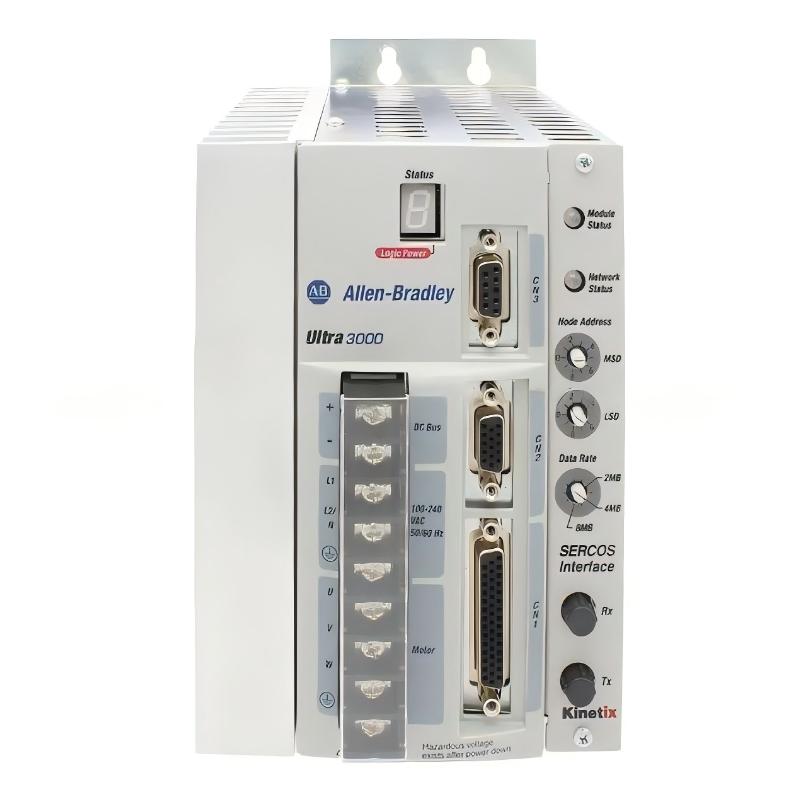

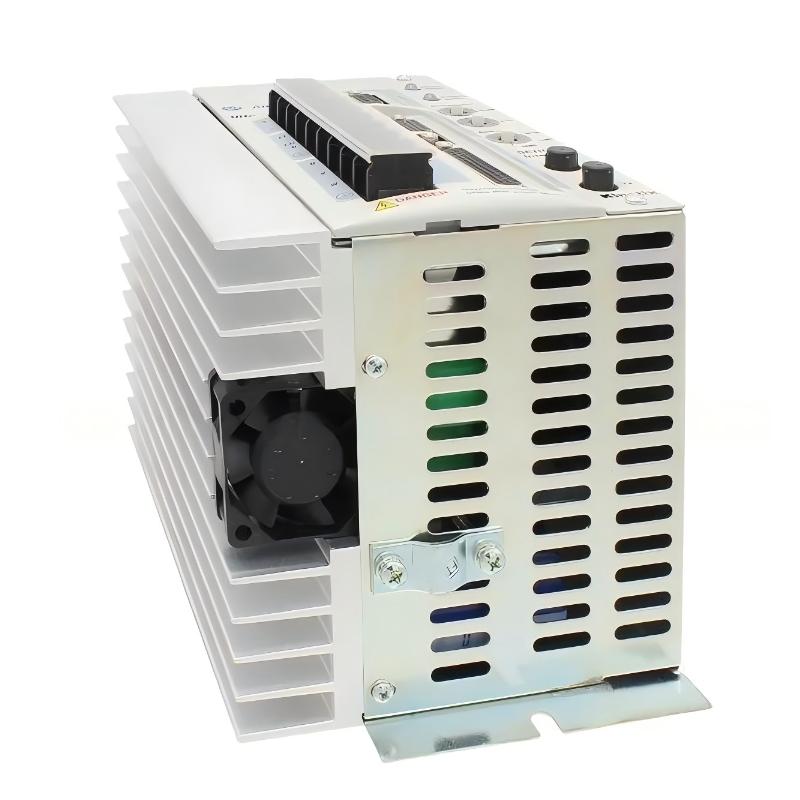

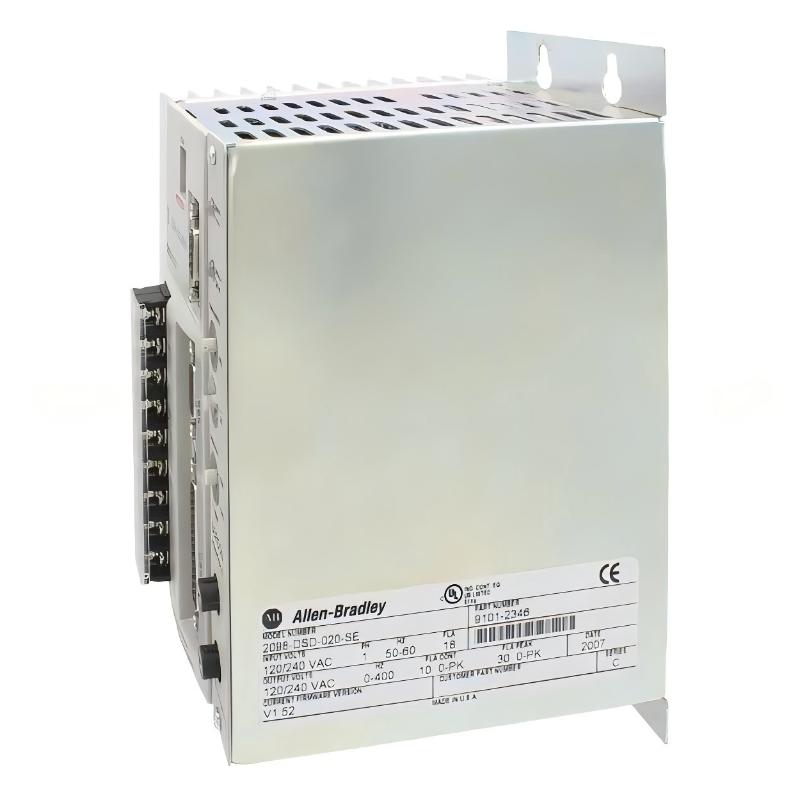

Q1: What is the main function of the Allen-Bradley 2098-DSD-020-SE Ultra3000 Digital Servo Driver?

A: The Ultra3000 servo driver is designed to control servo motors by converting control commands into precise motion output. It processes real-time feedback from encoders and adjusts motor behavior accordingly, enabling accurate position, speed, and torque control. It serves as a core component in closed-loop motion control systems, ensuring high precision and stable performance in industrial automation applications.

Q2: What are the key advantages of the Ultra3000 series servo drives?

A: The Ultra3000 series is known for fast response, high control accuracy, and stable closed-loop performance. It can process feedback signals in real time and adjust output dynamically, ensuring smooth operation even under rapid acceleration, deceleration, or changing load conditions.

Q3: What types of applications is this servo driver commonly used in?

A: This driver is widely used in CNC machines, robotics, automated assembly lines, packaging equipment, material handling systems, and precision manufacturing machinery. It is particularly suitable for applications requiring high-speed motion, repeatable accuracy, and multi-axis coordination.

Q4: How does closed-loop control improve system performance?

A: Closed-loop control continuously compares commanded motion with actual motor feedback from the encoder. The driver automatically corrects any deviation in real time, ensuring precise positioning, stable speed regulation, and consistent torque output. This significantly improves motion accuracy and system reliability.

Q5: What control modes does this driver support?

A: The Ultra3000 servo driver typically supports position control, speed control, and torque control modes. Each mode is used for different application needs—for example, position control for accurate positioning tasks, speed control for continuous motion, and torque control for force-sensitive applications.

Q6: How does the driver ensure operational safety?

A: The drive includes multiple built-in protection mechanisms such as overcurrent protection, overvoltage protection, undervoltage protection, and thermal protection. When abnormal operating conditions are detected, the system responds immediately to prevent damage and ensure safe operation.

Q7: Why is communication performance important in servo systems?

A: Communication performance determines how quickly and accurately the drive can exchange data with the controller. High-speed communication reduces latency, improves synchronization between axes, and enhances overall motion coordination in complex automation systems.

Q8: What maintenance practices are recommended for long-term reliability?

A: Regular maintenance should include checking cooling fan operation, ensuring proper ventilation, inspecting terminal connections for tightness, cleaning internal dust buildup, and monitoring system alarms. Maintaining a clean and stable operating environment helps extend service life and ensures consistent performance.
