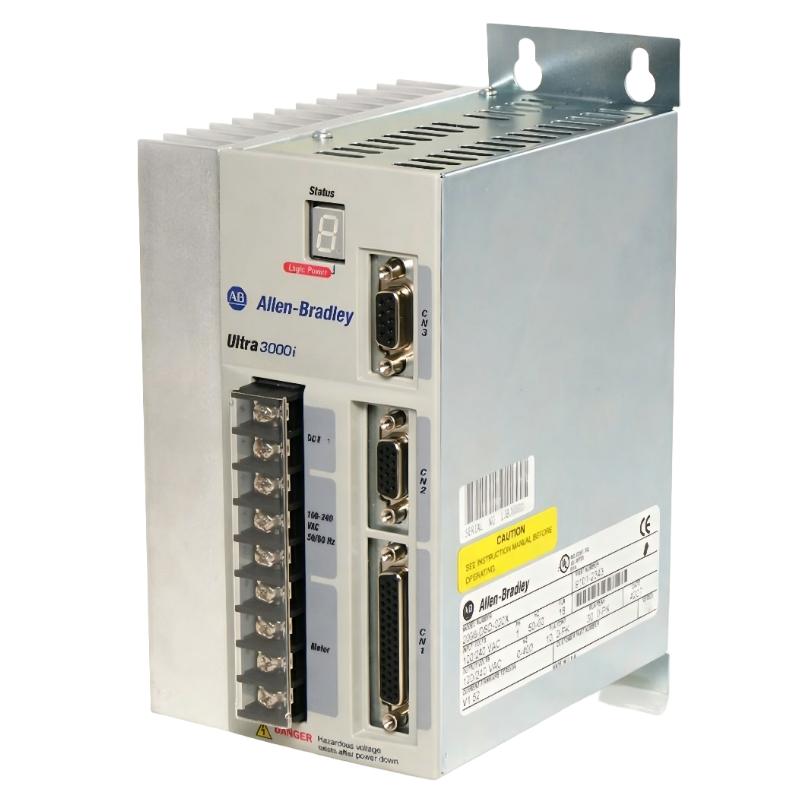

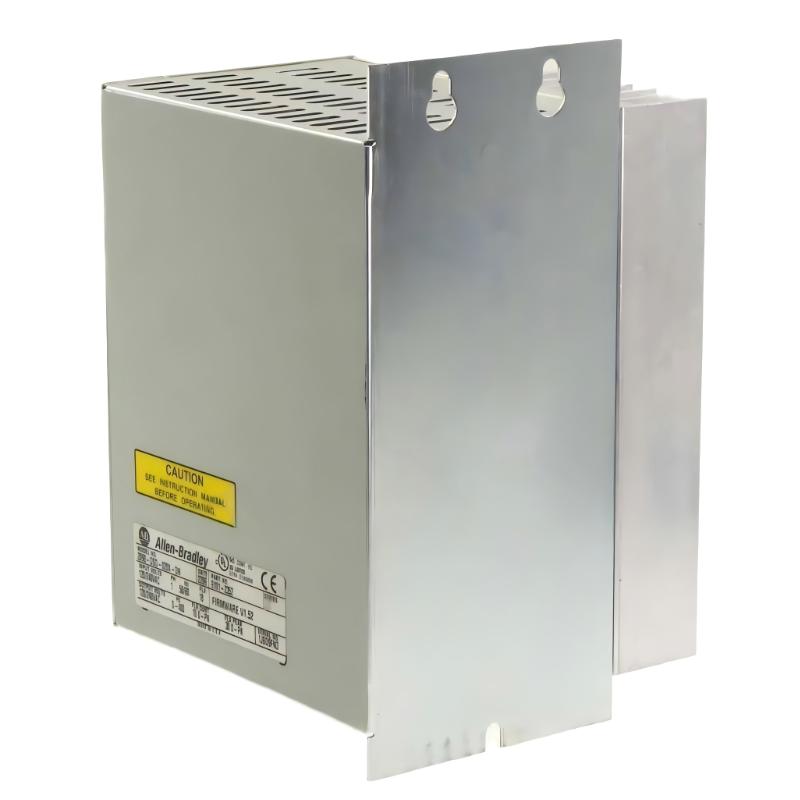

Q1: What is the main function of the Allen-Bradley 2098-DSD-020X Ultra3000i Digital Servo Driver?

A: The primary role of the Ultra3000i servo driver is to precisely control the operation of a servo motor in a closed-loop system. It receives motion commands from a controller, processes real-time feedback from an encoder, and continuously adjusts motor output to achieve accurate position, speed, and torque control. This makes it a critical component in achieving high-performance motion control in automated industrial systems where precision and stability are essential.

Q2: How does the Ultra3000i improve motion control performance compared to basic servo drives?

A: The Ultra3000i series is designed with enhanced processing capability and improved control algorithms, allowing faster response to feedback signals and more precise adjustment of motor behavior. This results in smoother motion, reduced overshoot, and better performance under rapidly changing load conditions. It also improves synchronization in multi-axis systems, making it more suitable for complex automation tasks.

Q3: What types of applications is this servo driver best suited for?

A: This servo driver is commonly used in high-precision industrial applications such as CNC machining, robotics, semiconductor equipment, packaging machinery, printing systems, and automated assembly lines. These environments require tight motion control, fast dynamic response, and high repeatability, all of which the Ultra3000i is designed to support effectively.

Q4: Why is closed-loop control important in this system?

A: Closed-loop control is essential because it allows the drive to continuously compare the commanded motion with actual motor performance using encoder feedback. Any deviation between the two is corrected in real time. This ensures that the motor follows the intended motion profile accurately, even when external disturbances such as load changes or mechanical friction occur. Without closed-loop control, precision and stability would be significantly reduced.

Q5: What control modes are available on this driver?

A: The Ultra3000i typically supports position, speed, and torque control modes. Position mode is used when precise positioning is required, such as in pick-and-place systems. Speed mode is ideal for continuous motion applications like conveyors, while torque mode is used when force control is important, such as in pressing or tensioning systems. Switching between these modes allows flexibility across different industrial tasks.

Q6: How does the driver ensure safe operation under fault conditions?

A: The drive includes multiple protection mechanisms such as overcurrent, overvoltage, undervoltage, and thermal protection. These systems constantly monitor operating conditions. If abnormal behavior is detected, the drive can immediately reduce output, trigger a shutdown, or enter a safe state to prevent damage to both the motor and the drive itself. This helps ensure long-term system reliability and operator safety.

Q7: What role does communication performance play in system efficiency?

A: Communication performance directly affects how quickly the drive can respond to control commands and feedback signals. High-speed communication reduces latency between the controller and drive, which is especially important in synchronized multi-axis systems. Better communication also improves trajectory accuracy, reduces jitter, and enhances overall motion coordination across complex machines.

Q8: What are the recommended maintenance practices for long-term stability?

A: Long-term stability depends on maintaining proper cooling, electrical integrity, and environmental cleanliness. It is important to ensure that cooling fans operate correctly and that airflow is not obstructed. Electrical terminals should be checked periodically for tightness and signs of heating. Dust accumulation inside control cabinets should be removed to prevent thermal issues. Additionally, monitoring system diagnostics regularly can help detect early warning signs of faults, allowing preventive maintenance before failures occur.
