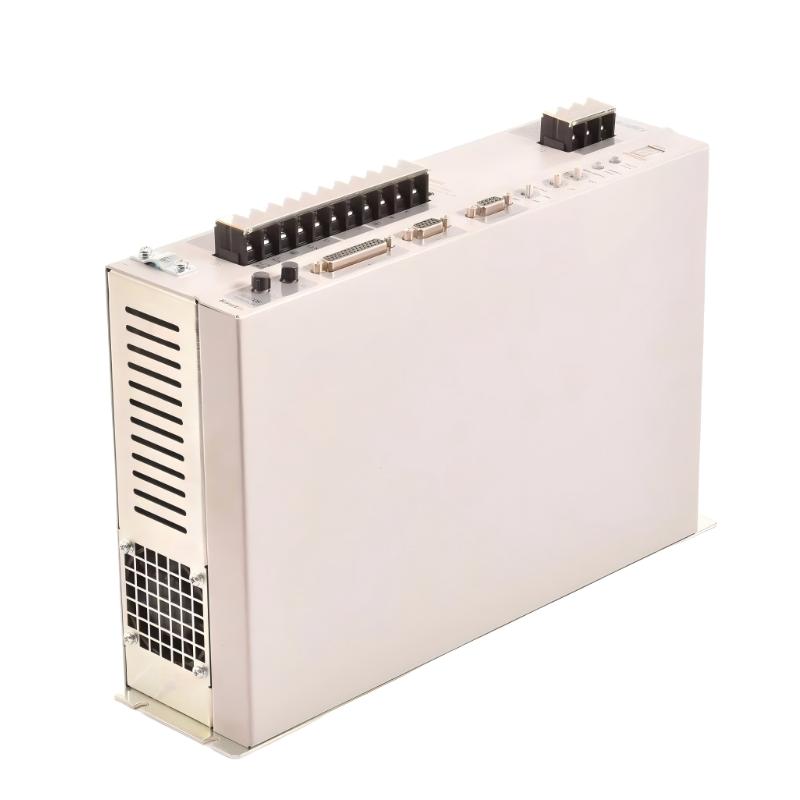

Q1: What is the primary function of the Allen-Bradley 2098-DSD-030-SE Ultra3000 Digital Servo Driver?

A: The 2098-DSD-030-SE is designed to provide precise motion control for servo motor systems. Its primary function is to regulate motor speed, position, and torque through closed-loop digital control. It continuously receives feedback from encoder systems and adjusts motor output in real time, ensuring highly accurate motion performance in industrial automation applications such as robotics, CNC machines, and packaging systems.

Q2: What control modes does this servo drive support?

A: The Ultra3000 servo drive supports multiple control modes including position control, velocity control, and torque control. These modes allow it to be used in a wide range of motion applications, from simple speed regulation to highly precise multi-axis positioning systems. The flexibility of these control modes makes it suitable for both standalone machines and complex coordinated motion systems.

Q3: How does the drive achieve precise motion control?

A: The drive uses a closed-loop control system that continuously monitors motor position and speed through encoder feedback. It compares actual motion data with commanded values and makes real-time adjustments to minimize error. This feedback-driven approach enables highly accurate positioning, smooth motion profiles, and stable performance even under changing load conditions.

Q4: What types of applications is the 2098-DSD-030-SE typically used in?

A: This servo driver is commonly used in industrial automation applications such as CNC machining centers, robotic arms, conveyor systems, packaging machinery, material handling systems, and automated assembly lines. These applications require precise motion coordination, repeatability, and high dynamic response, all of which are supported by this drive.

Q5: What protection features are included in this servo drive?

A: The drive includes multiple built-in protection mechanisms such as overcurrent protection, overvoltage protection, thermal protection, and fault detection systems. These safety features help prevent damage to both the drive and connected servo motors, ensuring stable and reliable operation even in demanding industrial environments.

Q6: How does the drive communicate with control systems?

A: The 2098-DSD-030-SE integrates with industrial control systems through motion control networks or fieldbus communication interfaces. This allows it to receive motion commands from PLCs or motion controllers and report real-time status information back to the control system for synchronization and monitoring purposes.

Q7: What maintenance practices are recommended for this servo drive?

A: Recommended maintenance includes periodic inspection of wiring connections, monitoring system diagnostic logs, checking cooling performance, and ensuring that the control cabinet environment remains clean and properly ventilated. Regular software diagnostics and parameter verification also help maintain optimal performance and prevent unexpected downtime.

Q8: What are the advantages of using the Ultra3000 servo drive series?

A: The Ultra3000 series offers high-performance motion control with excellent precision, fast dynamic response, and flexible configuration options. Its ability to support multiple control modes and advanced feedback systems makes it suitable for complex automation tasks. Combined with strong diagnostic capabilities and robust industrial design, it enhances machine productivity, reliability, and overall system efficiency.
