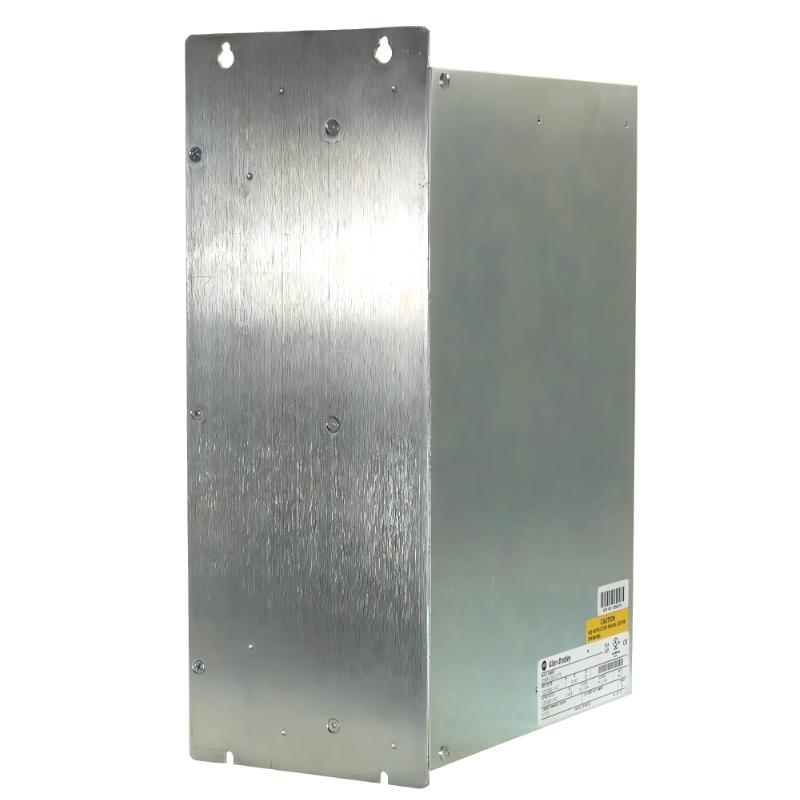

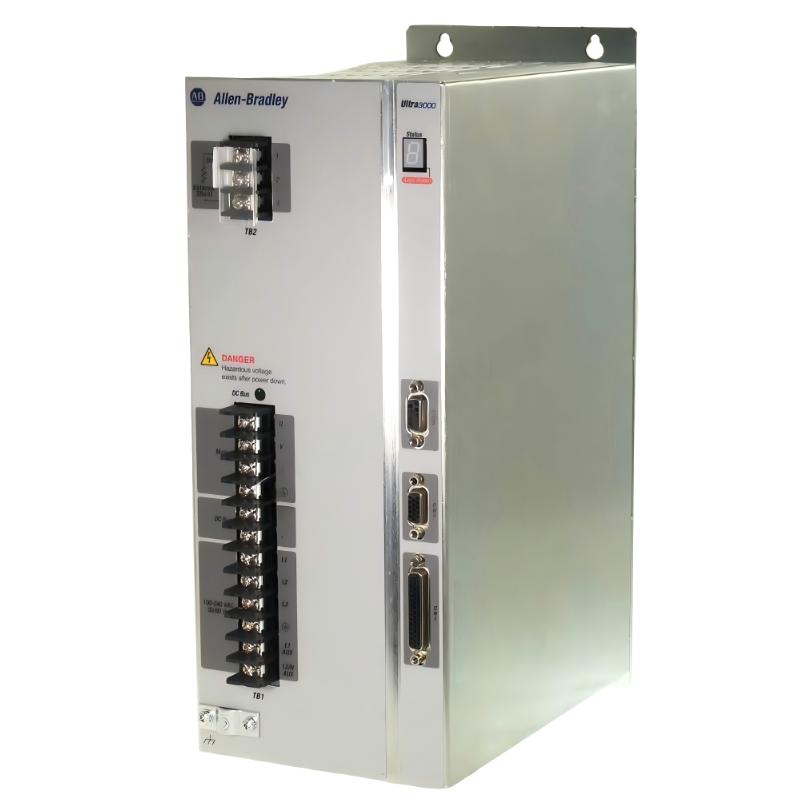

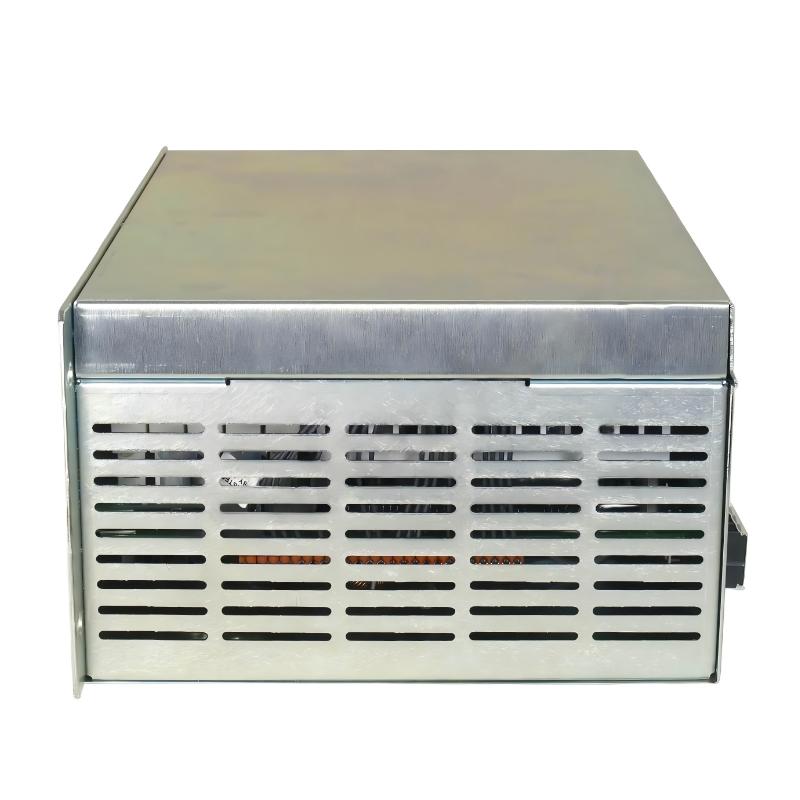

Q1: What is the main function of the Allen-Bradley 2098-DSD-075 Ultra3000 Digital Servo Driver?

A: The 2098-DSD-075 is designed to provide precise motion control for servo motor systems. Its main function is to regulate motor position, speed, and torque through a fully digital closed-loop control system. It continuously processes command signals from the motion controller while using encoder feedback from the motor to adjust output in real time. This ensures highly accurate, stable, and repeatable motion performance in demanding industrial applications.

Q2: What control modes does this servo drive support?

A: This drive supports three primary control modes: position control, speed control, and torque control. Position control is used for precise point-to-point motion, speed control is used for continuous movement applications, and torque control is typically used in force-related processes such as winding, pressing, or tension control systems.

Q3: How does the drive achieve high-precision motion control?

A: The drive uses a closed-loop digital control architecture that continuously compares commanded motion with actual motor feedback. Encoder signals provide real-time position and speed data, allowing the drive to instantly correct deviations. This results in smooth motion profiles, high positioning accuracy, and excellent dynamic response even under changing load conditions.

Q4: What industries commonly use the 2098-DSD-075 servo drive?

A: This servo drive is widely used in industrial automation applications such as CNC machining centers, robotics systems, packaging machines, automated assembly lines, material handling equipment, and semiconductor manufacturing systems. These industries require high precision, fast response, and reliable multi-axis motion coordination.

Q5: What protection features are built into this drive?

A: The drive includes multiple built-in protection mechanisms such as overcurrent protection, overvoltage protection, overtemperature protection, and fault detection. These features help protect both the drive and the connected servo motor from damage during abnormal operating conditions, improving overall system safety and reliability.

Q6: How does the servo drive communicate with control systems?

A: The 2098-DSD-075 communicates with PLCs or motion controllers through industrial motion control networks or fieldbus systems. This allows real-time exchange of motion commands and feedback data, enabling synchronized operation in multi-axis automation systems.

Q7: What maintenance practices are recommended for this servo drive?

A: Recommended maintenance includes checking wiring integrity, monitoring system alarms, verifying cooling performance, and ensuring stable cabinet environmental conditions. Periodic inspection of parameters and diagnostic logs is also important to detect early signs of wear or abnormal operation.

Q8: What are the key advantages of the Ultra3000 servo drive series?

A: The Ultra3000 series offers high dynamic response, precise motion control, and flexible multi-mode operation. Combined with strong diagnostic and protection capabilities, it delivers stable performance in complex automation environments. These advantages improve machine productivity, motion accuracy, and overall system reliability.
