1. What are the main electrical ratings of the 20BC105A0ANNANA0?

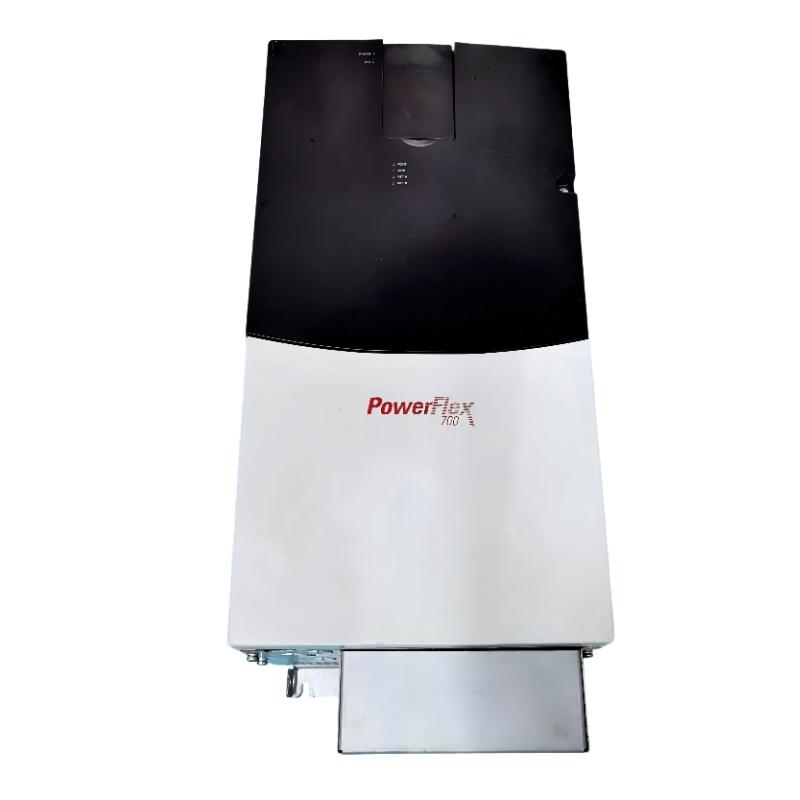

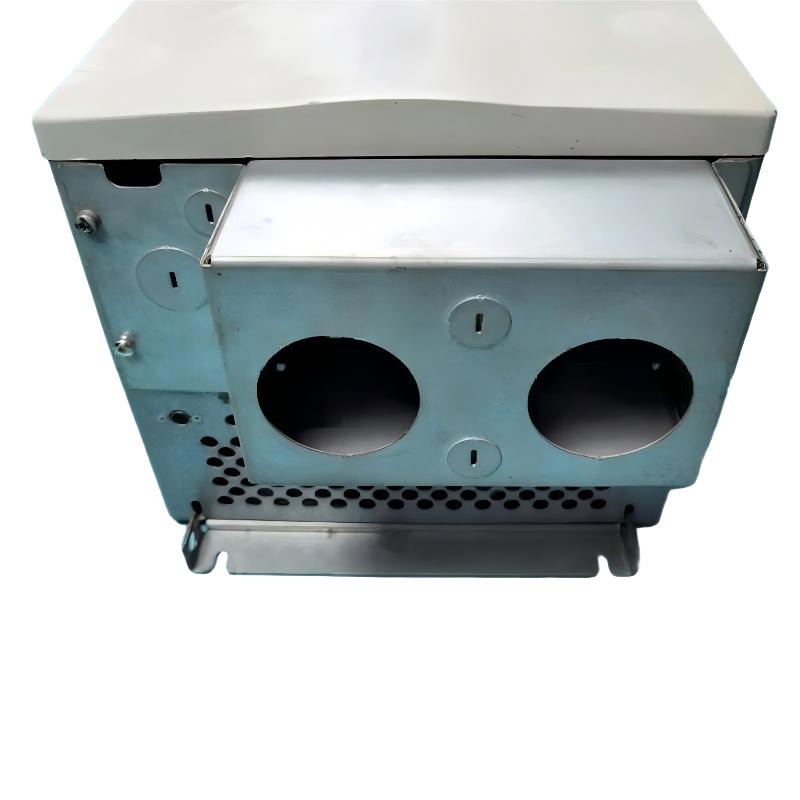

The 20BC105A0ANNANA0 is a PowerFlex 700 AC drive designed for three-phase industrial motor applications. It operates from a nominal 400 VAC supply within a 380–480 VAC input range and provides a rated output current of 105 A. The normal-duty power rating is 55 kW, while the heavy-duty rating is 45 kW. These ratings make the drive suitable for a wide range of medium-to-high-power industrial machinery where reliable speed and motor control are required. When selecting the drive for a specific motor, the motor’s full-load current should be compared with the drive’s applicable current rating rather than selecting the drive solely according to kW. The actual load profile, acceleration requirements, overload conditions, ambient temperature, and duty cycle should also be considered.

2. What type of motor applications can use the 20BC105A0ANNANA0?

The 20BC105A0ANNANA0 can be used for various three-phase AC motor applications, including conveyors, pumps, fans, compressors, material-handling equipment, processing machinery, and other industrial production systems. Its 105 A output capability provides sufficient capacity for applications requiring substantial motor power and controlled variable-speed operation. The drive can regulate motor speed and provide controlled acceleration and deceleration, which can reduce mechanical stress compared with direct-on-line starting. For applications with high inertia, frequent starting and stopping, or significant load variations, the motor’s rated current and the application’s overload requirements should be carefully evaluated before commissioning. Correct motor data entry and appropriate control parameters are also essential for stable operation.

3. Does the 20BC105A0ANNANA0 include an internal braking resistor or brake IGBT?

The 20BC105A0ANNANA0 does not include an internal brake IGBT and does not have a drive-mounted braking resistor. This configuration should therefore be evaluated carefully when it is intended for applications involving rapid deceleration or high-inertia loads. During deceleration, the motor can return mechanical energy to the drive’s DC bus, causing the DC-bus voltage to rise. If the regenerated energy becomes excessive, the drive may generate a DC-bus overvoltage fault. Applications involving frequent stopping, high-inertia machinery, or short deceleration times may require an external braking solution. The braking resistor and associated components should be sized according to the actual regenerative energy, deceleration time, braking frequency, and load inertia rather than simply using the motor’s rated power as the selection criterion.

4. What I/O capabilities are available on this PowerFlex 700 drive?

The 20BC105A0ANNANA0 uses a standard control configuration with 24V I/O. It provides six digital inputs, three digital outputs, two analog inputs, and two analog outputs. These interfaces allow the drive to be integrated with external control systems and industrial automation equipment without necessarily requiring a separate communication network for basic control functions. Digital inputs can be used for commands such as start, stop, forward, reverse, or external interlocks, while analog inputs can be used for speed references or process signals. Digital and analog outputs can provide operating status, frequency, current, speed, or other configured feedback signals. During installation, each I/O function should be verified against the control schematic and configured parameters to prevent unintended motor operation.

5. What communication protocols can be used with the 20BC105A0ANNANA0?

The PowerFlex 700 platform supports several industrial communication options, including DeviceNet, EtherNet/IP, PROFIBUS, Modbus, CAN, TCP/IP, and LON. However, the 20BC105A0ANNANA0 itself is specified without an internal communication module. Therefore, network integration may require the appropriate communication option or module depending on the control system being used. When connecting the drive to a PLC, DCS, SCADA system, or other automation controller, the communication hardware, protocol configuration, node or network address, baud rate where applicable, and drive parameter settings should all be checked. Correct communication configuration is particularly important for applications in which the PLC controls speed references, start/stop commands, drive status, or fault information.

6. What should be checked if the 20BC105A0ANNANA0 develops an overcurrent fault?

An overcurrent fault should be investigated by checking both the electrical system and the connected mechanical equipment. If the fault occurs during acceleration, the acceleration time may be too short for the motor and load, particularly if the machine has significant inertia. Increasing the acceleration time can reduce the current demand during startup. If the fault occurs while the motor is already running, check for mechanical overload, blocked machinery, excessive friction, damaged bearings, or sudden changes in the process load. The motor cable should also be inspected for phase-to-phase shorts, grounding problems, damaged insulation, or incorrect wiring. Motor nameplate parameters should be compared with the parameters entered into the drive. If the fault continues after these checks, the motor, output circuit, and drive power section should be examined in greater detail rather than repeatedly resetting the fault.

7. What are the common causes of overvoltage faults during motor deceleration?

Overvoltage faults during deceleration are often caused by regenerative energy returning from the motor to the drive. When a high-inertia load is decelerated, the motor can act as a generator and transfer mechanical energy back into the drive’s DC bus. If the deceleration time is too short, the regenerated energy may cause the DC-bus voltage to rise beyond the permissible limit. Frequent braking cycles and rapidly changing loads can make the condition more severe. The incoming AC supply should also be checked to ensure that the line voltage is within the expected range. Troubleshooting should include reviewing the acceleration and deceleration parameters, examining the load inertia, checking the machine’s operating cycle, and measuring the incoming power. If rapid and repeated deceleration is a normal part of the process, an appropriately engineered external braking system may be required.

8. What maintenance is recommended for reliable operation of the 20BC105A0ANNANA0?

Regular preventive maintenance should focus on cooling, electrical connections, environmental conditions, and drive diagnostics. The ventilation path should be inspected periodically to ensure that dust and other contaminants are not restricting airflow. Cooling components should be checked for abnormal noise, reduced airflow, or signs of deterioration. Input and output power terminals, motor cables, grounding connections, and control wiring should also be inspected because vibration and repeated thermal cycling can gradually loosen electrical connections. The installation environment should remain within the specified temperature and humidity limits, while excessive dust, moisture, conductive contamination, and corrosive substances should be avoided. It is also advisable to review the drive’s fault history during scheduled maintenance. Repeated overcurrent, overvoltage, overtemperature, or communication faults can indicate an underlying problem with the motor, mechanical load, electrical installation, cooling system, or drive configuration and should be investigated before they lead to unexpected downtime.
