1. What are the main electrical specifications of the 20BC105A0ANNANC0?

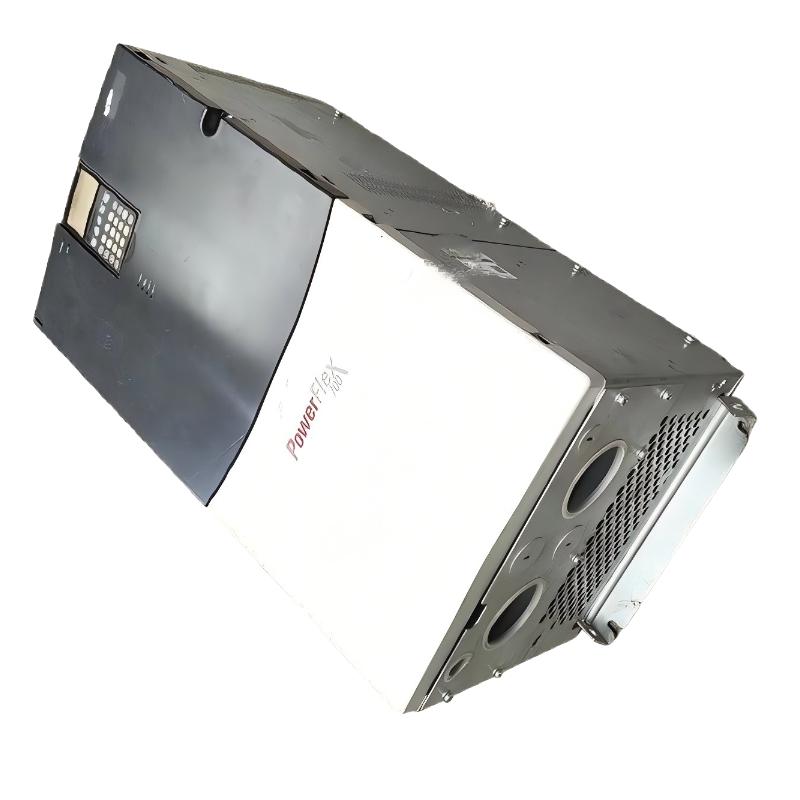

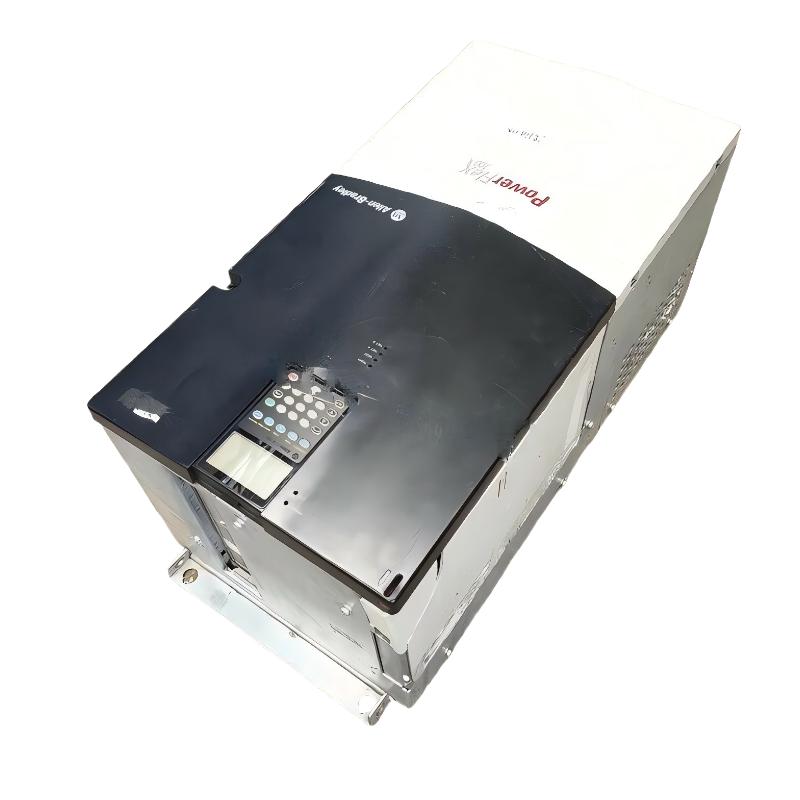

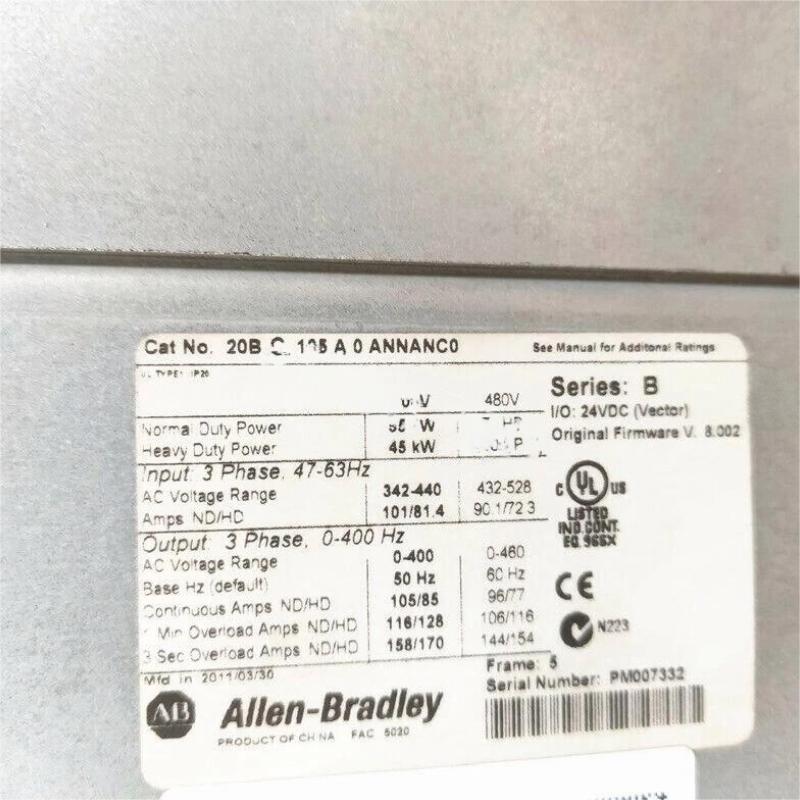

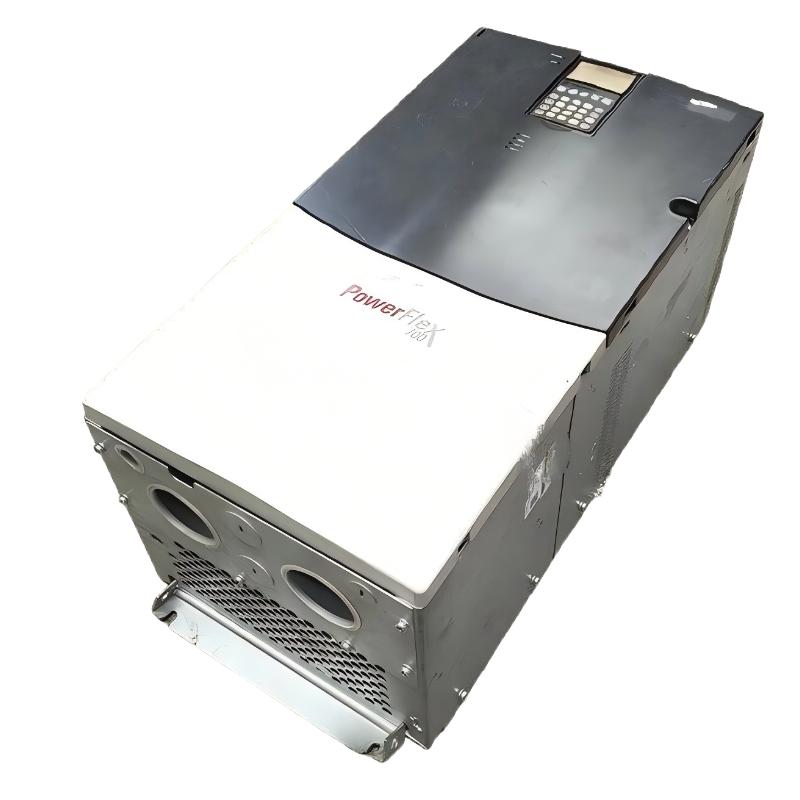

The 20BC105A0ANNANC0 is a PowerFlex 700 AC Drive designed for three-phase industrial motor applications. It has a nominal input voltage of 400 VAC and is suitable for the 380–480 VAC drive voltage range. The drive provides a rated output current of 105 A, with a normal-duty power rating of 55 kW and a heavy-duty power rating of 45 kW. The maximum output frequency is 420 Hz, allowing the drive to support a broad range of variable-speed motor applications. When selecting this drive for a specific motor, the motor’s rated current should be checked first, followed by the required overload capability, operating duty, acceleration requirements, load characteristics, and ambient conditions.

2. What types of industrial applications are suitable for the 20BC105A0ANNANC0?

The 20BC105A0ANNANC0 is suitable for a wide range of industrial variable-speed applications where accurate and controlled three-phase motor operation is required. Typical applications can include conveyors, pumps, fans, compressors, material-handling systems, production machinery, process equipment, and other medium-to-high-power motor-driven equipment. The drive can provide controlled acceleration and deceleration, helping reduce mechanical shock during starting and stopping. For applications involving high-inertia loads, frequent starts and stops, rapid speed changes, or significant torque requirements, the drive should be selected according to the actual motor current and load duty rather than only the nominal motor power. Proper parameter configuration is also important for achieving stable motor performance.

3. Does the 20BC105A0ANNANC0 have an internal brake resistor or brake IGBT?

The 20BC105A0ANNANC0 is configured without a brake IGBT and without an internal drive-mounted brake resistor. This configuration is important to consider when the drive is used on machinery with high rotational inertia or applications requiring frequent and rapid deceleration. During deceleration, the motor can return mechanical energy to the drive’s DC bus, causing the DC-bus voltage to increase. If the regenerated energy becomes excessive, the drive can generate a DC-bus overvoltage fault. For applications requiring short stopping times or repeated braking, an external braking solution may be required. The braking components should be selected according to the actual load inertia, deceleration time, braking frequency, and regenerated energy rather than being selected only from the motor’s kW rating.

4. What I/O functions are available on the 20BC105A0ANNANC0?

The 20BC105A0ANNANC0 uses a standard control configuration with 24V I/O. It provides six digital inputs, three digital outputs, two analog inputs, and two analog outputs. These interfaces can be used for common industrial control functions such as start and stop commands, forward and reverse commands, external interlocks, speed references, operating status, fault indication, and process feedback. Analog inputs can be used for external speed or process references, while analog outputs can provide selected drive operating information to a PLC, controller, meter, or other automation equipment. Before commissioning, every control terminal should be checked against the electrical schematic and configured parameters to ensure that the actual I/O behavior matches the control system requirements.

5. Can the 20BC105A0ANNANC0 be integrated into a PLC or industrial automation network?

Yes. The PowerFlex 700 platform supports a range of industrial communication options, including CAN, DeviceNet, EtherNet/IP, LON, Modbus, PROFIBUS, and TCP/IP. However, the 20BC105A0ANNANC0 configuration does not include an internal communication module. If network control is required, the appropriate communication option must be selected according to the PLC, DCS, SCADA system, or industrial network being used. During commissioning, the communication address, network parameters, drive command configuration, speed reference source, status feedback, and fault information should all be verified. For a PLC-controlled system, it is particularly important to confirm that the PLC command word and reference values correspond correctly to the drive’s configured parameters.

6. What should be checked if an overcurrent fault occurs during operation?

When an overcurrent fault occurs, the troubleshooting process should first identify when the fault appears. If the fault occurs during startup or acceleration, the acceleration time may be too short for the mechanical load. Increasing the acceleration time can reduce the instantaneous torque and current demand, especially on high-inertia equipment. If the fault occurs during continuous operation, inspect the driven machinery for excessive friction, mechanical blockage, overloaded components, bearing problems, or sudden changes in the process load. The motor output cables should also be checked for phase-to-phase shorts, ground faults, insulation damage, or incorrect wiring. In addition, verify the motor nameplate information entered into the drive, including voltage, current, frequency, and other applicable motor parameters. If the problem continues after these checks, the motor and drive output power section should be examined more thoroughly.

7. What can cause a DC-bus overvoltage fault on the 20BC105A0ANNANC0?

A DC-bus overvoltage fault is commonly caused by excessive regenerative energy during motor deceleration. When a high-inertia machine is decelerated, the motor can return energy to the drive, increasing the voltage on the internal DC bus. If the deceleration time is too short, or if the machine repeatedly accelerates and decelerates, the amount of regenerated energy can become significant enough to trigger an overvoltage protection fault. Excessive incoming AC voltage can also contribute to this condition and should be checked during troubleshooting. The acceleration and deceleration settings, load inertia, operating cycle, and incoming power should therefore be evaluated together. If rapid braking is a normal requirement of the machine, an appropriately sized external braking system may be necessary to manage the regenerated energy.

8. What maintenance is recommended for reliable long-term operation?

Regular preventive maintenance should concentrate on the cooling system, power connections, control wiring, operating environment, and fault history. The ventilation path should be inspected and cleaned periodically so that dust and contamination do not restrict airflow around the drive. Cooling components should be checked for abnormal noise, reduced airflow, or other signs of deterioration. Input terminals, output terminals, motor cables, grounding connections, and control wiring should also be inspected because vibration and repeated thermal cycling can gradually loosen electrical connections. The installation environment should remain within the specified temperature and humidity limits and should be protected from excessive dust, moisture, conductive contamination, and corrosive substances. Fault history should also be reviewed during scheduled maintenance. Repeated overcurrent, overvoltage, overtemperature, or communication faults may indicate an underlying issue with the motor, mechanical load, electrical system, cooling conditions, or drive configuration and should be investigated before they cause unexpected equipment downtime.
