1. What are the rated output current and power ratings of the 20BC105A3ANNANC0?

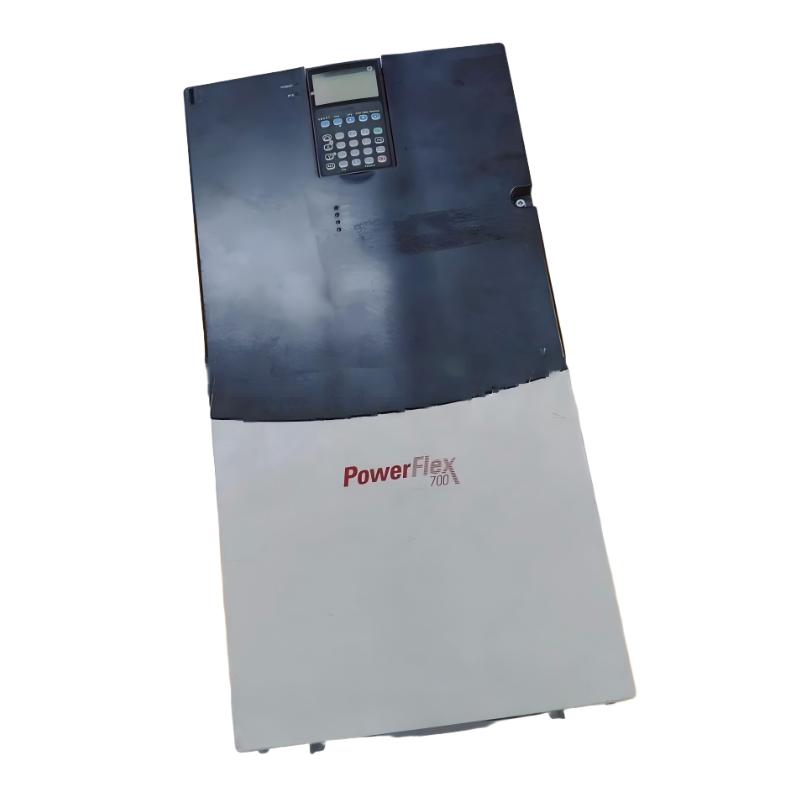

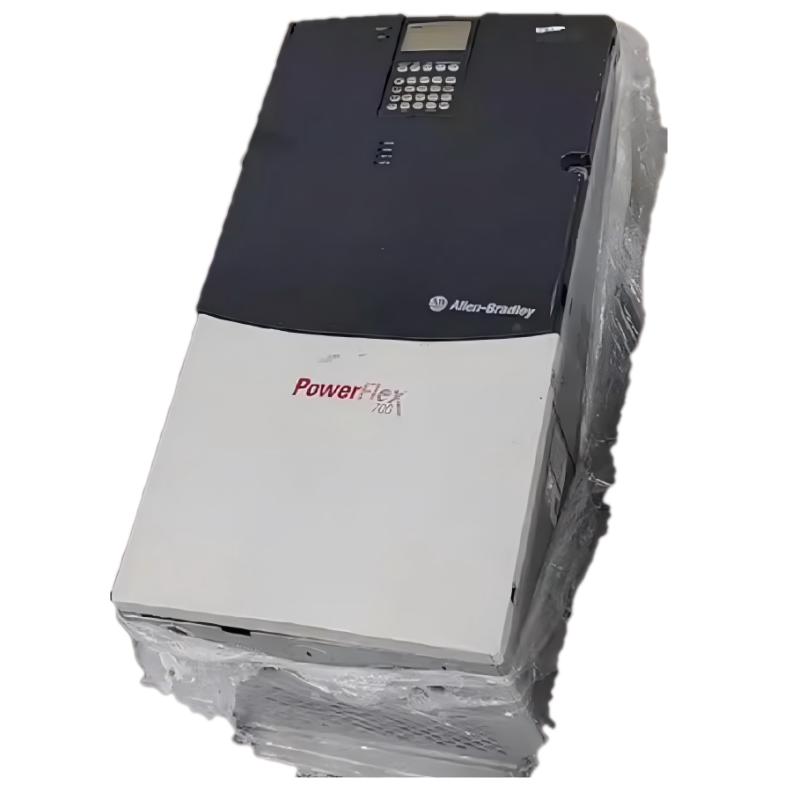

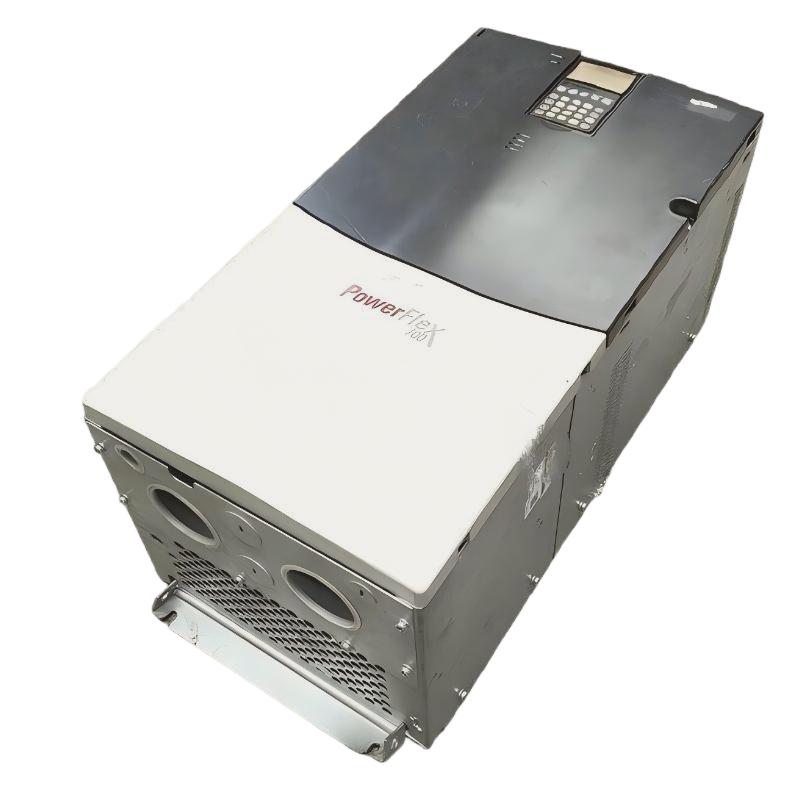

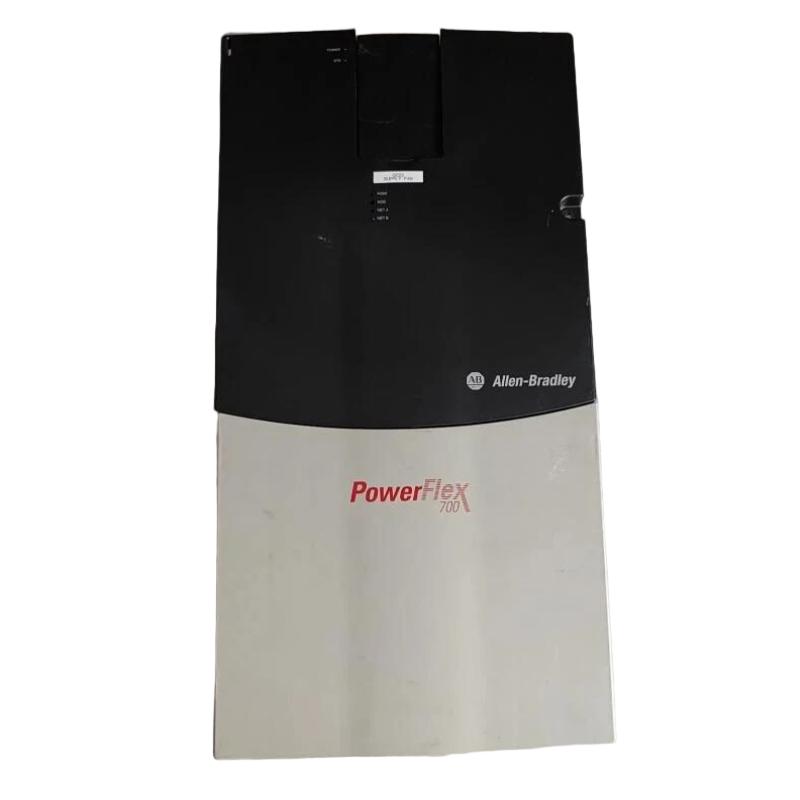

The 20BC105A3ANNANC0 is an Allen-Bradley PowerFlex 700 AC drive with a rated output current of 105 A. It has a normal-duty power rating of 55 kW and a heavy-duty power rating of 45 kW, making it suitable for a variety of medium- to high-power three-phase motor applications. Typical applications include conveyors, pumps, fans, compressors, material-handling equipment, and industrial production machinery. When selecting the drive for a motor, the motor nameplate current should be used as the primary sizing reference. Load torque, starting requirements, acceleration and deceleration times, operating cycle, and overload conditions should also be evaluated to ensure the drive has sufficient capacity for the actual application.

2. What input power supply is required for the 20BC105A3ANNANC0?

The 20BC105A3ANNANC0 uses a three-phase AC input with a rated voltage of 400 VAC and an input voltage range of 380–480 VAC. The rated input frequency is 50 Hz. Before installation, the incoming supply should be measured to confirm that the voltage is within the permitted range and that the three phases are properly balanced. Suitable upstream circuit protection, disconnect equipment, power cables, and grounding should be selected according to the installation requirements. If the industrial power system experiences significant voltage fluctuations or phase imbalance, the supply should be evaluated before commissioning because abnormal input conditions can contribute to undervoltage, overvoltage, overheating, or other protective faults.

3. What industrial applications are suitable for the 20BC105A3ANNANC0?

The 20BC105A3ANNANC0 is suitable for a broad range of three-phase AC motor applications requiring adjustable-speed control. Typical applications include conveyors, pumps, fans, compressors, material-handling systems, processing machinery, and automated production equipment. Its vector control method provides controlled motor speed and torque performance and can be useful where stable operation is required across different load conditions. For high-inertia equipment, acceleration and deceleration parameters should be selected according to the mechanical characteristics of the machine. Applications involving frequent starts and stops, rapid speed changes, or continuous high loading should also be evaluated for motor current, duty cycle, thermal load, and braking requirements.

4. Does the 20BC105A3ANNANC0 include an internal communication module?

The 20BC105A3ANNANC0 does not include an internal communication module in this configuration. The PowerFlex 700 platform supports communication options such as DeviceNet, EtherNet/IP, PROFIBUS, Modbus, CAN, LON, and TCP/IP through appropriate communication hardware. If the drive needs to be connected to a PLC, DCS, or SCADA system, the required communication option should be selected according to the existing automation network. During commissioning, the communication address, network settings, command source, speed reference source, and data mapping should all be verified. If the PLC can detect the drive but cannot control the motor, the drive’s command source, reference source, enable conditions, and control-word settings should be checked in addition to the physical network connection.

5. Does the 20BC105A3ANNANC0 include a brake IGBT or internal braking resistor?

The 20BC105A3ANNANC0 does not include a brake IGBT or an internal braking resistor. This is an important consideration for applications involving high-inertia loads, rapid deceleration, or frequent stopping. During deceleration, a motor can enter a regenerative operating condition and return mechanical energy to the drive’s DC bus. This can cause the DC-bus voltage to rise and potentially trigger a DC-bus overvoltage fault if the regenerated energy becomes excessive. Applications such as high-inertia conveyors, lifting equipment, centrifuges, and frequently cycling machinery should therefore be evaluated for braking requirements. An external braking solution may be required based on load inertia, deceleration time, braking frequency, and the amount of regenerative energy produced.

6. How should an overcurrent fault on the 20BC105A3ANNANC0 be diagnosed?

The troubleshooting process should begin by determining exactly when the overcurrent fault occurs. If it mainly occurs during startup or acceleration, check whether the acceleration time is too short for the connected load. High-inertia machinery requires greater torque during acceleration, and an excessively aggressive acceleration ramp can cause the motor current to rise rapidly. If the fault occurs during normal operation, inspect the mechanical system for excessive loading, mechanical blockage, bearing problems, abnormal friction, or sudden process-load changes. The motor output cables should also be inspected for phase-to-phase shorts, ground faults, insulation damage, or incorrect connections. The motor nameplate parameters entered into the drive should be verified as well. If the mechanical system, wiring, and parameters are correct but the fault continues, the motor and drive output power section should be examined further.

7. What are the main causes of a DC-bus overvoltage fault on the 20BC105A3ANNANC0?

A DC-bus overvoltage fault is commonly caused by excessive regenerative energy during motor deceleration. When a high-inertia load slows down rapidly, the motor can temporarily operate as a generator and return mechanical energy to the drive. This regenerative energy raises the DC-bus voltage. A deceleration time that is too short or frequent acceleration and deceleration cycles can increase the amount of regenerated energy significantly. The incoming AC supply should also be checked to ensure that the line voltage is within the permitted range. Increasing the deceleration time can reduce regenerative stress. If the production process requires rapid stopping and the deceleration time cannot be increased, the regenerated energy should be evaluated and an appropriate external braking solution considered.

8. What maintenance is recommended for the 20BC105A3ANNANC0?

Routine maintenance should focus on the cooling system, electrical connections, installation environment, and drive fault history. Ventilation passages should be inspected and cleaned regularly to prevent dust and other contaminants from restricting airflow and increasing internal temperatures. Cooling components should also be checked for abnormal noise, reduced airflow, or unstable operation. Input terminals, output terminals, motor cables, grounding connections, and control wiring should be inspected periodically because vibration and thermal cycling can cause electrical connections to loosen over time. The operating environment should remain within the specified temperature and humidity limits, while excessive moisture, conductive dust, and corrosive substances should be avoided. The stored fault history should also be reviewed during scheduled maintenance. Repeated overcurrent, overvoltage, overtemperature, or communication faults should be investigated together with the motor, mechanical load, power supply, cooling system, and drive parameters to reduce recurring failures and unplanned downtime.
