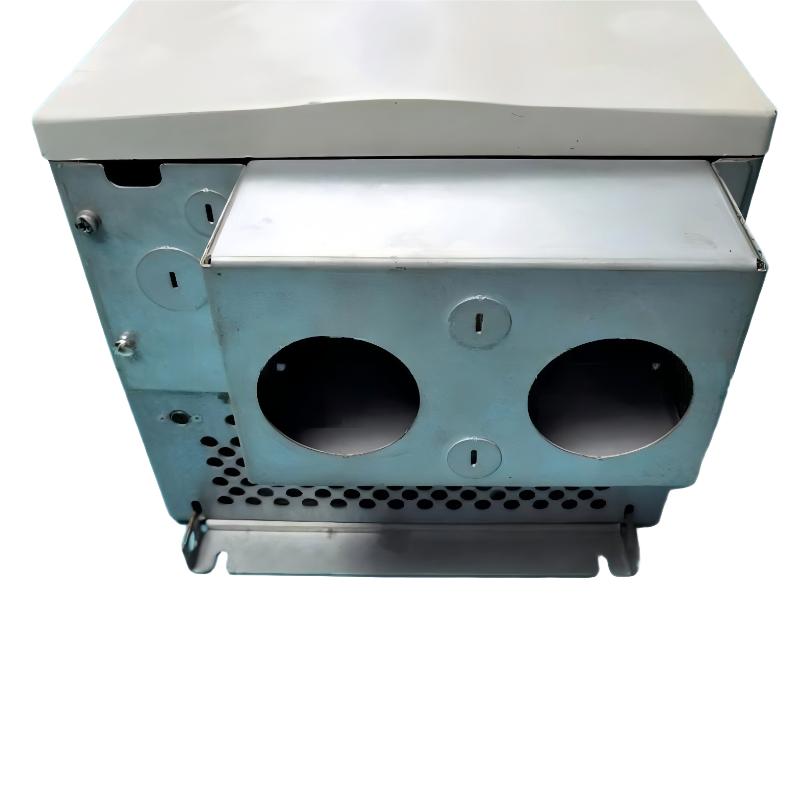

1. What are the rated input and output capabilities of the 20BC105A3ANNAND0?

The 20BC105A3ANNAND0 is designed for three-phase AC power applications within a 380–480 VAC input range, with a nominal input voltage of 400 VAC. It provides a rated output current of 105 A and is suitable for applications requiring substantial motor power. The drive is typically applied to industrial motors where controlled acceleration, deceleration, speed regulation, and reliable continuous operation are required. When selecting this drive, the motor nameplate current should be compared with the drive output rating, while also considering the actual load profile, starting torque, acceleration requirements, and duty cycle.

2. What control method does the 20BC105A3ANNAND0 use?

The 20BC105A3ANNAND0 uses vector control technology to provide improved motor speed and torque regulation compared with basic volts-per-hertz control. Vector control can be useful for industrial machinery that requires more stable motor operation during changing load conditions. Correct motor data must be entered into the drive during commissioning so that the control algorithm can operate correctly. Depending on the application, parameters related to motor identification, acceleration, deceleration, current limits, and speed references should be configured according to the motor and mechanical load.

3. Does the 20BC105A3ANNAND0 have an internal braking resistor?

The 20BC105A3ANNAND0 does not include an internal braking resistor, and the specified configuration does not include a Brake IGBT. This is important for applications involving high-inertia loads or frequent deceleration because the motor can return energy to the drive during braking. The resulting increase in DC bus voltage may cause an overvoltage fault if the regenerative energy is not properly managed. For applications requiring rapid stopping or frequent braking, the complete braking solution should therefore be evaluated during system design rather than relying only on standard deceleration settings.

4. What I/O capabilities are available on the 20BC105A3ANNAND0?

The 20BC105A3ANNAND0 provides multiple analog and digital I/O points for integration with industrial control systems. The configuration includes two analog inputs, two analog outputs, six digital inputs, and three digital outputs. These I/O points can be used for functions such as speed references, start and stop commands, fault reset, operating status, and other control signals. During installation, the signal voltage, common terminals, wiring arrangement, and parameter assignments should be checked carefully. Proper signal separation and grounding are also recommended when analog signals are used in electrically noisy industrial environments.

5. Can the 20BC105A3ANNAND0 be integrated with a PLC or DCS system?

Yes. The drive can be integrated into a PLC or DCS-based control system using its available I/O and compatible communication options. The exact communication capability depends on the hardware configuration and any communication adapter installed in the drive. For a hardwired control system, digital inputs and outputs can be assigned to run commands, fault signals, status signals, and other control functions, while analog I/O can be used for speed or process references. For network-based control, the installed communication interface must be identified before configuring the PLC or DCS data mapping.

6. What should be checked if the 20BC105A3ANNAND0 trips on an overcurrent or overload fault?

The first step is to determine when the fault occurs. If overcurrent occurs during startup or acceleration, check whether the acceleration time is too short and whether the connected machine requires excessive starting torque. If the fault occurs during normal operation, inspect the motor, mechanical transmission, bearings, coupling, and driven equipment for abnormal resistance or mechanical blockage. Motor nameplate parameters should also be verified against the values programmed in the drive. Motor wiring, phase connections, and insulation condition should be checked if the fault remains after mechanical causes have been eliminated. Increasing protection limits without identifying the underlying cause is generally not an appropriate troubleshooting method.

7. What can cause a DC bus overvoltage fault on the 20BC105A3ANNAND0?

A DC bus overvoltage condition can occur when the motor regenerates energy during deceleration and the returned energy causes the DC bus voltage to rise. This is particularly common with high-inertia machinery, short deceleration times, or applications involving frequent starting and stopping. Troubleshooting should begin by checking whether the fault occurs specifically during deceleration. The programmed deceleration time can then be evaluated and adjusted where appropriate. If the machine inherently produces substantial regenerative energy, a suitable braking or regenerative energy management solution may be required instead of simply changing the drive parameters.

8. What should be considered when operating the 20BC105A3ANNAND0 in a high-temperature environment?

The drive can operate in environments with temperatures up to approximately 50°C under specified conditions, but adequate cabinet ventilation and heat dissipation remain important. Power electronics generate heat during operation, and insufficient airflow can cause internal temperatures to rise significantly. The installation should provide unobstructed cooling airflow and should prevent nearby heat-generating equipment from unnecessarily increasing the ambient temperature around the drive. In continuous-duty applications, especially those operating at high load, the cooling fan, ventilation passages, and cabinet interior should be inspected periodically. Excessive dust accumulation or restricted airflow can reduce cooling efficiency and negatively affect long-term drive reliability.
