Technical Specifications

FAQ

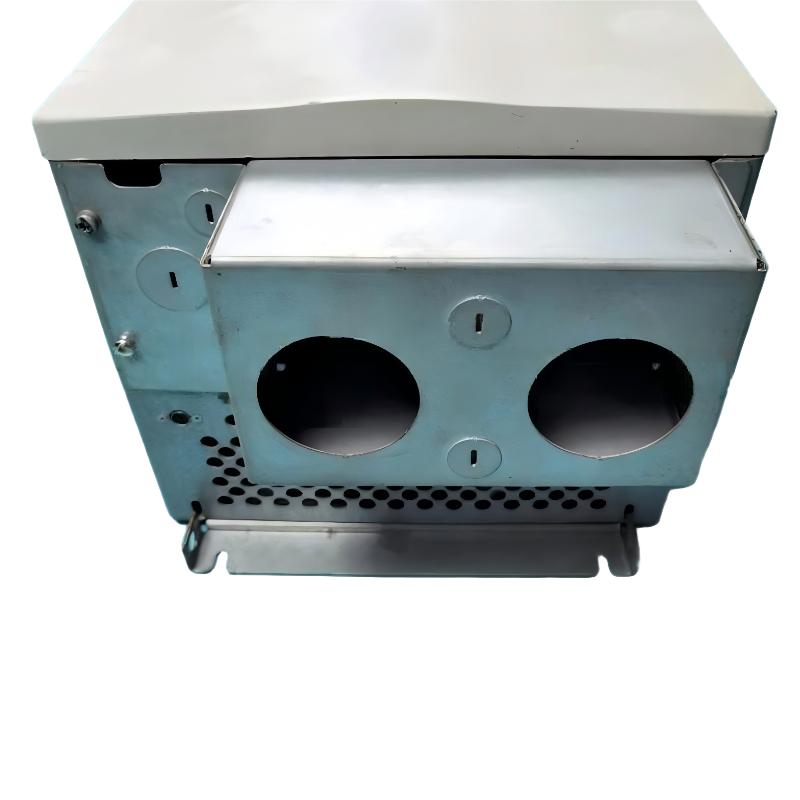

1. What is the rated output current of the 20BC125A0ANNANA0?

The 20BC125A0ANNANA0 has a rated output current of 125 A and is designed for high-power three-phase AC motor applications. The actual motor selection should be based primarily on the motor full-load current rather than only the motor horsepower or kilowatt rating. When the drive is used with applications involving high starting torque, frequent acceleration, or significant load variations, the applicable duty rating should also be considered. Properly matching the motor current to the drive rating helps prevent nuisance overload and overcurrent trips during normal operation.

2. What type of motor control does the 20BC125A0ANNANA0 support?

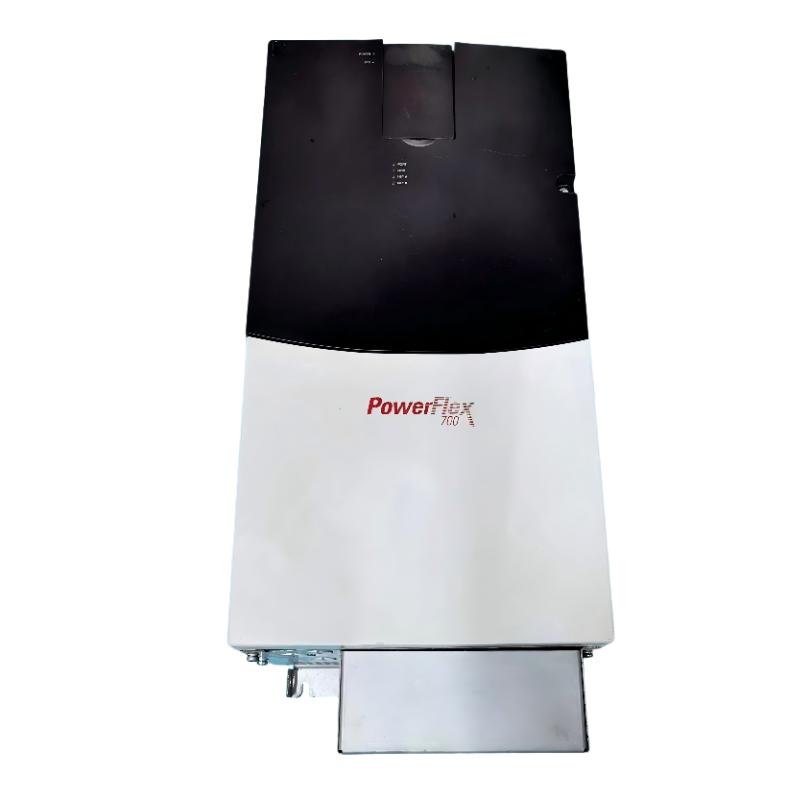

The 20BC125A0ANNANA0 is part of the PowerFlex 700 family and supports advanced motor control suitable for industrial variable-speed applications. Vector-based control can provide better speed and torque regulation than basic scalar control, particularly when the motor load changes during operation. During commissioning, important motor nameplate information such as rated voltage, current, frequency, speed, and power factor should be entered correctly. Incorrect motor data can affect acceleration performance, current regulation, and overall drive stability.

3. What should be checked when the 20BC125A0ANNANA0 reports an overcurrent fault?

An overcurrent fault should first be investigated from both the electrical and mechanical sides of the system. Check whether the motor is mechanically jammed, overloaded, or experiencing excessive friction. Motor cables and terminal connections should also be inspected for loose connections, incorrect phase wiring, or insulation problems. If the fault occurs during acceleration, the acceleration time may be too short for the connected load. Motor parameters programmed into the drive should also be compared with the actual motor nameplate data. Repeated overcurrent faults should not be resolved simply by increasing protection limits without identifying the underlying cause.

4. How can a 20BC125A0ANNANA0 be integrated into a PLC control system?

The drive can be integrated into a PLC-based automation system through its available control I/O and, depending on the installed configuration, through an appropriate communication interface. Hardwired control can be used for functions such as start, stop, direction, speed reference, fault reset, and drive status. Analog signals can provide speed or process references, while digital signals can communicate operating conditions and fault states. For networked control, the communication adapter, protocol, node configuration, and PLC data mapping must be confirmed before commissioning. Proper parameter assignment inside the drive is also required so that the external PLC commands perform the intended functions.

5. Does the 20BC125A0ANNANA0 include an internal braking resistor?

The 20BC125A0ANNANA0 configuration does not include an internal braking resistor. This should be considered carefully when the drive is applied to machinery with high inertia or frequent rapid deceleration. During deceleration, the motor can operate as a generator and return energy to the drive’s DC bus. If the regenerated energy becomes excessive, the DC bus voltage can rise and cause an overvoltage fault. Applications requiring rapid stopping should therefore be evaluated for an external braking solution or another suitable method of handling regenerative energy.

6. What can cause the 20BC125A0ANNANA0 to trip on DC bus overvoltage?

DC bus overvoltage is commonly associated with regenerative energy generated by the motor during deceleration. Typical conditions include excessive load inertia, a deceleration time that is too short, or repeated acceleration and braking cycles. Troubleshooting should begin by checking whether the fault consistently occurs during deceleration. If so, the programmed deceleration time should be reviewed and adjusted according to the machine requirements. If a longer deceleration time cannot meet the production requirements, the system may require an appropriate braking or regenerative energy management solution. The incoming supply voltage should also be checked to ensure that abnormal line conditions are not contributing to the fault.

7. What maintenance is recommended for the 20BC125A0ANNANA0?

Routine maintenance should focus on cooling, electrical connections, environmental conditions, and fault history. The ventilation passages and cooling components should be kept free from excessive dust and contamination because restricted airflow can increase internal operating temperatures. Power and control terminals should be inspected periodically for signs of loose connections, overheating, or corrosion. The motor cables should also be checked for insulation damage and abnormal heating. Reviewing the drive’s fault history can help identify recurring operating problems before they develop into more serious failures. Maintenance intervals should be determined according to operating hours, environmental conditions, load level, and application requirements.

8. What precautions should be taken when commissioning the 20BC125A0ANNANA0?

Before commissioning, verify the incoming power supply, motor wiring, grounding, control wiring, and protective devices. The motor nameplate information should be entered accurately into the drive parameters, and the selected control mode should match the requirements of the application. Before running the motor under load, it is advisable to perform an initial test at low speed and confirm the correct motor rotation direction. Acceleration and deceleration parameters should then be adjusted according to the mechanical characteristics of the machine. If the drive is controlled by a PLC or other automation controller, the start/stop logic, speed reference, fault handling, and feedback signals should be tested individually to ensure reliable system operation.
