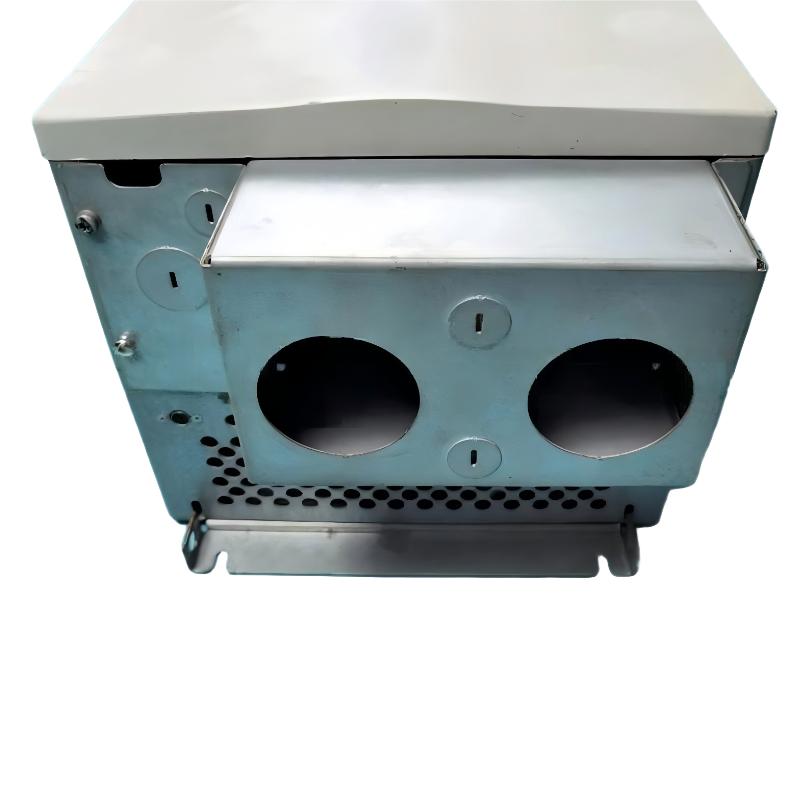

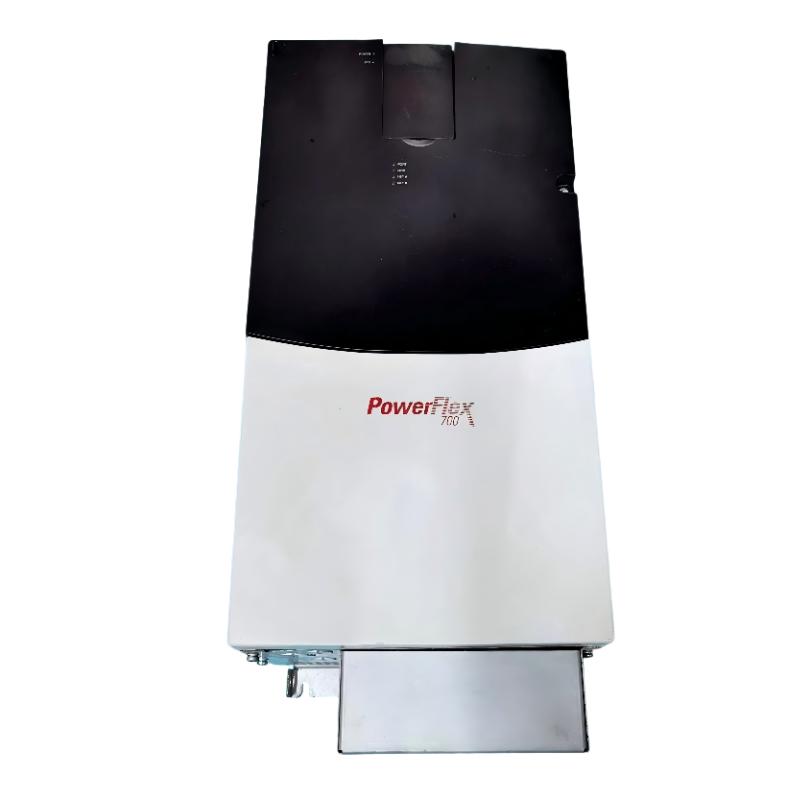

Technical Specifications

FAQ

1. What is the rated output current of the 20BC140A3ANNACC0?

The 20BC140A3ANNACC0 has a rated output current of 140 A and is designed for three-phase AC motor speed control. It provides a normal-duty rating of 75 kW and a heavy-duty rating of 55 kW. When selecting the drive for a motor application, the motor nameplate current should be compared with the drive output current. The actual load characteristics should also be considered, including starting torque, acceleration requirements, load fluctuations, and continuous operating conditions. Correct sizing helps maintain stable operation and reduces the possibility of overload protection during demanding operating cycles.

2. What input power supply is required for the 20BC140A3ANNACC0?

The drive is designed for a three-phase 380–480 VAC input supply, with 400 VAC as the nominal input voltage and 50 Hz as the input frequency. The incoming power should remain within the specified voltage tolerance and should be connected through appropriately rated protection equipment. Power cables, circuit breakers or fuses, disconnecting devices, and grounding conductors should be selected according to the actual installation requirements. In industrial facilities where voltage fluctuations or electrical disturbances are present, the incoming power quality should be checked before commissioning to improve drive reliability.

3. What communication capability does the 20BC140A3ANNACC0 provide?

The 20BC140A3ANNACC0 configuration includes a ControlNet coaxial internal communication module. This allows the drive to exchange control commands, status information, speed references, and other operating data with a compatible ControlNet control system. During commissioning, the ControlNet network configuration, node settings, cabling, and controller data mapping should be checked carefully. The communication interface should also be tested independently from the hardwired I/O to make sure that commands and feedback are correctly transferred between the drive and the control system.

4. Does the 20BC140A3ANNACC0 have an internal braking resistor?

The 20BC140A3ANNACC0 does not include an internal braking resistor and is configured without a Brake IGBT. This is important for applications involving high-inertia loads, frequent stopping, or rapid deceleration. During deceleration, the motor can return regenerative energy to the drive’s DC bus, causing the DC bus voltage to rise. If the regenerative energy exceeds the available energy-handling capability, a DC bus overvoltage fault may occur. Applications requiring rapid stopping should therefore be evaluated to determine whether an external braking or regenerative energy management solution is necessary.

5. How should an overcurrent fault be diagnosed on the 20BC140A3ANNACC0?

The first step is to determine when the overcurrent fault occurs. If the fault appears during startup or acceleration, check whether the acceleration time is too short or whether the mechanical load requires excessive starting torque. If it occurs during normal operation, inspect the motor, coupling, gearbox, bearings, and driven equipment for mechanical binding, excessive friction, blockage, or sudden increases in load. Motor cables and terminals should also be checked for loose connections or incorrect wiring. The programmed motor voltage, current, frequency, and speed parameters should be compared with the motor nameplate. Repeated overcurrent faults should be investigated systematically rather than simply increasing the current protection settings.

6. How can the 20BC140A3ANNACC0 be integrated with a PLC or ControlNet system?

The drive provides 24V I/O for hardwired control and includes a ControlNet coaxial communication interface for network-based integration. Digital inputs can be assigned to functions such as start, stop, direction, enable, and fault reset, while analog inputs can be used for speed references or process signals. Through ControlNet, the drive can exchange operating commands, status information, references, and diagnostic data with the control system. During commissioning, hardwired I/O and network communication should be tested separately before combining them into the complete control sequence. This makes it easier to identify wiring, configuration, addressing, or data-mapping problems.

7. What can cause a DC bus overvoltage fault on the 20BC140A3ANNACC0?

A DC bus overvoltage fault is commonly associated with regenerative energy during motor deceleration. High-inertia machinery, short deceleration times, and frequent braking cycles can return significant energy to the drive’s DC bus. If the fault consistently occurs during deceleration, check the programmed deceleration time and compare it with the inertia and operating characteristics of the machine. Increasing the deceleration time may reduce regenerative energy in suitable applications. If rapid stopping is required by the process, an external braking or regenerative energy solution may be necessary. The incoming AC voltage should also be checked to rule out abnormal supply voltage as a contributing factor.

8. What should be checked before commissioning the 20BC140A3ANNACC0?

Before commissioning, verify the three-phase input power, motor connections, grounding, control wiring, communication wiring, and upstream protection. Accurate motor nameplate data should be entered into the drive so that the vector-control system can operate correctly with the connected motor. Initial testing should begin at low speed to confirm the correct motor rotation direction and basic drive response. Acceleration and deceleration parameters can then be adjusted according to the mechanical characteristics of the equipment. For ControlNet applications, network addressing, communication status, controller configuration, and data mapping should also be checked. Finally, start, stop, direction, speed reference, fault reset, drive status, and protective functions should be tested before the equipment is placed into normal production.
