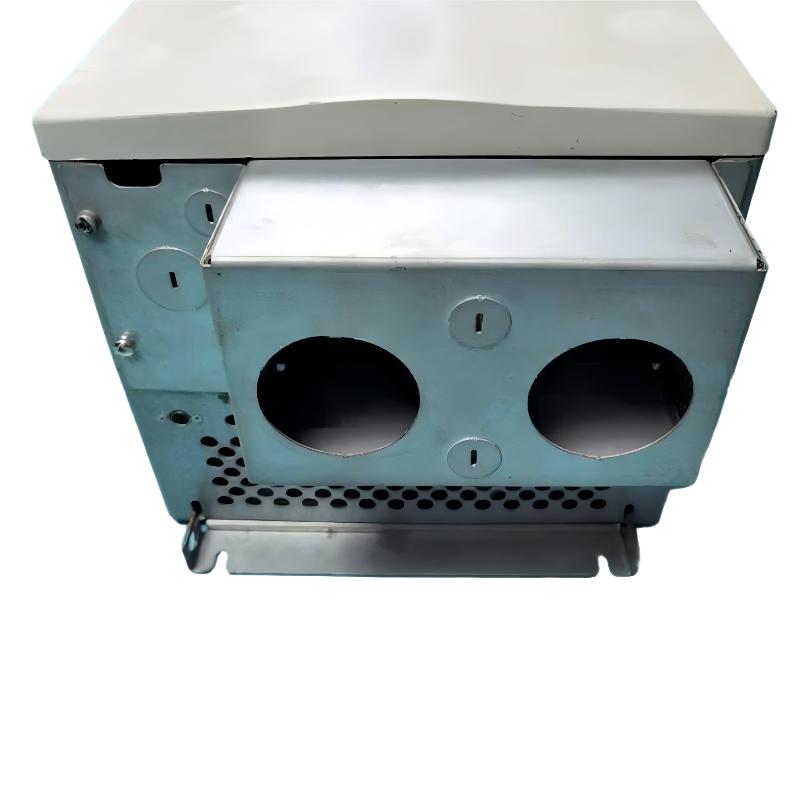

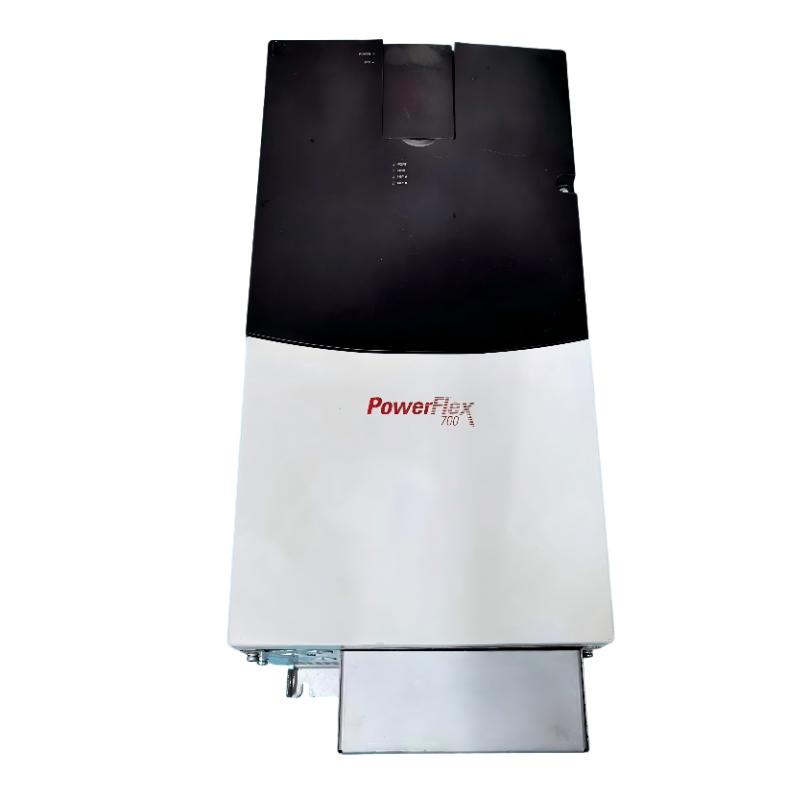

Technical Specifications

FAQ

1. What is the rated output current of the 20BC140A3ANNADC0?

The 20BC140A3ANNADC0 has a rated output current of 140 A, with a normal-duty power rating of 75 kW and a heavy-duty power rating of 55 kW. It is designed for three-phase AC motor speed-control applications. When selecting the drive, the motor nameplate current should be compared with the drive’s rated output current. The actual application should also be evaluated for starting torque, acceleration requirements, load fluctuations, and continuous operating conditions to ensure that the drive is properly matched to the motor and mechanical load.

2. What input power supply is required for the 20BC140A3ANNADC0?

The 20BC140A3ANNADC0 is designed for a three-phase 380–480 VAC input supply, with a nominal input voltage of 400 VAC and a 50 Hz input frequency. The incoming supply should remain within the permitted voltage range and should be connected through appropriately rated protective equipment. Proper selection of circuit breakers, fuses, power cables, disconnecting devices, and grounding conductors is important for reliable operation. If the installation has significant voltage fluctuations or electrical interference, the incoming power quality should be checked before commissioning.

3. What communication interface does the 20BC140A3ANNADC0 provide?

This configuration includes a DeviceNet communication interface, allowing the drive to exchange control commands, status information, reference values, and diagnostic data with a compatible DeviceNet control system. During commissioning, the DeviceNet network configuration, node address, communication rate, cabling, and controller mapping should be verified. Communication should be tested before placing the drive into automatic operation. If the drive does not respond correctly to network commands, check both the physical network connection and the drive’s communication parameters before troubleshooting the PLC program.

4. Does the 20BC140A3ANNADC0 have an internal braking resistor?

No. The 20BC140A3ANNADC0 does not include an internal braking resistor and is configured without a Brake IGBT. This is particularly important for applications involving high-inertia loads, rapid deceleration, or frequent braking cycles. During deceleration, the motor can return regenerative energy to the DC bus, increasing the DC bus voltage. If the regenerated energy becomes excessive, a DC bus overvoltage fault can occur. For applications requiring rapid stopping, the load inertia and braking cycle should be evaluated to determine whether an external braking or regenerative energy solution is required.

5. How should an overcurrent fault on the 20BC140A3ANNADC0 be diagnosed?

Begin by identifying when the overcurrent fault occurs. If it happens during startup or acceleration, check the acceleration time and determine whether the machine requires excessive starting torque. If it occurs during normal operation, inspect the motor and mechanical transmission for excessive friction, binding, blockage, bearing problems, or unexpected load increases. The motor cables and terminals should be checked for loose connections and wiring errors. The programmed motor voltage, current, frequency, and speed parameters should also be compared with the motor nameplate. Repeated overcurrent faults should be investigated from both electrical and mechanical perspectives rather than simply increasing the current limit.

6. Can the 20BC140A3ANNADC0 be integrated with a PLC through DeviceNet?

Yes. The DeviceNet interface allows the drive to be integrated into a PLC-based industrial control system. Network communication can be used to exchange commands, speed references, operating status, fault information, and other drive data. During commissioning, the DeviceNet node address and communication configuration should be matched with the PLC network configuration. The control data mapping should also be verified to ensure that start, stop, speed reference, direction, fault reset, and status feedback are assigned correctly. It is recommended to test network communication before enabling the complete automatic machine sequence.

7. What can cause a DC bus overvoltage fault on the 20BC140A3ANNADC0?

A DC bus overvoltage fault is commonly caused by regenerative energy returning from the motor during deceleration. High-inertia loads, short deceleration times, and frequent braking cycles can cause the DC bus voltage to rise rapidly. If the fault occurs mainly during deceleration, check the programmed deceleration time and compare it with the mechanical inertia of the load. Increasing the deceleration time can reduce regenerative energy in many applications. If the process requires very rapid stopping, an external braking or regenerative energy management solution may be necessary. The incoming AC supply should also be checked for abnormal voltage conditions.

8. What should be checked before commissioning the 20BC140A3ANNADC0?

Before commissioning, verify the three-phase power supply, motor wiring, grounding, control wiring, DeviceNet connections, and upstream protection. The motor nameplate information should be entered accurately so that the vector-control system can operate correctly. Initial startup should be performed at low speed to verify the motor rotation direction and basic drive response. Acceleration and deceleration settings should then be adjusted according to the mechanical characteristics of the equipment. For DeviceNet applications, check the node address, communication settings, network status, PLC configuration, and data mapping. Finally, test start, stop, direction, speed reference, fault reset, drive status, and protective functions individually before placing the equipment into normal automatic operation.
