1. What industrial equipment is the Allen Bradley 20BD156A3ANNANC1 PowerFlex 700 suitable for?

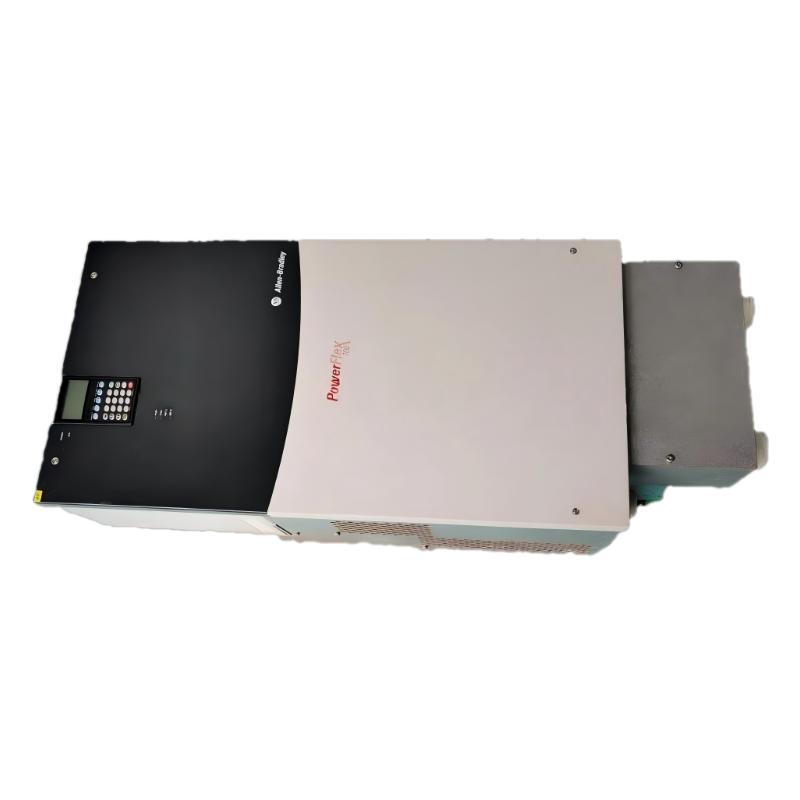

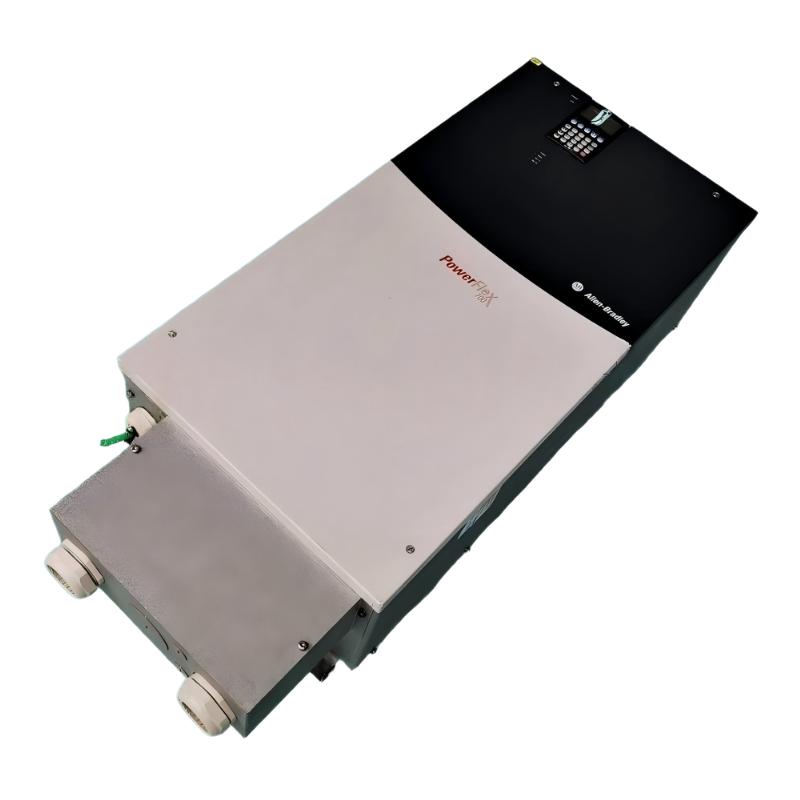

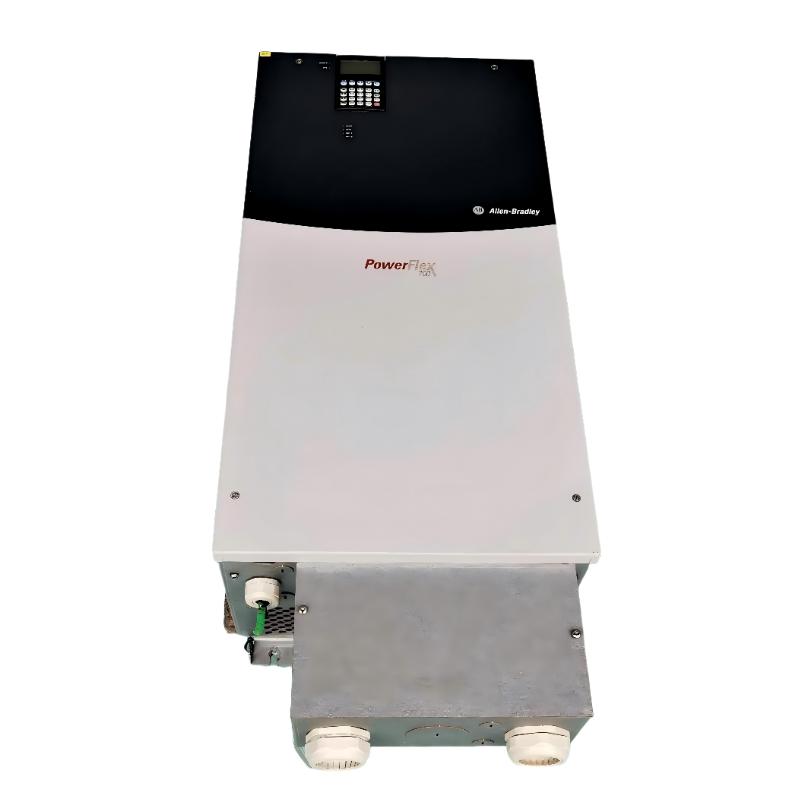

The 20BD156A3ANNANC1 is a 480 V three-phase PowerFlex 700 AC drive with a continuous output current of 156 A. It provides a 125 HP normal-duty rating and supports heavy-duty operation with up to 250 A for 3 seconds. Typical applications include conveyors, pumps, fans, compressors, material-handling systems, and industrial machinery requiring stable speed regulation and strong torque performance. Its vector-control capability makes it suitable for applications with changing mechanical loads.

2. What should be checked if the 20BD156A3ANNANC1 trips on overcurrent during startup?
Start by verifying the motor parameters programmed in the drive, including rated voltage, current, frequency, power, and speed. These values should match the motor nameplate. Next, inspect the motor cable and terminals for phase-to-phase shorts, ground faults, or loose connections. A high-inertia mechanical load or an acceleration time that is too short can also cause excessive starting current. Increasing the acceleration time may reduce the current demand. For vector-control applications, verify that the motor tuning and control parameters are properly configured.

3. Why does the 20BD156A3ANNANC1 experience DC bus overvoltage during deceleration?
DC bus overvoltage is commonly caused by regenerative energy generated when a high-inertia motor decelerates too quickly. The 20BD156A3ANNANC1 does not include an internal brake IGBT or internal brake resistor, so applications with rapid stopping and high inertia require careful deceleration management. Increasing the deceleration time is normally the first adjustment. If the process requires frequent rapid braking, an appropriately sized external braking solution may be necessary.

4. What is the purpose of encoder feedback on the 20BD156A3ANNANC1?
Encoder feedback provides the drive with accurate information about motor speed and rotational movement. Closed-loop control can improve low-speed stability as well as speed and torque regulation. This can be particularly useful for applications such as winding equipment, conveyors, lifting machinery, and other systems where the load changes significantly during operation. The encoder supply voltage, signal channels, wiring, and grounding should be checked carefully during installation to ensure reliable feedback.

5. The PLC sends a run command, but the 20BD156A3ANNANC1 does not produce an output. What should be checked?
First verify that the run command is correctly reaching the drive’s 24 V DC control I/O. Check the start, stop, enable, and fault-reset signals, and make sure no external interlock is preventing operation. The frequency reference should also be checked. If the drive recognizes the run command but the output frequency remains at zero, inspect the analog input signal, minimum frequency setting, selected frequency reference, and any active inhibit conditions. The LCD interface and fault history can provide useful diagnostic information.

6. Can the 20BD156A3ANNANC1 be controlled for speed through a PLC?
Yes. The drive provides 24 V DC control I/O, including 2 analog inputs, 2 analog outputs, 6 digital inputs, and 3 digital outputs. A PLC can use the digital inputs for start, stop, forward, reverse, and fault-reset commands, while an analog input can be used to provide a speed or frequency reference. Analog and digital outputs can provide operating information back to the PLC. The specific wiring and signal configuration should be selected according to the PLC output type and the required drive control functions.

7. What can cause motor vibration when the 20BD156A3ANNANC1 operates at low speed?
Low-speed vibration can be related to motor parameters, vector-control settings, encoder feedback, mechanical load conditions, or motor cabling. First verify that the motor nameplate data has been entered correctly and that the appropriate motor tuning procedure has been completed. For encoder-based systems, inspect the encoder power supply, A/B channel signals, cable shielding, grounding, and connections. Electrical interference or an unstable feedback signal can cause noticeable speed fluctuations. Mechanical problems such as periodic load variation or excessive backlash should also be considered.

8. What routine maintenance should be performed on the Allen Bradley 20BD156A3ANNANC1?
Routine maintenance should focus on the cooling system, electrical connections, control wiring, encoder feedback, and installation environment. Check the cooling fan, ventilation passages, and heatsink regularly for dust buildup and make sure sufficient airflow is available. Inspect input, output, grounding, and control terminals for looseness or signs of overheating. For encoder-feedback applications, periodically inspect the encoder connection and feedback signal quality. Reviewing the drive’s fault history is also recommended, particularly for repeated overcurrent, overvoltage, overtemperature, or ground-fault events.
