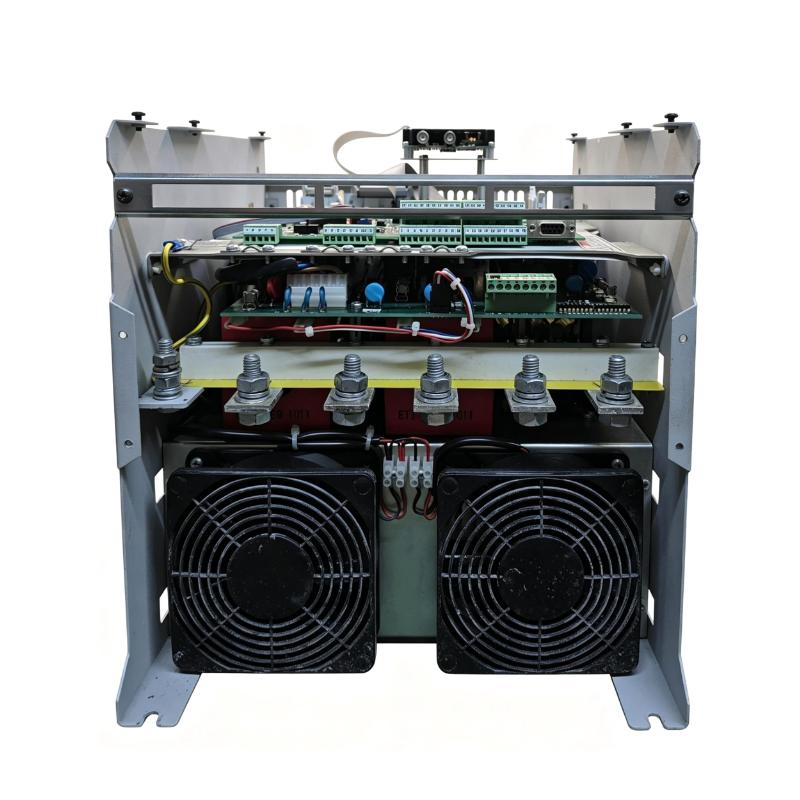

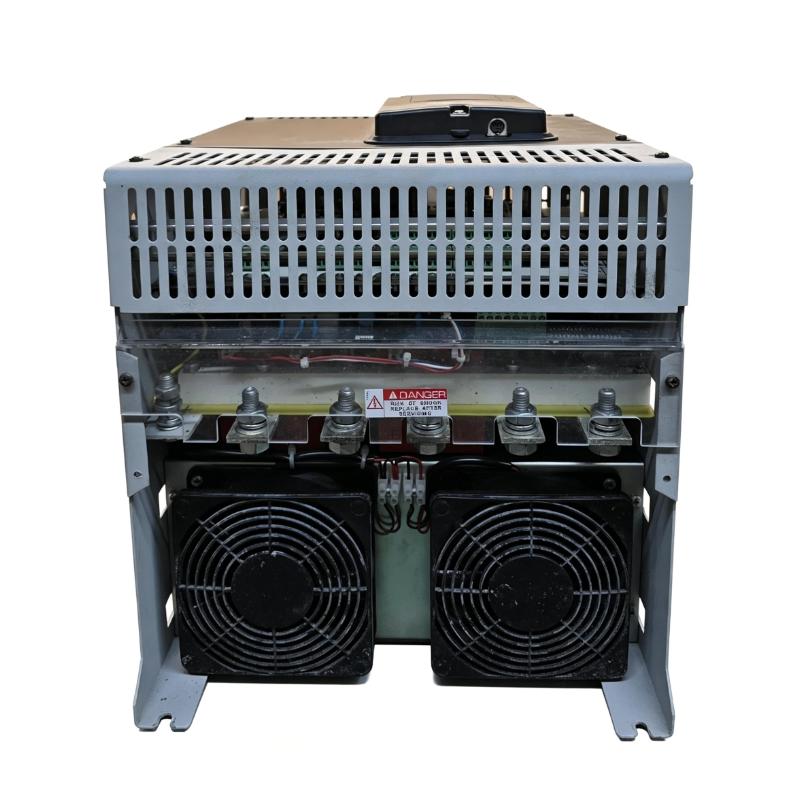

1. What is the primary function of the Allen-Bradley 20P41AB218RA0NNN PowerFlex DC Drive?

The 20P41AB218RA0NNN is a regenerative DC drive designed to control DC motor speed, torque, acceleration, and deceleration. It has a rated output current of 218 A and a normal-duty power rating of 60 HP (45 kW). It is suitable for industrial machinery that requires accurate speed regulation, reversing operation, and regenerative braking, including material-handling systems, winders, unwinders, and processing equipment.

2. What are the electrical input requirements for this drive?

This model is designed for a three-phase AC supply in the 200–240 V class, with a nominal input rating of 230 V AC. It uses a six-pulse input configuration. Before installation, verify the actual nameplate information and the applicable wiring instructions. The upstream supply, conductors, circuit protection, grounding, and disconnect equipment must be selected according to the manufacturer’s documentation and local electrical codes.

3. What does regenerative four-quadrant operation mean?

Four-quadrant operation allows the drive to control motor torque and rotation in both directions, supporting motoring and regenerative braking. During deceleration or when a load drives the motor, the motor can generate electrical energy. A regenerative drive can return that energy to the AC supply when the system is configured appropriately. This capability is useful for machinery that frequently stops, reverses, or handles overhauling loads.

4. How should a DC motor be matched to the 20P41AB218RA0NNN?

Motor selection should be based on armature voltage, rated armature current, field voltage and current, speed, torque, and duty cycle. The drive’s 218 A output rating and 60 HP normal-duty rating are useful selection references, but they do not replace checking the motor nameplate. Confirm that the motor’s electrical ratings and operating requirements are compatible with the drive before commissioning.

5. Does this model include an operator interface or communication module?

The standard catalog configuration does not include a Human Interface Module (HIM) or a communication module; it is supplied with a blank cover. If local parameter adjustment, operator control, or network communication is required, compatible accessories or engineering tools may need to be purchased separately. Verify compatibility with the exact drive configuration before selecting optional hardware.

6. What installation conditions are required for this PowerFlex DC Drive?

The drive has an IP20 enclosure rating and a NEMA/UL Type Open construction. It should be installed in a suitable industrial control cabinet with sufficient ventilation and clearance. Keep cooling passages free of dust and obstructions, and protect the equipment from moisture and conductive contaminants. The conformal coating provides additional protection for electronic components but does not make the drive waterproof.

7. How can overcurrent or motor-control faults be diagnosed?

Record the fault code before resetting the drive. Check the motor and driven equipment for mechanical binding, inspect armature and field wiring, and compare the measured current with the motor’s rated values. Review current limits, acceleration and deceleration settings, and motor configuration parameters. If the fault persists, investigate the power supply, cooling conditions, and drive hardware according to the manufacturer’s troubleshooting procedures.

8. What maintenance practices help maintain reliable operation?

Follow the manufacturer’s maintenance instructions and site electrical safety procedures. Before servicing, isolate the power supply, apply lockout/tagout, and verify that hazardous voltage has been discharged as directed in the manual. Inspect electrical connections, grounding, ventilation paths, and signs of overheating or contamination. Record fault history and parameter changes, and back up the configuration before replacing hardware. Since this model has a scheduled lifecycle discontinuation date, plan spare-parts availability and long-term maintenance support in advance.
