1. What type of servo motor is the MPL-A4540F-HJ74AA?

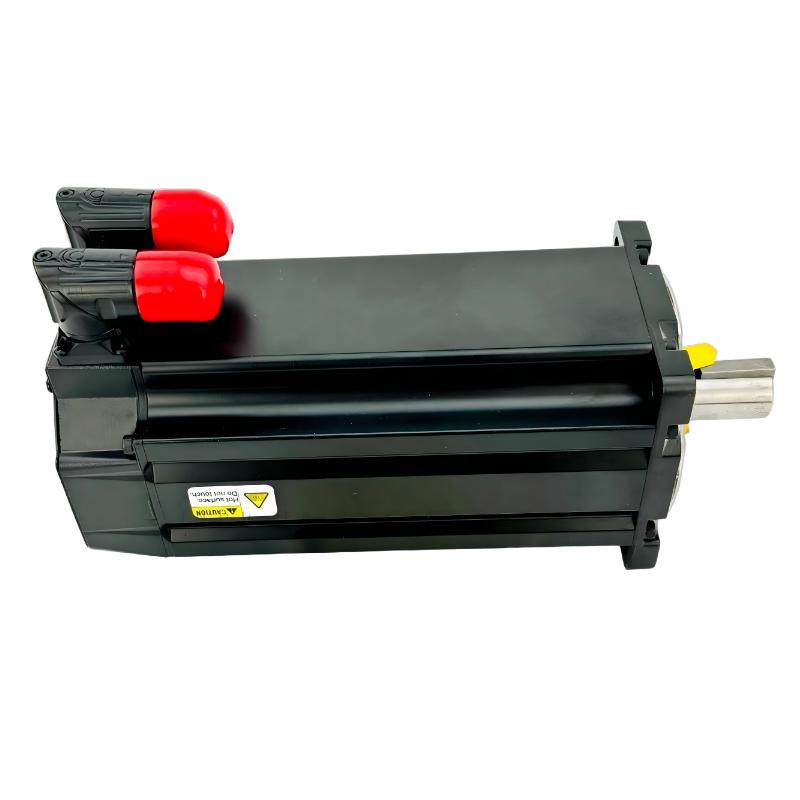

The MPL-A4540F-HJ74AA is a low-inertia brushless AC rotary servo motor from the MP-Series MPL family. It is designed for motion-control applications that require fast acceleration, rapid deceleration, accurate positioning, and stable speed regulation. The motor uses a 230 V AC voltage class, a 3000 RPM rated speed, and a 2000-line incremental encoder for feedback. Its low-inertia rotor construction allows the motor to respond quickly to changes in command speed and position. This makes it suitable for automated machinery such as packaging equipment, indexing systems, machine tools, material-handling equipment, and other applications where dynamic servo response is important.

2. What are the main electrical specifications of the MPL-A4540F-HJ74AA?
The MPL-A4540F-HJ74AA is designed for a 230 V AC supply class and has a rated speed of 3000 RPM. The motor provides a rated torque of approximately 10.2 N·m and uses a 2000-line incremental encoder for closed-loop feedback. The motor must be operated through a compatible servo drive that can provide the required voltage, current, feedback interface, and control functions. The drive should be configured with the correct motor identification and electrical parameters before operation. Incorrect voltage selection, motor parameter configuration, or feedback settings can cause excessive current, poor torque response, unstable operation, or servo drive protection faults.

3. What type of feedback does the MPL-A4540F-HJ74AA use?
The MPL-A4540F-HJ74AA uses a 2000-line incremental encoder. The encoder provides feedback information that allows the servo drive to determine motor speed, position, and rotational direction during operation. This feedback is essential for closed-loop motion control because the drive can compare the commanded movement with the actual motor response and continuously adjust the motor output. When installing the encoder connection, the feedback cable should be properly secured and routed away from high-power motor cables whenever possible. The encoder direction and feedback parameters must also be correctly configured in the servo drive. Incorrect encoder wiring or feedback settings may result in position errors, incorrect rotation direction, unstable speed control, or servo faults.

4. Does the MPL-A4540F-HJ74AA have a built-in brake?
Yes. The MPL-A4540F-HJ74AA is equipped with a 24 V DC mechanical brake. The brake can be used for applications where the motor shaft needs to be held when the servo drive is not actively controlling the motor. This feature is particularly useful for vertical axes and other mechanisms where the load could move because of gravity after motor torque is removed. The brake should not be treated as a substitute for the machine’s complete safety system. Brake timing should be coordinated correctly with servo enable and motor torque commands to prevent unnecessary mechanical shock. During commissioning, the brake release and engagement sequence should be tested under controlled conditions, especially on vertical or high-inertia machinery.

5. What is the purpose of the low-inertia design of the MPL-A4540F-HJ74AA?
The low-inertia design allows the motor to change speed quickly with relatively low rotational inertia. This is especially valuable in applications that require frequent acceleration and deceleration or rapid changes in direction. When the motor is paired with a properly configured servo drive, the low rotor inertia can provide fast dynamic response and help reduce the time required for positioning movements. Typical applications include indexing mechanisms, packaging machines, cutting systems, assembly equipment, and other automated machinery requiring repeated high-speed movements. However, the overall response is also determined by the load inertia, mechanical transmission, coupling rigidity, backlash, servo tuning, and controller motion profile. Proper inertia matching and servo parameter adjustment are therefore important for achieving stable performance.

6. What type of mechanical connection does the MPL-A4540F-HJ74AA use?

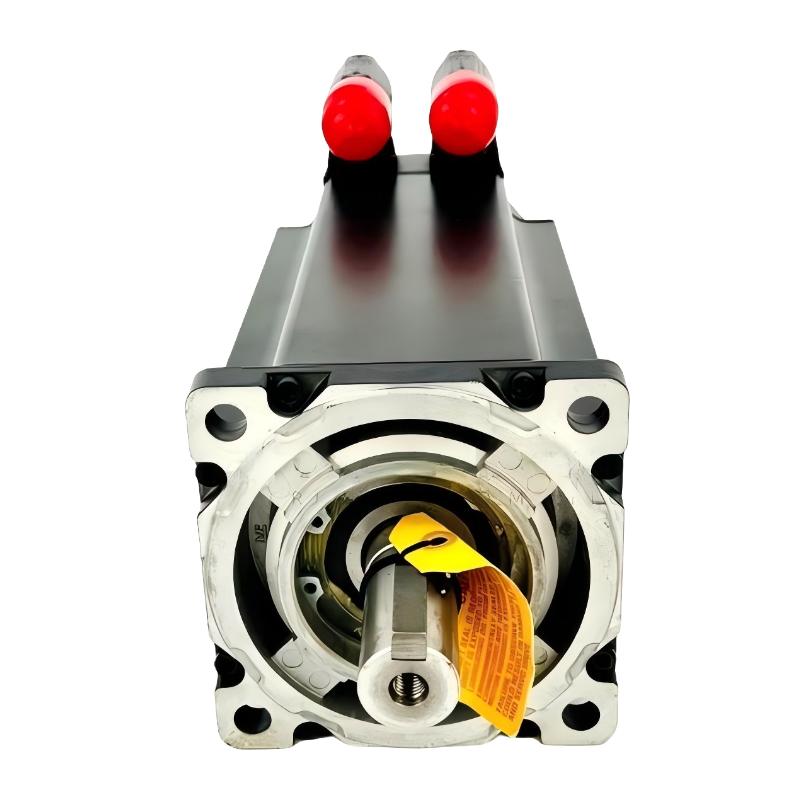

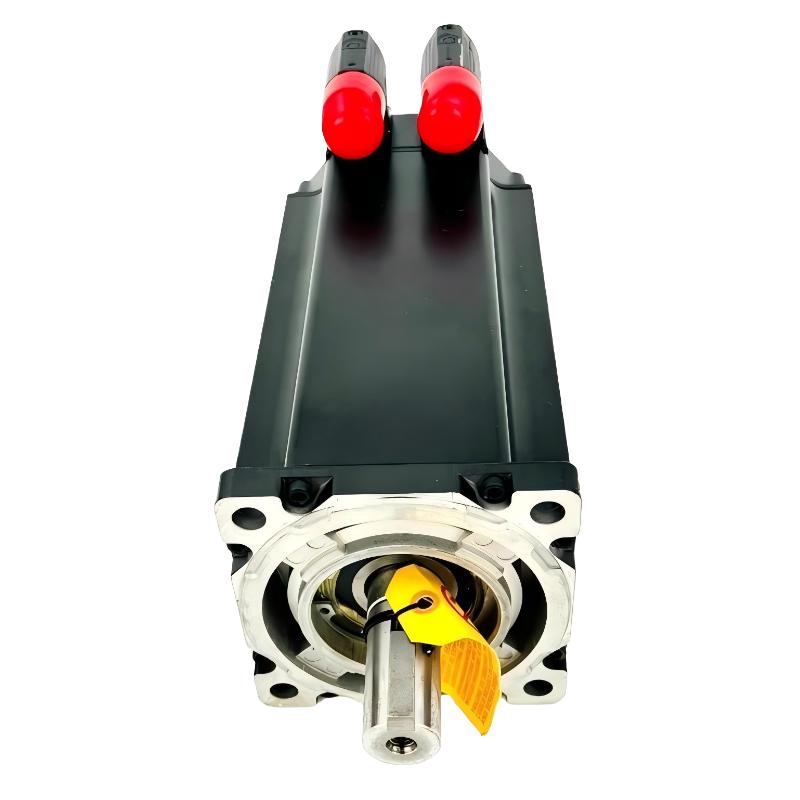

The MPL-A4540F-HJ74AA uses a keyed shaft extension, allowing the motor to be mechanically connected to suitable couplings, gears, pulleys, or other transmission components. The mating component must be correctly matched to the shaft and key dimensions, and the shaft should be properly aligned with the driven equipment. Excessive force or impact during installation should be avoided because mechanical shock can damage bearings or other internal components. Correct shaft alignment is particularly important for servo applications because even relatively small mechanical errors can create vibration, position errors, additional bearing loads, and excessive motor current. After installation, the mechanical transmission should be checked for backlash, misalignment, abnormal friction, and other conditions that could affect servo performance.

7. What should be checked if the MPL-A4540F-HJ74AA develops position errors or unstable motion?
Position errors should first be investigated by checking the encoder feedback system, because incorrect feedback can directly affect the servo drive’s ability to control motor position. The encoder connector, feedback cable, signal wiring, shielding, and drive feedback parameters should be inspected carefully. The motor power connections should also be checked for loose terminals or incorrect wiring. If the electrical system is operating correctly, the mechanical transmission should be inspected for backlash, coupling looseness, excessive friction, shaft misalignment, bearing wear, or changes in load inertia. Servo tuning should then be reviewed. Excessive gain may cause vibration or oscillation, while insufficient gain can produce slow response and larger following errors. Because the MPL-A4540F-HJ74AA is a low-inertia motor, a large difference between motor inertia and load inertia can have a significant effect on dynamic response. Troubleshooting should therefore consider the motor, drive, feedback system, and mechanical load as one complete motion-control system.

8. What are the main installation and commissioning requirements for the MPL-A4540F-HJ74AA?
Before commissioning, the motor should be verified against the selected servo drive to ensure compatibility in terms of voltage class, feedback type, motor parameters, brake control, and required operating speed. The motor should be securely mounted and the shaft should be accurately aligned with the connected machine. The keyed shaft connection should be installed correctly without applying excessive mechanical force. The 2000-line encoder connection must be checked carefully, and the feedback cable should be routed to minimize electromagnetic interference. For models equipped with the 24 V DC brake, the brake release and engagement sequence should also be verified before normal operation. Initial testing should be performed at low speed to confirm motor direction, encoder feedback, brake operation, and controller commands. The acceleration, deceleration, position accuracy, following error, motor current, and mechanical vibration should then be checked progressively under actual load conditions. For production equipment, emergency-stop operation, overtravel protection, servo fault handling, interlocks, and recovery procedures should also be tested before continuous operation.
