1. What type of servo motor is the MPL-A4540F-HK72AA?

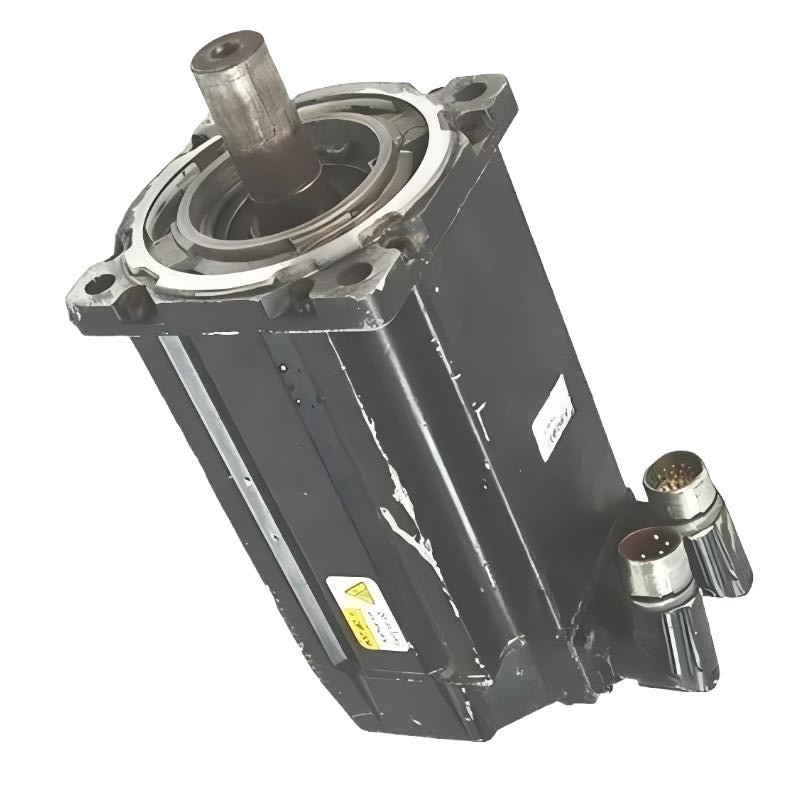

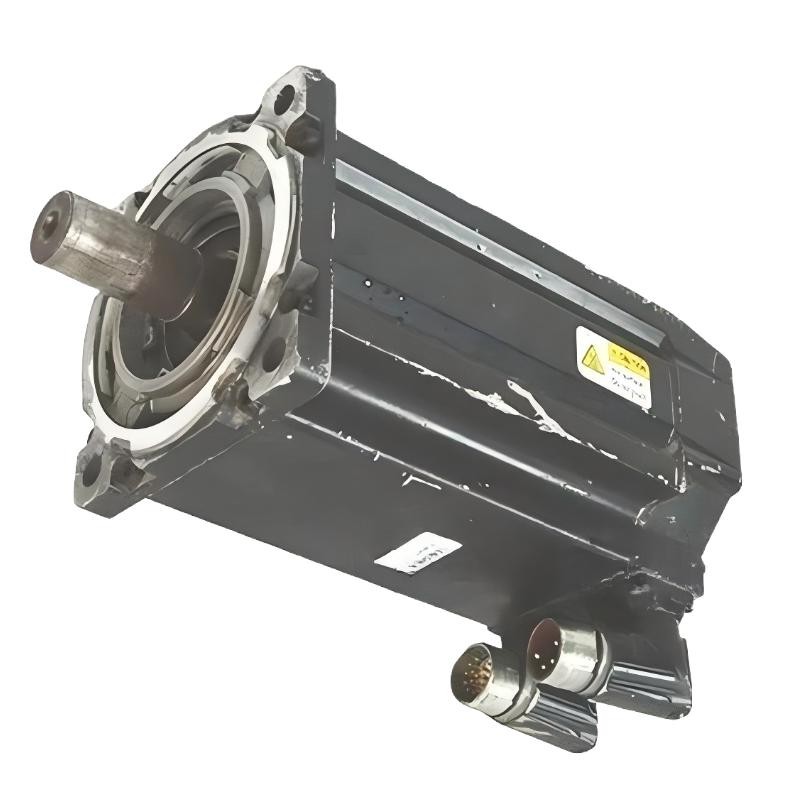

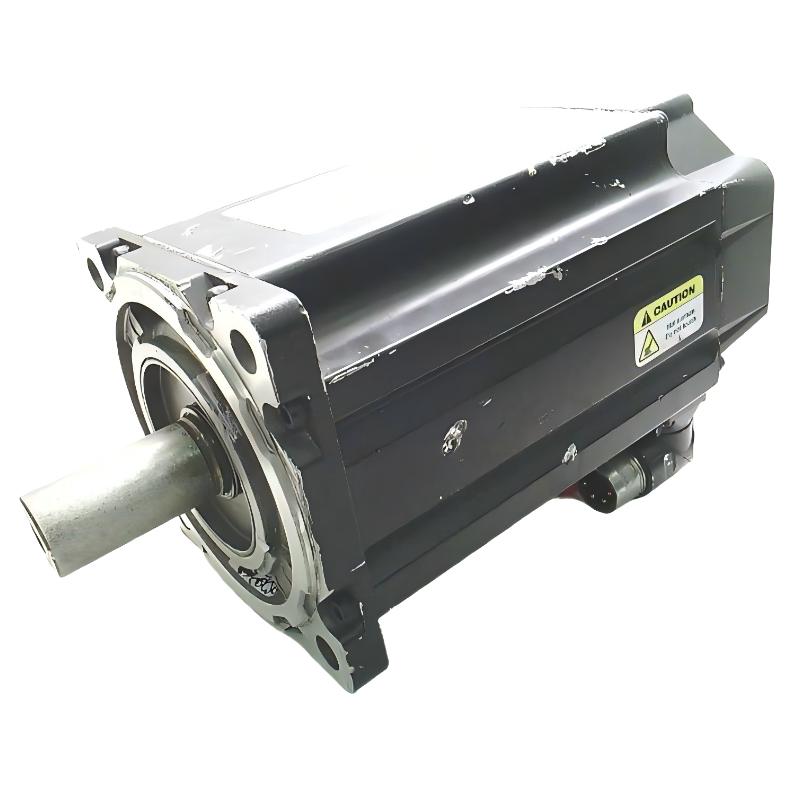

The Allen Bradley MPL-A4540F-HK72AA is a low-inertia brushless AC servo motor from the MP-Series MPL family. It is designed for closed-loop motion control applications where fast acceleration, accurate positioning, and stable speed regulation are required. With a 230 V AC rating, 3000 RPM operating speed, and incremental encoder feedback, it is suitable for a wide range of industrial automation machinery.

2. What are the main electrical specifications of the MPL-A4540F-HK72AA?
The MPL-A4540F-HK72AA uses a 230 V AC supply and belongs to the 200 V class. Its rated speed is 3000 RPM and rated torque is 10.2 N·m. The motor should be matched with a compatible Allen Bradley servo drive and configured with the correct motor data before commissioning. Incorrect motor parameters can result in excessive current, unstable speed, poor tracking performance, or drive faults.

3. What type of feedback does the MPL-A4540F-HK72AA use?
This servo motor uses a 2000-line incremental encoder to provide motor position and speed feedback to the servo drive. The feedback signal is essential for closed-loop motion control. If the encoder cable is damaged, the connector is loose, or electrical noise interferes with the feedback signal, the system may experience position errors, unstable motion, or encoder-related alarms. Proper cable routing, shielding, and grounding should therefore be maintained during installation.

4. Does the MPL-A4540F-HK72AA have a built-in brake?
The MPL-A4540F-HK72AA is a non-brake version and does not include an internal electromagnetic holding brake. For vertical axes or applications where the load can move under gravity, an independent mechanical holding or braking solution should be considered. The servo motor’s stopped condition should not be treated as a substitute for a mechanical safety brake when the load must remain securely held after power removal.

5. What is the advantage of the low-inertia design of the MPL-A4540F-HK72AA?
The low-inertia rotor reduces the amount of torque required to accelerate and decelerate the motor, allowing the servo system to respond quickly to motion commands. This makes the motor suitable for packaging machinery, high-speed positioning systems, automatic feeding equipment, and applications with frequent changes in direction. Actual dynamic performance also depends on load inertia, mechanical stiffness, coupling alignment, and servo tuning parameters.

6. What shaft configuration does the MPL-A4540F-HK72AA use?
The motor uses a keyless shaft extension, which requires a suitable clamp-type coupling or compatible mechanical connection. During installation, the coupling should be properly secured and accurately aligned with the driven shaft. Excessive misalignment can increase bearing loads and cause vibration, mechanical noise, or positioning errors. The mechanical connection should also be checked after initial operation to ensure that there is no slippage.

7. How should position errors or unstable motion be diagnosed on the MPL-A4540F-HK72AA?
Start by checking the servo drive alarm history and encoder feedback status. Inspect the motor power cable, feedback cable, and SpeedTEC DIN connector for loose connections, damaged contacts, or cable faults. The mechanical system should then be checked for coupling misalignment, excessive backlash, abnormal load inertia, binding, or mechanical interference. If the hardware is operating normally, review the velocity-loop and position-loop gains. Excessive gain can cause oscillation, while insufficient gain can result in slow response and increased following error.

8. What should be checked during installation and commissioning of the MPL-A4540F-HK72AA?
Before commissioning, verify that the servo drive is compatible with the motor’s voltage class, feedback type, and motor parameters. Connect the motor power and encoder circuits correctly and ensure that cable shielding and grounding are properly implemented. Because this model does not include a built-in brake, vertical-axis applications should have an appropriate load-holding solution. Initial testing should be performed at low speed and low load while checking rotation direction, encoder feedback, current, speed response, following error, and abnormal vibration. After the system operates correctly, speed and load can be increased gradually.
