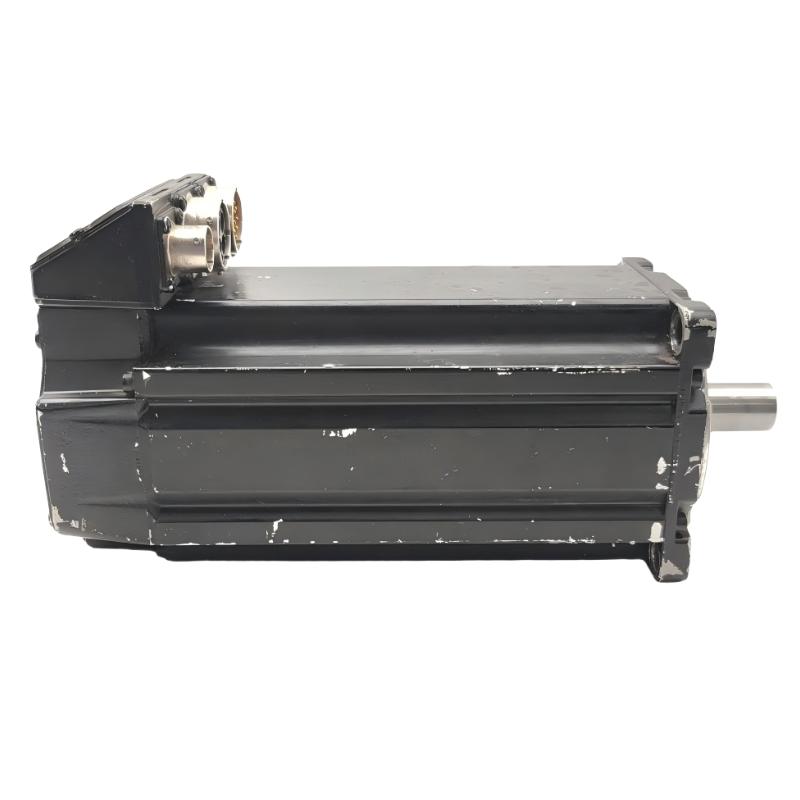

1. What type of servo motor is the MPL-A4540F-MJ72AA?
The Allen Bradley MPL-A4540F-MJ72AA is a low-inertia brushless AC servo motor from the MP-Series MPL family. It is designed for industrial motion applications requiring fast response, accurate positioning, and stable closed-loop control. The motor operates at 230 V AC, has a rated speed of 3000 RPM, and uses absolute encoder feedback for precise motion control.

2. What are the main electrical specifications of the MPL-A4540F-MJ72AA?
The MPL-A4540F-MJ72AA is rated for 230 V AC and belongs to the 200 V class. Its rated speed is 3000 RPM and rated torque is 10.2 N·m. The motor should be paired with a compatible Allen Bradley servo drive and configured with the correct motor parameters. Proper parameter matching is essential for stable torque, speed, and position control.

3. What type of feedback does the MPL-A4540F-MJ72AA use?
This model uses a multi-turn, high-resolution absolute encoder to provide accurate motor position and speed feedback. Absolute feedback is useful in applications where the controller needs reliable position information without relying solely on incremental counting. During installation, the encoder cable and connector should be properly secured, shielded, and grounded to reduce the risk of feedback errors caused by electrical interference.

4. Does the MPL-A4540F-MJ72AA have a built-in brake?
The MPL-A4540F-MJ72AA does not include an internal electromagnetic brake. If the motor is used on a vertical axis or with a load that can move under gravity, an independent mechanical holding or braking solution should be provided where required. The servo drive should handle normal deceleration, while the mechanical brake should be used for load holding and safety-related stopping functions.

5. What are the benefits of the low-inertia design of the MPL-A4540F-MJ72AA?
The low-inertia rotor allows the motor to change speed quickly with less torque required to overcome rotational inertia. This improves dynamic response during acceleration, deceleration, and rapid direction changes. It is particularly useful for packaging machinery, high-speed positioning systems, automated feeding equipment, and precision assembly applications. Actual performance also depends on load inertia, mechanical stiffness, coupling alignment, and servo tuning.

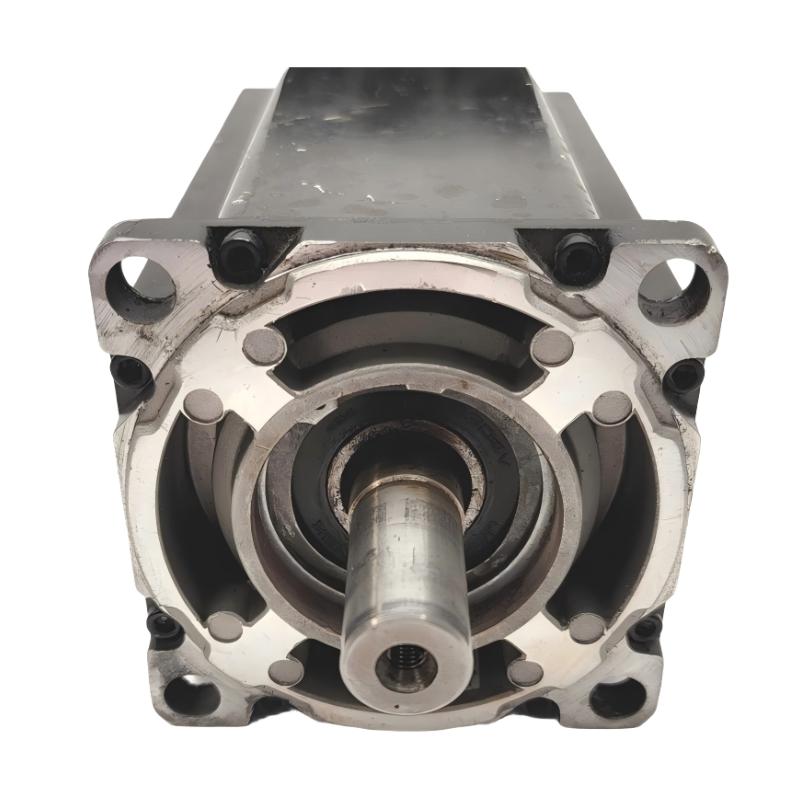

6. What shaft configuration does the MPL-A4540F-MJ72AA use?
The motor uses a keyed shaft extension, allowing it to be connected to couplings, gears, pulleys, or other mechanical transmission components using a suitable key connection. During installation, the shaft and coupling should be properly aligned and securely fastened. Excessive misalignment or improper coupling installation can create additional bearing loads, vibration, mechanical noise, and positioning problems.

7. How should position errors or unstable operation be diagnosed on the MPL-A4540F-MJ72AA?

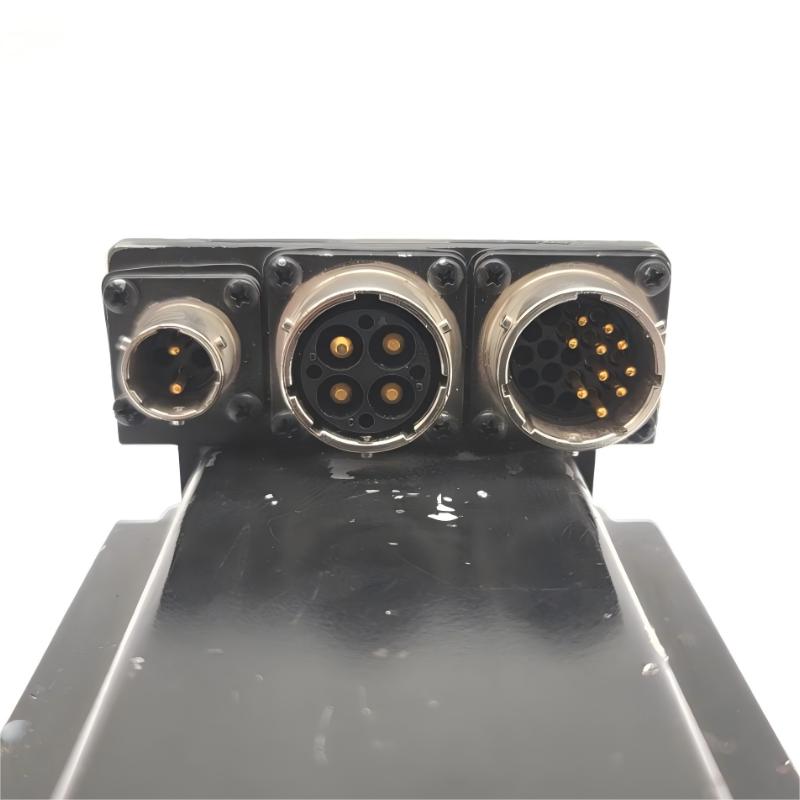

Begin by checking the servo drive alarm history and the status of the absolute encoder feedback. Inspect the SpeedTEC DIN connector and feedback cable for loose connections, damaged contacts, or cable faults. The mechanical system should also be checked for coupling misalignment, backlash, excessive load, or mechanical binding. If the electrical and mechanical systems are normal, review the position-loop and velocity-loop settings. Incorrect tuning can cause oscillation, slow response, or increased following error.

8. What should be checked during installation and commissioning of the MPL-A4540F-MJ72AA?
Before commissioning, verify that the servo drive is compatible with the motor voltage, encoder type, and motor parameters. Connect the motor power and absolute encoder feedback circuits correctly, with appropriate shielding and grounding. During initial testing, confirm encoder feedback, motor rotation direction, speed response, current behavior, and position accuracy at low speed. Since this model has no built-in brake, vertical-axis applications should also have an appropriate independent load-holding solution. After the initial test is successful, increase operating speed and load gradually while monitoring vibration, temperature, current, and following error.
