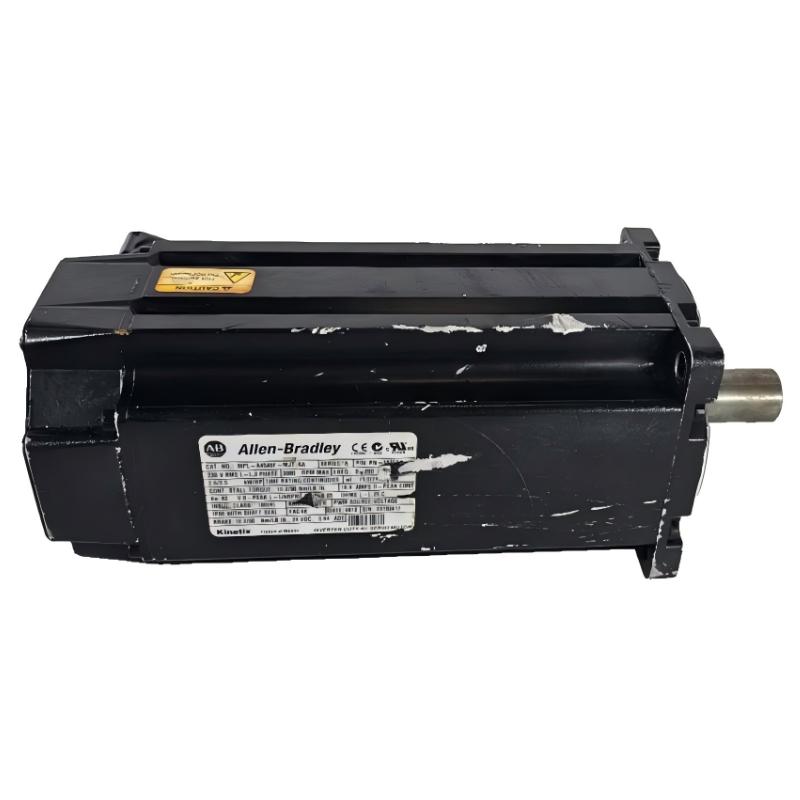

1. What type of servo motor is the MPL-A4540F-MJ74AA?
The Allen-Bradley MPL-A4540F-MJ74AA is an MP-Series MPL low-inertia brushless AC servo motor. It is designed for industrial motion-control applications that require fast dynamic response, accurate positioning, and reliable closed-loop operation. The motor has a 230 V AC rating, 3000 RPM rated speed, and multi-turn absolute encoder feedback.

2. What are the rated voltage, speed, and torque of the MPL-A4540F-MJ74AA?
The motor is rated for 230 V AC and belongs to the 200 V class. Its rated speed is 3000 RPM and its rated torque is 10.2 N·m. For proper operation, the motor should be matched with a compatible Allen-Bradley servo drive and configured with the correct motor identification and feedback parameters.

3. What type of encoder feedback does the MPL-A4540F-MJ74AA use?
This model uses a multi-turn high-resolution absolute encoder. The feedback system provides the servo drive with motor position information for accurate speed and position control. The encoder is based on Hiperface technology with 1024 Sin/Cos feedback. Correct encoder wiring and shielding are important for preventing feedback noise and position errors.

4. Does the MPL-A4540F-MJ74AA have a holding brake?
Yes. The MPL-A4540F-MJ74AA is equipped with a 24 V DC holding brake. The brake is mainly intended to hold the load when the motor is stopped, particularly in applications where the load may move due to gravity. The brake should not normally be used as the primary method for repeated dynamic stopping.

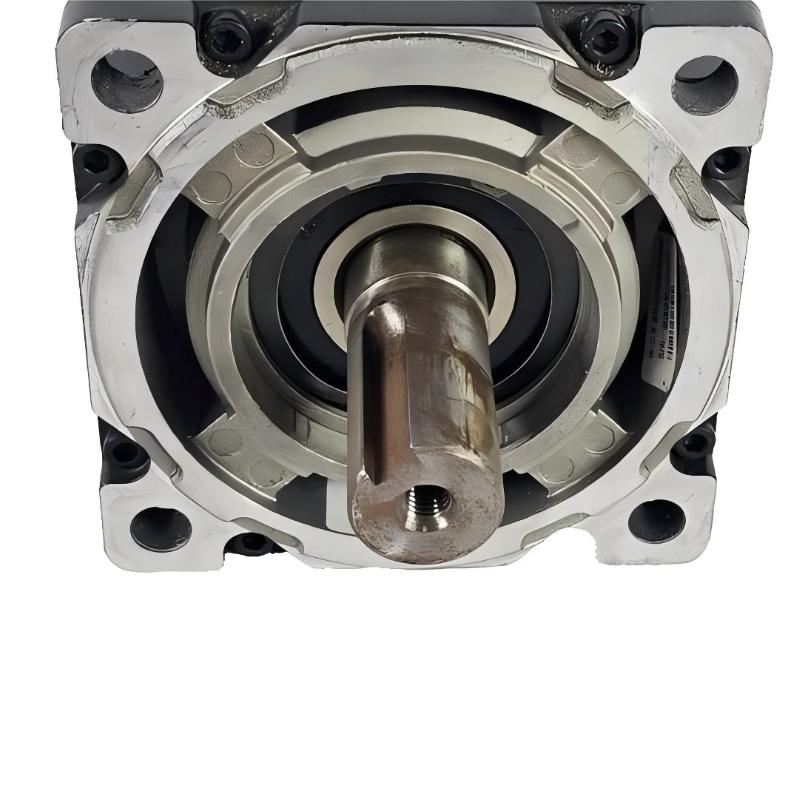

5. What shaft configuration is used on the MPL-A4540F-MJ74AA?
The motor has a keyed shaft extension. The keyway provides a positive mechanical connection for compatible couplings, pulleys, gears, or other transmission components. During installation, the coupling should be correctly aligned and tightened according to the mechanical assembly requirements to avoid excessive radial or axial loads.

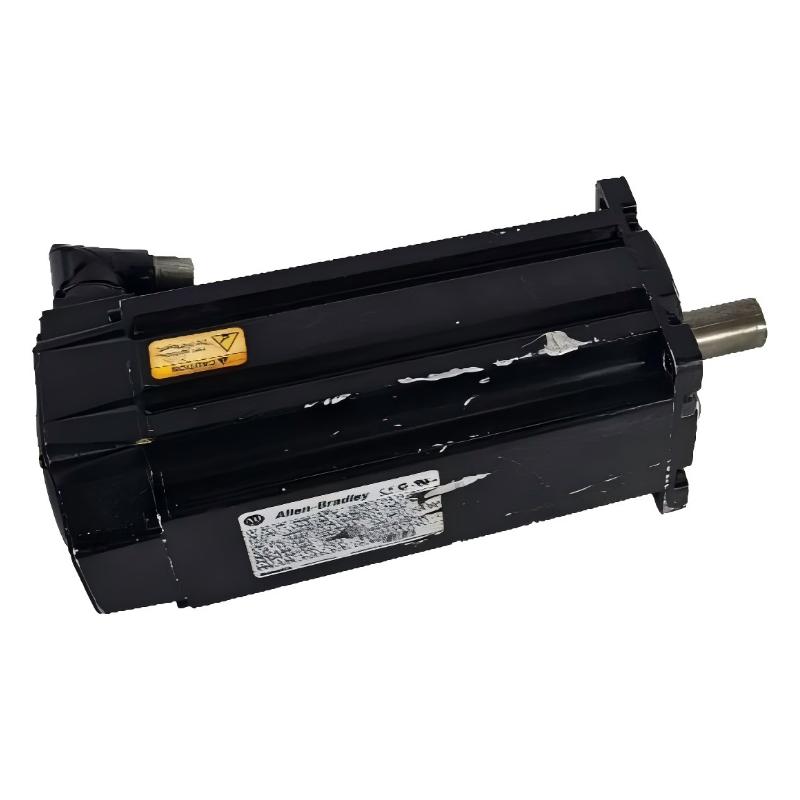

6. What connector is used on the MPL-A4540F-MJ74AA?
The motor uses a SpeedTEC DIN connector positioned in a right-angle configuration. The connector can be rotated through 180 degrees, which provides additional flexibility when routing motor and feedback cables inside an equipment enclosure. The connector should be fully engaged and secured before commissioning.

7. What should be checked if the MPL-A4540F-MJ74AA produces a position or feedback fault?
First check the servo drive alarm code and feedback status. Inspect the encoder cable, connector contacts, cable shielding, and grounding. Also check for mechanical coupling problems, excessive load, backlash, or binding. If the feedback circuit is operating correctly, review the servo tuning parameters and motor configuration in the drive. Incorrect feedback configuration or tuning can cause following errors, unstable motion, or unexpected servo faults.

8. What should be checked when commissioning the MPL-A4540F-MJ74AA?
Before commissioning, verify the motor and drive voltage ratings, motor identification parameters, encoder configuration, brake wiring, and grounding. Confirm that the motor shaft can rotate freely and that the mechanical load is correctly coupled. Perform the initial test at low speed and with limited load, then check rotation direction, encoder feedback, current, acceleration, deceleration, and position response. For vertical-axis applications, verify that the 24 V DC holding brake releases and engages correctly before applying the full operating load.
