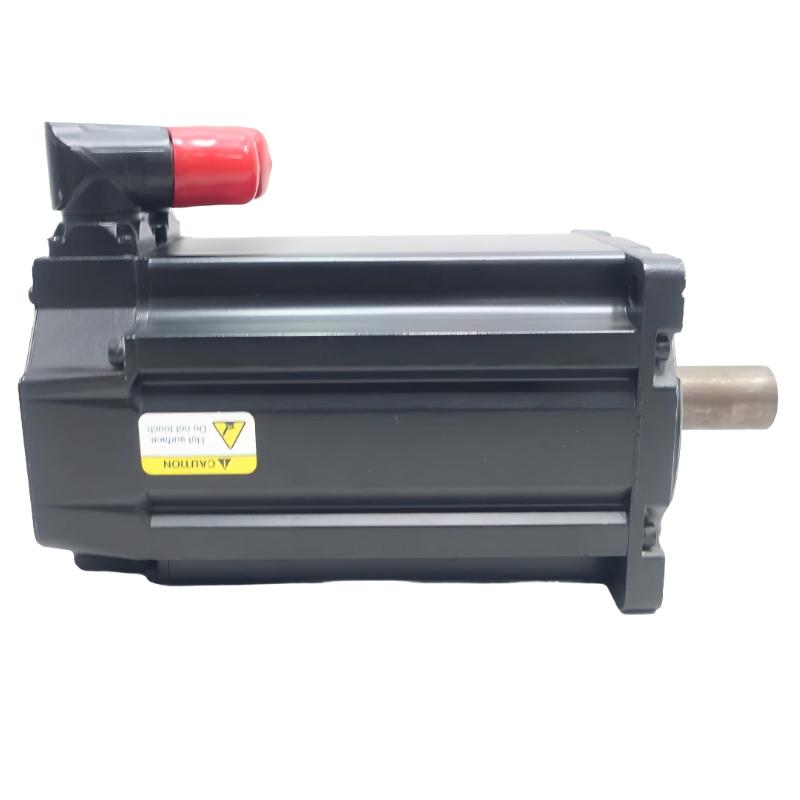

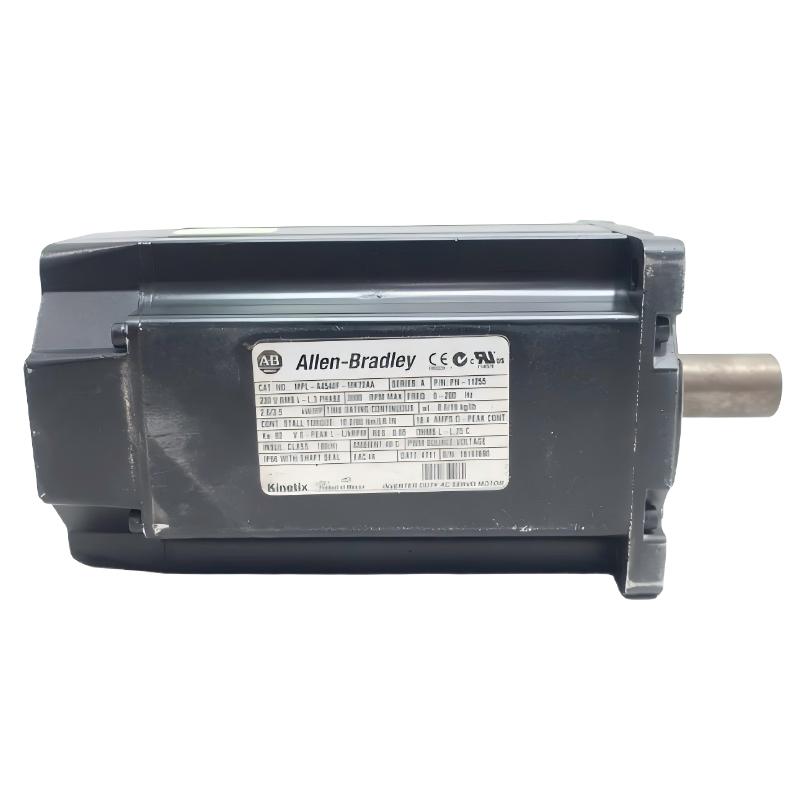

1. What type of servo motor is the MPL-A4540F-MK72AA?
The Allen-Bradley MPL-A4540F-MK72AA is a low-inertia brushless AC servo motor from the MP-Series MPL family. It is designed for industrial motion-control applications requiring fast response, accurate positioning, and stable closed-loop operation. The motor uses a 230 V AC rating, 3000 RPM rated speed, and multi-turn absolute encoder feedback.

2. What are the rated voltage, speed, and torque of the MPL-A4540F-MK72AA?
The MPL-A4540F-MK72AA is rated at 230 V AC and belongs to the 200 V class. Its rated speed is 3000 RPM and rated torque is 10.2 N·m. The motor should be paired with a compatible Allen-Bradley servo drive and configured with the correct motor and feedback parameters before operation.

3. What type of feedback does the MPL-A4540F-MK72AA use?
This servo motor uses a Hiperface multi-turn high-resolution absolute encoder with 1024 Sin/Cos feedback. The absolute feedback system provides position information to the servo drive for accurate motion control. During installation, the encoder connection, cable shielding, and grounding should be checked carefully to prevent feedback-related faults.

4. Does the MPL-A4540F-MK72AA have a built-in brake?
No. The MPL-A4540F-MK72AA does not include a built-in holding brake. For vertical-axis applications or loads that may move when the motor is not energized, an independent mechanical holding solution may be required. Normal dynamic stopping should be handled by the servo drive rather than by a mechanical holding device.

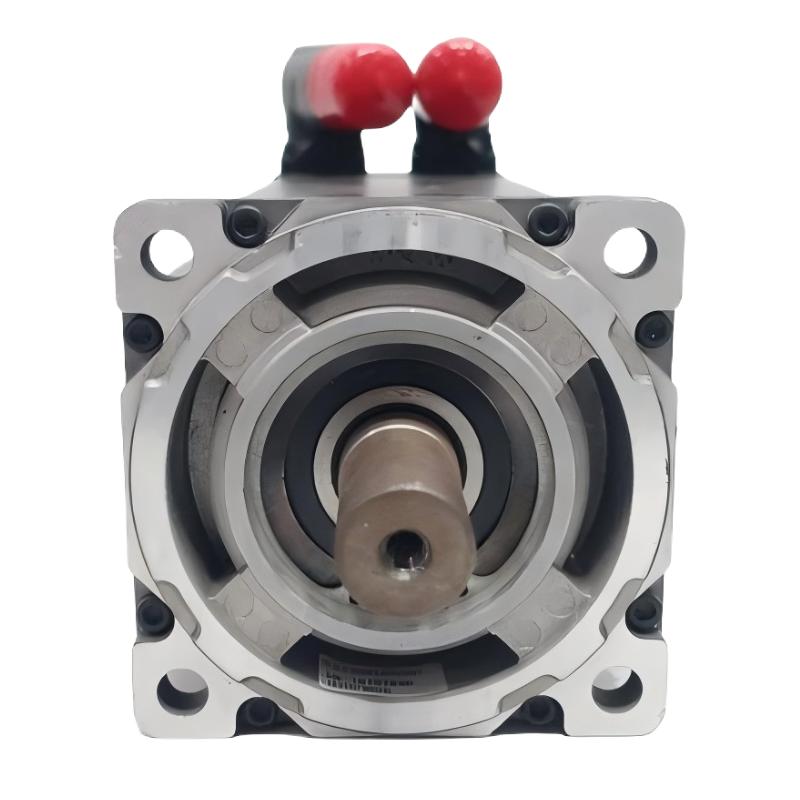

5. What type of shaft does the MPL-A4540F-MK72AA use?
The motor uses a keyless shaft extension. This configuration is suitable for compatible clamping couplings and other mechanical transmission components designed for keyless servo motor shafts. Proper alignment is important during installation because excessive radial or axial loading can lead to vibration, bearing stress, and positioning problems.

6. What connector is used on the MPL-A4540F-MK72AA?
The MPL-A4540F-MK72AA uses a SpeedTEC DIN connector with a right-angle configuration. The connector can be rotated through 180 degrees, providing flexibility for cable routing in machine cabinets and compact equipment. The connector should be fully seated and secured before applying power.

7. How can an encoder or position fault on the MPL-A4540F-MK72AA be diagnosed?
Start by checking the servo drive alarm code and feedback status. Inspect the SpeedTEC connector, encoder cable, shielding, and grounding for loose or damaged connections. Then check the mechanical coupling, load condition, backlash, and possible binding in the transmission system. If the hardware is normal, verify the motor model, encoder configuration, and servo tuning parameters in the drive.

8. What should be checked when commissioning the MPL-A4540F-MK72AA?
Before commissioning, verify that the servo drive is compatible with the motor voltage, rated parameters, and encoder type. Check motor power wiring, feedback wiring, grounding, and mechanical coupling. During the initial test, run the motor at low speed and confirm rotation direction, feedback response, current, acceleration, deceleration, and position accuracy. If vibration or following errors occur, inspect the mechanical system and servo tuning before increasing operating speed or load.
