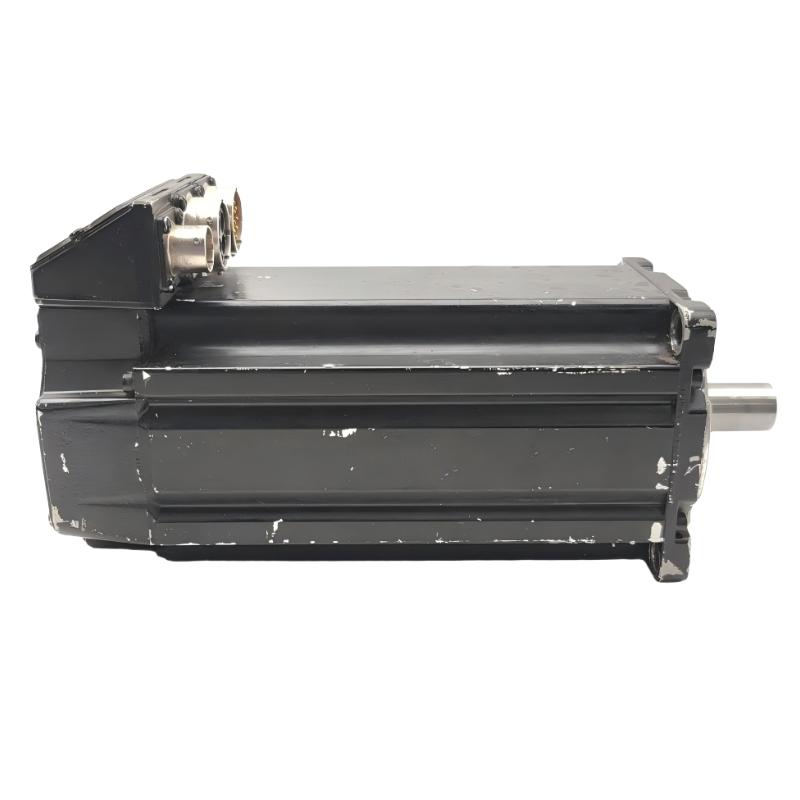

1. What type of servo motor is the MPL-A4540F-MK74AA?
The Allen-Bradley MPL-A4540F-MK74AA is a low-inertia brushless AC servo motor from the MP-Series MPL family. It is designed for industrial motion applications requiring fast response, accurate positioning, and stable closed-loop control. The motor has a 230 V AC rating, 3000 RPM rated speed, and multi-turn absolute encoder feedback.

2. What are the rated voltage, speed, and torque of the MPL-A4540F-MK74AA?
The motor is rated at 230 V AC and belongs to the 200 V class. Its rated speed is 3000 RPM and rated torque is 10.2 N·m. A compatible servo drive should be selected according to the motor electrical ratings and application load requirements.

3. What type of feedback does the MPL-A4540F-MK74AA use?
This model uses a Hiperface multi-turn high-resolution absolute encoder with 1024 Sin/Cos feedback. The encoder provides position information to the servo drive for accurate speed and position control. Proper encoder wiring, shielding, and grounding are important for reliable feedback performance.

4. Does the MPL-A4540F-MK74AA have a brake?
Yes. The MPL-A4540F-MK74AA is equipped with a 24 V DC brake. The brake is primarily used for holding the load when the motor is stopped. For vertical-axis applications, the brake circuit should be correctly integrated with the servo control sequence so that the brake is released only when adequate motor torque is available.

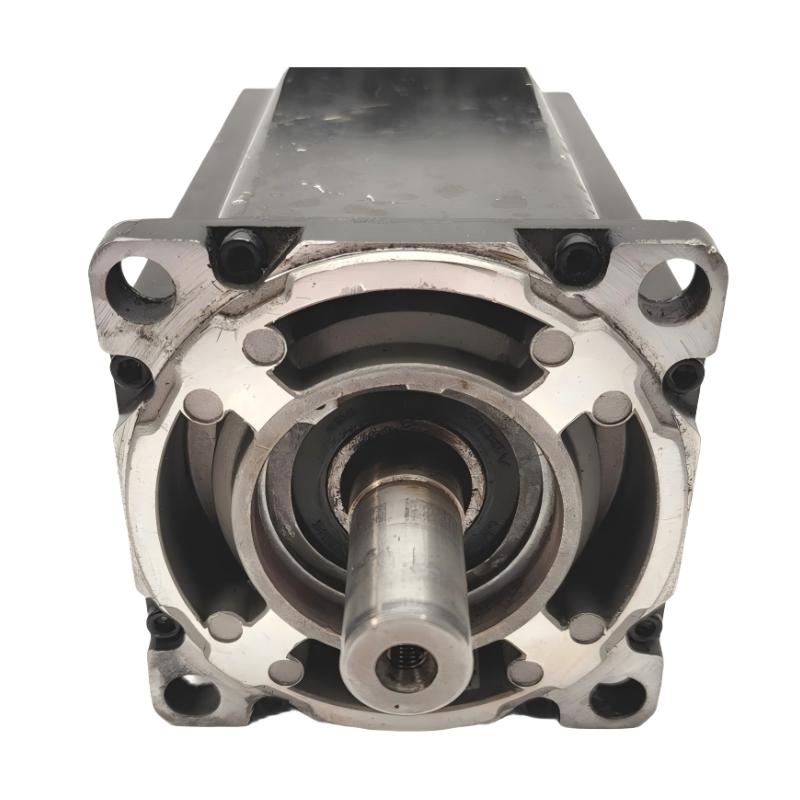

5. What shaft configuration does the MPL-A4540F-MK74AA use?
The motor uses a keyless shaft extension. It is suitable for compatible clamping couplings and other transmission components designed for keyless servo shafts. Correct alignment is important during installation because excessive radial or axial loading can increase bearing stress and cause vibration or positioning problems.

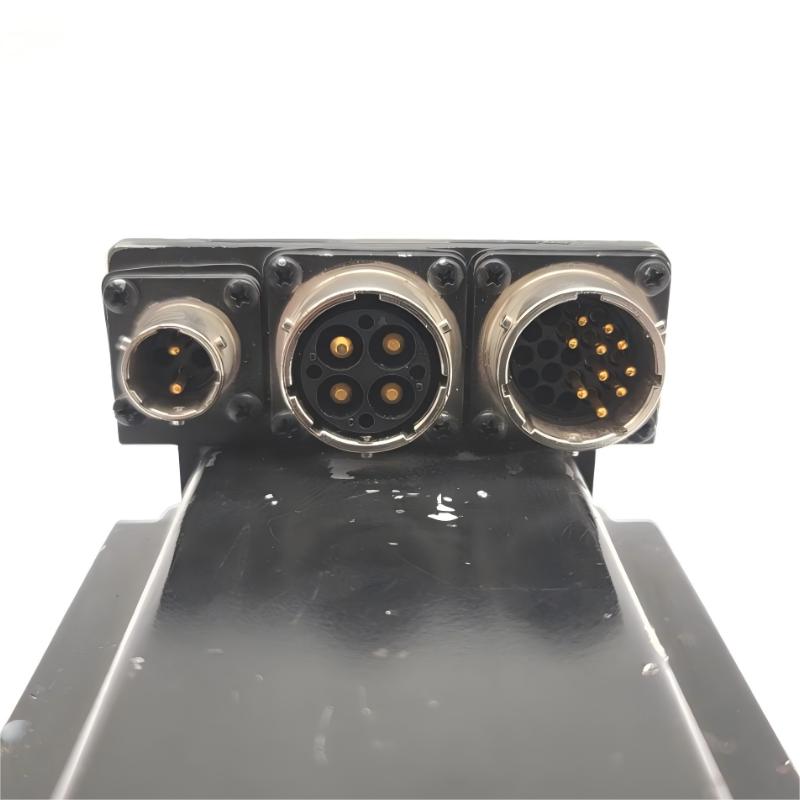

6. What connector is used on the MPL-A4540F-MK74AA?
The motor uses a SpeedTEC DIN connector in a right-angle configuration. The connector can be rotated through 180 degrees and provides a quick-connect arrangement. This makes cable routing more convenient in compact machine assemblies. The connector should be fully engaged and secured before the motor is energized.

7. How should an encoder or position fault be diagnosed on the MPL-A4540F-MK74AA?
Start by checking the servo drive alarm history and encoder feedback status. Inspect the feedback cable and SpeedTEC connector for loose contacts, damage, or poor shielding. Then check the mechanical coupling, load condition, backlash, and possible binding. If the hardware is normal, verify the motor identification, encoder configuration, and servo tuning parameters in the drive.

8. What should be checked during commissioning of the MPL-A4540F-MK74AA?
Before commissioning, verify the motor and drive voltage ratings, feedback configuration, brake wiring, grounding, and mechanical coupling. Start the motor at low speed and confirm the rotation direction, encoder feedback, current, acceleration, and deceleration response. For vertical-axis applications, verify correct 24 V DC brake operation before applying the full load. If vibration or following errors occur, check mechanical alignment and servo tuning before increasing speed or load.
