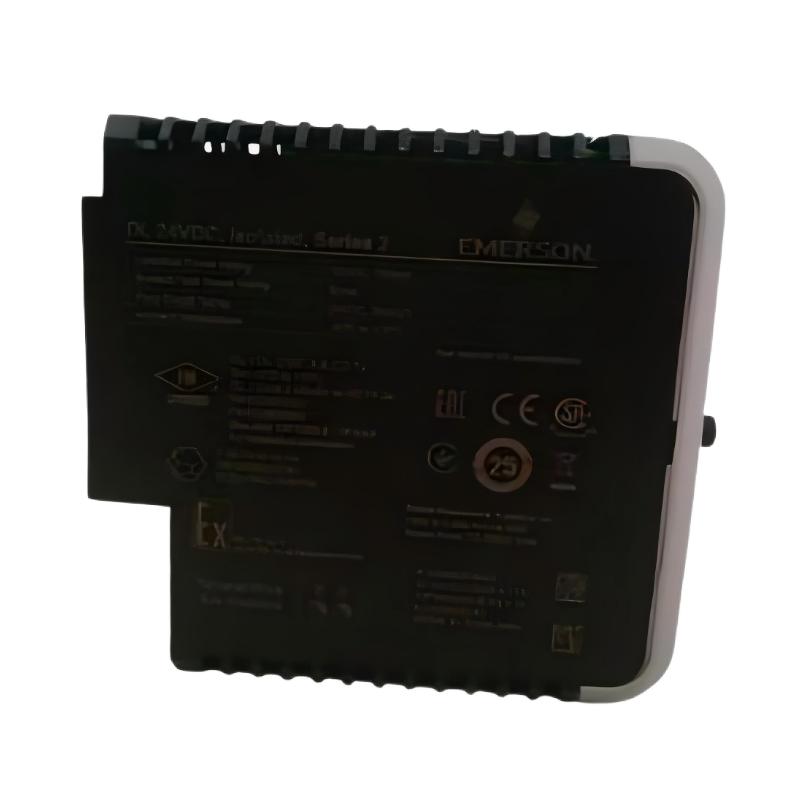

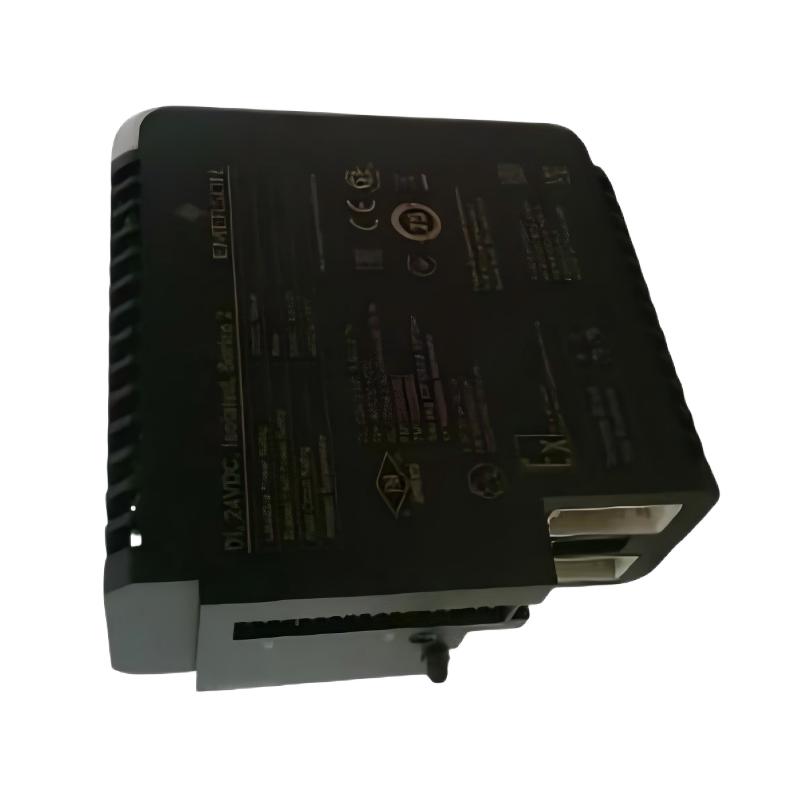

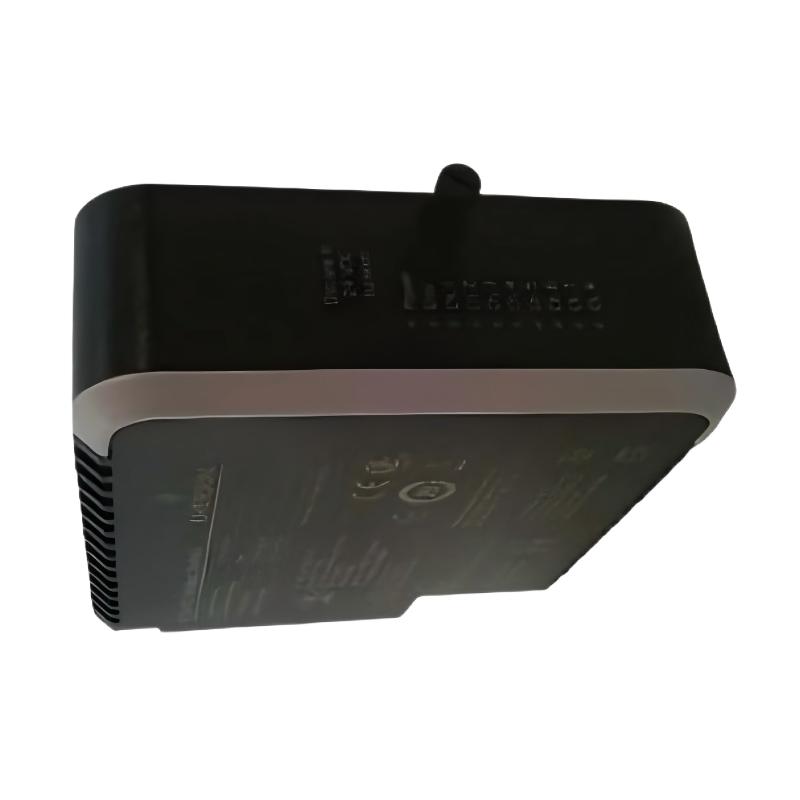

1. What is the Emerson VE4002S1T1B1 Discrete Output Card mainly used for?

The Emerson VE4002S1T1B1 Discrete Output Card is mainly used in Emerson DeltaV Distributed Control Systems to provide reliable digital output control between the automation controller and field-level equipment.

The module receives control commands generated by the DeltaV controller and converts them into discrete switching signals that can be used to operate external devices such as relays, solenoid valves, contactors, alarms, indicator lamps, and other ON/OFF controlled equipment.

In industrial process applications, digital output modules are essential for executing automatic control strategies, equipment interlocks, sequence operations, and safety-related actions. The VE4002S1T1B1 helps ensure that field devices respond accurately to system commands, improving process stability and operational reliability.

It is widely applied in industries such as oil and gas, chemical processing, power generation, water treatment, and manufacturing facilities where continuous and dependable control performance is required.

2. What types of field devices can be controlled by the VE4002S1T1B1?

The Emerson VE4002S1T1B1 Discrete Output Card can be used to control various industrial devices that require digital ON/OFF switching signals.

Typical applications include solenoid valves, relay coils, motor starters, contactors, warning indicators, alarm devices, actuator control circuits, and process equipment interlock systems.

When the DeltaV controller executes a configured control sequence, the VE4002S1T1B1 outputs the corresponding digital signal to activate or deactivate the connected field device.

The module provides a reliable connection between the control system and physical equipment, allowing automated processes to operate according to predefined control logic while improving response accuracy and system safety.

3. How is the VE4002S1T1B1 installed and configured in a DeltaV system?

The VE4002S1T1B1 is installed in the designated DeltaV I/O carrier and configured as part of the distributed control system architecture.

Before installation, engineers should verify the module model, hardware compatibility, I/O database configuration, and field wiring documentation. The output channels must be assigned correctly to match the corresponding controlled devices.

After the physical installation is completed, the DeltaV engineering software is used to confirm module recognition, communication status, and channel configuration.

During commissioning, each output channel should be tested individually to verify that connected field equipment responds correctly. Proper configuration and testing help prevent incorrect output operation and ensure stable system performance.

4. What are the common causes of VE4002S1T1B1 output failures?

Output failures can occur due to problems in the field devices, wiring connections, power supply conditions, system configuration, or control logic.

Common causes include damaged relays, faulty solenoid valves, broken cables, loose terminals, incorrect wiring connections, or poor electrical contact. In some cases, the output module may receive the correct command but the external device fails to respond due to a field equipment problem.

Incorrect DeltaV configuration, improper channel assignment, communication issues, or control program errors may also cause abnormal output behavior.

A complete troubleshooting process should include checking the controller command status, reviewing module diagnostics, inspecting field wiring, testing the connected equipment, and verifying system configuration parameters.

5. What advantages does the Emerson VE4002S1T1B1 provide in industrial automation systems?

The Emerson VE4002S1T1B1 provides stable and reliable digital output control for demanding industrial automation applications.

Its integration with the DeltaV control platform allows operators and engineers to easily monitor module status, diagnose problems, and maintain efficient control system operation.

The module delivers accurate execution of digital commands, helping field equipment respond quickly and consistently during normal operation, process adjustments, and emergency conditions.

By providing dependable communication between the controller and field devices, the VE4002S1T1B1 helps reduce production interruptions, improve operational efficiency, and enhance the overall reliability of automated processes.

6. How can technicians troubleshoot the VE4002S1T1B1 when an output channel does not work?

When an output channel fails, technicians should first verify whether the DeltaV controller is sending the correct command to the module.

The module diagnostic information should then be checked to confirm whether the output channel is operating normally and whether any system alarms or communication errors are present.

If the module is functioning correctly, the next step is to inspect external wiring, terminal connections, and the connected field device. Technicians should check for loose connections, damaged cables, incorrect wiring, or failed equipment such as valves or relays.

Testing the output circuit step by step from the controller to the final field device helps identify the exact fault location and reduces unnecessary replacement of functioning components.

7. How can the service life and reliability of the VE4002S1T1B1 be maintained?

To maintain long-term reliability, the VE4002S1T1B1 should be installed and operated according to industrial maintenance standards.

Regular inspections should include checking terminal connections, verifying field wiring condition, maintaining a clean control cabinet environment, and ensuring proper grounding and protection from electrical interference.

The connected field devices should also be tested periodically because external equipment failures can affect output performance and system operation.

Using DeltaV diagnostic functions to monitor module status allows maintenance teams to identify abnormal conditions early and perform corrective actions before failures impact production.

Proper preventive maintenance improves system availability and extends the operational life of the automation equipment.

8. What should be checked before replacing the Emerson VE4002S1T1B1 Discrete Output Card?

Before replacing the VE4002S1T1B1, technicians should confirm that the replacement module matches the existing system requirements and is compatible with the current DeltaV hardware configuration.

The existing module configuration, output channel assignments, field wiring connections, and related control logic should be documented before removal to prevent configuration errors after replacement.

After installing the new module, engineers should verify that the DeltaV system recognizes the device correctly and that communication with the controller is operating normally.

All output channels should be tested to confirm that connected field devices respond correctly to control commands. Final system verification should include checking diagnostics, alarms, and normal process operation before returning the equipment to full production service.
