1. What is the Emerson VE4002S1T1B2 KJ3001X1-BG1+KJ4001X1-CB1 Output Module mainly used for?

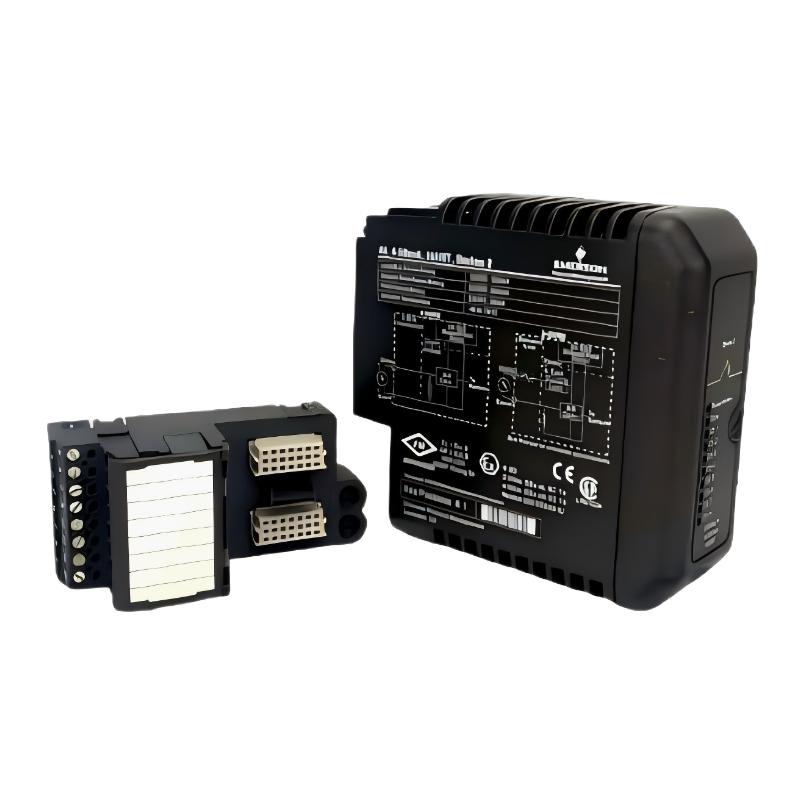

The Emerson VE4002S1T1B2 KJ3001X1-BG1+KJ4001X1-CB1 is an isolated discrete output module designed for Emerson DeltaV control systems. It is used to convert digital control commands from the controller into reliable switching signals for field devices.

The module provides isolated output channels that can control industrial equipment such as solenoid valves, relays, contactors, alarms, indicators, and other ON/OFF devices. The integrated terminal block simplifies field wiring and improves connection reliability in industrial applications.

In process automation systems, output modules are responsible for executing control strategies generated by the controller. The VE4002S1T1B2 helps ensure that field equipment receives accurate commands, supporting automatic sequencing, equipment interlocking, and process control operations.

It is widely used in industries including oil and gas, chemical processing, power plants, water treatment, and manufacturing facilities where reliable digital output control is required.

2. What are the main features of the VE4002S1T1B2 output module?

The VE4002S1T1B2 features isolated digital output channels, 24 VDC output capability, and compatibility with Emerson DeltaV automation systems.

One of its key advantages is electrical isolation between output channels and the control system, which helps reduce the impact of electrical noise, ground loops, and field-side disturbances. This improves system safety and signal reliability.

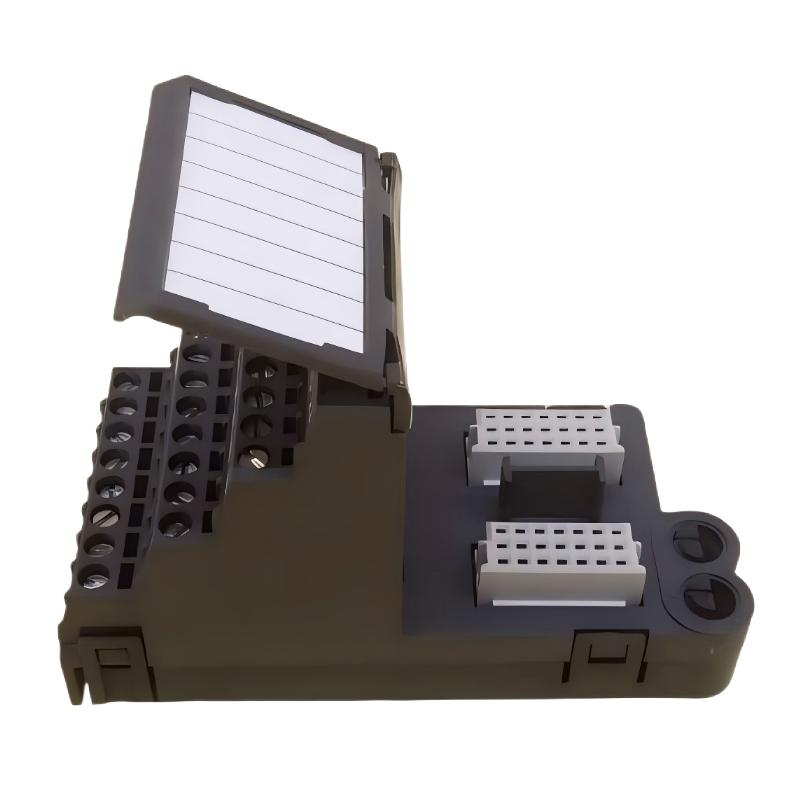

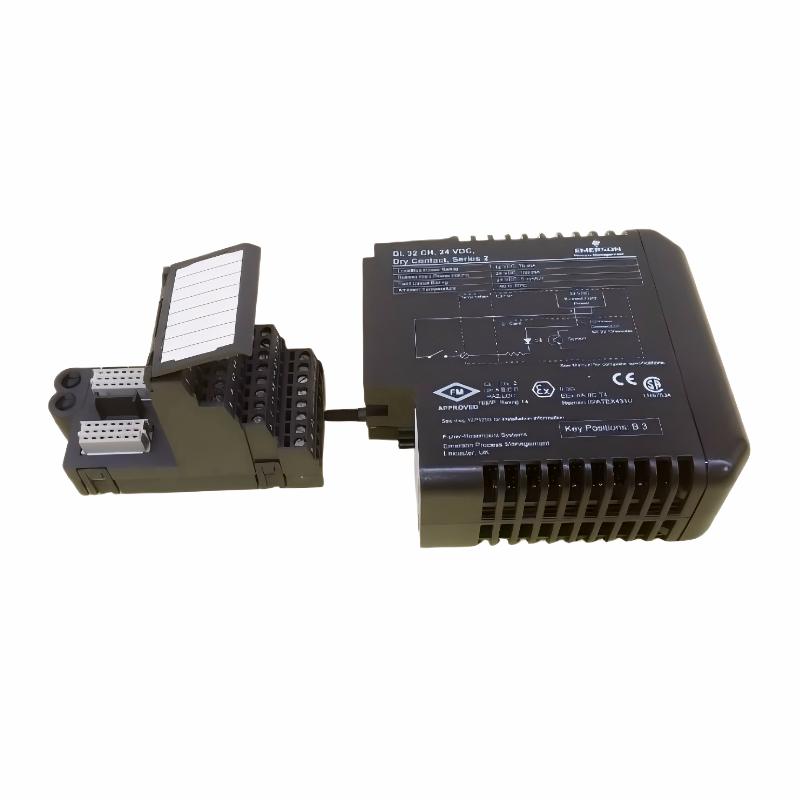

The module is supplied together with KJ3001X1-BG1 and KJ4001X1-CB1 components, providing an integrated solution for output control and field wiring connection.

The terminal block design allows easier installation and maintenance, while the modular structure enables quick replacement during system maintenance or expansion.

3. What types of field devices can be controlled by this output module?

The Emerson VE4002S1T1B2 can control various industrial devices that operate with discrete switching signals.

Typical applications include controlling solenoid valves for process flow adjustment, relay coils for equipment switching, contactors for motor control, alarm devices for process warnings, and indicator lights for equipment status display.

The module can also be used for equipment interlock functions, where specific output conditions must be activated according to process logic.

By providing stable and isolated output signals, the module creates a reliable connection between the DeltaV control system and field-level equipment, ensuring accurate execution of automation commands.

4. What are the common causes of VE4002S1T1B2 output failures?

Output failures may result from issues related to field devices, wiring connections, system configuration, or external power conditions.

Common causes include damaged solenoid valves, failed relay coils, incorrect field wiring, loose terminal connections, short circuits, or poor contact conditions.

If the DeltaV controller sends the correct output command but the field device does not respond, technicians should check the complete output circuit, including the terminal block, wiring, power supply, and connected equipment.

Configuration problems within the DeltaV system, such as incorrect channel assignments or control logic errors, may also cause abnormal output behavior.

A systematic troubleshooting process helps identify whether the problem originates from the module, wiring, field device, or software configuration.

5. How does the isolated output design improve system reliability?

The isolated output design of the VE4002S1T1B2 improves reliability by providing electrical separation between the control system side and field device side.

Industrial environments often contain electrical noise, voltage fluctuations, and interference from motors or high-power equipment. Isolation helps prevent these disturbances from affecting sensitive control electronics.

This design also reduces the risk of damage caused by field-side electrical faults and improves overall system protection.

For critical industrial processes, isolated digital outputs provide more stable operation, better signal integrity, and increased equipment protection compared with non-isolated output solutions.

6. How can technicians troubleshoot a VE4002S1T1B2 output channel problem?

When troubleshooting an output channel problem, technicians should first confirm that the DeltaV controller is generating the correct output command.

The next step is to check module diagnostics and verify whether the output channel status changes correctly in the control system.

If the module operates normally, technicians should inspect the terminal block connections, field wiring, external power supply, and connected device condition.

Testing the field device separately can help determine whether the fault is caused by the actuator or the output circuit. Engineers should also verify DeltaV configuration parameters to ensure that the output channel is correctly assigned and programmed.

Following a step-by-step troubleshooting process can quickly locate the fault and reduce unnecessary downtime.

7. How can the VE4002S1T1B2 be maintained for long-term operation?

To maintain reliable operation, regular inspection and preventive maintenance should be performed on the module and connected field circuits.

Maintenance activities should include checking terminal connections, inspecting wiring conditions, monitoring DeltaV diagnostic information, and verifying that connected field devices operate correctly.

The control cabinet environment should also be maintained properly by reducing dust, moisture, vibration, and electrical interference.

Regular functional testing of output channels helps identify potential issues before they affect production. Preventive maintenance improves system availability, reduces unexpected failures, and extends the service life of the automation equipment.

8. What should be checked before replacing the VE4002S1T1B2 module?

Before replacing the Emerson VE4002S1T1B2, technicians should verify that the replacement module matches the existing system configuration and includes the correct terminal block components.

Before removal, record the existing output channel assignments, wiring connections, and DeltaV configuration information to avoid incorrect installation.

After installing the replacement module, confirm that the DeltaV system recognizes the hardware correctly and that communication with the controller is normal.

All output channels should be tested to ensure that connected field devices respond correctly to control commands. Final verification should include checking system diagnostics and confirming stable operation before returning the process to normal service.
