1. What is the Emerson VE4002S1T1B3 Discrete Output Card mainly used for?

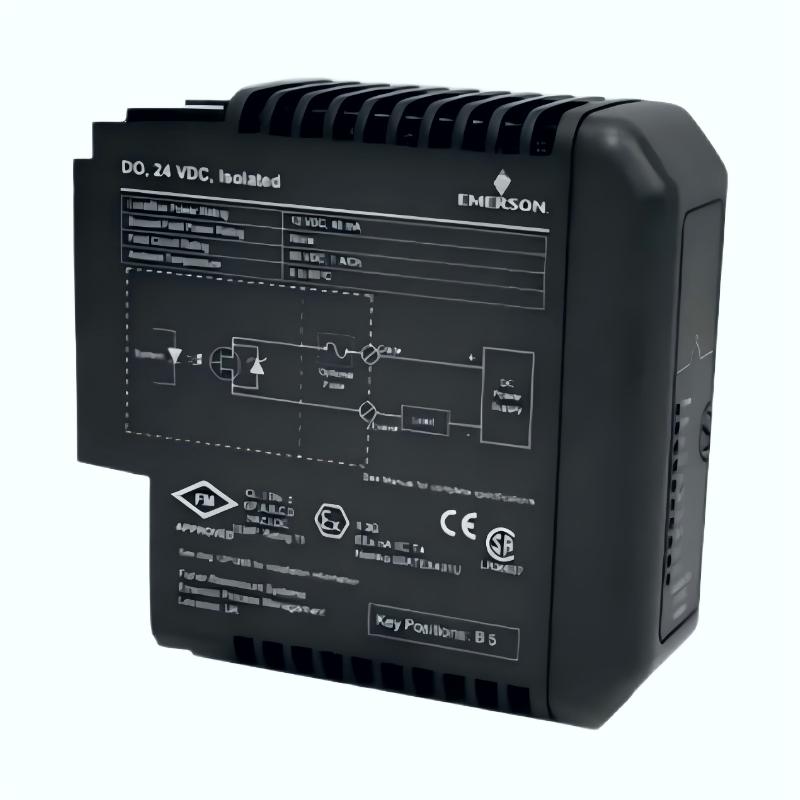

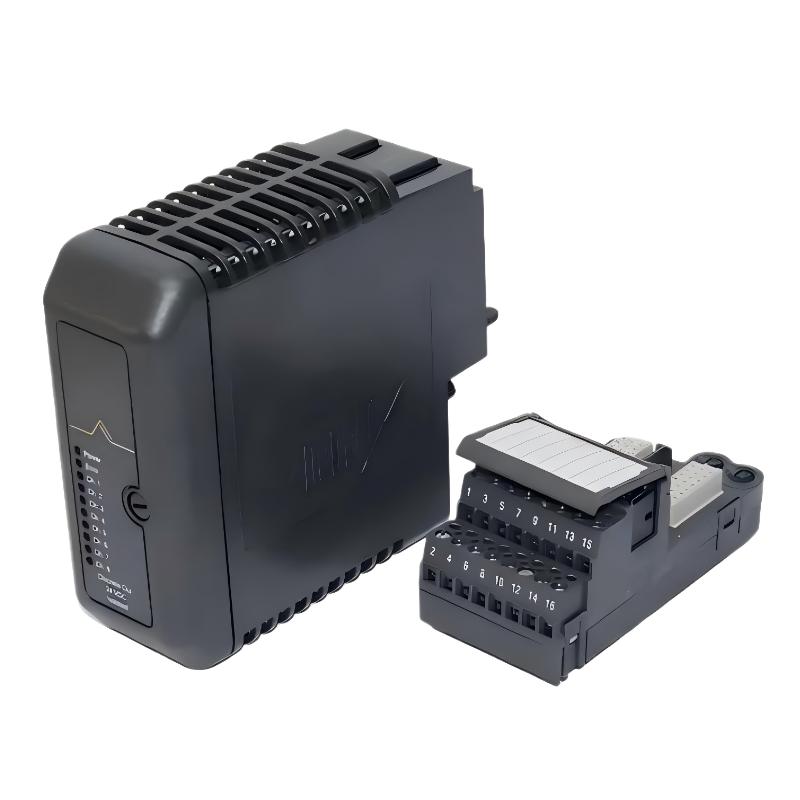

The Emerson VE4002S1T1B3 Discrete Output Card is a digital output module designed for Emerson DeltaV Distributed Control Systems. It is mainly used to convert control commands generated by the DeltaV controller into reliable discrete output signals for operating field devices.

The module provides 8 channels of isolated 24 VDC digital output and is commonly used to control industrial devices such as solenoid valves, relays, contactors, alarms, indicator lamps, and other ON/OFF controlled equipment.

In industrial automation systems, the output module plays an important role in executing programmed control strategies. When the DeltaV controller sends commands based on process conditions, the VE4002S1T1B3 accurately transfers these commands to field equipment, allowing automatic sequences, equipment interlocks, and process control operations to be performed reliably.

It is widely used in oil and gas facilities, chemical plants, power generation systems, water treatment applications, and manufacturing industries where stable digital output control is required.

2. What are the main features of the VE4002S1T1B3 output module?

The Emerson VE4002S1T1B3 provides isolated digital output capability, 24 VDC operation, and compatibility with DeltaV M-Series I/O systems.

The isolated output design improves electrical protection between the control system and field devices, helping reduce the influence of electrical noise, voltage fluctuations, and external disturbances in industrial environments.

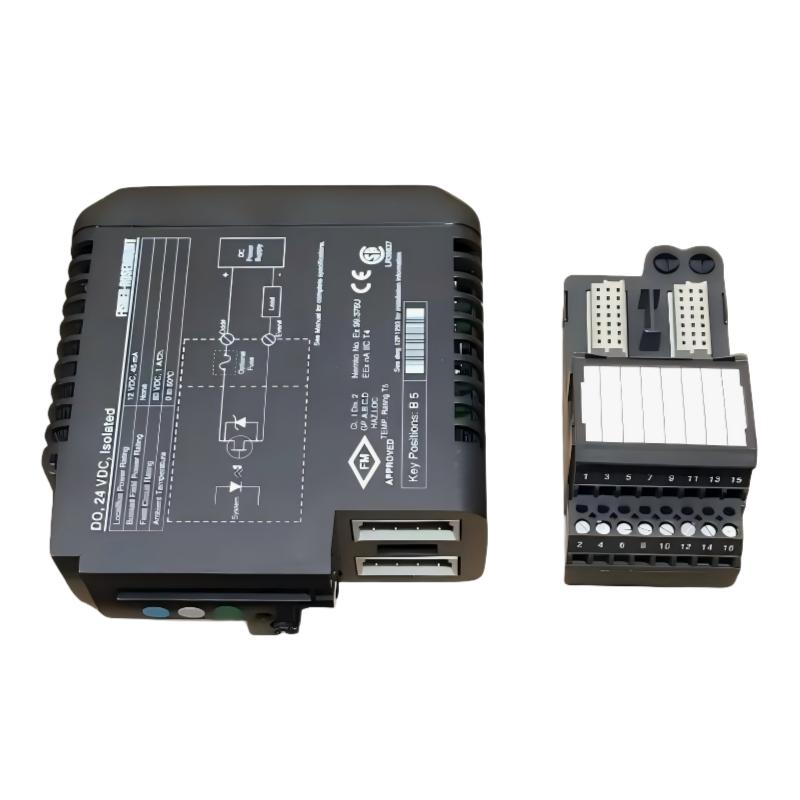

The module uses a 16-pin mass termination connection method, which simplifies field wiring and improves cabinet organization. This design helps reduce installation complexity and makes maintenance easier during system expansion or troubleshooting.

With stable output performance and reliable integration with DeltaV systems, the VE4002S1T1B3 is suitable for continuous industrial operation requiring dependable digital control.

3. What types of field devices can be controlled by the VE4002S1T1B3?

The VE4002S1T1B3 can control various industrial field devices that require digital ON/OFF switching signals.

Typical applications include solenoid valves, relay coils, motor starter circuits, contactors, alarm systems, status indicators, actuator control circuits, and process equipment interlock systems.

For example, when a process condition requires a valve to open, the DeltaV controller sends a command to the output module. The VE4002S1T1B3 then provides the digital signal required to activate the valve actuator.

The module can also support automated equipment sequences and safety-related control actions by ensuring that field devices receive accurate and timely commands from the control system.

4. What are the common causes of VE4002S1T1B3 output failures?

Output failures may be caused by problems related to field devices, wiring connections, system configuration, or external electrical conditions.

Common causes include damaged solenoid valves, faulty relay coils, loose terminal connections, incorrect wiring, cable damage, or abnormal field power conditions.

In some cases, the output module receives the correct command from the controller, but the connected device fails to respond because of a field equipment problem.

Configuration issues within the DeltaV system can also result in abnormal output behavior. Incorrect channel assignments, control logic errors, or communication problems may prevent the output signal from being executed correctly.

A complete troubleshooting process should include checking controller commands, module diagnostics, field wiring, connected devices, and system configuration parameters.

5. How does the isolated output design improve system reliability?

The isolated output design of the VE4002S1T1B3 improves system reliability by separating the control system side from the field device side.

Industrial environments often contain electrical interference caused by motors, variable frequency drives, switching equipment, and high-power devices. Without proper isolation, these disturbances may affect control signal stability.

The isolated output structure helps reduce the impact of electrical noise and protects the DeltaV control system from certain field-side electrical conditions.

This improves signal reliability, reduces the possibility of unexpected output behavior, and provides more stable operation for critical industrial automation applications.

6. How can technicians troubleshoot a VE4002S1T1B3 output channel problem?

When an output channel does not work correctly, technicians should first verify whether the DeltaV controller is sending the correct output command.

The next step is to check the module diagnostic information and confirm whether the selected output channel responds correctly within the control system.

If the module status is normal, technicians should inspect the terminal connections, field wiring, external power supply, and connected equipment.

Common issues such as loose connections, damaged cables, failed relays, or defective actuators should be checked carefully.

Testing the complete signal path from the controller output command to the final field device helps identify whether the problem is caused by software configuration, the output module, wiring, or the external equipment.

7. How can the VE4002S1T1B3 maintain long-term reliable operation?

To maintain reliable operation of the VE4002S1T1B3, proper installation and regular preventive maintenance are required.

Maintenance activities should include checking terminal connections, inspecting field wiring, monitoring DeltaV diagnostic information, and verifying that connected devices operate correctly.

The control cabinet environment should be kept clean and dry, while excessive vibration, moisture, dust, and electrical interference should be minimized.

Regular testing of output channels helps identify potential issues before they affect production. Preventive maintenance improves system availability, reduces unexpected downtime, and extends the operational life of the automation system.

8. What should be checked before replacing the Emerson VE4002S1T1B3 Discrete Output Card?

Before replacing the VE4002S1T1B3, technicians should confirm that the replacement module has the same model specification and is compatible with the existing DeltaV system configuration.

Before removing the original module, the existing output channel assignments, field wiring connections, and configuration information should be recorded to prevent installation mistakes.

After installing the replacement module, engineers should verify that the DeltaV system recognizes the module correctly and that communication with the controller is normal.

All output channels should be tested to confirm that connected field devices respond correctly to control commands. The system should also be checked for diagnostic alarms before returning the equipment to normal operation.
