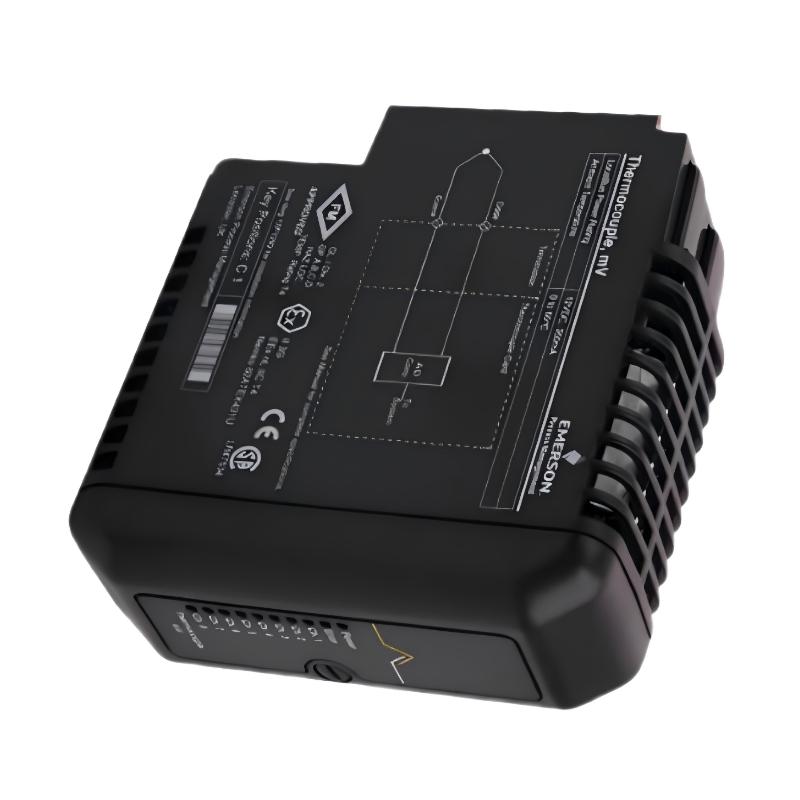

1. What is the Emerson VE4003S2B5 mainly used for?

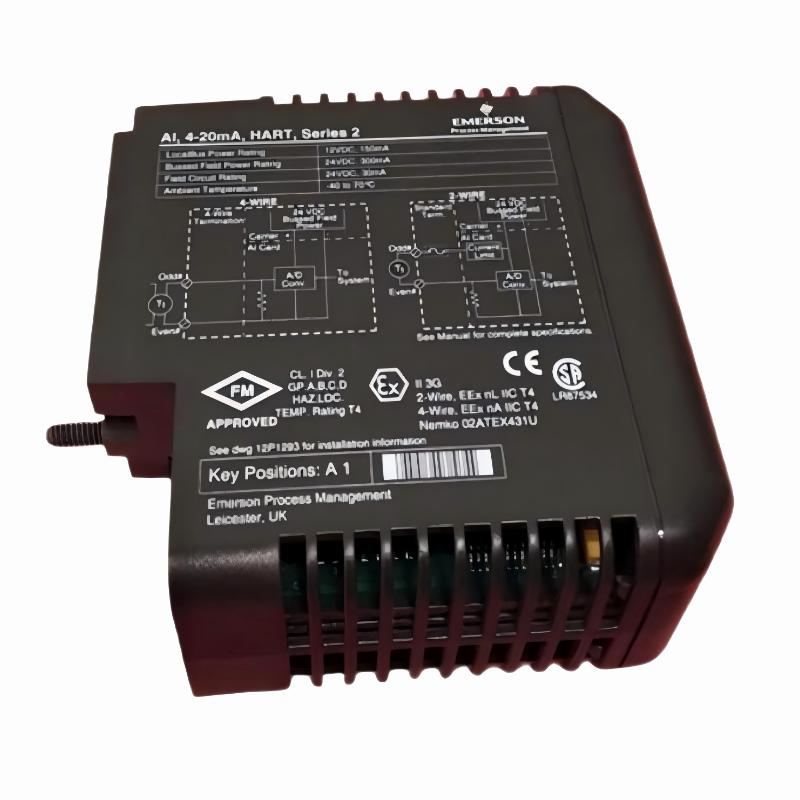

The Emerson VE4003S2B5 is an analog input card designed for industrial process control and DeltaV distributed control system applications. Its main purpose is to acquire analog signals from field instruments and transfer the measured process information into the control system. Typical applications include pressure, flow, level, temperature, and other continuous process measurements. By providing a structured interface between field instrumentation and the DCS, the card supports process monitoring, control strategies, alarm handling, and operator display functions.

2. What type of input signal does the VE4003S2B5 support?

The VE4003S2B5 is designed for standard 4–20 mA analog input signals used widely in industrial instrumentation. These signals can originate from compatible transmitters and process instruments installed throughout a plant. Before commissioning, the field instrument output, loop power arrangement, wiring, and DeltaV channel configuration should be checked carefully. Correct signal configuration is important because an incorrect input range or wiring arrangement can result in inaccurate process values or channel diagnostics.

3. How many analog input channels are available on the VE4003S2B5?

The VE4003S2B5 provides 8 analog input channels. Each channel can be assigned to an appropriate field measurement according to the DeltaV control system configuration. This multi-channel design allows several process variables to be collected through one I/O card, which can simplify system architecture and field wiring. During commissioning, each channel should be verified individually to ensure that the correct field instrument is associated with the corresponding DeltaV channel and that the displayed process value matches the actual field condition.

4. Does the Emerson VE4003S2B5 support HART communication?

The VE4003S2B5 supports HART communication for compatible field devices. This allows a 4–20 mA analog signal to be used for the primary process measurement while digital HART communication can provide additional information from a smart field instrument. Depending on the connected instrument and system configuration, this information can include device status, diagnostic information, configuration parameters, and other maintenance-related data. HART capability is particularly useful when the control system is integrated with intelligent field instrumentation and device-management functions.

5. Which field instruments can be connected to the VE4003S2B5?

The card can be used with compatible field instruments that provide the required analog current signal. Common examples include pressure transmitters, differential pressure transmitters, flow transmitters, level transmitters, and other process measurement devices with suitable 4–20 mA outputs. When selecting a field instrument, engineers should verify its output characteristics, power requirements, wiring configuration, and communication requirements. The instrument configuration should also correspond with the DeltaV I/O channel configuration so that the measured process variable is correctly interpreted by the control system.

6. How can an abnormal analog input signal on the VE4003S2B5 be diagnosed?

Troubleshooting should begin by determining whether the abnormal condition affects one channel or several channels. For a single affected channel, inspect the associated transmitter, loop power, field wiring, terminal connections, and signal continuity. The actual loop current can be measured to determine whether the field instrument is producing the expected signal. If the field signal is correct but the DeltaV value is incorrect, the I/O configuration and associated hardware should be checked. When multiple channels show similar symptoms, the investigation should also include the I/O power supply, termination assembly, system communication, and configuration. A step-by-step signal-path check is generally the most effective approach.

7. What should be checked during commissioning of the VE4003S2B5?

During commissioning, verify the card identification, I/O channel configuration, field wiring, transmitter operation, and signal range. Each connected field instrument should be tested to confirm that its 4–20 mA signal reaches the correct input channel. The displayed process value in the DeltaV system should then be compared with the actual field measurement. If HART instruments are used, communication status and available diagnostic information should also be checked. Any channel alarms, signal-quality indications, or configuration mismatches should be resolved before the associated process loop is placed into normal operation.

8. What should be considered when replacing an Emerson VE4003S2B5 Analog Input Card?

Before replacement, confirm the complete model number and verify that the replacement card matches the existing DeltaV I/O configuration. The affected process loops should be placed in the appropriate maintenance or safe state according to site procedures before the card is removed. Field wiring and channel assignments should be documented to prevent incorrect reconnection. After installation, verify the card status, channel configuration, 4–20 mA input signals, and process values for every affected point. If HART-enabled instruments are connected, their communication and diagnostic functions should also be tested. A complete point-by-point verification helps ensure that the replacement card is correctly integrated into the control system before normal operation resumes.
