1. What is the Emerson VE4003S2B6 KJ3223X1-BA1 mainly used for?

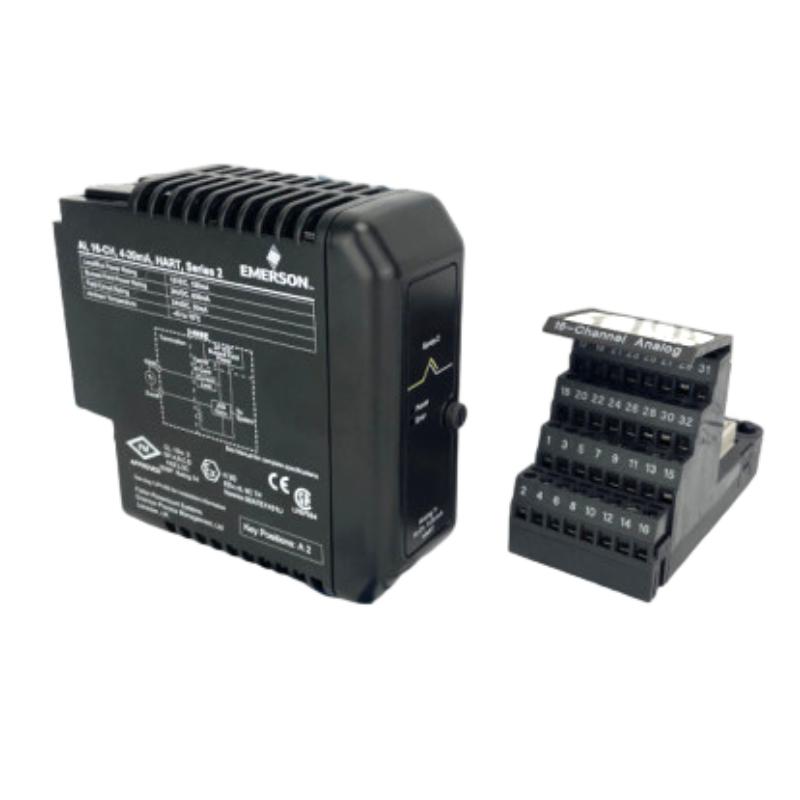

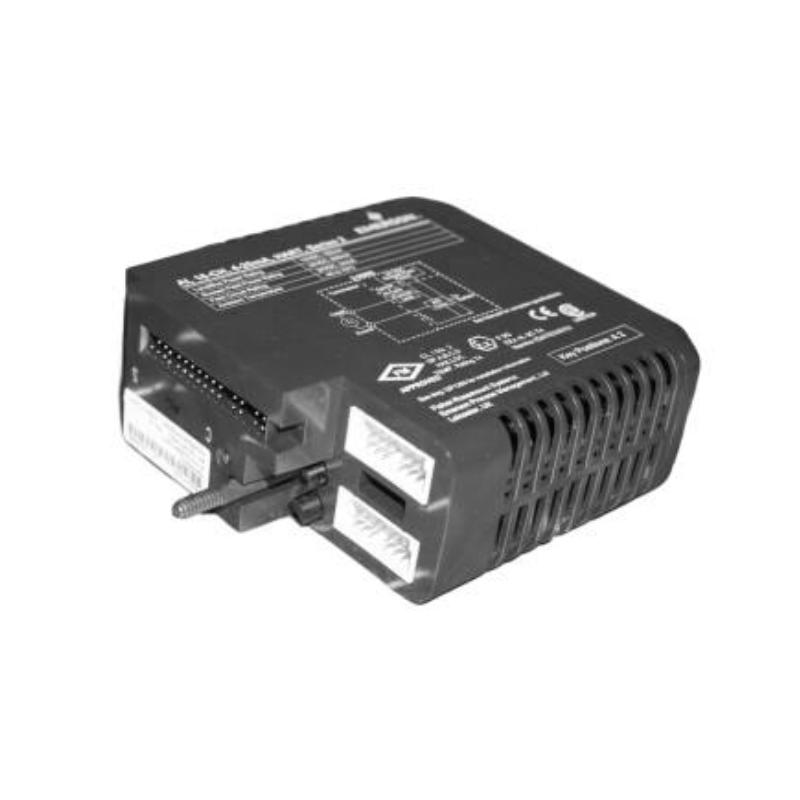

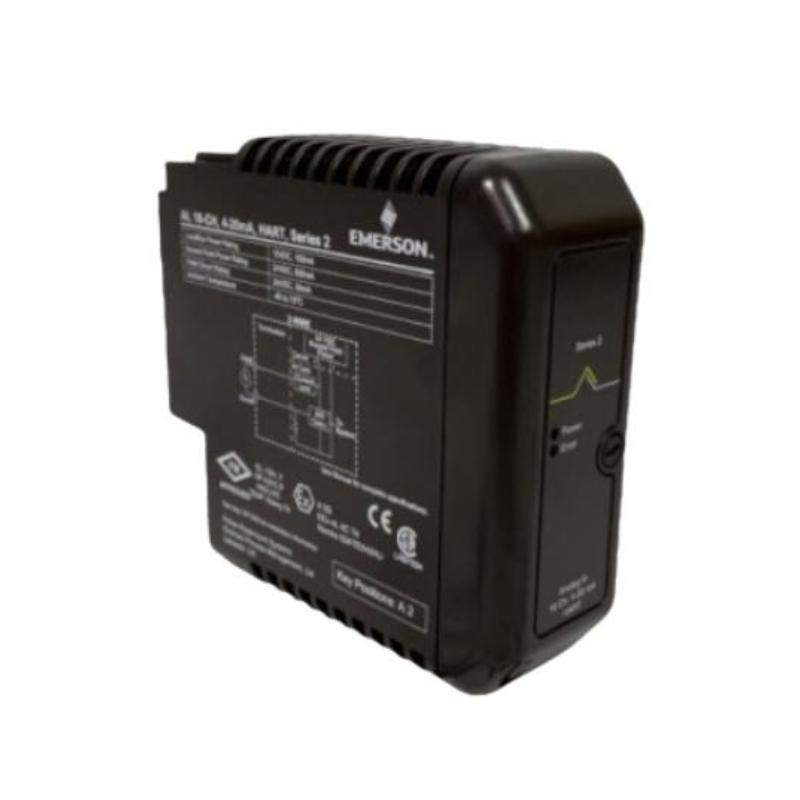

The Emerson VE4003S2B6 KJ3223X1-BA1 is an analog input module designed for DeltaV distributed control systems. It is used to acquire analog signals from field instruments and transfer process measurement data to the DCS. Typical applications include pressure, flow, level, temperature, and other continuous process variables. The module is suitable for industrial automation and process control applications where reliable analog signal acquisition is required.

2. What type of input signal does the VE4003S2B6 KJ3223X1-BA1 support?

The module is designed for 4–20 mA analog input signals commonly used by industrial transmitters. Compatible field instruments can send their process measurements through the current loop to the input module for processing by the DeltaV system. Before commissioning, the transmitter output, loop power, wiring arrangement, signal range, and DeltaV channel configuration should be verified. Correct configuration is essential for obtaining accurate process values.

3. How many input channels does the KJ3223X1-BA1 provide?

The KJ3223X1-BA1 provides 8 analog input channels. Each channel can be assigned to an individual process measurement according to the DeltaV system configuration. During commissioning, each channel should be tested separately to confirm that the correct field instrument is connected to the intended channel. Channel-by-channel verification also helps identify wiring errors, incorrect configuration, or faulty field instruments before the process loop is placed into normal operation.

4. Does the VE4003S2B6 support HART communication?

Yes. The VE4003S2B6 KJ3223X1-BA1 supports HART communication with compatible smart field instruments. HART allows the traditional 4–20 mA signal to carry the primary process variable while digital communication provides additional instrument information. Depending on the connected device and system configuration, users can obtain device status, diagnostic information, configuration data, and other maintenance-related parameters. This can improve instrument monitoring and troubleshooting within a DeltaV environment.

5. What field instruments can be connected to this analog input module?

The module can be used with compatible 4–20 mA field instruments, including pressure transmitters, differential pressure transmitters, flow transmitters, level transmitters, and other process measurement devices. The field device must meet the required electrical and signal specifications. Engineers should verify the transmitter’s output type, loop power requirements, wiring configuration, and HART capability where applicable. The corresponding DeltaV channel should also be configured according to the actual measurement range and engineering unit.

6. How should an abnormal input signal be troubleshot?

Start by determining whether the problem affects one input channel or multiple channels. For a single-channel problem, check the field transmitter, loop power supply, field wiring, termination connections, and actual loop current. If the field signal is correct but the DeltaV value is incorrect, inspect the channel configuration and I/O hardware. If several channels are affected simultaneously, check the module power supply, termination assembly, system communication, and configuration. For HART instruments, device diagnostics can provide additional information about the condition of the field device.

7. What should be checked when commissioning the VE4003S2B6 KJ3223X1-BA1?

Commissioning should include verification of the module model, channel configuration, field wiring, transmitter operation, signal range, and process-variable scaling. Each connected transmitter should be tested to confirm that its 4–20 mA output reaches the correct DeltaV input channel. The displayed value should be compared with the actual field measurement. For HART-enabled devices, communication status and available diagnostic information should also be checked. Any input alarms, configuration mismatches, or abnormal signal conditions should be resolved before returning the process loop to normal service.

8. What should be considered when replacing the VE4003S2B6 KJ3223X1-BA1?

Before replacement, confirm the complete model number and verify compatibility with the existing DeltaV I/O configuration. The affected process loop should be placed in the appropriate maintenance or safe state before removing the module. Field wiring and channel assignments should be documented to avoid incorrect reconnection. After installation, verify module status, channel configuration, 4–20 mA signals, and process values for each affected point. If HART instruments are connected, verify HART communication and device diagnostics as well. A point-by-point functional test should be completed before returning the process system to normal operation.
