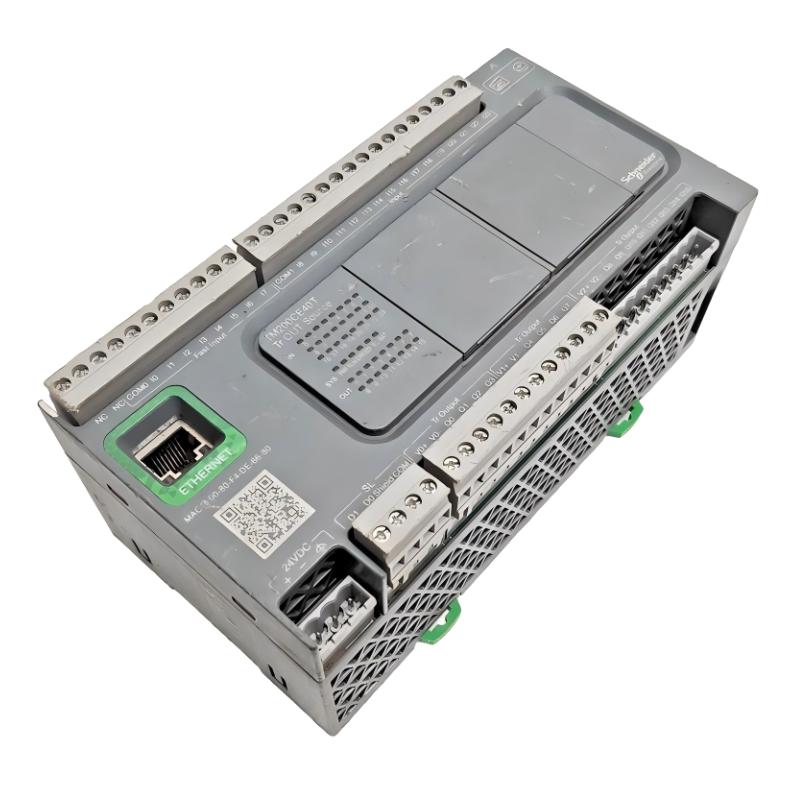

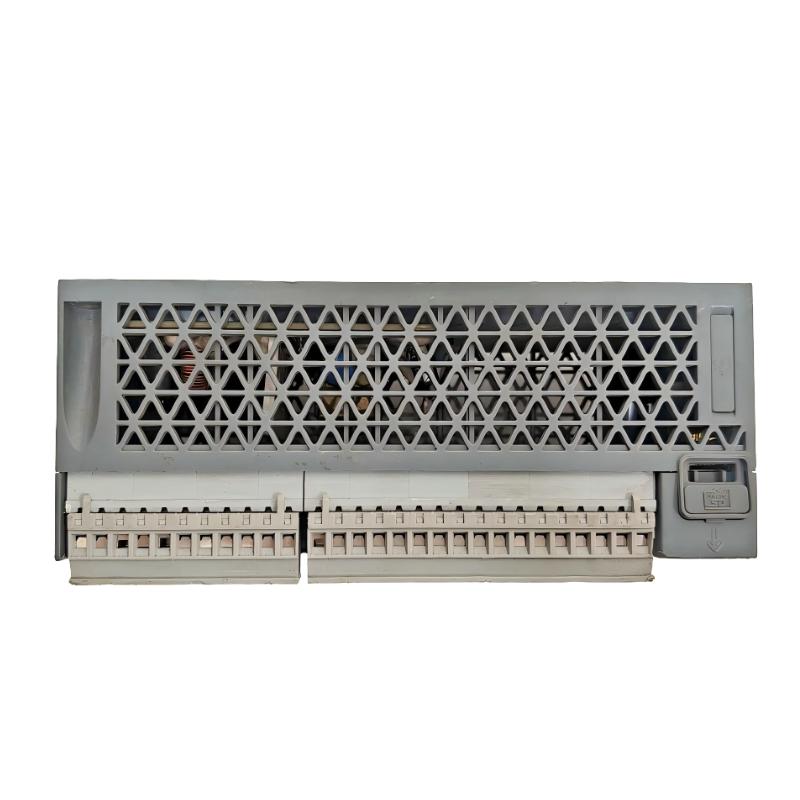

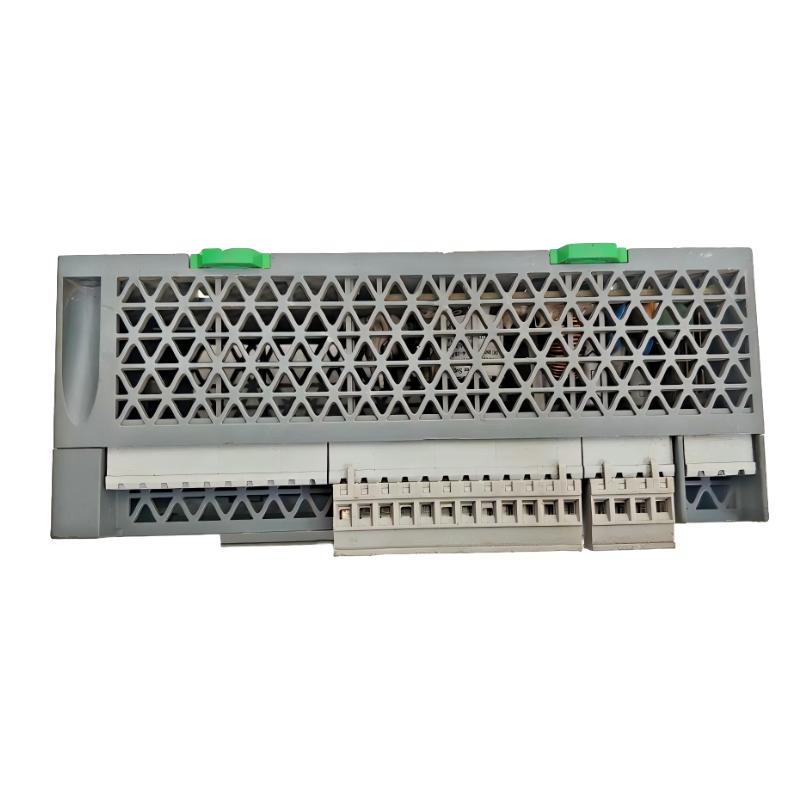

Schneider TM200CE40T Easy Modicon M200 Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Product Name | Easy Modicon M200 Controller |
| Model | TM200CE40T |
| Product Series | Easy Modicon M200 |
| Product Type | Programmable Logic Controller (PLC) |
| Total Digital I/O | 40 points |
| Digital Inputs | 24 inputs |
| Digital Outputs | 16 transistor outputs |
| Output Type | Transistor, sourcing (PNP) |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Rated Supply Voltage | 100–240 V AC |
| Supply Voltage Range | 85–264 V AC |
| Supply Frequency | 50/60 Hz |
| Communication Interfaces | Ethernet RJ45, RS-485, USB Mini-B; verify exact model documentation |
| Ethernet Protocol | Modbus TCP/IP, subject to model-specific confirmation |
| Serial Communication | RS-485; protocol depends on configuration |
| High-Speed Counting | Supported on designated inputs; verify channel and frequency limits |
| Pulse Output Functions | Supported by designated transistor outputs, subject to configuration |
| Expansion Capability | Supports compatible expansion modules, subject to system limits |
| Mounting Type | DIN rail |
| Protection Rating | IP20 |
| Operating Temperature | 0–55°C |
| Dimensions | 175 × 90 × 70 mm |
| Weight | 0.523 kg |
FAQ
Q1: What is the Schneider TM200CE40T used for?
A: The TM200CE40T is a programmable logic controller for machine automation, packaging equipment, production lines, and other industrial control applications.
Q2: How many I/O points does the TM200CE40T provide?
A: It provides 40 digital I/O points, consisting of 24 digital inputs and 16 transistor outputs.
Q3: What is the difference between the TM200CE40T and TM200CE40R?
A: The TM200CE40T uses transistor outputs, suitable for fast switching and supported pulse-control applications. The TM200CE40R uses relay outputs, which can switch compatible AC or DC loads. Check the required output type before selecting a replacement.
Q4: What power supply does the TM200CE40T require?
A: The controller is specified for a 100–240 V AC supply, with an allowable input range of 85–264 V AC at 50/60 Hz. Its digital I/O circuits operate at 24 V DC.
Q5: Does the TM200CE40T support Ethernet communication?
A: Confirm the communication interfaces and supported protocols in the official documentation for the exact model before integrating it into an Ethernet-based control system.
Q6: Can the TM200CE40T generate high-speed pulses?
A: Designated transistor outputs may support pulse-control functions. Verify the supported output channels, maximum frequency, and operating mode for the intended application.
Q7: Can additional I/O expansion modules be connected?
A: Compatible expansion modules may be used within the controller’s supported configuration limits. Confirm module compatibility and the maximum permitted expansion before installation.
Q8: What should I check if a transistor output does not operate correctly?
A: Check the 24 V DC supply, output wiring and polarity, load current, common-terminal connections, PLC program, and output status. Also confirm that the selected channel supports the required operating mode.
Schneider TM200CE40T Easy Modicon M200 Controller is in stock. Please contact us for a quick quote and competitive pricing.
