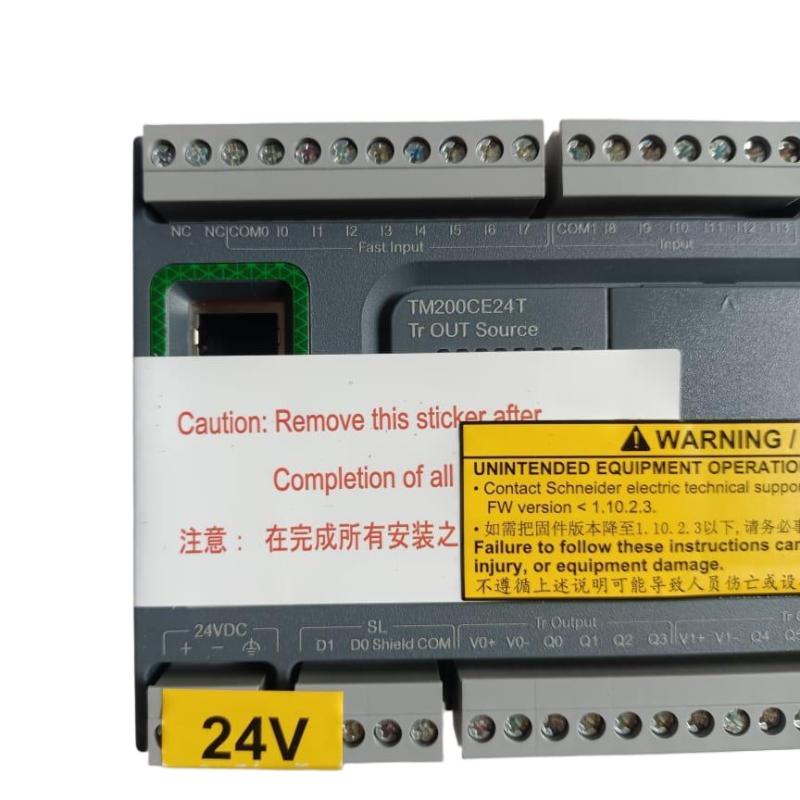

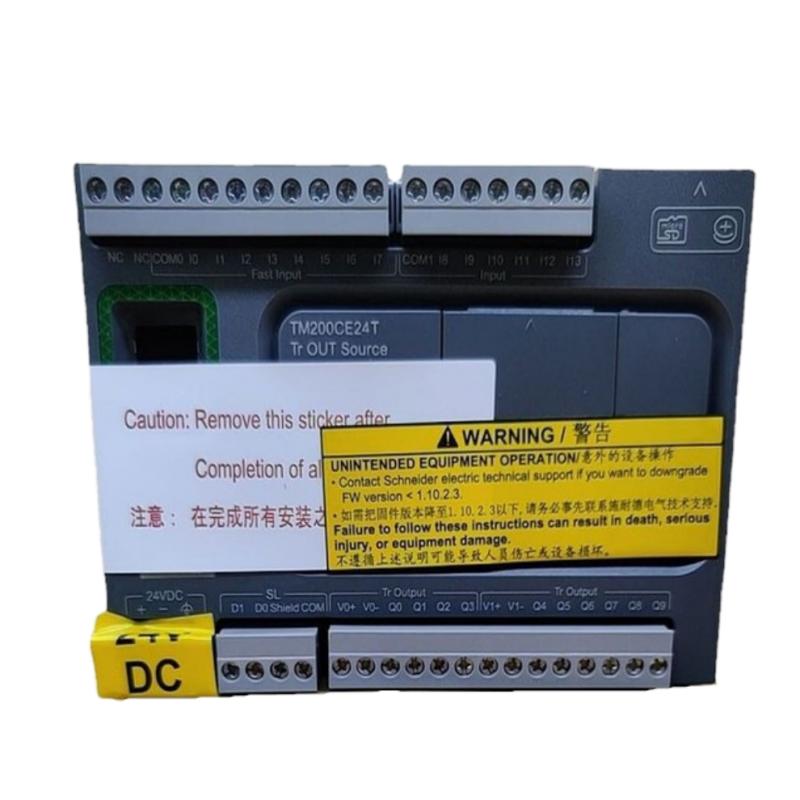

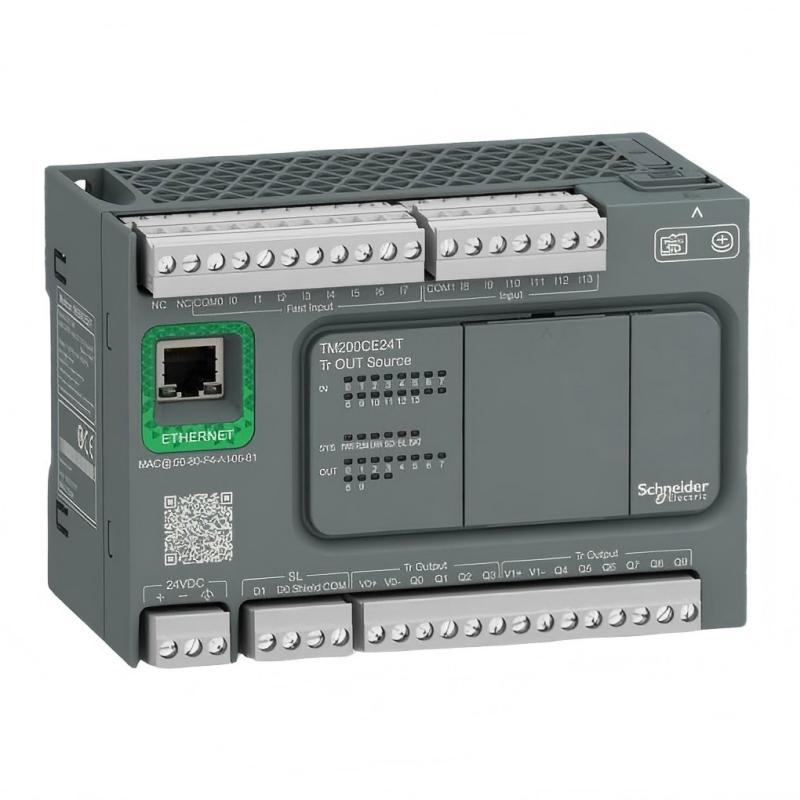

Schneider TM200CE24T Easy Modicon M200 Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Product Name | Easy Modicon M200 Controller |
| Model | TM200CE24T |
| Product Series | Easy Modicon M200 |
| Product Type | Programmable Logic Controller (PLC) |
| Total Digital I/O | 24 points |
| Digital Inputs | 14 inputs |
| Digital Outputs | 10 transistor outputs |
| Output Type | Transistor, sourcing (PNP) |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Rated Supply Voltage | 100–240 V AC |
| Supply Voltage Range | 85–264 V AC |
| Supply Frequency | 50/60 Hz |
| Communication Interfaces | Ethernet RJ45, RS-485, USB Mini-B |
| Ethernet Protocol | Modbus TCP/IP |
| Serial Communication | Modbus RTU via RS-485 |
| High-Speed Counting | Supported on designated inputs |
| Pulse Output Functions | Supports high-speed transistor output functions, subject to configuration |
| Expansion Capability | Supports compatible I/O expansion modules |
| Mounting Type | DIN rail |
| Protection Rating | IP20 |
| Operating Temperature | 0–55°C |
| Dimensions | 130 × 90 × 70 mm |
| Weight | 0.424 kg |
FAQ
Q1: What is the Schneider TM200CE24T used for?
A: The TM200CE24T is a compact PLC designed for machine automation, equipment control, packaging machinery, and other industrial applications requiring reliable digital I/O and communication.
Q2: How many I/O points does the TM200CE24T provide?
A: It provides 24 digital I/O points, consisting of 14 inputs and 10 transistor outputs.
Q3: What is the difference between the TM200CE24T and TM200CE24R?
A: The main difference is the output type. The TM200CE24T uses transistor outputs, which are suitable for fast switching and pulse-control applications. The TM200CE24R uses relay outputs, which can switch compatible AC or DC loads.
Q4: What power supply does the TM200CE24T require?
A: The controller uses a 100–240 V AC supply, with an allowable input range of 85–264 V AC at 50/60 Hz. Its digital I/O circuits use 24 V DC.
Q5: Does the TM200CE24T support Ethernet communication?
A: Yes. Its Ethernet interface supports Modbus TCP/IP communication with compatible HMIs, industrial devices, and supervisory systems.
Q6: Can the TM200CE24T control high-speed pulse devices?
A: Transistor outputs are suitable for fast switching and supported pulse-control functions. Confirm the output channel assignment, maximum frequency, and wiring requirements for the intended application.
Q7: Can additional I/O modules be connected to the TM200CE24T?
A: The controller supports compatible expansion modules. Check the system configuration limits and module compatibility before adding expansion hardware.
Q8: What should I check if a transistor output does not operate correctly?
A: Check the 24 V DC supply, output wiring and polarity, load current, PLC program, output status, and common-terminal connections. Also confirm that the selected output channel supports the required operating mode.
Schneider TM200CE24T Easy Modicon M200 Controller is in stock. Please contact us for a quick quote and competitive pricing.
