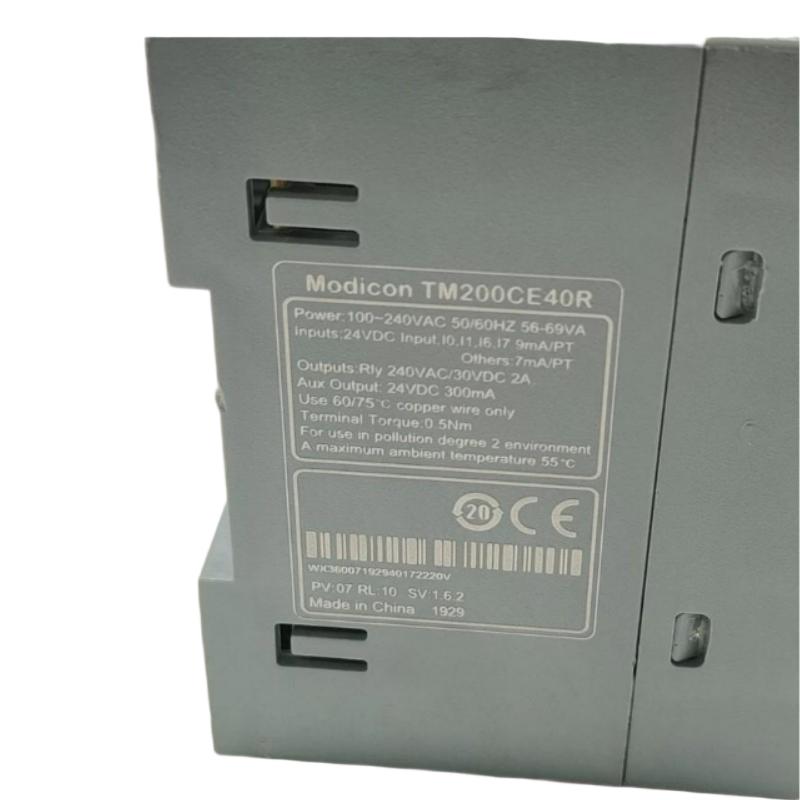

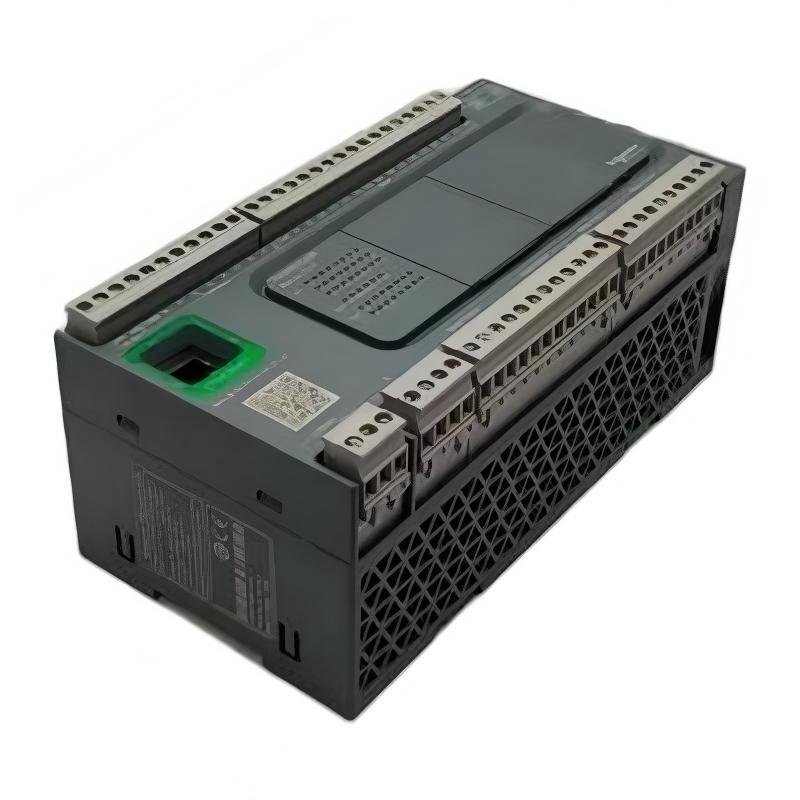

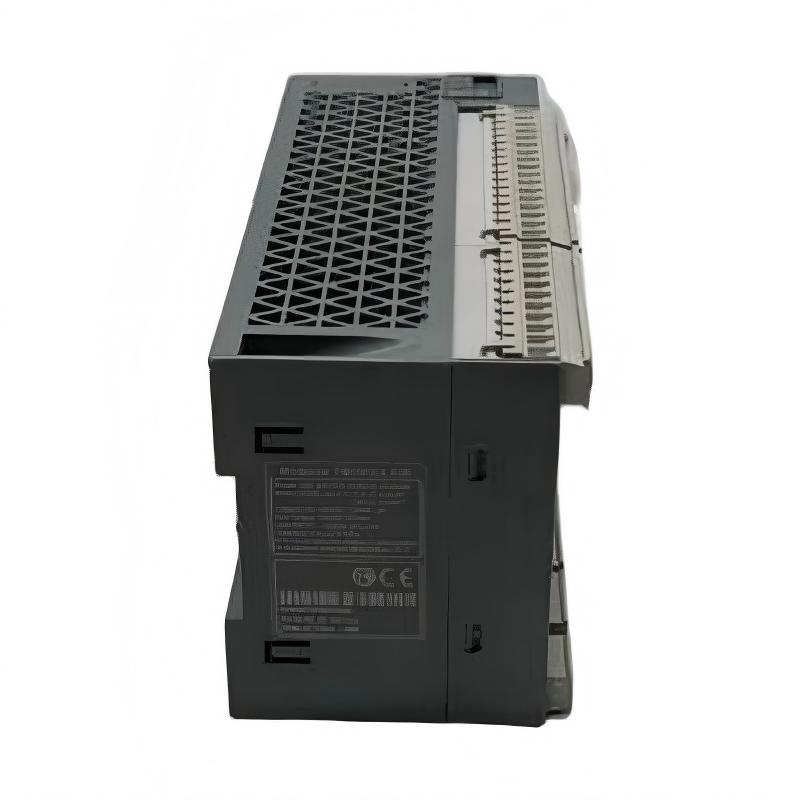

Schneider TM200CE40R Easy Modicon M200 Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Product Name | Easy Modicon M200 Controller |
| Model | TM200CE40R |
| Product Series | Easy Modicon M200 |
| Product Type | Programmable Logic Controller (PLC) |
| Total Digital I/O | 40 points |
| Digital Inputs | 24 inputs |
| Digital Outputs | 16 relay outputs |
| Output Type | Relay, normally open |
| Input Voltage | 24 V DC |
| Output Load Type | AC or DC loads within the relay ratings |
| Rated Supply Voltage | 100–240 V AC |
| Supply Voltage Range | 85–264 V AC |
| Supply Frequency | 50/60 Hz |
| Communication Interfaces | Confirm against the exact model’s technical documentation |
| Ethernet Communication | Verify model-specific support |
| Serial Communication | Verify interface and protocol compatibility |
| High-Speed Counting | Confirm supported input channels and frequency limits |
| Expansion Capability | Depends on compatible modules and system configuration |
| Mounting Type | DIN rail |
| Protection Rating | IP20 |
| Operating Temperature | 0–55°C |
| Dimensions | 175 × 90 × 70 mm |
| Weight | 0.512 kg |
FAQ
Q1: What is the Schneider TM200CE40R used for?
A: The TM200CE40R is a programmable logic controller intended for industrial machine automation, production equipment, packaging systems, and general control applications.
Q2: How many I/O points does the TM200CE40R provide?
A: It provides 40 digital I/O points, consisting of 24 digital inputs and 16 relay outputs.
Q3: What power supply does the TM200CE40R require?
A: The controller is specified for a 100–240 V AC supply, with an allowable input range of 85–264 V AC at 50/60 Hz. Its digital input circuits use 24 V DC.
Q4: What are the benefits of relay outputs on this controller?
A: Relay outputs can switch compatible AC or DC loads and provide electrical isolation between the control circuit and the switched circuit. The load must remain within the relay’s rated voltage and current.
Q5: Does the TM200CE40R support Ethernet communication?
A: Check the official technical documentation for the TM200CE40R before selecting it for an Ethernet-based system. Communication features should not be assumed from other models in the M200 family.
Q6: Can the TM200CE40R be used for high-speed counting?
A: High-speed counting depends on the input channels and frequency limits supported by this exact model. Verify these specifications before connecting encoders or high-frequency pulse sources.
Q7: Can the TM200CE40R be expanded with additional I/O modules?
A: Expansion depends on the controller’s supported configuration and compatible modules. Confirm the permitted expansion capacity and module compatibility before installation.
Q8: What should I check if a relay output fails to switch a load?
A: Check the controller’s power supply, program logic, output indicator, wiring, load voltage and current, and external circuit. If the output is commanded on but the load remains inactive, inspect the relay contacts and connected equipment.
Schneider TM200CE40R Easy Modicon M200 Controller is in stock. Please contact us for a quick quote and competitive pricing.
