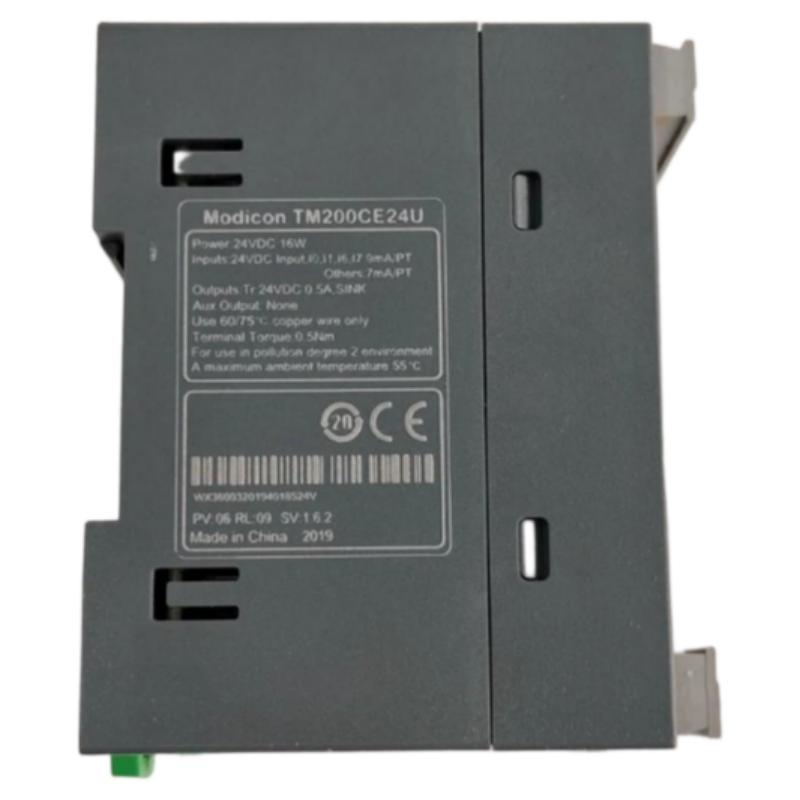

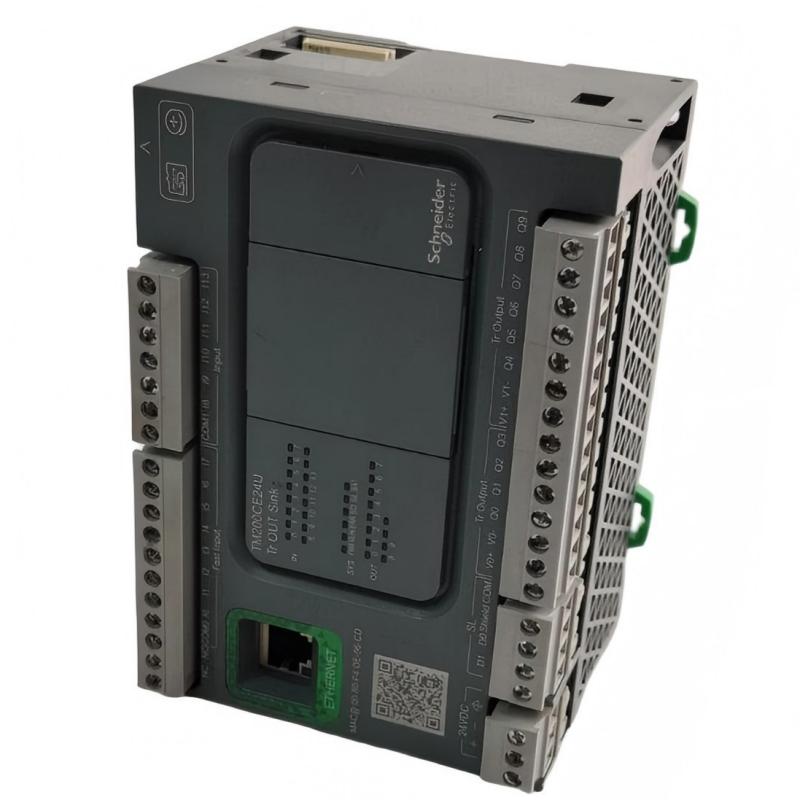

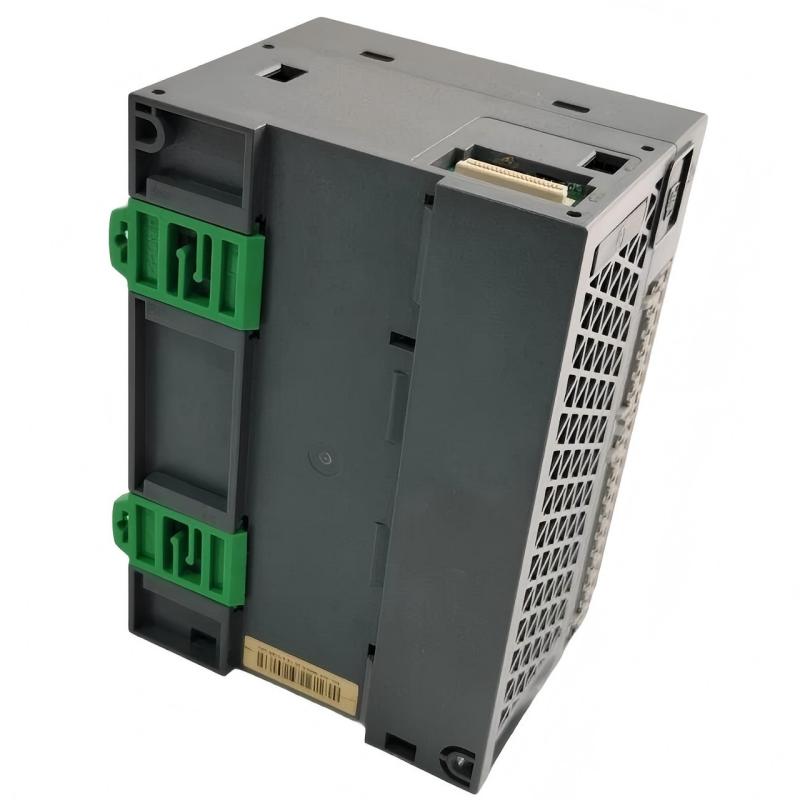

Schneider TM200CE24U Easy Modicon M200 Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Product Name | Easy Modicon M200 Controller |
| Model | TM200CE24U |
| Product Series | Easy Modicon M200 |
| Product Type | Programmable Logic Controller (PLC) |
| Total Digital I/O | 24 points |
| Digital Inputs | 14 inputs |
| Digital Outputs | 10 transistor outputs |
| Output Type | Transistor, sinking (NPN) |
| Input Voltage | 24 V DC |
| Output Voltage | 24 V DC |
| Rated Supply Voltage | 100–240 V AC |
| Supply Voltage Range | 85–264 V AC |
| Supply Frequency | 50/60 Hz |
| Communication Interfaces | Ethernet RJ45, RS-485, USB Mini-B |
| Ethernet Protocol | Modbus TCP/IP |
| Serial Communication | Modbus RTU via RS-485 |
| High-Speed Counting | Supported on designated inputs |
| Pulse Output Functions | Supports high-speed transistor output functions, subject to configuration |
| Expansion Capability | Supports compatible I/O expansion modules |
| Mounting Type | DIN rail |
| Protection Rating | IP20 |
| Operating Temperature | 0–55°C |
| Dimensions | 130 × 90 × 70 mm |
| Weight | 0.391 kg |
FAQ
Q1: What is the Schneider TM200CE24U used for?
A: The TM200CE24U is a compact PLC designed for machine automation, equipment control, packaging systems, and other industrial applications requiring digital I/O and communication capabilities.
Q2: How many I/O points does the TM200CE24U provide?
A: It provides 24 digital I/O points, including 14 digital inputs and 10 transistor outputs.
Q3: What is the difference between the TM200CE24U and TM200CE24T?
A: The main difference is the transistor output type. The TM200CE24U uses sinking (NPN) outputs, while the TM200CE24T uses sourcing (PNP) outputs. The choice depends on the connected load and wiring configuration.
Q4: What power supply does the TM200CE24U require?
A: The controller uses a 100–240 V AC supply, with an allowable input range of 85–264 V AC at 50/60 Hz. Its digital I/O circuits operate at 24 V DC.
Q5: Does the TM200CE24U support Ethernet communication?
A: Yes. The Ethernet interface supports Modbus TCP/IP communication with compatible HMIs, industrial devices, and supervisory systems.
Q6: Can the TM200CE24U perform high-speed counting?
A: Designated input channels support high-speed counting. Check the controller’s input configuration and frequency limits to ensure they meet the application’s requirements.
Q7: Can additional I/O modules be connected to the TM200CE24U?
A: Compatible expansion modules can be used where supported by the system configuration. Verify module compatibility and expansion limits before installation.
Q8: What should I check if a transistor output does not operate correctly?
A: Check the 24 V DC supply, NPN output wiring, load polarity, common-terminal connections, PLC program, and output status. Also confirm that the load current is within the output’s rated limits.
Schneider TM200CE24U Easy Modicon M200 Controller is in stock. Please contact us for a quick quote and competitive pricing.
