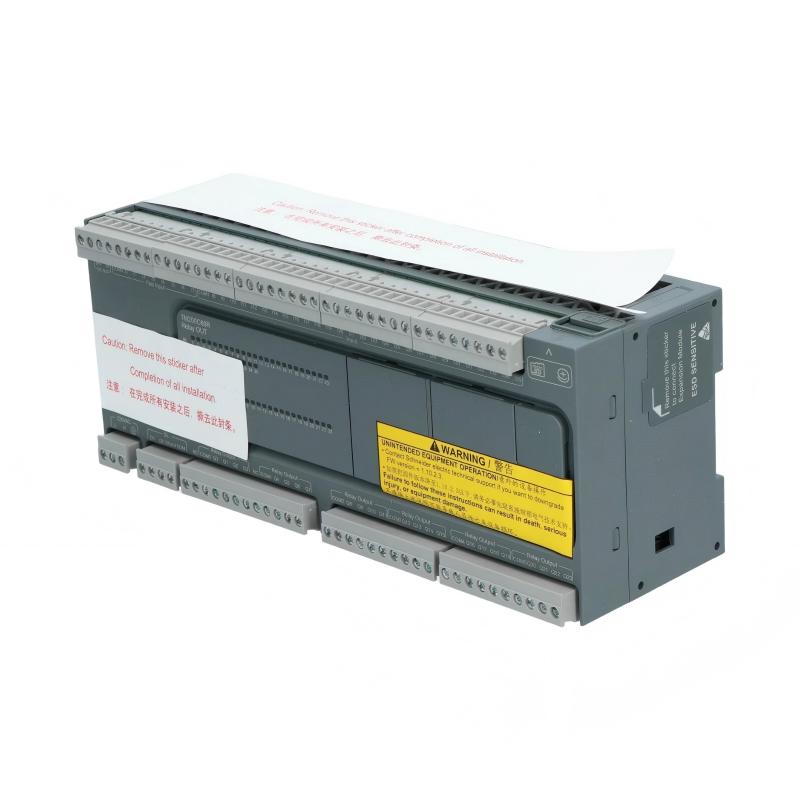

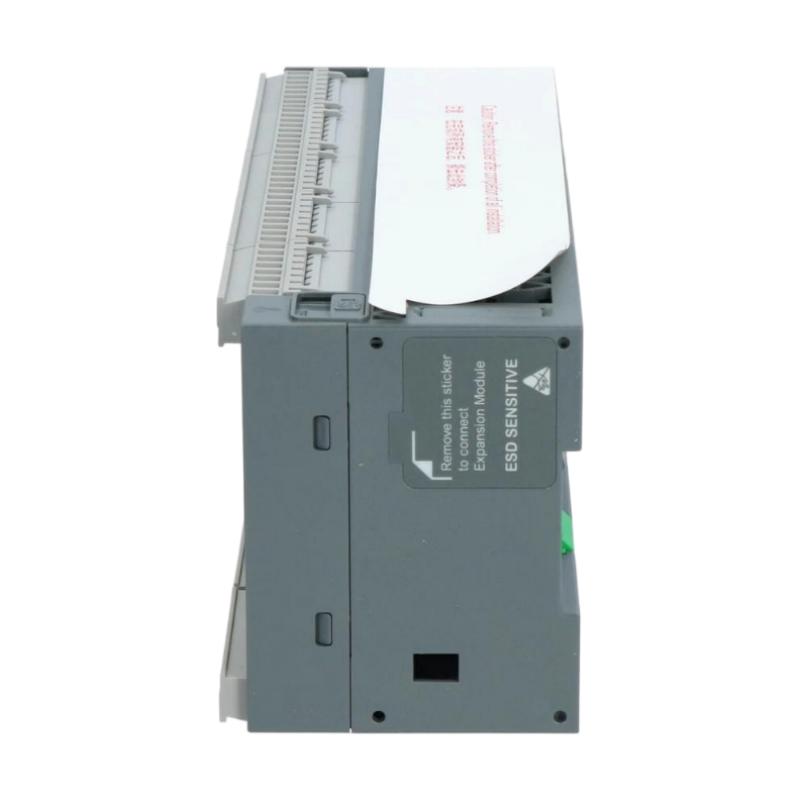

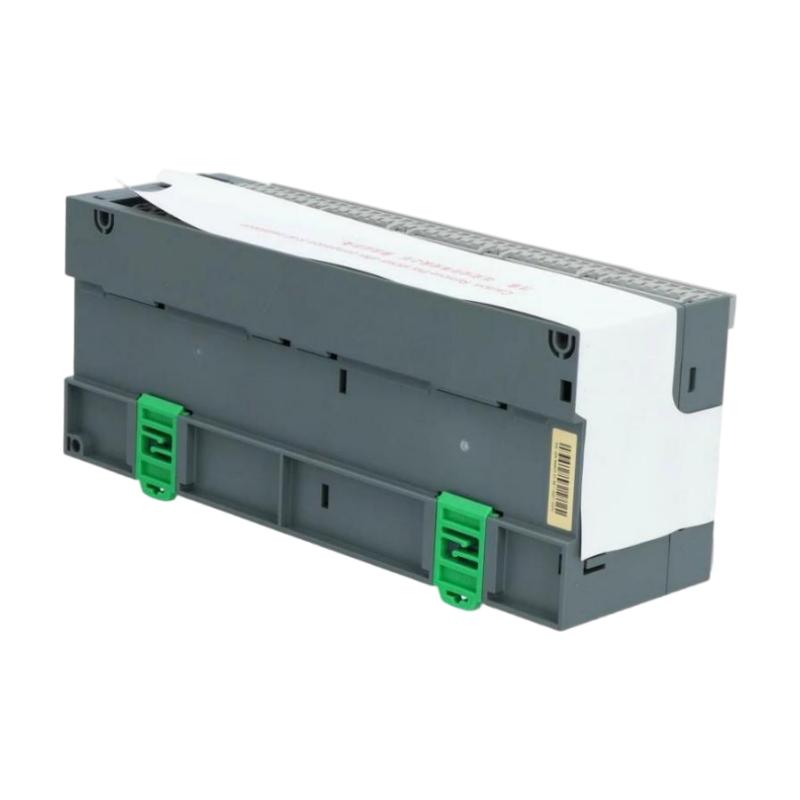

Schneider TM200C60R Easy Modicon M200 Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Product Name | Easy Modicon M200 Controller |
| Model | TM200C60R |
| Product Type | Programmable Logic Controller (PLC) |
| Product Series | Easy Modicon M200 |
| Total Digital I/O | 60 points |
| Digital Inputs | 36 inputs |
| High-Speed Inputs | 4 inputs for high-speed counting |
| Fast Inputs | 4 inputs for fast counting |
| Regular Inputs | 28 inputs |
| Input Voltage | 24 V DC |
| Input Current | 7 mA per input |
| Input Logic | Sink or source |
| Digital Outputs | 24 relay outputs |
| Output Type | Normally open relay |
| Output Voltage | 24 V DC / 220 V AC |
| Maximum Output Current | 2 A |
| Rated Supply Voltage | 220 V AC |
| Supply Voltage Limits | 85–264 V AC |
| Power Consumption | 61–74 VA at 100–240 V AC, depending on I/O load |
| Communication Interfaces | USB Mini-B, serial communication |
| Expansion Capability | Supports compatible I/O expansion modules; configuration limits apply |
| Mounting Type | DIN rail |
| Protection Rating | IP20 |
| Dimensions | 225 × 90 × 70 mm |
| Weight | 0.684 kg |
FAQ
Q1: What is the Schneider TM200C60R used for?
A: The TM200C60R is a programmable logic controller designed for machine automation, including packaging equipment, material handling systems, machine tools, and general industrial control applications.
Q2: How many I/O points does the TM200C60R provide?
A: It provides 60 digital I/O points, consisting of 36 digital inputs and 24 relay outputs.
Q3: What power supply does the TM200C60R require?
A: The controller has a nominal 220 V AC supply rating, with a specified supply voltage range of 85–264 V AC. Verify the installation requirements before connecting power.
Q4: What types of outputs does this PLC use?
A: It uses 24 normally open relay outputs. These support switching 24 V DC or 220 V AC loads within the specified electrical ratings.
Q5: Does the TM200C60R support high-speed counting?
A: Yes. It has four high-speed inputs for high-speed counting and four additional fast inputs for fast-counting applications.
Q6: Can the TM200C60R be expanded with additional I/O modules?
A: Yes. It supports compatible Easy Modicon M200 expansion modules. The maximum configuration depends on the module types and system limits.
Q7: What should I check if a relay output does not operate?
A: Check the PLC power supply, program logic, output status, wiring, load voltage, and current. Also inspect the relay contacts and connected load for faults.
Q8: What should I consider when replacing an existing TM200C60R?
A: Confirm the exact model, supply voltage, input and output wiring, communication requirements, program compatibility, and expansion configuration before replacement.
Schneider TM200C60R Easy Modicon M200 Controller is in stock. Please contact us for a quick quote and competitive pricing.
