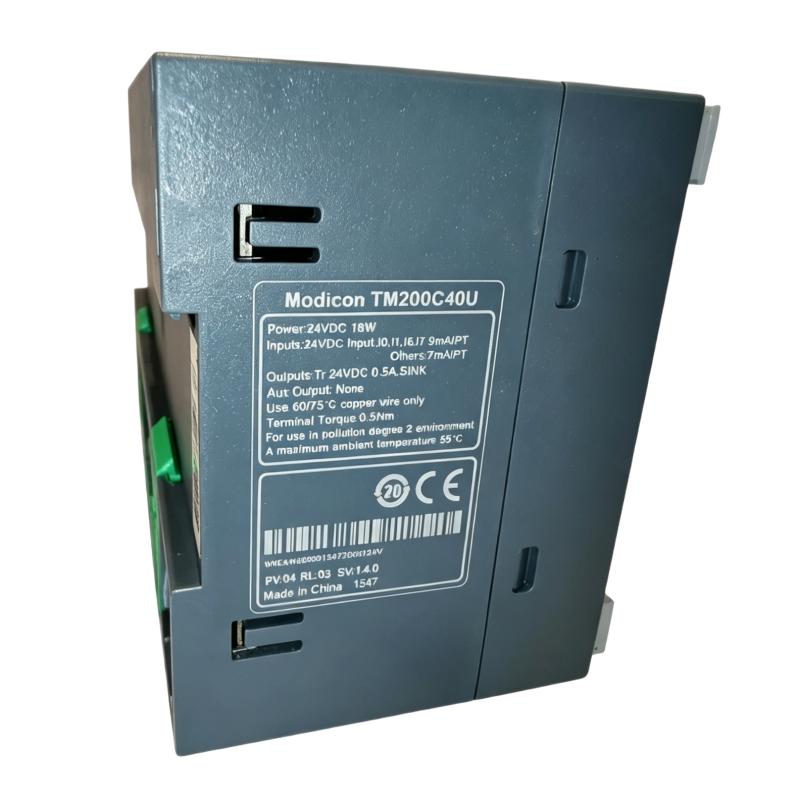

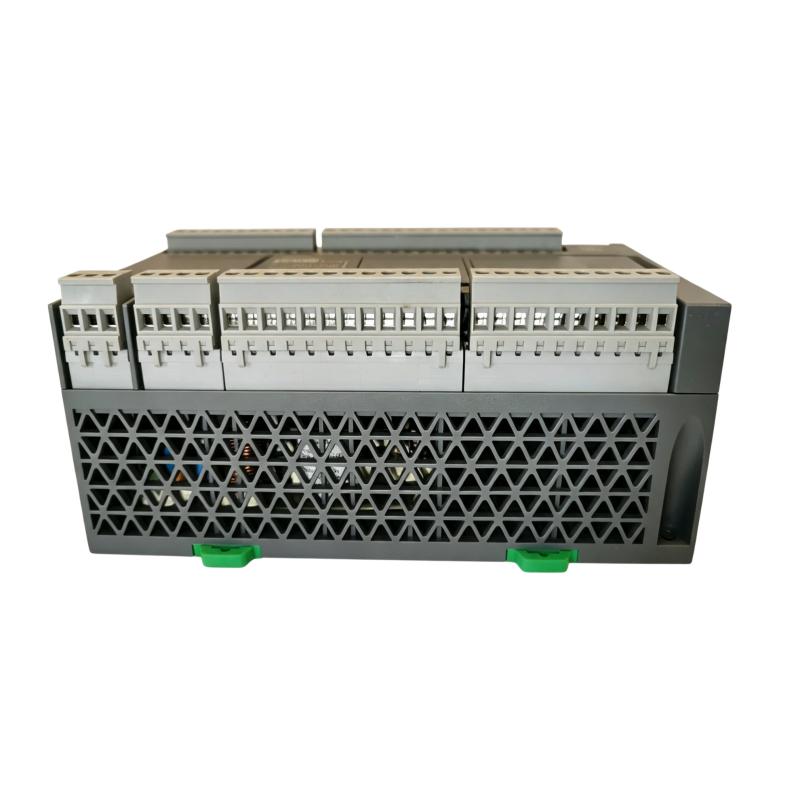

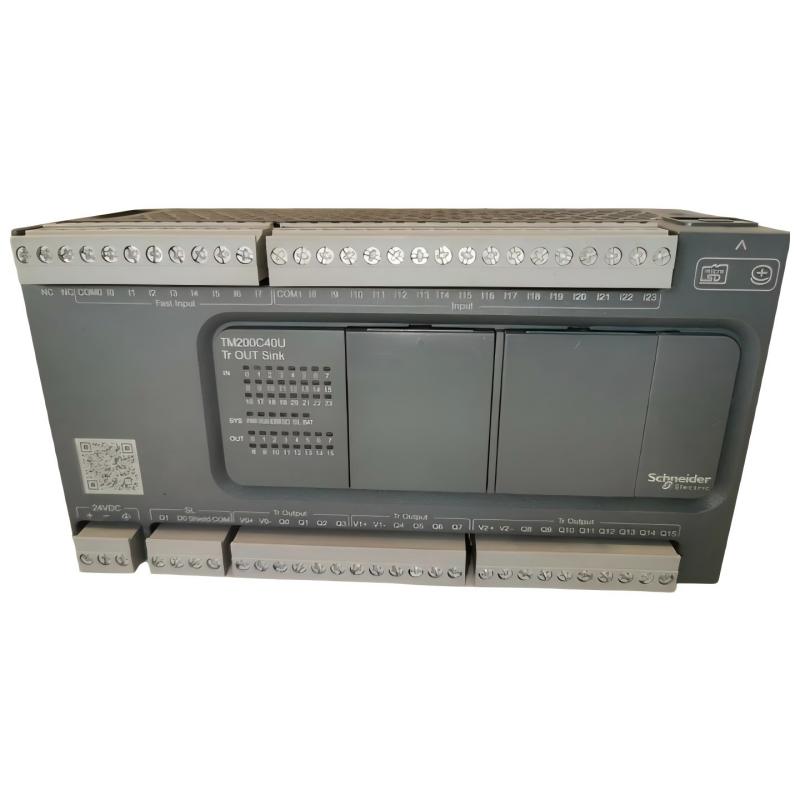

Schneider TM200C40U Easy Modicon M200 Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Product Name | Easy Modicon M200 Controller |
| Model | TM200C40U |
| Product Series | Easy Modicon M200 |
| Product Type | Programmable Logic Controller (PLC) |
| Total Digital I/O | 40 points |
| Digital Inputs | 24 inputs, 24 V DC |
| Digital Outputs | 16 transistor outputs |
| Output Type | Sink transistor outputs (NPN) |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 20.4–28.8 V DC |
| High-Speed Counting | Supports high-speed counting functions; confirm channel allocation in the model-specific documentation |
| High-Speed Output Functions | Depends on the model’s supported output configuration |
| Communication Interface | Built-in serial communication interface (RS-485) |
| Programming Port | USB Mini-B |
| Ethernet Port | No built-in Ethernet port |
| Expansion Capability | Supports compatible expansion modules, subject to system configuration limits |
| Mounting Type | DIN rail mounting |
| Dimensions | 175 × 90 × 70 mm |
| Weight | 0.468 kg |
FAQ
1. What is the main function of the Schneider Electric TM200C40U controller?
The TM200C40U is a programmable logic controller designed for machine automation. It processes input signals, executes user-defined control programs, and controls connected devices through its transistor outputs.
2. How many digital inputs and outputs does the TM200C40U provide?
The controller provides 40 digital I/O points, consisting of 24 digital inputs and 16 transistor outputs. Confirm the input functions and channel allocation in the model-specific documentation when designing high-speed applications.
3. What power supply does the TM200C40U require?
The controller uses a nominal 24 V DC power supply, with an operating voltage range of 20.4–28.8 V DC. Use a suitable regulated supply and verify the wiring polarity before powering on the unit.
4. What is the difference between the TM200C40U and TM200C40T?
The main difference is the transistor output configuration. The TM200C40U uses sink-type outputs (NPN), while the TM200C40T uses source-type outputs (PNP). Select the appropriate model according to the load wiring and the electrical requirements of connected devices.
5. Can the TM200C40U be used for high-speed counting applications?
The Easy Modicon M200 platform supports high-speed counting functions on compatible configurations. Before using the TM200C40U for encoder feedback or pulse counting, verify the supported input channels, maximum frequency, and configuration requirements in the product documentation.
6. What communication interfaces are available on the TM200C40U?
The controller provides a built-in RS-485 serial communication interface and a USB Mini-B programming port. It does not have a built-in Ethernet port, so confirm the communication requirements of connected HMIs, drives, and other automation equipment before selecting the controller.
7. Can additional I/O modules be connected to the TM200C40U?
Compatible expansion modules may be used where supported by the M200 configuration. Check the controller’s expansion limits, module compatibility, power requirements, and available I/O capacity before adding hardware.
8. How should an output fault be diagnosed on the TM200C40U?
Check the 24 V DC supply, PLC operating status, program logic, output address, wiring, and load current. Because the TM200C40U uses NPN sink-type outputs, verify that the load circuit and common wiring match the required output configuration. Also inspect terminals and cables for loose connections or damage.
Schneider TM200C40U Easy Modicon M200 Controller is in stock. Please contact us for a quick quote and competitive pricing.
