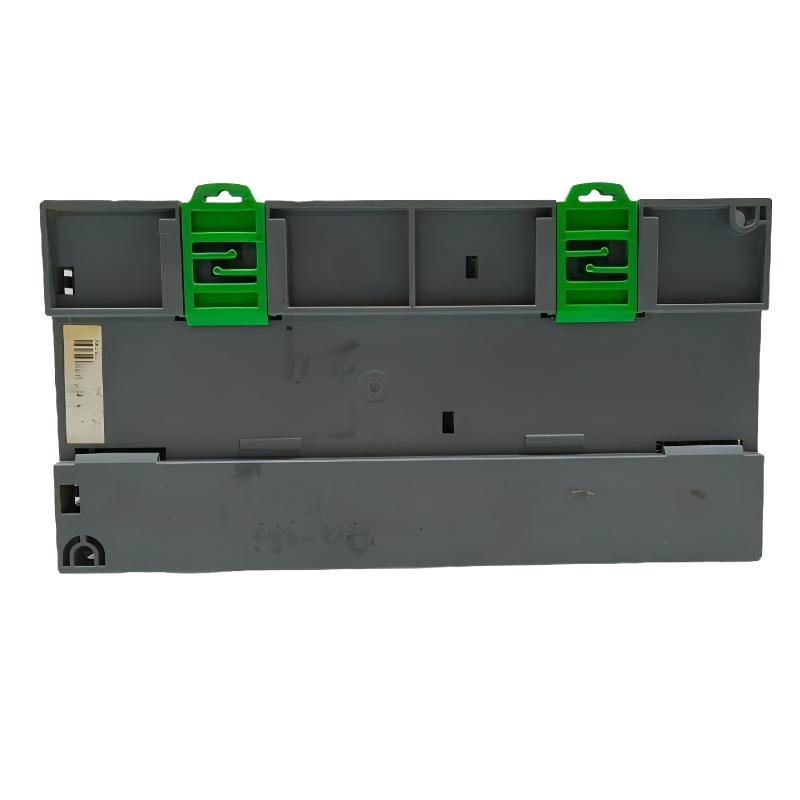

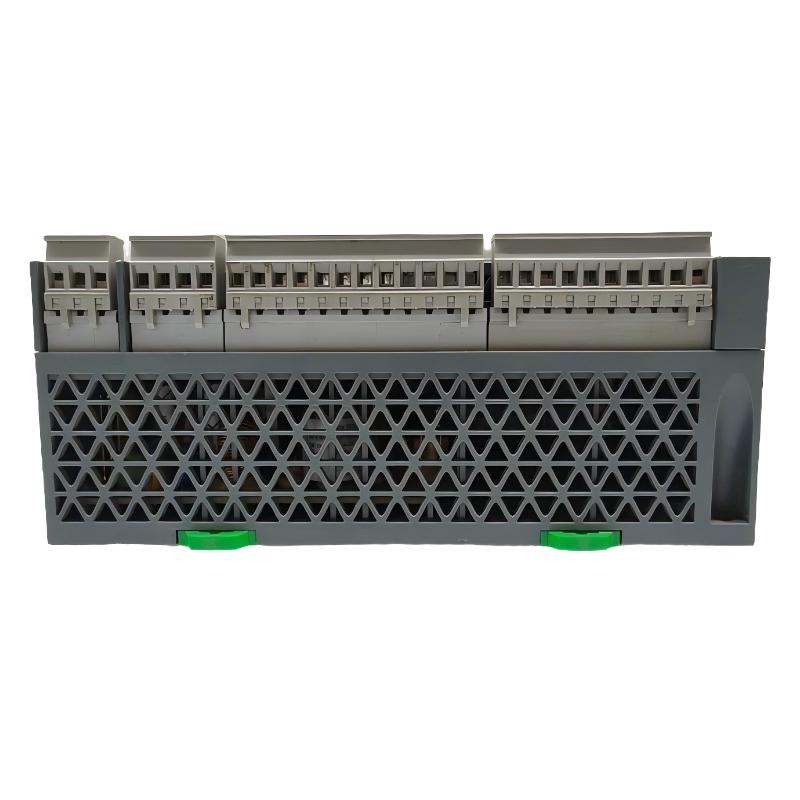

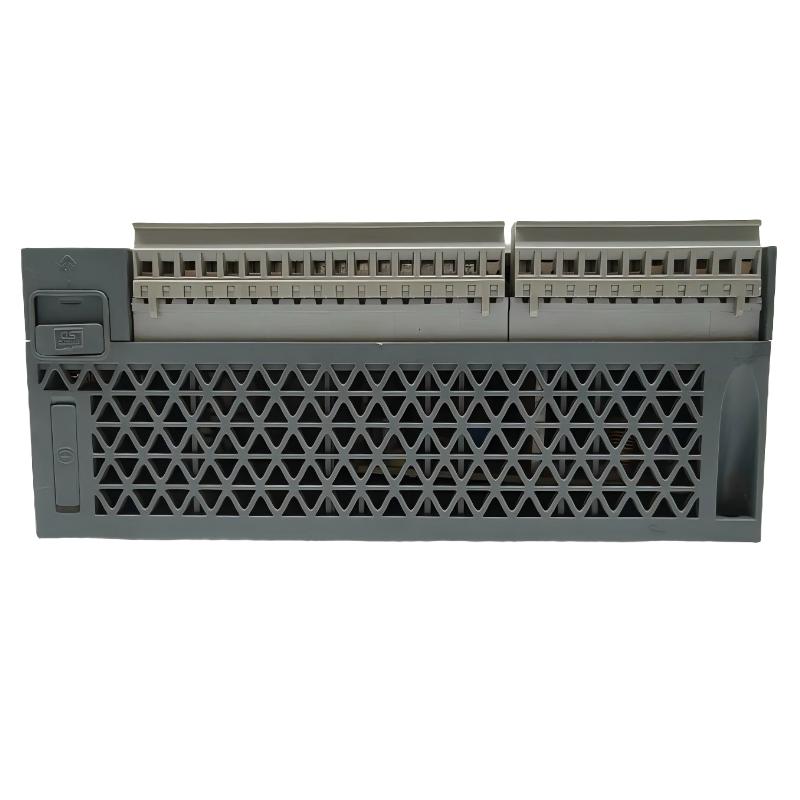

Schneider TM200C32T Easy Modicon M200 Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Product Name | Easy Modicon M200 Controller |
| Model | TM200C32T |
| Product Series | Easy Modicon M200 |
| Product Type | Programmable Logic Controller (PLC) |
| Total Digital I/O | 32 points |
| Digital Inputs | 20 × 24 V DC sink/source inputs |
| High-Speed Inputs | 4 high-speed inputs for high-speed counting (HSC) |
| Fast Inputs | 4 fast inputs for fast counting (FC) |
| Regular Inputs | 12 regular digital inputs |
| Digital Outputs | 12 transistor outputs |
| Output Type | Source transistor outputs (PNP) |
| Fast Output Functions | 2 fast outputs supporting PWM, PLS, and PTO |
| Rated Supply Voltage | 24 V DC |
| Supply Voltage Range | 20.4–28.8 V DC |
| Communication Interface | Embedded serial communication link (RS-485) |
| Programming Port | USB Mini-B |
| Ethernet Port | Not available on this model |
| Expansion Capability | Supports compatible digital I/O, analog I/O, and communication cartridges |
| Mounting Type | DIN rail mounting |
| Dimensions | 175 × 90 × 70 mm |
| Weight | 0.522 kg |
FAQ
1. What is the main function of the Schneider Electric TM200C32T controller?
The TM200C32T is a programmable logic controller designed to automate small and medium-sized machines. It processes input signals, executes user-defined control logic, and operates connected devices through its transistor outputs.
2. What is the difference between the TM200C32T and TM200C32U?
Both models belong to the Easy Modicon M200 series and provide 32 digital I/O points. The TM200C32T uses source-type transistor outputs (PNP), while the TM200C32U uses sink-type transistor outputs (NPN). The choice depends on the wiring arrangement and the requirements of the connected devices.
3. What power supply does the TM200C32T require?
The controller operates on a nominal 24 V DC supply, with an allowable range of 20.4–28.8 V DC. Use a suitable regulated power supply and verify the wiring polarity before energizing the controller.
4. Does the TM200C32T support high-speed counting and motion control?
Yes. It provides high-speed inputs for high-speed counting (HSC), fast inputs for fast counting (FC), and two fast transistor outputs supporting functions such as PWM, PLS, and PTO. Actual performance depends on the configured channels and application requirements.
5. What communication interfaces are available on this controller?
The TM200C32T includes an embedded serial communication link and a USB Mini-B programming port. It does not have a built-in Ethernet port, so network connectivity requirements should be checked before selecting this model.
6. Can the TM200C32T be expanded with additional I/O?
The Easy Modicon M200 platform supports compatible expansion cartridges for digital I/O, analog I/O, and communication functions. Check the cartridge reference and the controller’s configuration limits before adding hardware.
7. What programming software and connection method are used?
The controller is programmed using Schneider Electric’s compatible Easy Modicon M200 programming environment. A USB Mini-B connection is used for programming, while the embedded serial link can support communication with compatible devices according to the selected protocol and configuration.
8. What should be checked when troubleshooting an output that does not operate?
Verify the 24 V DC supply, PLC operating status, program logic, output addressing, wiring polarity, and load current. Because the TM200C32T uses source-type transistor outputs, confirm that the load wiring is suitable for PNP output operation and remains within the manufacturer’s electrical limits.
Schneider TM200C32T Easy Modicon M200 Controller is in stock. Please contact us for a quick quote and competitive pricing.
