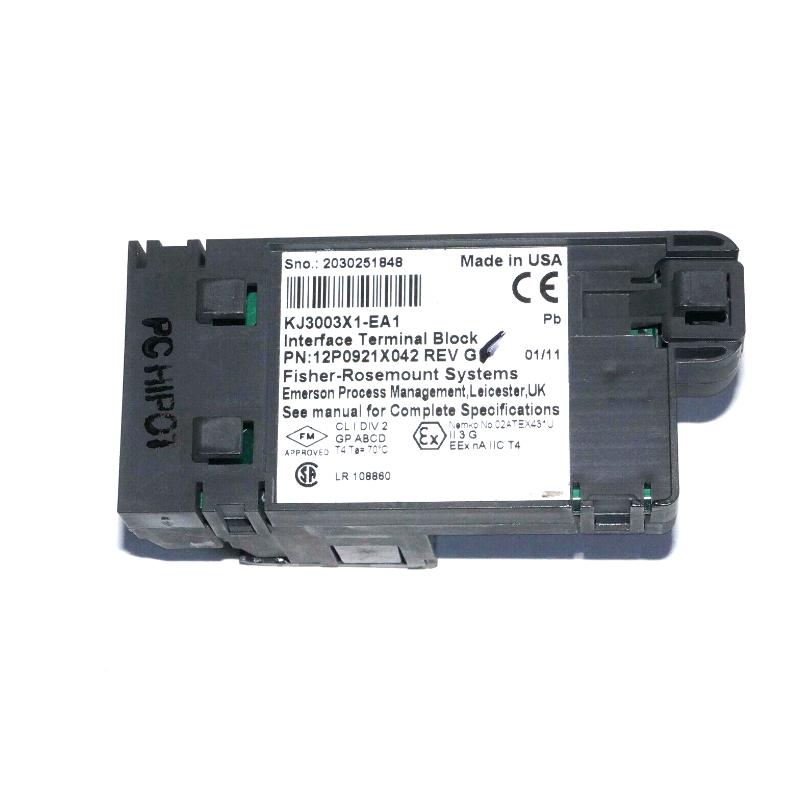

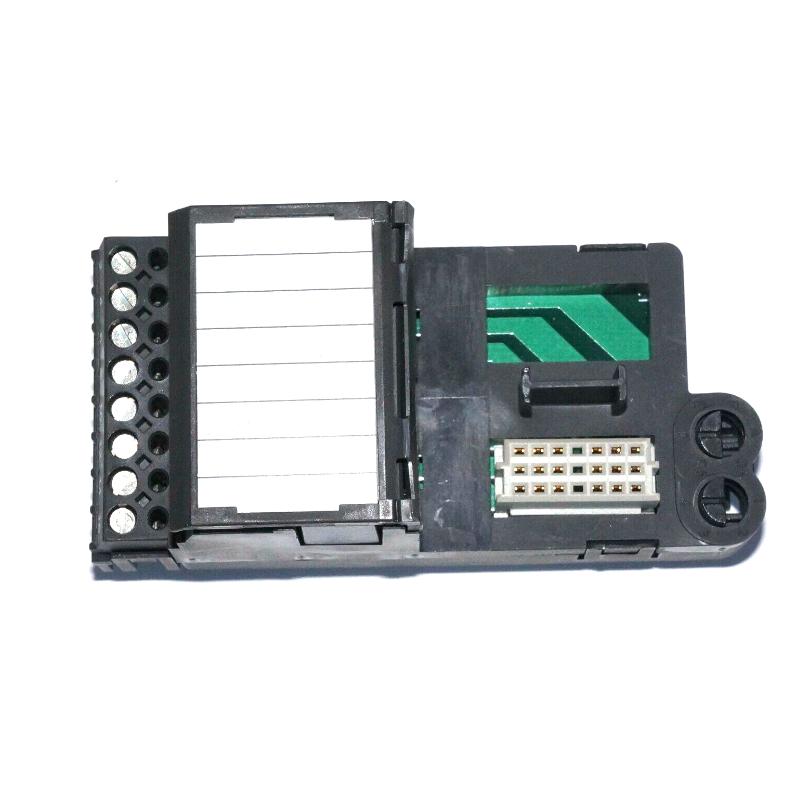

1. What is the Emerson VE4003S2B7 mainly used for?

The Emerson VE4003S2B7 is an analog input module designed for use in DeltaV distributed control systems. Its primary purpose is to collect continuous analog signals from field transmitters and transfer the corresponding process information to the DCS for monitoring and control. Typical applications include pressure, flow, level, temperature, and other process-variable measurements. In a complete control system, the module acts as an important interface between field instrumentation and the control platform, allowing operators and control strategies to receive process measurements from plant equipment. It is particularly suitable for industrial applications where stable and continuous analog signal acquisition is required.

2. What type of input signal does the VE4003S2B7 support?

The VE4003S2B7 is designed for standard 4–20 mA analog input signals, which are widely used by industrial transmitters and process instruments. A field transmitter converts a physical process variable into a corresponding current signal, and the input module receives this signal for processing by the DeltaV system. During installation and commissioning, engineers should verify the transmitter output range, loop power arrangement, wiring configuration, signal scaling, and DeltaV channel configuration. The engineering range should also correspond correctly with the actual process measurement range. Incorrect signal scaling or wiring can cause inaccurate process values, abnormal alarms, or unexpected channel readings.

3. How many analog input channels does the Emerson VE4003S2B7 provide?

The VE4003S2B7 provides 8 analog input channels for acquiring multiple process measurements through a single I/O module. Each channel can be assigned to a specific field instrument according to the plant’s I/O design and DeltaV configuration. During commissioning, each channel should be tested individually to verify that the correct field transmitter is connected to the intended input point. Engineers should compare the actual field signal with the value displayed by the DeltaV system and confirm that the channel number, engineering range, process variable, and unit are correctly configured. Point-by-point verification is especially important in large DCS installations where incorrect channel assignments can otherwise lead to misleading process information.

4. Does the Emerson VE4003S2B7 support HART communication?

Yes. The VE4003S2B7 supports HART communication with compatible smart field instruments. HART allows the conventional 4–20 mA signal to continue carrying the primary process variable while digital communication provides additional information from the connected instrument. Depending on the field device and system configuration, this information may include instrument status, diagnostic information, configuration parameters, and other maintenance-related data. This capability can be particularly useful during commissioning and troubleshooting because technicians can obtain additional information from the field transmitter without relying solely on the analog process value. Proper HART configuration should be verified when commissioning smart instruments.

5. Which field instruments can be connected to the VE4003S2B7?

The VE4003S2B7 is suitable for compatible field instruments that provide the required 4–20 mA analog output. Typical examples include pressure transmitters, differential pressure transmitters, flow transmitters, level transmitters, and other process measurement instruments. Before connecting a field device, engineers should verify its output characteristics, loop power requirements, wiring method, and signal range. If a HART-enabled transmitter is being used, its communication requirements should also be considered. The DeltaV channel must then be configured to match the actual instrument range and engineering unit. Correct matching between the field instrument and I/O configuration is essential for accurate process measurement and reliable control-system operation.

6. How should an abnormal input signal on the VE4003S2B7 be troubleshot?

Troubleshooting should begin by determining whether the problem is limited to one channel or affects several channels simultaneously. For a single-channel problem, check the associated field transmitter, loop power supply, field cable, terminal connections, and actual 4–20 mA loop current. Measuring the current directly can help determine whether the problem originates from the field instrument or from the I/O signal path. If the actual field signal is correct but the DeltaV value is incorrect, the channel configuration, scaling, termination, and I/O hardware should be investigated. If multiple channels show similar abnormal behavior, check the module power supply, termination components, system communication, and DeltaV configuration. For HART-enabled devices, diagnostic information can provide additional clues about transmitter health and configuration.

7. What should be checked when commissioning the Emerson VE4003S2B7?

Commissioning should include verification of the module identification, I/O channel configuration, field wiring, transmitter operation, signal range, engineering units, and process-variable scaling. Each connected transmitter should be tested individually to confirm that its 4–20 mA output reaches the correct DeltaV input channel. The value displayed by the control system should then be compared with the actual field measurement or a calibrated test signal. Engineers should also check for channel alarms, signal-quality indications, configuration mismatches, and unexpected process values. If HART smart transmitters are used, HART communication and available device diagnostics should be verified as part of commissioning. A complete point-to-point test helps ensure that the physical wiring, I/O module, DeltaV configuration, and field instrument all correspond correctly before the process loop is placed into normal operation.

8. What should be considered when replacing the VE4003S2B7 Analog Input Module?

Before replacing the VE4003S2B7, confirm the complete model number and verify that the replacement module is compatible with the existing DeltaV I/O architecture and configuration. The affected process loops should be placed in the appropriate maintenance or safe state according to the site’s operating procedures before the module is removed. Field wiring and channel assignments should be documented carefully to prevent incorrect reconnection. After installation, verify the module status and confirm that the DeltaV system recognizes the replacement hardware correctly. Each affected input channel should then be tested using the actual field transmitter or an appropriate test signal. Check the 4–20 mA value, process-variable scaling, engineering unit, alarms, and displayed process value. For HART-enabled instruments, HART communication and device diagnostics should also be verified. A complete point-by-point functional test should be completed before the associated process loops are returned to normal operation.
