1. What is the Emerson VE4003S2B9 mainly used for?

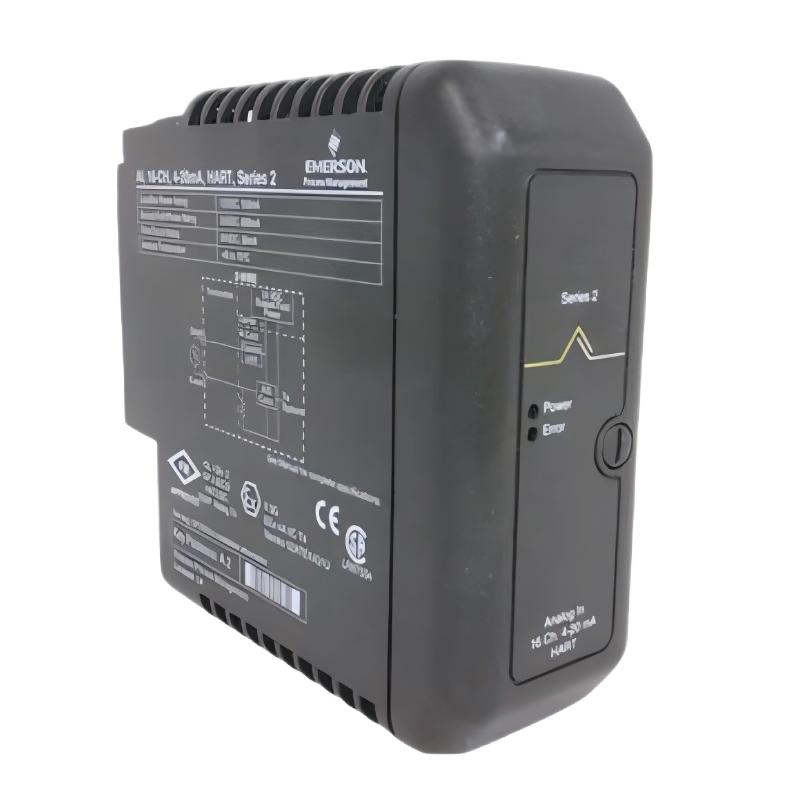

The Emerson VE4003S2B9 is an analog input assembly designed for Emerson DeltaV distributed control systems. It combines the KJ3223X1-BA1 REV.A input module with the KJ3223X1-EA1 REV.B terminal interface to provide a complete connection path between field instrumentation and the DCS. Its primary function is to receive analog process signals from field transmitters and make the corresponding measurement data available to the control system. Typical applications include pressure, flow, level, temperature, and other continuous process measurements. The assembly can support process monitoring, control-loop operation, operator displays, alarm processing, and historical data collection. The terminal interface also provides an organized connection point for field wiring, making installation and maintenance more structured.

2. What type of input signals does the VE4003S2B9 support?

The VE4003S2B9 is designed for standard 4–20 mA analog input signals commonly used by industrial process transmitters. A field instrument converts a measured process variable into a proportional current signal, which is then transmitted through the field wiring to the terminal interface and input module. Before commissioning, engineers should verify the transmitter output type, loop power arrangement, wiring polarity, signal range, and DeltaV channel configuration. The engineering range configured in the DCS should correspond to the actual transmitter range so that the displayed process value accurately represents the field condition. Incorrect wiring, scaling, or signal configuration can result in incorrect readings, unexpected alarms, or apparent process fluctuations even when the actual process is stable.

3. What are the functions of KJ3223X1-BA1 and KJ3223X1-EA1 in the VE4003S2B9 assembly?

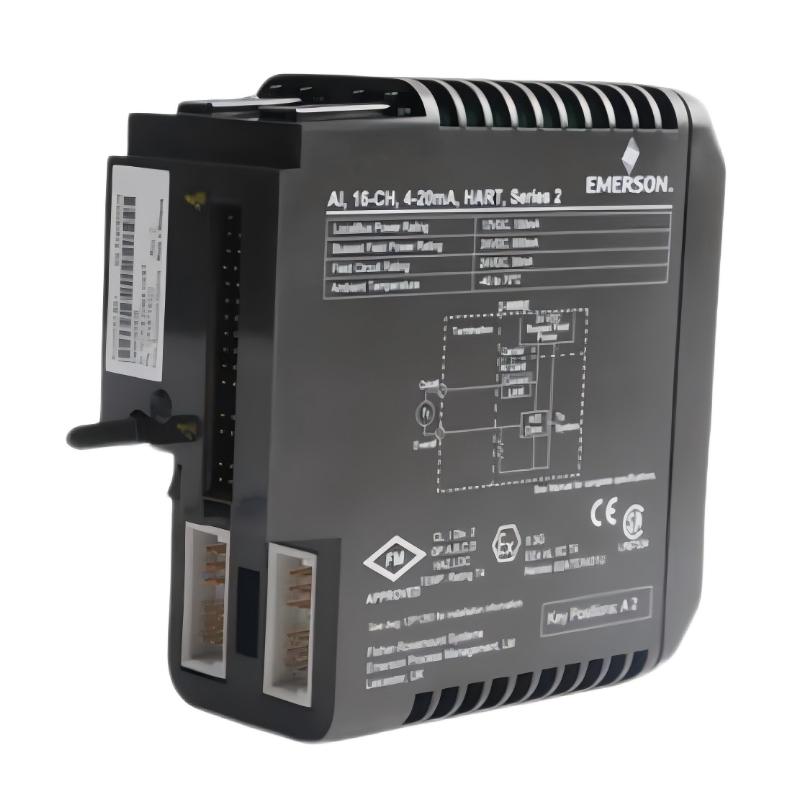

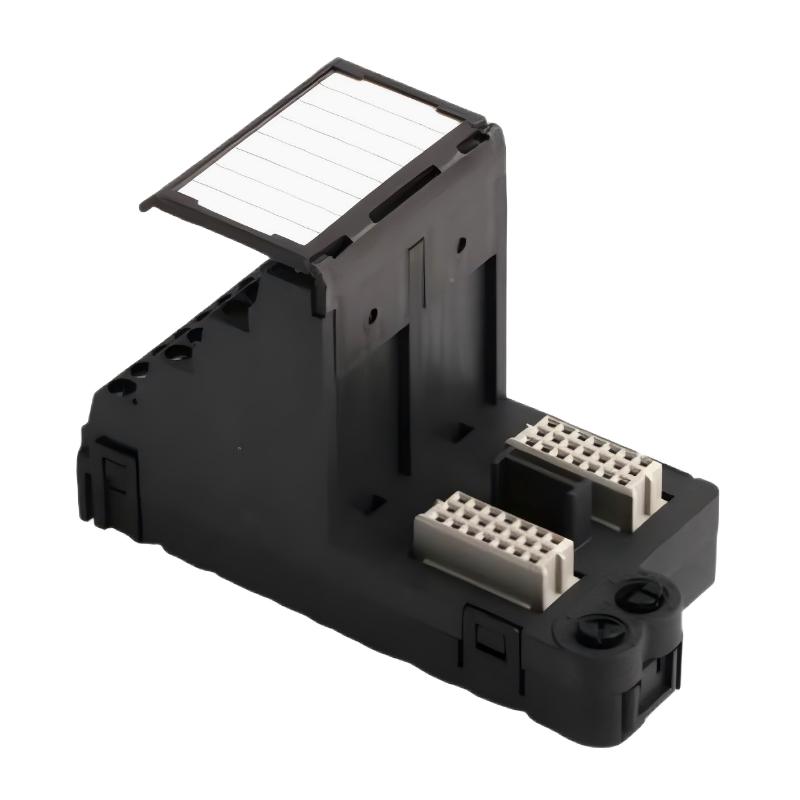

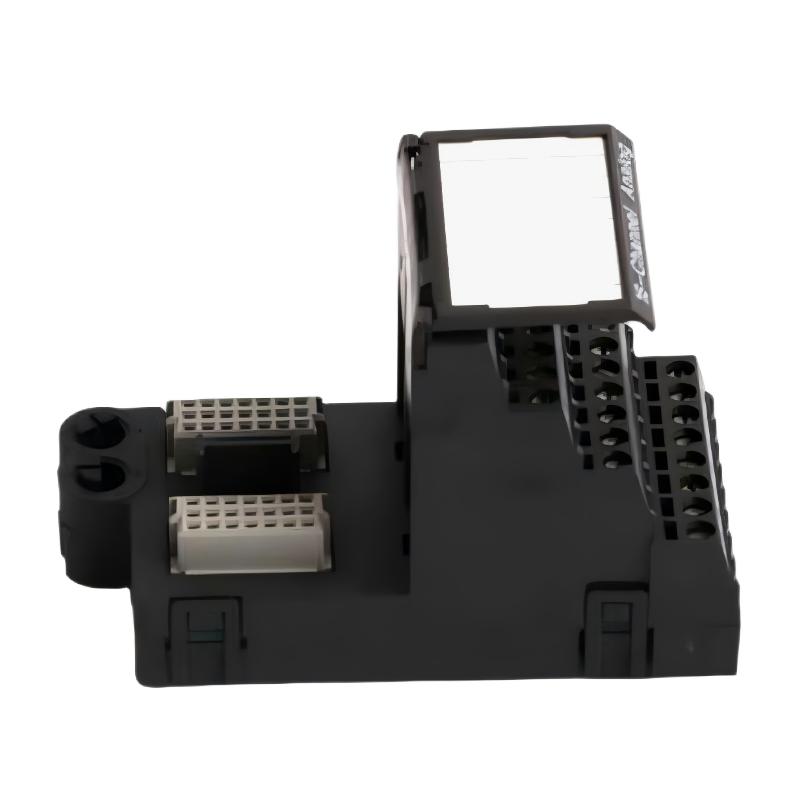

The KJ3223X1-BA1 and KJ3223X1-EA1 form the main input-module and terminal-interface combination of the VE4003S2B9 assembly. The KJ3223X1-BA1 is the analog input module responsible for receiving and processing signals from the connected field devices. The KJ3223X1-EA1 provides the corresponding field termination interface, allowing field cables to be connected to the I/O system in an organized manner. Using the two components together creates a structured signal path between field instruments and the DeltaV control system. During installation, technicians should follow the approved I/O drawings and terminal assignments carefully, because an incorrect channel connection can cause a valid field signal to appear under the wrong process variable in the DCS.

4. Does the Emerson VE4003S2B9 support HART communication?

Yes. The VE4003S2B9 can be used with compatible HART-enabled smart field instruments. In a HART installation, the conventional 4–20 mA current signal carries the primary process variable, while digital HART communication can provide additional information from the field device. Depending on the instrument and system configuration, this may include device status, diagnostic information, configuration parameters, and other maintenance-related data. HART communication can therefore provide useful information during commissioning and troubleshooting without replacing the normal analog measurement signal. When commissioning a HART instrument, technicians should verify the transmitter configuration, wiring, input-channel setup, communication status, and available diagnostic information to ensure the complete signal path is functioning correctly.

5. Which field instruments can be connected to the VE4003S2B9?

The VE4003S2B9 is suitable for compatible field instruments that provide the required 4–20 mA analog output. Common examples include pressure transmitters, differential pressure transmitters, flow transmitters, level transmitters, and other process measurement instruments used in industrial plants. Before connection, the instrument’s output characteristics, loop power requirements, wiring arrangement, signal range, and other electrical requirements should be checked against the system design. For HART-enabled instruments, the communication requirements should also be considered. The corresponding DeltaV channel should be configured with the correct measurement range and engineering unit. Proper matching between the field instrument, termination interface, input channel, and software configuration is essential for accurate process measurement and reliable control.

6. How should an abnormal analog input signal on the VE4003S2B9 be troubleshot?

Troubleshooting should start by determining whether the abnormal condition is isolated to one channel or affects several channels. For a single-channel issue, first check the associated field transmitter, instrument power supply, loop wiring, cable condition, terminal connections, and actual 4–20 mA current. Measuring the loop current can help determine whether the transmitter is producing the expected signal before the signal reaches the I/O system. If the field signal is correct but the DeltaV value is incorrect, inspect the channel configuration, signal scaling, engineering units, termination path, and I/O hardware. If several channels show similar symptoms, investigate common factors such as I/O power, terminal interfaces, system configuration, and communication. For HART-enabled transmitters, device diagnostics can provide additional information about instrument status or configuration. A systematic check from the field instrument through the wiring and terminal interface to the input module and DeltaV configuration is usually the most effective troubleshooting method.

7. What should be checked when commissioning the VE4003S2B9?

Commissioning should begin by verifying the complete product configuration and confirming that the KJ3223X1-BA1 12P2871X012 REV.A and KJ3223X1-EA1 12P2867X022 REV.B components correspond to the intended system design. The I/O configuration in the DeltaV system should then be checked against the project I/O list and engineering drawings. Field wiring should be inspected carefully to confirm that each transmitter is connected to the correct input point. For each 4–20 mA loop, the actual signal should be tested and compared with the value displayed by the DCS. Signal scaling, engineering units, alarms, and process-variable assignments should also be verified. If HART instruments are used, communication status and device diagnostics should be checked as part of the commissioning procedure. A point-to-point test of every affected channel is recommended before the process loop is placed into normal service because it confirms the entire signal chain from the field instrument through the terminal interface and I/O module to the DeltaV control system.

8. What should be considered when replacing the VE4003S2B9?

Before replacing the VE4003S2B9, technicians should verify the complete model designation and component revision information, including KJ3223X1-BA1 12P2871X012 REV.A and KJ3223X1-EA1 12P2867X022 REV.B. Compatibility with the existing DeltaV I/O configuration should be confirmed before the replacement begins. The affected process loops should be placed in the appropriate maintenance or safe state according to site procedures, and all field wiring and channel assignments should be documented to prevent incorrect reconnection. After the replacement components are installed, technicians should check the physical connections, terminal assignments, module status, and DeltaV configuration. Each affected channel should then be tested individually using the actual field transmitter or an appropriate calibrated test signal. Verify the 4–20 mA input value, process-variable scaling, engineering units, alarms, and displayed values. For HART-enabled devices, communication and diagnostic functions should also be tested. Only after the complete signal path has been verified should the affected control loops be returned to normal operation.
