1. What is the Emerson VE4003S2B9 KJ3223X1-BA1 mainly used for?

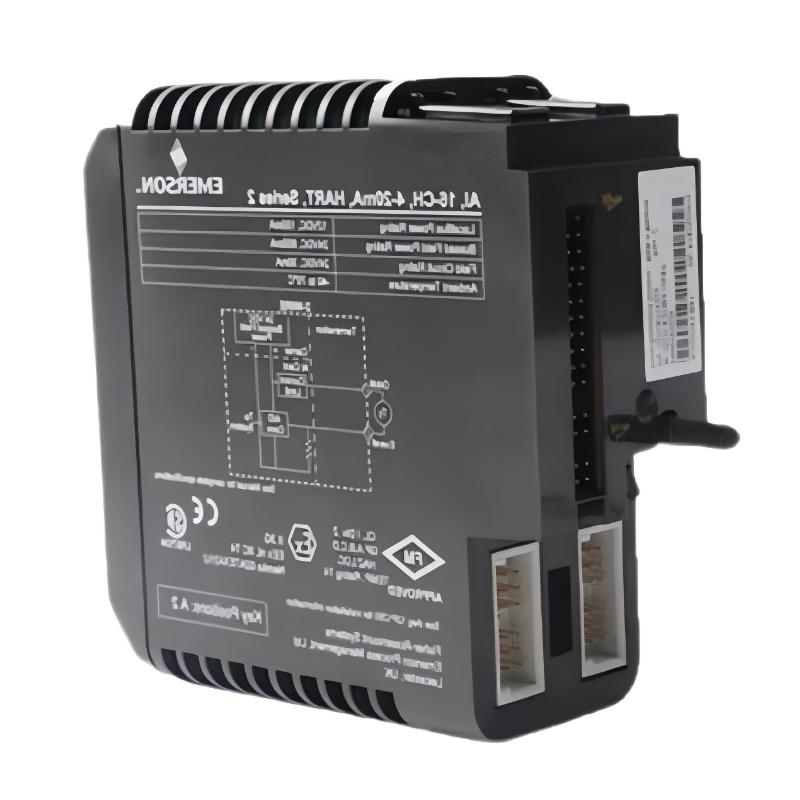

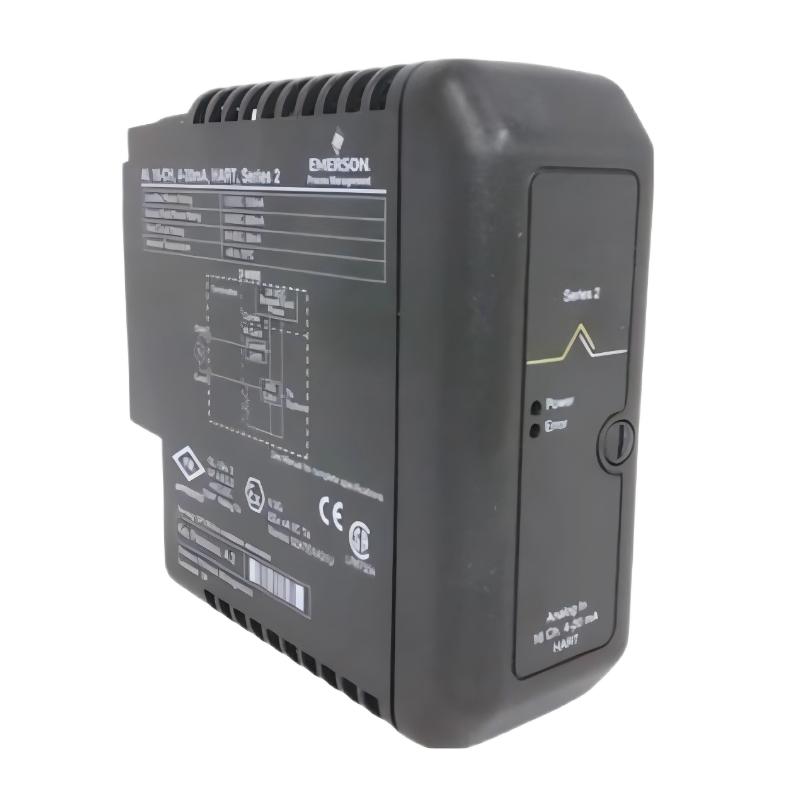

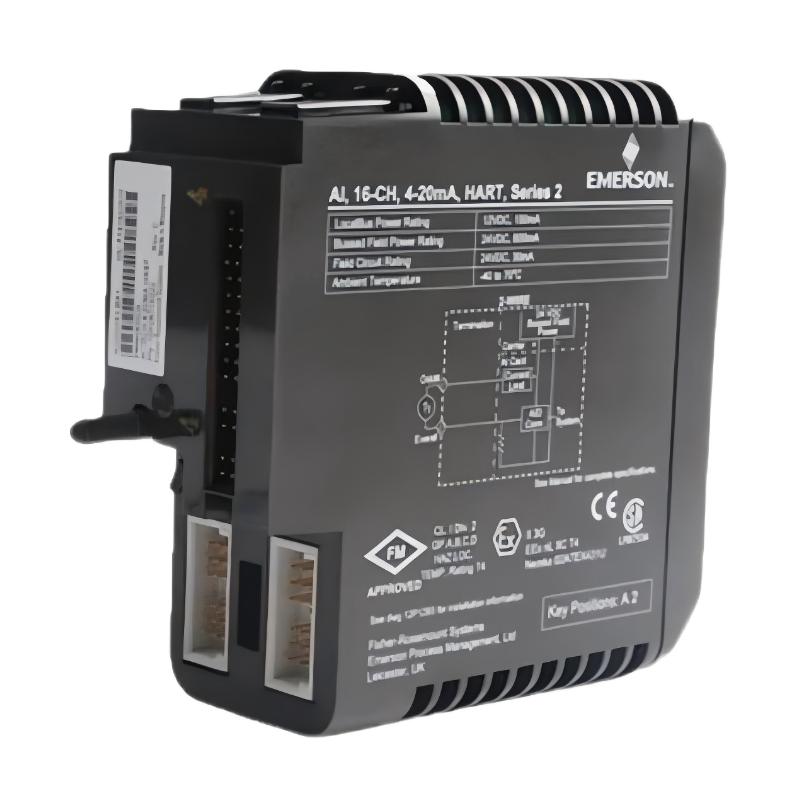

The Emerson VE4003S2B9 KJ3223X1-BA1 is a DeltaV analog input card used to collect continuous process signals from field transmitters and transfer measurement data to the Emerson DeltaV distributed control system. It is commonly applied to process variables such as pressure, flow, level, temperature, and other continuously measured industrial parameters. In a complete DCS architecture, the card provides the interface between field instrumentation and the control system, allowing process values to be monitored, alarmed, recorded, and used by control strategies. It is suitable for industrial automation applications where reliable analog signal acquisition and integration with the DeltaV control platform are required.

2. What type of input signal does the VE4003S2B9 KJ3223X1-BA1 support?

The VE4003S2B9 KJ3223X1-BA1 is designed for standard 4–20 mA analog input signals widely used in industrial process instrumentation. A compatible field transmitter converts a physical process variable into a current signal, which is then transmitted to the analog input card for processing by the DeltaV system. Before commissioning, engineers should verify the transmitter’s output range, loop power requirements, wiring arrangement, signal polarity, and DeltaV channel configuration. The configured engineering range should correspond to the transmitter’s actual measurement range. Incorrect scaling or wiring can result in inaccurate process readings, unexpected alarms, or incorrect control-system responses.

3. How many analog input channels does the KJ3223X1-BA1 provide?

The KJ3223X1-BA1 provides 8 analog input channels for acquiring process signals from compatible field instruments. Each channel can be assigned to an individual measurement point according to the plant’s I/O design and DeltaV configuration. During commissioning, every channel should be checked individually to ensure that the correct field transmitter is connected to the intended input point. The actual transmitter output should be compared with the value displayed by DeltaV, while channel identification, engineering range, process-variable assignment, and engineering units should also be verified. This point-to-point testing is important in larger DCS installations because incorrect channel assignments can cause valid field signals to be displayed against the wrong process variables.

4. Does the Emerson VE4003S2B9 support HART communication?

Yes. The VE4003S2B9 KJ3223X1-BA1 can be used with compatible HART-enabled field instruments. HART communication allows the standard 4–20 mA signal to carry the primary process variable while digital communication provides additional information from the smart field device. Depending on the connected transmitter and system configuration, this information can include device status, diagnostics, configuration parameters, and maintenance-related data. HART capability is particularly useful during commissioning and troubleshooting because technicians can obtain additional instrument information without relying exclusively on the analog process value. When HART instruments are installed, the field device configuration, channel setup, wiring, and communication status should be checked to ensure proper operation.

5. What field instruments can be connected to the VE4003S2B9 KJ3223X1-BA1?

The card can be used with compatible field transmitters that provide the required 4–20 mA analog output. Typical applications include pressure transmitters, differential pressure transmitters, flow transmitters, level transmitters, and other process measurement instruments. Before connecting a field instrument, its output characteristics, loop power requirements, wiring method, signal range, and electrical compatibility should be checked against the project design. If the transmitter supports HART, its communication requirements should also be considered. The corresponding DeltaV input channel should then be configured according to the actual instrument range and engineering unit. Proper matching between the transmitter and the DeltaV configuration is essential for accurate measurement and dependable process control.

6. How can an abnormal input signal on the VE4003S2B9 be troubleshot?

Troubleshooting should begin by determining whether the problem is limited to a single input channel or affects multiple channels. For an isolated channel problem, check the field transmitter, instrument power supply, loop wiring, cable condition, terminal connections, and actual 4–20 mA current. Measuring the loop current directly can help determine whether the field transmitter is producing the expected output. If the field signal is correct but the DeltaV value is incorrect, inspect the channel configuration, signal scaling, engineering units, termination path, and input hardware. If multiple channels are affected, common factors such as I/O power, termination components, system configuration, and communication should also be investigated. For HART-enabled transmitters, device diagnostics may provide additional information about instrument health or configuration. A systematic check from the field device through the wiring and I/O card to the DeltaV software configuration can help identify the source of the problem efficiently.

7. What should be checked when commissioning the Emerson VE4003S2B9?

Commissioning should include verification of the complete card model, I/O channel configuration, field wiring, transmitter operation, signal range, engineering units, and process-variable scaling. Each field transmitter should be tested individually to confirm that its 4–20 mA signal reaches the correct DeltaV input channel. The displayed process value should be compared with the actual field measurement or a calibrated test signal to confirm correct signal conversion and scaling. Engineers should also check channel status, alarms, signal-quality indications, and any configuration mismatches. If HART-enabled transmitters are used, HART communication and available device diagnostic information should be verified. A complete point-to-point test should be performed before placing the associated process loops into normal operation, ensuring that the field device, wiring, termination, input card, and DeltaV configuration all work together correctly.
