1. What is the Emerson VE4003S2B9 KJ3223X1-BA1 + KJ3223X1-EA1 used for?

The Emerson VE4003S2B9 KJ3223X1-BA1 + KJ3223X1-EA1 is an analog input assembly designed for Emerson DeltaV DCS applications. The KJ3223X1-BA1 provides the analog input processing function, while the KJ3223X1-EA1 serves as the associated terminal block for field wiring. The combination provides a structured interface between field transmitters and the DeltaV control system. It is intended for continuous process measurements such as pressure, flow, level, temperature, and other analog process variables. The assembly is particularly useful in process automation systems where multiple field transmitters need to be integrated into the DCS for monitoring, alarm processing, data acquisition, and control strategies.

2. How many analog input channels does the VE4003S2B9 provide?

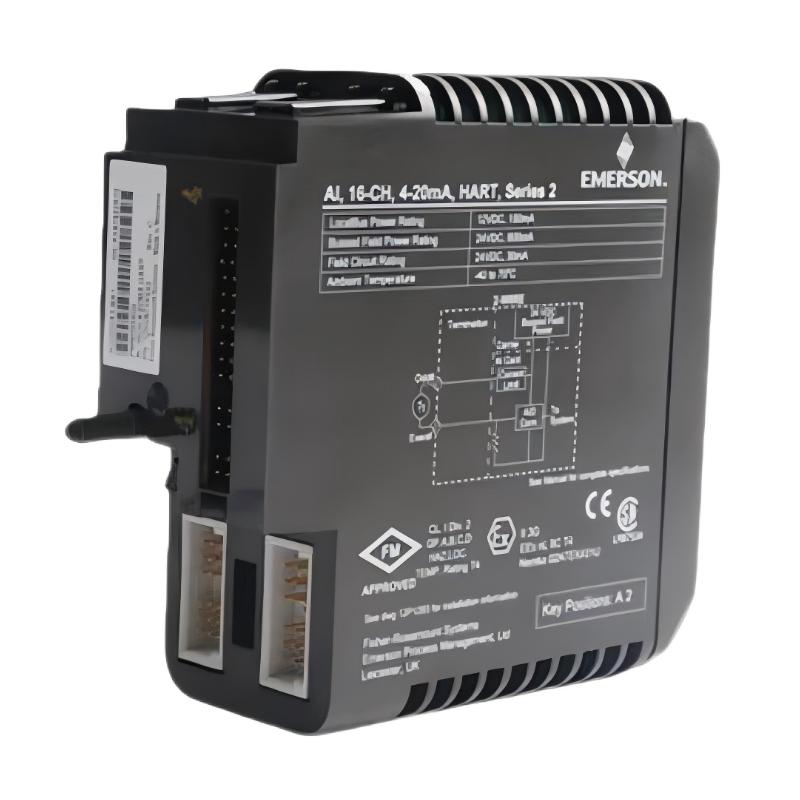

The VE4003S2B9 is a 16-channel, 2-wire analog input configuration. The KJ3223X1-BA1 input module is designed to receive multiple analog process signals, while the KJ3223X1-EA1 terminal block provides the field connection interface. Each input channel can be assigned to an individual field measurement according to the plant’s I/O schedule and DeltaV configuration. During commissioning, each channel should be checked individually to ensure that the correct field transmitter is connected to the corresponding input point. Point-to-point verification is important because incorrect channel assignments can cause a valid process signal to appear under the wrong process variable in the DCS.

3. What input signal does the KJ3223X1-BA1 support?

The KJ3223X1-BA1 is designed for 4–20 mA analog input signals commonly used by industrial process transmitters. The associated 2-wire field instruments transmit their measured process variables through the current loop to the I/O system. Before commissioning, technicians should verify the transmitter output range, loop power requirements, wiring polarity, field termination, and DeltaV channel configuration. The engineering range configured in DeltaV should match the actual range of the connected transmitter. Proper signal scaling is important because an incorrect range or engineering-unit configuration can cause the DCS to display an inaccurate process value even when the field transmitter itself is operating correctly.

4. What is the function of the KJ3223X1-EA1 terminal block?

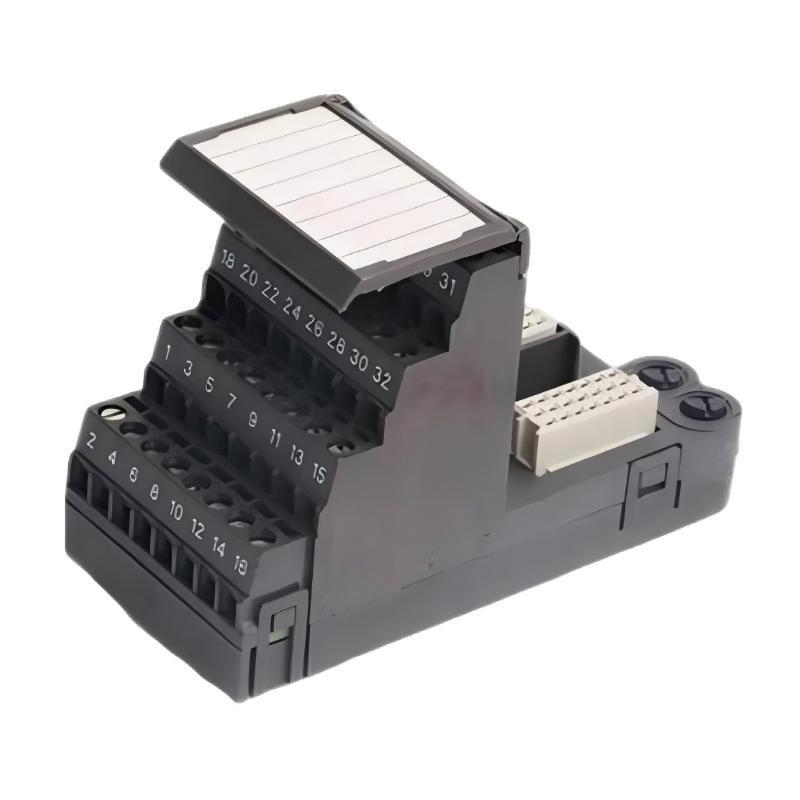

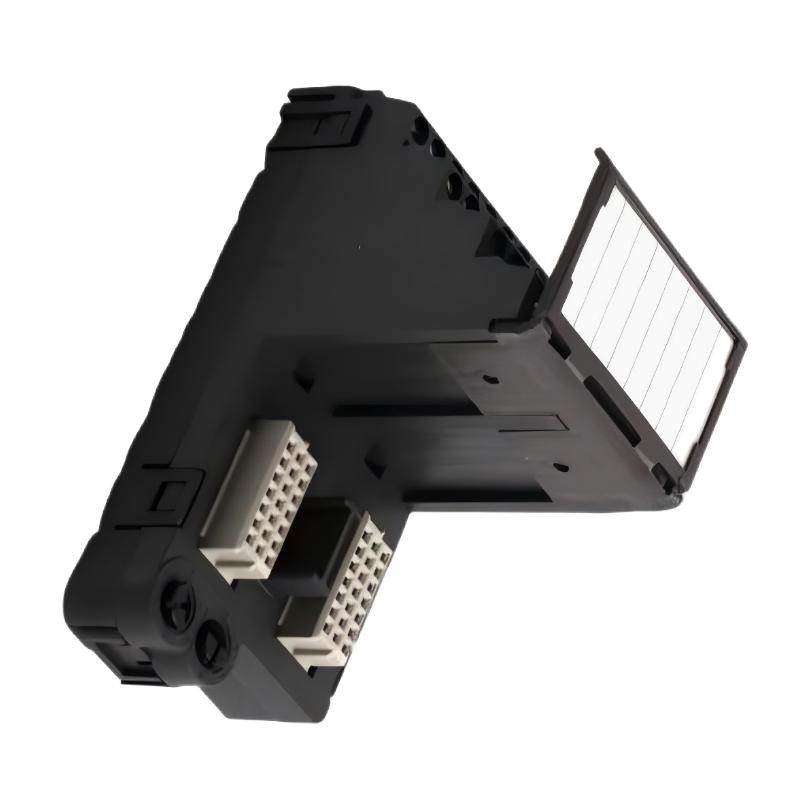

The KJ3223X1-EA1 provides the field termination interface associated with the KJ3223X1-BA1 analog input module. Its main purpose is to provide an organized connection point between field wiring and the DeltaV I/O system. Instead of connecting field cables directly to the electronic input module, the terminal block provides a structured termination arrangement that simplifies installation, commissioning, maintenance, and troubleshooting. During installation, each field wire should be connected according to the approved project wiring diagram and terminal assignment. Correct channel identification is particularly important in a 16-channel system because a wiring error can result in a valid transmitter signal being assigned to the wrong process measurement.

5. Does the VE4003S2B9 support HART communication?

Yes. The VE4003S2B9 configuration is intended for 4–20 mA analog inputs with HART capability when used with compatible smart field instruments. HART communication allows the primary process variable to continue using the standard analog current signal while additional digital information can be exchanged with the field device. Depending on the transmitter and system configuration, this information can include device status, diagnostic data, configuration parameters, and maintenance information. HART capability can be useful during commissioning and troubleshooting because maintenance personnel can obtain additional information about a smart transmitter without depending solely on its analog process value. The field device, I/O channel, wiring, and DeltaV configuration should all be checked when establishing HART communication.

6. Which field instruments can be connected to this Emerson analog input assembly?

The VE4003S2B9 can be used with compatible 2-wire field transmitters that provide the required 4–20 mA analog output. Typical applications include pressure transmitters, differential pressure transmitters, flow transmitters, level transmitters, and other continuous process measurement instruments. Before connecting a transmitter, engineers should verify the output signal, loop power requirements, measurement range, wiring method, and electrical compatibility with the I/O configuration. If a smart HART transmitter is used, its communication requirements should also be considered. The corresponding DeltaV channel should be configured with the correct process range and engineering unit so that the measured signal is converted into an accurate process value.

7. How can a faulty or unstable input signal be diagnosed?

Troubleshooting should begin by determining whether the abnormal condition affects one channel or multiple channels. For a single-channel issue, check the field transmitter, instrument power, loop current, field cable, terminal connections, and the corresponding KJ3223X1-EA1 termination point. Measuring the actual 4–20 mA loop signal can help determine whether the problem originates from the transmitter or somewhere further along the signal path. If the field signal is correct but the DeltaV value is incorrect, inspect the input channel configuration, scaling, engineering units, termination connections, and I/O hardware. If several channels are affected at the same time, common factors such as I/O power, terminal interfaces, system configuration, or communication should be investigated. For HART instruments, device diagnostics can provide additional information about transmitter health and configuration.

8. What should be checked when commissioning or replacing the VE4003S2B9?

Before commissioning or replacement, verify the complete assembly configuration and confirm that the KJ3223X1-BA1 input module and KJ3223X1-EA1 terminal block are compatible with the intended DeltaV Series 2 Plus installation. The affected process loops should be placed in the appropriate maintenance or safe state according to site procedures. Field wiring and channel assignments should be documented before disconnection so that every transmitter can be restored to the correct input point. After installation, verify the module status, terminal connections, DeltaV configuration, signal range, engineering units, alarms, and process-variable assignments. Each of the affected input channels should be tested individually using the field transmitter or a suitable calibrated test signal. For HART-enabled instruments, communication status and diagnostic information should also be checked. A complete point-to-point test from the field transmitter through the terminal block and input module to the DeltaV operator system should be completed before returning the process loops to normal operation.
