1. What is the GE DS200UCIAG1ACC used for?

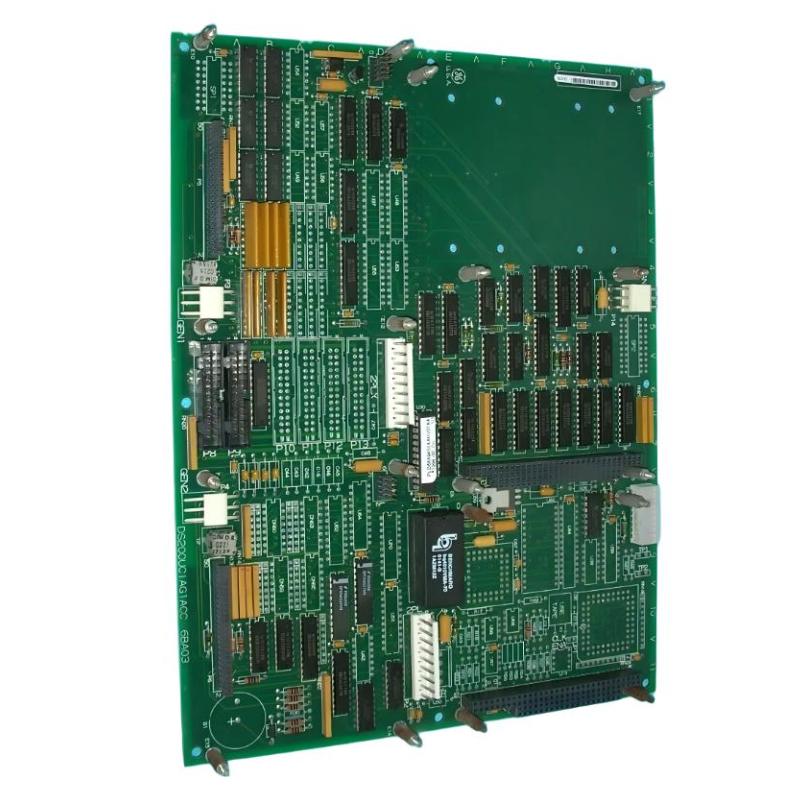

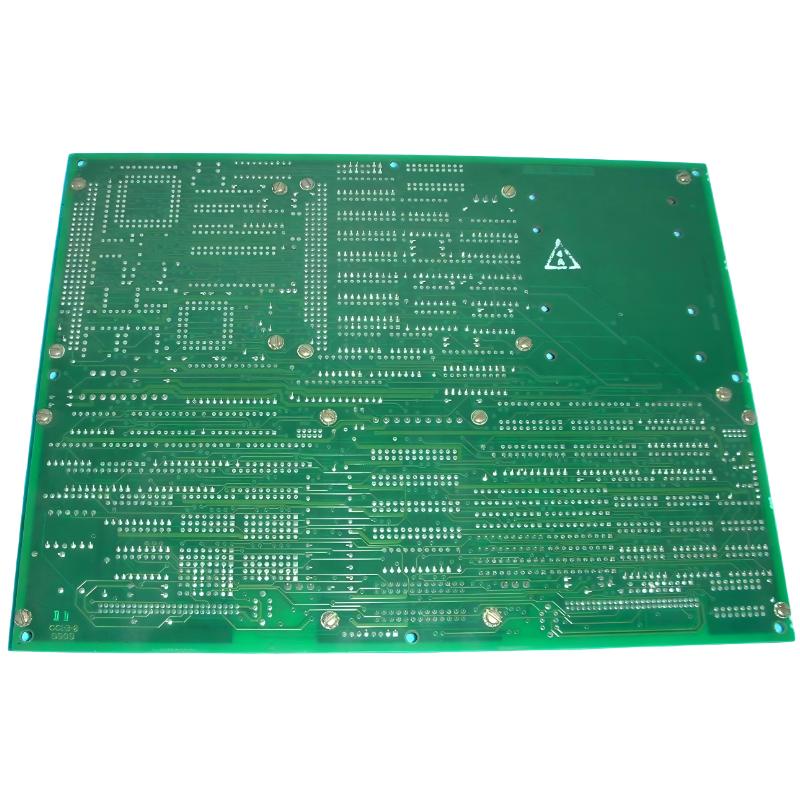

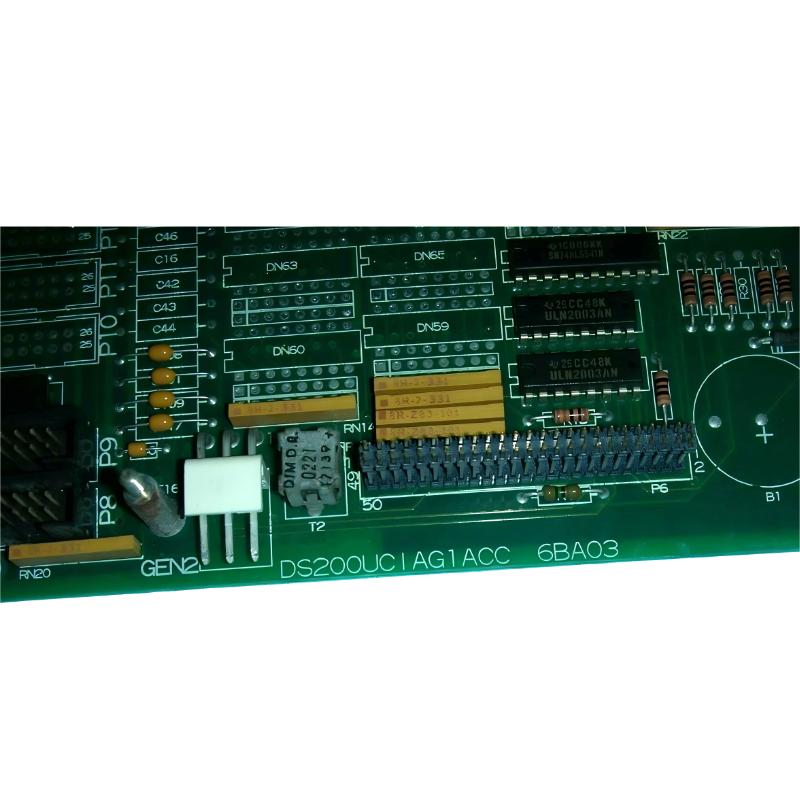

The GE DS200UCIAG1ACC is a UC2000 control board associated with GE industrial control and drive applications. It provides processing and control functions within the associated system and can be used for monitoring operating conditions, processing control information, and coordinating signals between system components. The board is associated with the Mark V product family and has also been described as a UC2000 motherboard used for drive control. Its exact role depends on the equipment configuration in which it is installed. When replacing or troubleshooting the board, the complete part number and the original system configuration should be checked to ensure that the correct hardware is being used.

2. What type of system is the DS200UCIAG1ACC associated with?

The DS200UCIAG1ACC is associated with GE UC2000 control architecture and is commonly identified within the broader GE Mark V equipment family. It is intended for industrial control applications where a central control board is required to process system information and coordinate operating functions. The board can form part of a larger control assembly containing power supplies, I/O interfaces, communication circuits, and other control boards. Because different installations can use different hardware configurations, the exact function of the DS200UCIAG1ACC should be determined from the equipment model, wiring configuration, and system documentation rather than assuming that every installation uses the same signal assignment.

3. What are common symptoms of a faulty DS200UCIAG1ACC?

A defective DS200UCIAG1ACC may cause abnormal control behavior, loss of system monitoring functions, intermittent operation, unexpected drive-related alarms, or failure of associated control sequences. In some cases, the system may fail to initialize correctly or may lose communication with other control components. These symptoms can also be caused by power supply problems, communication wiring, external I/O devices, or another control board. Troubleshooting should therefore begin by checking system power and diagnostic information before replacing the motherboard. If the fault occurs intermittently, technicians should also inspect connectors, board seating, environmental conditions, and signs of component deterioration.

4. Does the DS200UCIAG1ACC use an operating system?

The DS200UCIAG1ACC is associated with a QNX operating environment in UC2000 applications. QNX is a real-time operating system designed for embedded and industrial control environments, where deterministic processing and reliable system operation are important. The operating environment supports the board’s control and monitoring functions and allows the hardware to work as part of the larger UC2000 architecture. When troubleshooting an operating or startup problem, it is important to distinguish between an operating-system issue and a hardware problem involving power, memory, processor operation, communication interfaces, or another connected system component.

5. How should the DS200UCIAG1ACC be checked when the control system fails to start?

When the control system fails to start, the first step should be to verify that the required power supplies are present and within their specified operating ranges. The board’s connectors and seating should then be inspected for loose connections, contamination, or signs of damage. If the system provides diagnostic indicators or startup information, these should be reviewed to determine whether the failure occurs during power-up, operating-system initialization, or communication startup. Memory and processor-related faults should also be considered if the board does not complete its normal initialization sequence. It is preferable to identify the failed stage before replacing the complete board, since external power or interface problems can produce symptoms similar to a motherboard failure.

6. What should be checked if the DS200UCIAG1ACC loses communication with other control components?

Communication problems should first be investigated by checking the associated cables, connectors, interface modules, and power conditions. A communication failure affecting only one connected device may indicate a local wiring or interface problem, while simultaneous loss of several devices may point toward a common power, communication, or controller issue. Technicians should also examine system diagnostics for communication errors and determine whether the failure is continuous or intermittent. Connector condition is particularly important in older industrial control cabinets because oxidation, vibration, contamination, or mechanical looseness can cause intermittent signal problems. Replacing the DS200UCIAG1ACC should normally be considered only after external communication paths and power conditions have been verified.

7. Can the DS200UCIAG1ACC be replaced directly with another board?

A replacement should be made only after confirming the complete DS200UCIAG1ACC part number and ensuring that the replacement is compatible with the specific UC2000 or Mark V system configuration. Boards with similar physical appearances or related GE part numbers may not have identical hardware revisions, firmware, connectors, or system functions. Before removal, technicians should record cable positions, jumper or configuration settings where applicable, and relevant system information. After installing the replacement, the control system should be checked for proper initialization, communication, and control operation. A functional test should then be performed before the equipment is returned to normal service.

8. What precautions should be taken when maintaining the DS200UCIAG1ACC?

Maintenance should begin by placing the associated industrial control equipment in the approved maintenance condition and isolating electrical power according to the applicable safety and lockout/tagout procedures. Technicians should use appropriate electrostatic discharge protection when handling the board because electronic components can be damaged by static electricity. Before removing the DS200UCIAG1ACC, all connectors should be clearly identified and their original positions documented. The board should be handled by its edges rather than by individual electronic components. After installation, connectors should be checked for secure engagement and correct orientation. The system should then be powered and tested in a controlled manner, with attention given to startup behavior, communication status, diagnostics, and the specific control functions supported by the board.
