1. What is the GE DS200UCPBG5AFB used for?

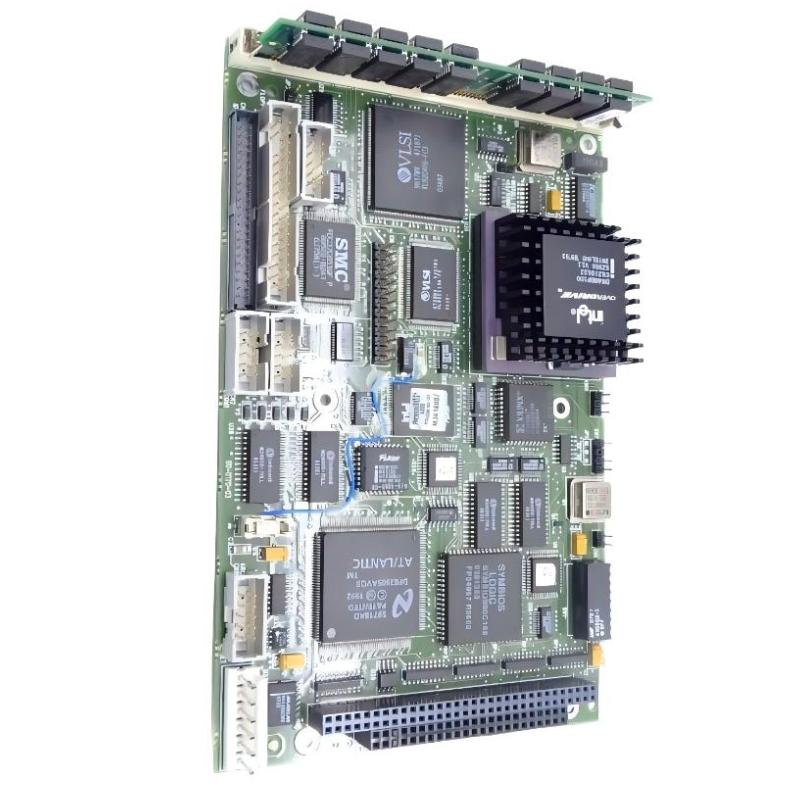

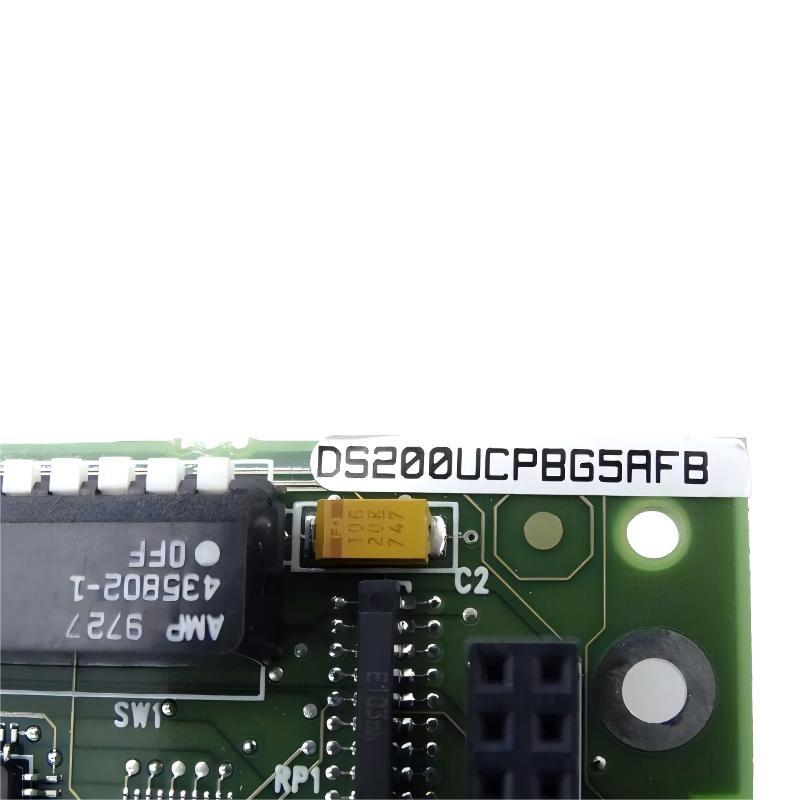

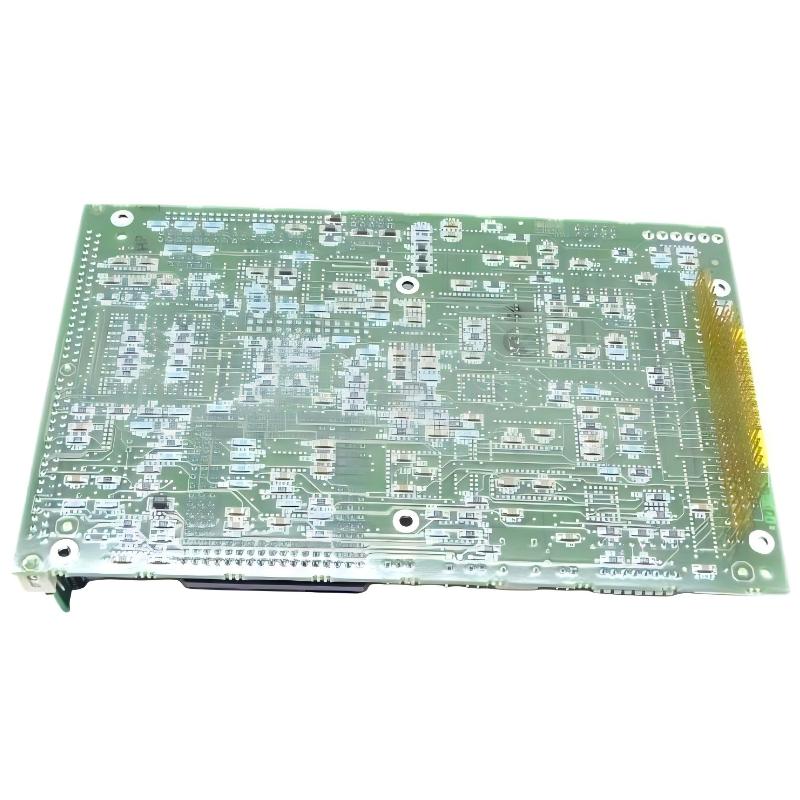

The GE DS200UCPBG5AFB is an I/O Engine CPU Board used in the GE Mark V turbine control system. It provides processor-based control and data-processing functions within the I/O engine architecture. The board incorporates a 486DX processor, PROM devices, memory access, a DIMM interface, and several system-level communication and bus connections. It works with other Mark V boards to process control information and support communication between the control system and I/O hardware. The board can also interface with FMVED motor controller components through its associated daughterboard.

2. What processor is used on the DS200UCPBG5AFB?

The DS200UCPBG5AFB uses a 486DX processor as its main CPU. The processor provides the computing capability required for I/O engine processing and control-system operations. The board also contains multiple PROM devices and memory resources used for program execution and data processing. Processor-related problems can prevent the I/O engine from starting correctly or communicating with other system components. When investigating CPU-related faults, technicians should first verify the power supply, memory installation, board connections, and communication interfaces before determining whether the processor board itself requires replacement.

3. What connectors are available on the DS200UCPBG5AFB?

The DS200UCPBG5AFB provides several interfaces for communication and connection with other Mark V components. These include board bus connections, ARCNET COREBUS, COM1, IDE, and COM2 interfaces. J1 and J3 are associated with board-level bus connections. Different interfaces perform different functions within the control architecture, so connector identification is important during maintenance. Before removing the board, technicians should record the position of each connected cable and verify the corresponding interface. Incorrect cable placement during reinstallation can result in communication failures, incorrect signal routing, or failure of associated control functions.

4. What is the function of the JP2 jumper on the DS200UCPBG5AFB?

JP2 is the configurable hardware jumper used to select the 486 local bus speed. Its setting affects the operating configuration of the processor and local bus. JP1 and JP3 have different purposes and are associated with factory testing rather than normal field configuration. Before changing JP2, the original setting should be documented and the required configuration for the specific Mark V system should be confirmed. An incorrect jumper setting may prevent proper processor or bus operation, so JP2 should not be changed simply as an experimental troubleshooting step.

5. What are common symptoms of a faulty DS200UCPBG5AFB?

A faulty DS200UCPBG5AFB may cause I/O engine startup problems, communication failures, abnormal control processing, intermittent system operation, or loss of functions dependent on the CPU board. Memory-related problems can also prevent normal system initialization. Communication problems involving ARCNET or board bus interfaces may produce symptoms similar to a CPU failure. Troubleshooting should therefore begin with the power supply, connectors, board seating, memory module, bus connections, and available diagnostic information. If these external conditions are confirmed to be normal and the board still fails to initialize or communicate correctly, the DS200UCPBG5AFB becomes a stronger candidate for replacement.

6. How should the DIMM be handled when replacing the DS200UCPBG5AFB?

The DS200UCPBG5AFB includes a DIMM connector, and the memory module may need to be transferred from the original board if the replacement board does not include the required DIMM. The memory module should be handled carefully using appropriate electrostatic discharge protection. Before removing it, technicians should confirm its orientation and installation position. The DIMM should be fully seated in the replacement board and secured correctly. After installation, the system should be powered under controlled maintenance conditions and checked to confirm that the CPU board initializes correctly and can access its memory without errors.

7. What is the purpose of the daughterboard on the DS200UCPBG5AFB?

The DS200UCPBG5AFB may use a PCM, or Power Control Module, daughterboard. This daughterboard is associated with communication between the CPU board and FMVED motor controller components. It forms part of the overall control architecture rather than functioning as a completely independent controller. When replacing the main CPU board, technicians should check whether the existing installation contains the daughterboard and determine whether it needs to be transferred to the replacement assembly. If communication with FMVED motor controller equipment is abnormal, both the daughterboard interface and the main CPU board should be considered during troubleshooting.

8. What precautions should be taken when replacing the DS200UCPBG5AFB?

Before replacing the DS200UCPBG5AFB, verify the complete part number and revision information against the existing Mark V system configuration. The equipment should be placed in the appropriate maintenance condition, and all applicable power isolation and lockout/tagout procedures should be followed. All cables and connectors should be clearly identified before removal, especially the board bus, ARCNET, COM1, and other connected interfaces. If the original board contains a DIMM or PCM daughterboard, their installation positions should be documented before removal. The JP2 jumper setting should also be recorded and transferred correctly when required. After installation, check all connections, memory installation, jumper configuration, processor startup, communication status, and I/O engine functions before returning the control system to normal operation.
