1. What is the GE DS200TCTGG1AFF used for?

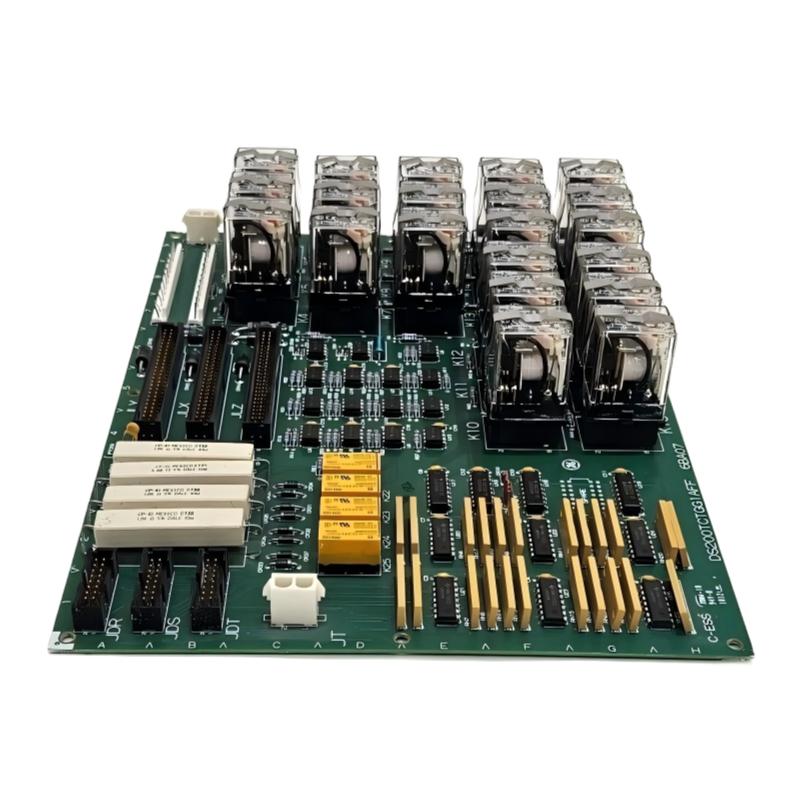

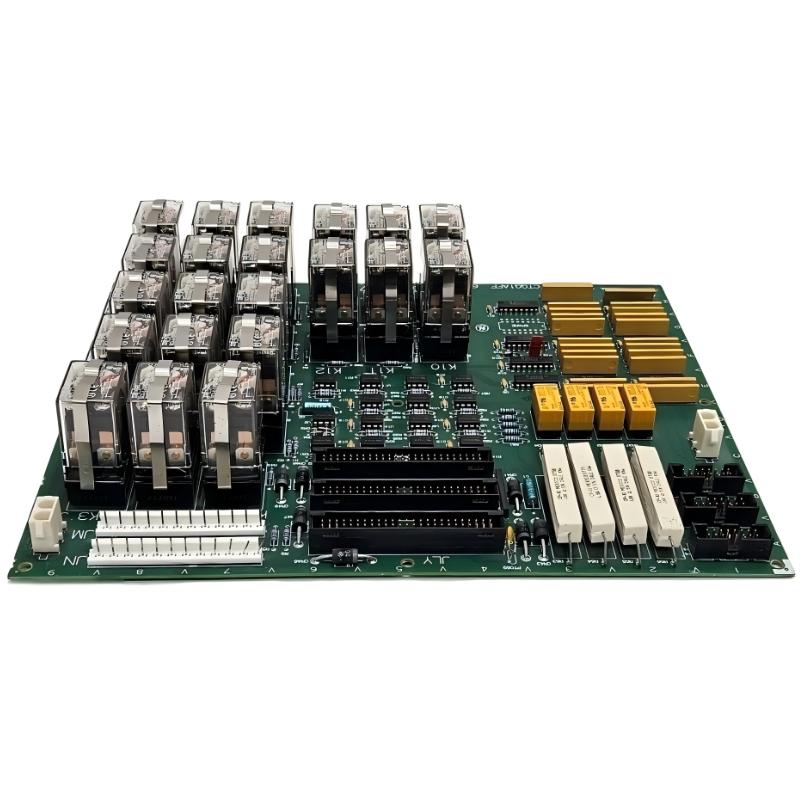

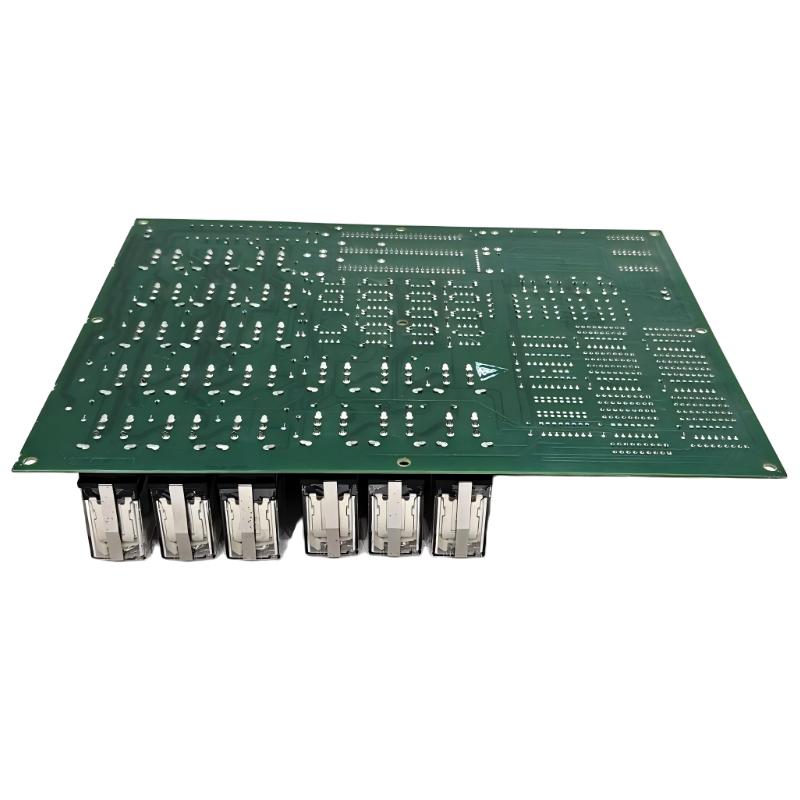

The GE DS200TCTGG1AFF is a MARK V Simplex Trip Board designed for turbine trip and protection functions within the GE Mark V control system. Its primary role is to process discrete trip signals and control relay outputs associated with turbine shutdown and protective interlocking. The board uses multiple plug-in relays to interface the Mark V control logic with external field circuits. Depending on the system configuration, these circuits may be associated with turbine protection, shutdown commands, control interlocks, and other discrete functions. The exact purpose of each relay and connector depends on the specific turbine control configuration, so maintenance and troubleshooting should always be performed using the applicable system wiring and control documentation.

2. How many relays are installed on the DS200TCTGG1AFF?

The DS200TCTGG1AFF contains 21 plug-in relays, identified as K1 through K21. These relays provide switching functions for trip and protection signals within the Mark V control system. The plug-in construction allows individual relay channels to be inspected and, where appropriate, replaced during maintenance. When troubleshooting a failed output, technicians should first identify the affected relay and signal path instead of assuming that the entire board has failed. The corresponding control signal, relay contacts, connector, wiring, and external load should all be considered. If the same relay repeatedly fails after replacement, the connected field circuit should also be investigated for overload, short circuit, or other abnormal operating conditions.

3. What connectors are available on the DS200TCTGG1AFF?

The DS200TCTGG1AFF uses three 50-pin connectors identified as JLY, JLX, and JLZ, together with two 12-pin connectors identified as JN and JM. These connectors provide the signal interfaces between the Simplex Trip Board, other Mark V control components, and associated field circuits. Different connectors may carry different groups of trip, protection, and control signals. For this reason, every cable position should be documented before removing the board. During reinstallation, each connector must be returned to its correct position. Incorrect reconnection can cause a control or protection signal to be routed to the wrong circuit and may result in abnormal operation or an unintended turbine trip.

4. What are the common symptoms of a faulty DS200TCTGG1AFF?

A faulty DS200TCTGG1AFF may cause abnormal trip signals, failure of a required protection output, incorrect relay operation, intermittent alarms, or loss of a specific discrete control signal. However, these symptoms do not necessarily indicate that the board itself has failed. Similar problems can originate from upstream Mark V boards, power supplies, connectors, control cables, relay contacts, terminal circuits, or external field devices. Troubleshooting should therefore begin by identifying the exact affected function and following its signal path through the control system. Checking the relay state, connector condition, wiring, and associated control signals can help isolate the actual fault. If several unrelated channels fail simultaneously, common power and signal paths should also be checked.

5. How can the DS200TCTGG1AFF trip output be troubleshot?

Troubleshooting should begin by confirming whether the Mark V control logic has generated the expected trip command. If the command is present, the relevant relay channel, connector, and downstream field circuit should be checked systematically. For an individual abnormal output, the corresponding K-series relay and its contacts can be inspected together with the associated wiring and load. If several outputs fail at the same time, common power supplies, connectors, and upstream control signals should receive greater attention. Because the board may participate in turbine protection and shutdown functions, technicians should not casually force or bypass critical trip signals. Testing should be performed under an approved maintenance condition and according to the site’s established turbine protection procedures.

6. Can an individual plug-in relay on the DS200TCTGG1AFF be replaced?

The DS200TCTGG1AFF uses plug-in relays, so individual relays may be inspected or replaced when the appropriate maintenance procedure and compatible replacement component are available. Before replacing a relay, technicians should confirm its exact position, function, and electrical characteristics. The associated control circuit should be identified before the component is removed. Power must be isolated according to the applicable safety procedure, and the absence of hazardous voltage should be verified with suitable test equipment. After installing the replacement relay, its seating and mechanical retention should be checked carefully, followed by functional testing of the affected control circuit. If a replacement relay fails again shortly afterward, the external load and wiring should be investigated instead of repeatedly replacing the relay.

7. Does the DS200TCTGG1AFF require software configuration?

The DS200TCTGG1AFF primarily performs its Simplex Trip functions through hardware relays, physical connections, and the associated Mark V control logic. The board itself is not normally configured through conventional software parameters for its basic relay switching functions. When replacing the board, technicians should verify the complete part number, revision information, and system configuration to ensure compatibility with the existing Mark V installation. Although the board does not normally require independent software configuration, the overall Mark V system determines when specific trip and protection commands are generated. A replacement board should therefore be subjected to appropriate functional testing to confirm that the hardware responds correctly to the system’s control signals.

8. What precautions should be taken when replacing the DS200TCTGG1AFF?

Before replacing the DS200TCTGG1AFF, verify the complete part number and revision information and confirm that the replacement board is suitable for the existing Mark V configuration. The relevant control system should be placed in the appropriate maintenance condition, and power should be isolated according to the site’s lockout/tagout procedures. Before removing the original board, all cables should be clearly identified, particularly those connected to JLY, JLX, JLZ, JN, and JM. The positions of the plug-in relays should also be checked and documented where necessary. After installation, every connector and relay should be inspected to ensure correct positioning and secure connection. The affected trip, shutdown, and protection circuits should then be tested according to the approved commissioning or maintenance procedure before the turbine control system is returned to normal operation.
