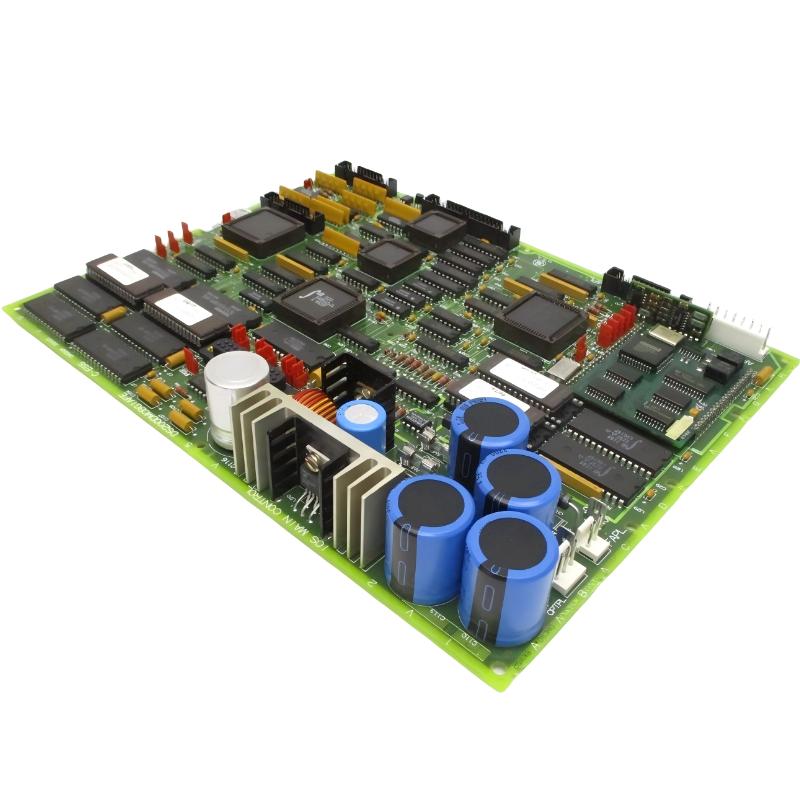

1. What is the main function of the DS215DMCBG1AZZ03A and DS200DMCBG1AED?

The DS215DMCBG1AZZ03A and DS200DMCBG1AED are DMCB main control boards used in GE industrial control equipment. The board performs core processing functions while also providing power management and communication interfaces for the associated control system. It can communicate with operator interface hardware, Drive LAN, optional DLAN+ communication, Genius LAN equipment and compatible I/O expansion hardware. In the IOS+, IEI and related control architectures, the DMCB serves as an important processing and coordination board, handling information exchanged between the operator interface, communication networks and I/O subsystems. Because several functions depend on this board, a fault can affect communication, operator interaction, I/O processing and overall system operation.

2. What processors are used on the DMCB board?

The DMCB board uses multiple processors for different system functions. The main processing function is handled by an Intel 80C186 processor operating at approximately 33 MHz. A separate 80C196 processor is used for communication-related functions, with an operating frequency of approximately 15.667 MHz. The operator keyboard and display interface can use another 80C196 processor operating at approximately 11.059 MHz on the associated interface hardware. This multi-processor arrangement allows the board to separate core processing, communication handling and operator-interface tasks. When troubleshooting the board, an abnormality in one function does not necessarily mean that every processing section has failed, so the specific system symptom should be identified before replacing the entire board.

3. What communication interfaces are supported by the DS200DMCBG1AED?

The DMCB supports several communication paths used within the associated GE control architecture. These include Drive LAN communication, optional ARCNET-based DLAN+ communication and optional Genius LAN functionality. The board also supports an RS-232C serial communication interface for applicable system connections. These interfaces allow the main control board to exchange information with other control modules, operator interface equipment and external or expansion hardware. The exact communication configuration depends on the system in which the board is installed. When replacing the board, technicians should verify which communication interfaces are actually used by the original installation and confirm that the replacement board has the appropriate configuration and associated hardware.

4. What symptoms can indicate a fault on the DS215DMCBG1AZZ03A?

A fault on the DMCB can produce different symptoms depending on the affected processing or communication section. Possible symptoms include failure of operator-interface functions, communication loss, abnormal I/O behavior, system initialization problems, unexpected control alarms or loss of communication with connected control equipment. If the board’s communication section is affected, multiple devices may report communication errors. If the processing section is affected, broader system control or initialization problems may occur. Troubleshooting should begin by checking the board’s power supply, connectors and associated communication wiring. It is also important to determine whether the fault is isolated to the DMCB or caused by another connected module, because a failed communication cable, I/O board or power supply can create symptoms that appear similar to a main control board failure.

5. How should the DS215DMCBG1AZZ03A be troubleshot when communication is lost?

When communication is lost, first verify that the DMCB is receiving stable power and that the board is correctly installed. Inspect all relevant connectors for loose connections, contamination, corrosion or mechanical damage. The Drive LAN, DLAN+ or Genius LAN connections should then be checked according to the actual system configuration. If an RS-232C connection is used, its cable and interface should also be inspected. System diagnostics can help determine whether communication loss is limited to one interface or affects several communication paths. If multiple communication functions fail simultaneously, the board’s power supply and main processing section should receive particular attention. If only one communication path is affected, the associated cable, interface hardware or optional communication module may be the more likely cause.

6. What role does the DS200IOEA expansion interface play with the DMCB?

The DS200IOEA provides an interface for I/O expansion hardware and works with the DMCB as part of the larger control architecture. Through the appropriate interface, the system can expand its available input and output capacity beyond the basic control-board configuration. The DMCB processes and coordinates information associated with these I/O functions, allowing input data to be received and output commands to be distributed as required by the application. The system can support additional I/O points through compatible expansion hardware, including up to 32 additional input points and 28 output points in applicable configurations. When troubleshooting an I/O problem, technicians should therefore check both the DMCB and the associated expansion interface rather than assuming that the main control board is the only possible fault source.

7. What should be checked before replacing the DMCB board?

Before replacing the DMCB, technicians should first confirm that the symptoms are consistent with a board-level problem. Check the board’s power supply, connectors, communication cables, associated I/O hardware and operator interface connections. Review system diagnostics to determine whether the fault is related to processing, communication or I/O functions. If the board has configurable jumpers or associated interface settings, these should also be documented before removal. The exact model and revision should be recorded, including DS215DMCBG1AZZ03A and the associated DS200DMCBG1AED identification. Any applicable firmware or configuration information should also be verified. This is particularly important for older control systems because an apparently similar replacement board may have different hardware or firmware characteristics. Proper identification before replacement helps prevent configuration mismatches and unnecessary troubleshooting after installation.

8. What commissioning checks should be performed after replacing the DMCB?

After replacing the DMCB, the control system should be checked systematically before being returned to normal operation. First confirm that the replacement board has the correct model, hardware configuration and applicable firmware for the existing system. Verify that all connectors, communication interfaces and I/O connections are correctly installed. After powering the system, check whether the board initializes normally and whether the control system recognizes the expected modules. Communication through the applicable Drive LAN, DLAN+, Genius LAN or RS-232C interfaces should be verified according to the actual installation. The operator interface should also be checked to ensure that keypad and display functions operate correctly. I/O expansion functions should be tested where applicable, including verification that input values are received correctly and output commands are transmitted as expected. Finally, system diagnostics and alarms should be reviewed to ensure that no communication, processing or I/O faults remain.
