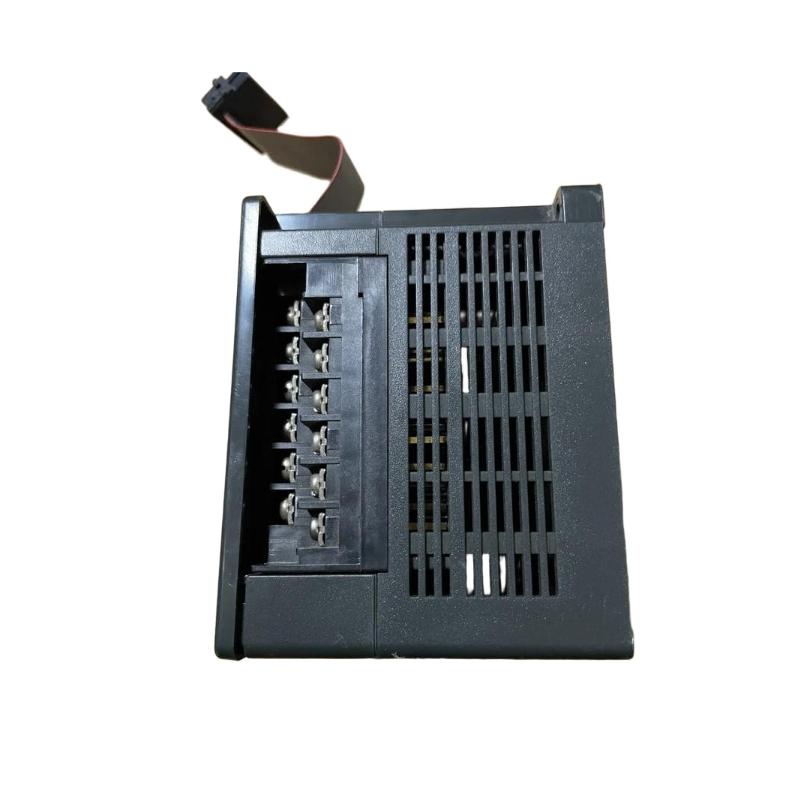

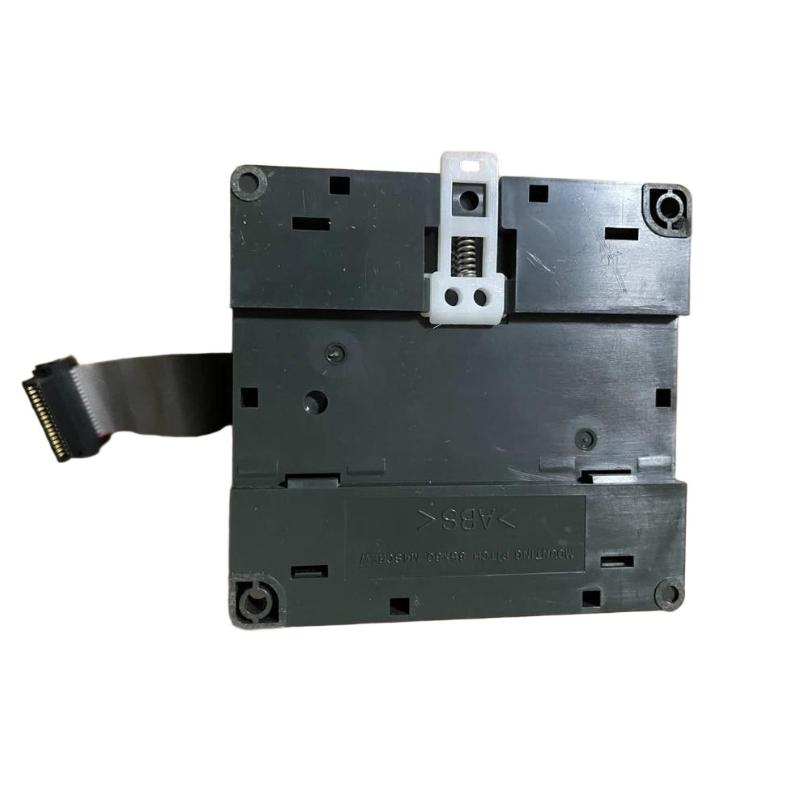

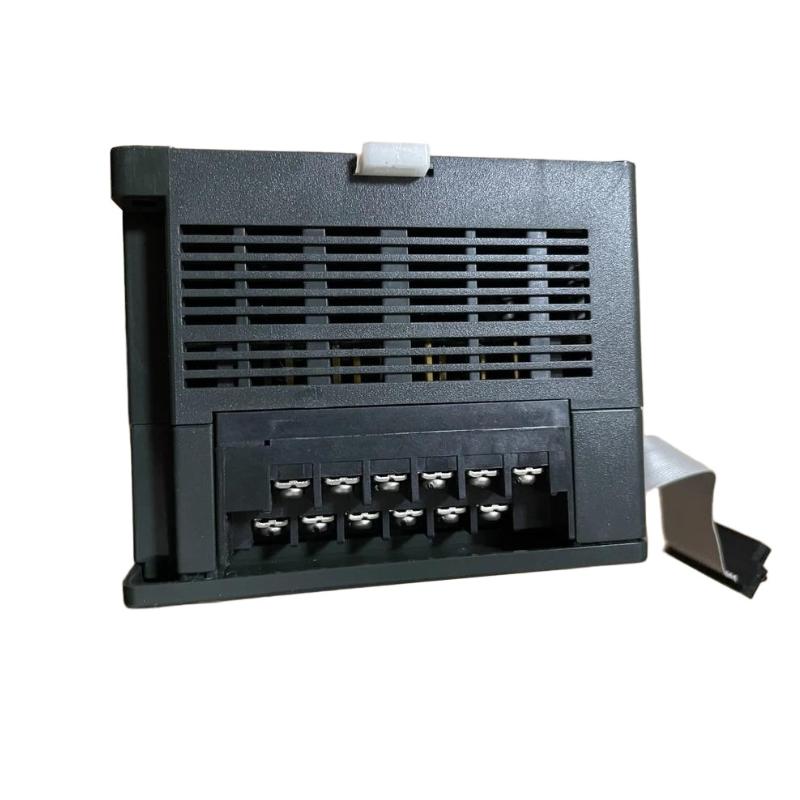

GE Fanuc IC200UEX011-B Discrete Expansion Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200UEX011-B |
| Product Series | GE Fanuc / Emerson VersaMax Micro |
| Product Type | Discrete Expansion Unit |
| Module Function | Provides additional digital input and relay output capability for VersaMax Micro PLC systems |
| Total I/O Points | 14 points |
| Digital Input Points | 8 points |
| Digital Input Type | 24 VDC positive/negative logic inputs |
| Input Voltage Range | 0 to 30 VDC |
| Input ON Voltage | 15 VDC minimum |
| Input OFF Voltage | 5 VDC maximum |
| Input Current | Approximately 7 mA at 24 VDC |
| Relay Output Points | 6 points |
| Relay Output Type | Normally open Form A (SPST) relay outputs |
| Relay Contact Rating | 2 A maximum resistive load |
| Relay Operating Voltage | 5 to 30 VDC / 5 to 250 VAC |
| Relay Isolation | 1500 VAC between field side and logic side; 500 VAC between groups |
| Relay Response Time | 15 ms maximum ON/OFF response |
| External Sensor Power Supply | Isolated 24 VDC output, 200 mA maximum |
| Main Power Supply | 100 to 240 VAC nominal |
| Power Frequency | 50/60 Hz |
| Input Power Rating | Approximately 13 VA |
| Inrush Current | Up to 40 A maximum depending on input voltage |
| Hold-up Time | 10 ms at 85 to 100 VAC |
| Diagnostic Features | Module status monitoring and LED indicators |
| Status Indicators | Power and operating status LEDs |
| Installation Method | VersaMax Micro expansion connection |
| Compatibility | GE Fanuc / Emerson VersaMax Micro PLC systems |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 97 × 89 × 76 mm (3.82 × 3.50 × 2.99 in) |
| Weight | Approximately 0.4 kg (0.88 lb) |
| Typical Applications | Machine control, relay switching, sensor monitoring, actuator control, and compact industrial automation systems |
FAQ
Q1: What is the main function of the IC200UEX011-B?
A: The IC200UEX011-B is a VersaMax Micro expansion unit that adds eight 24 VDC digital inputs and six relay outputs to increase the I/O capacity of compatible PLC systems.
Q2: How many I/O points does the IC200UEX011-B provide?
A: The module provides 14 total I/O points, including eight digital input channels and six normally open relay output channels.
Q3: What type of input signals are supported by the IC200UEX011-B?
A: The module supports 24 VDC positive logic and negative logic inputs, allowing connection with switches, sensors, and other digital field devices.
Q4: What type of loads can the relay outputs control?
A: The relay outputs can control various AC and DC loads, including motor starters, solenoid valves, indicator lamps, and industrial actuators within the rated limits.
Q5: Does the IC200UEX011-B require an AC power supply?
A: Yes. The expansion unit uses a 100 to 240 VAC power supply input and provides internal power for module operation and connected field devices.
Q6: Does the IC200UEX011-B provide 24 VDC sensor power?
A: Yes. The module provides an isolated 24 VDC output power supply with a maximum capacity of 200 mA for input devices and user circuits.
Q7: How can users monitor the operating status of the IC200UEX011-B?
A: The module uses LED indicators to display power and operating conditions, helping users identify normal operation or possible faults.
Q8: What should be checked when replacing an IC200UEX011-B module?
A: Verify VersaMax Micro compatibility, AC power requirements, input wiring, relay load specifications, expansion configuration, and PLC program settings before replacement.
GE Fanuc IC200UEX011-B Discrete Expansion Unit is in stock. Please contact us for a quick quote and competitive pricing.
