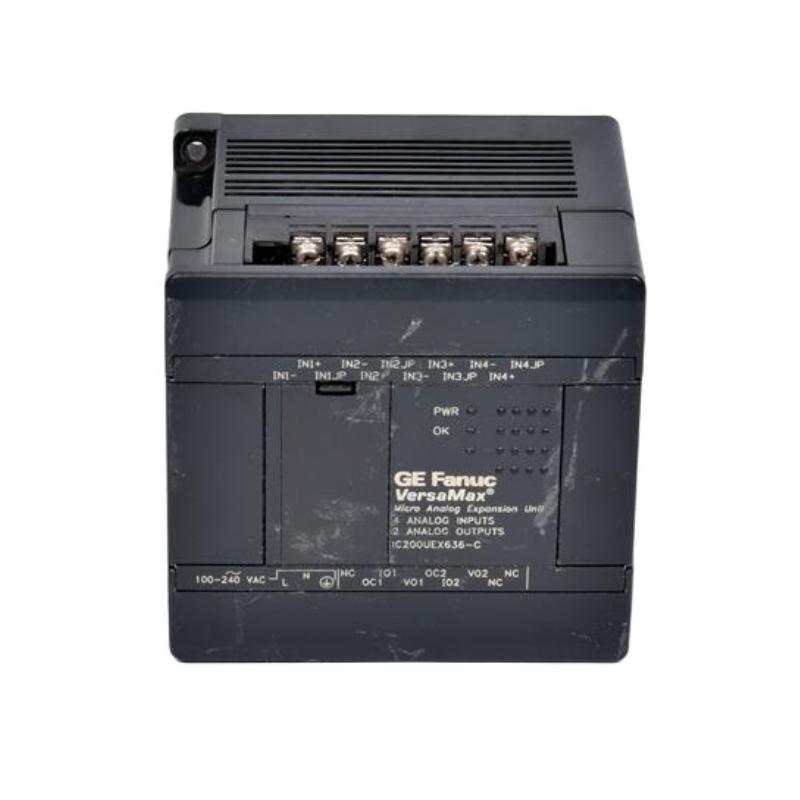

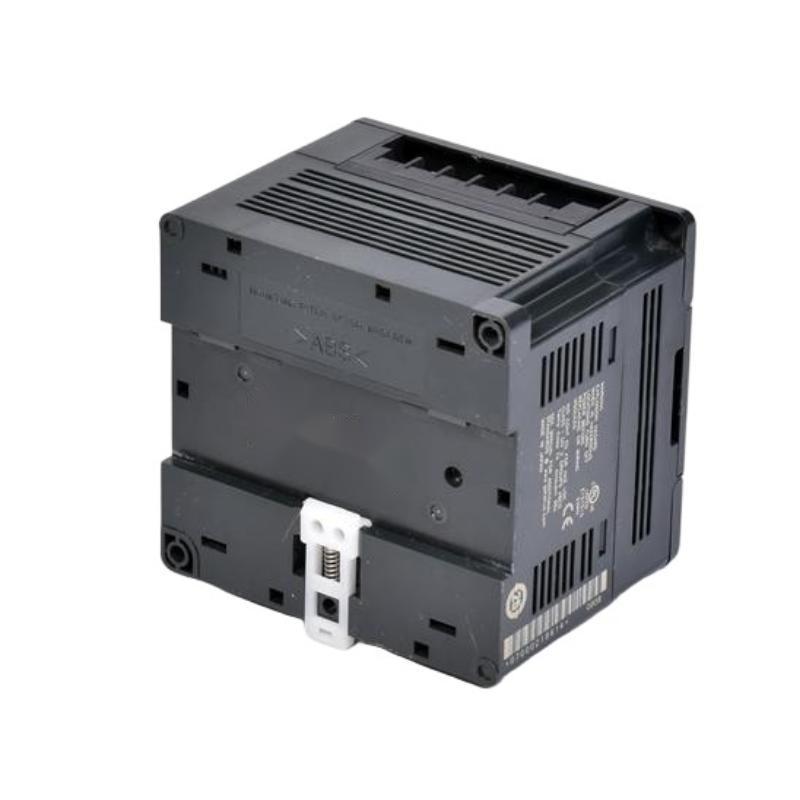

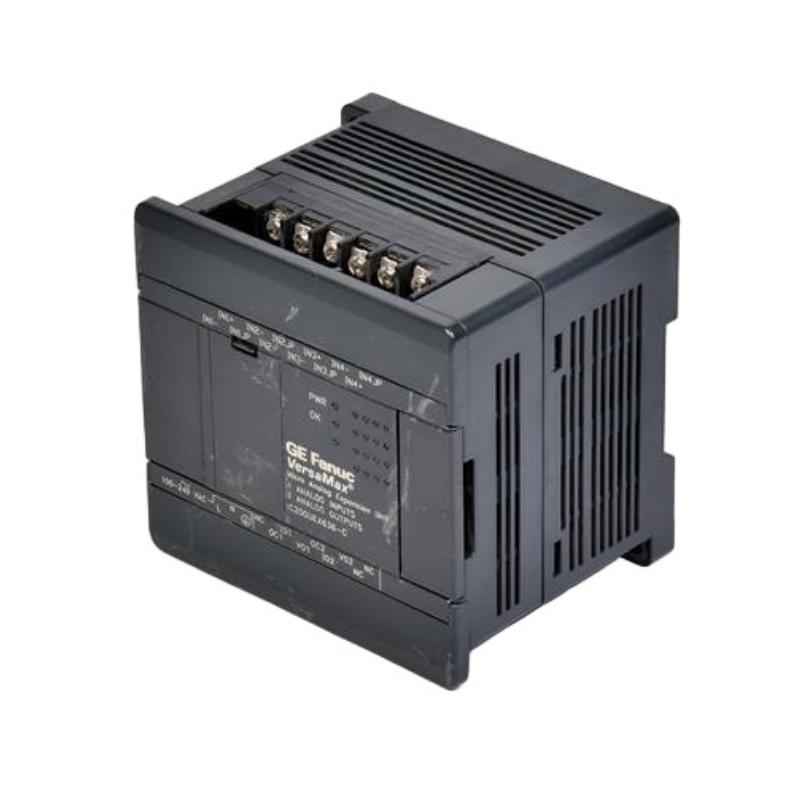

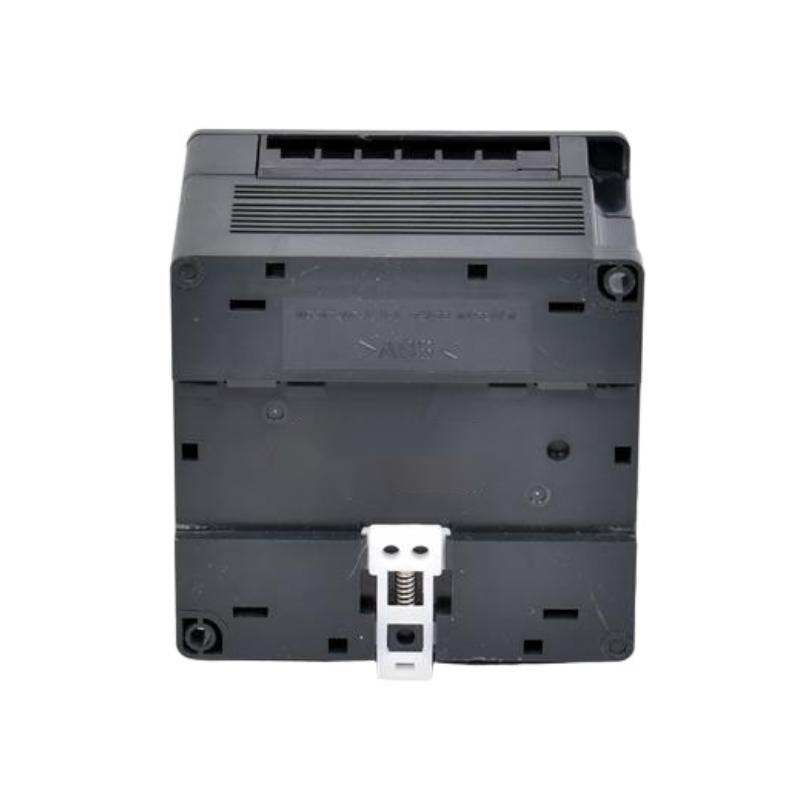

GE Fanuc IC200UEX636-C Analog Expansion Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200UEX636-C |
| Product Series | GE Fanuc / Emerson VersaMax Micro |
| Product Type | Analog Expansion Unit |
| Module Function | Provides additional analog input and output channels for VersaMax Micro PLC systems |
| Total Analog Channels | 6 channels |
| Analog Input Channels | 4 channels |
| Analog Output Channels | 2 channels |
| Input Type | Differential analog inputs |
| Output Type | Single-ended analog outputs |
| Power Supply Type | AC power supply |
| Rated Power Voltage | 120/240 VAC |
| Power Voltage Range | 85 to 264 VAC |
| Input Power Rating | 15 VA maximum |
| Sensor Power Supply | 24 VDC, 200 mA maximum for external sensors |
| Analog Input Ranges | 0 to 10 VDC, -10 to +10 VDC, 0 to 20 mA, 4 to 20 mA |
| Analog Output Ranges | 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA |
| Input Resolution | 12-bit |
| Output Resolution | 12-bit |
| Input Accuracy | Approximately ±1% of full scale |
| Output Accuracy | Approximately ±1% of full scale |
| Input Impedance | 200 kΩ for voltage input; 249 Ω for current input |
| Output Load Range | 10 kΩ minimum for voltage output; 10 to 500 Ω for current output |
| Isolation | Non-isolated analog channels |
| Diagnostic Features | LED status indicators for module operation |
| Connection Type | Removable terminal blocks and expansion connector |
| Expansion Capability | Extends VersaMax Micro analog I/O capacity |
| Installation Method | VersaMax Micro expansion connection |
| Compatibility | GE Fanuc / Emerson VersaMax Micro PLC systems |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Dimensions | Approximately 95 × 90 × 76 mm (3.74 × 3.54 × 2.99 in) |
| Weight | Approximately 0.91 kg (2.0 lb) |
| Typical Applications | Process monitoring, temperature control, pressure measurement, valve regulation, and industrial analog signal processing |
FAQ
Q1: What is the main function of the IC200UEX636-C?
A: The IC200UEX636-C is an analog expansion unit designed for VersaMax Micro PLC systems. It adds additional analog input and output capability for industrial measurement and control applications.
Q2: How many analog channels does the IC200UEX636-C provide?
A: The module provides six analog channels, including four analog input channels and two analog output channels.
Q3: What analog input signals are supported by the IC200UEX636-C?
A: The module supports common industrial analog signals including 0 to 10 VDC, -10 to +10 VDC, 0 to 20 mA, and 4 to 20 mA inputs.
Q4: What analog output signals are available on the IC200UEX636-C?
A: The module supports 0 to 10 VDC, 0 to 20 mA, and 4 to 20 mA output ranges for controlling external analog devices.
Q5: What PLC systems are compatible with the IC200UEX636-C?
A: The module is designed for GE Fanuc and Emerson VersaMax Micro PLC systems and expands their analog signal processing capability.
Q6: Does the IC200UEX636-C provide power for external sensors?
A: Yes. The module includes a 24 VDC sensor power supply with a maximum output current of 200 mA for compatible field devices.
Q7: How can users monitor the operating status of the IC200UEX636-C?
A: The module provides LED status indicators that display operational conditions and help with troubleshooting during system maintenance.
Q8: What should be checked when replacing an IC200UEX636-C module?
A: Verify VersaMax Micro compatibility, AC power requirements, analog signal configuration, terminal wiring, sensor connections, and PLC program settings before replacement.
GE Fanuc IC200UEX636-C Analog Expansion Unit is in stock. Please contact us for a quick quote and competitive pricing.
