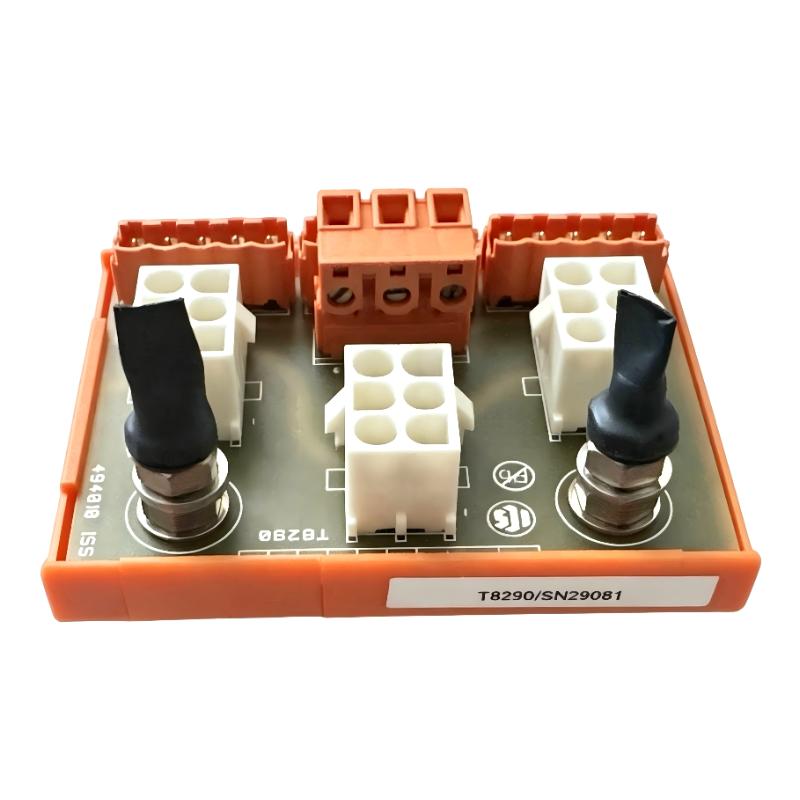

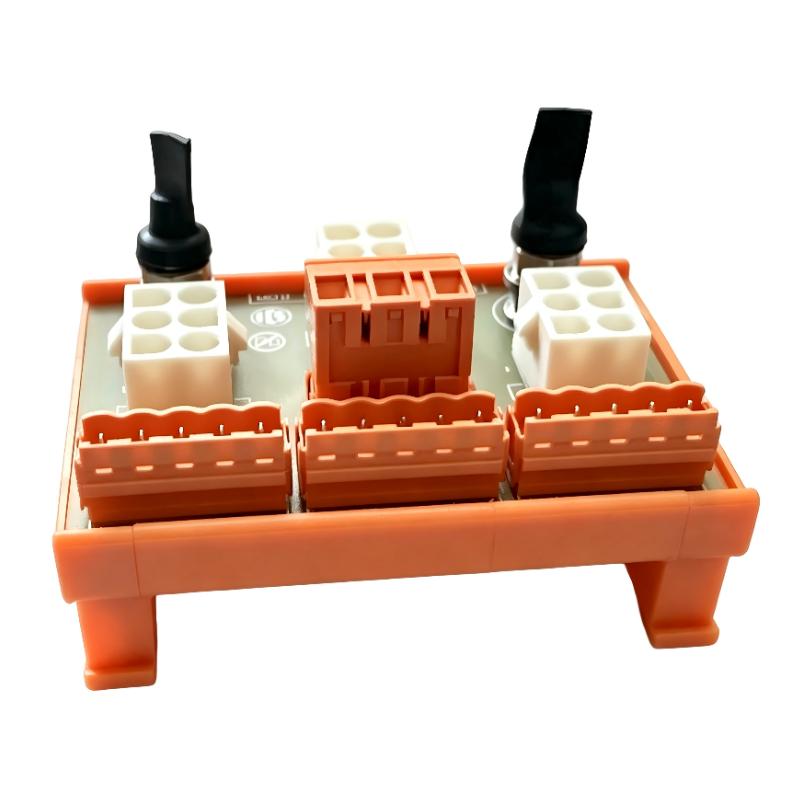

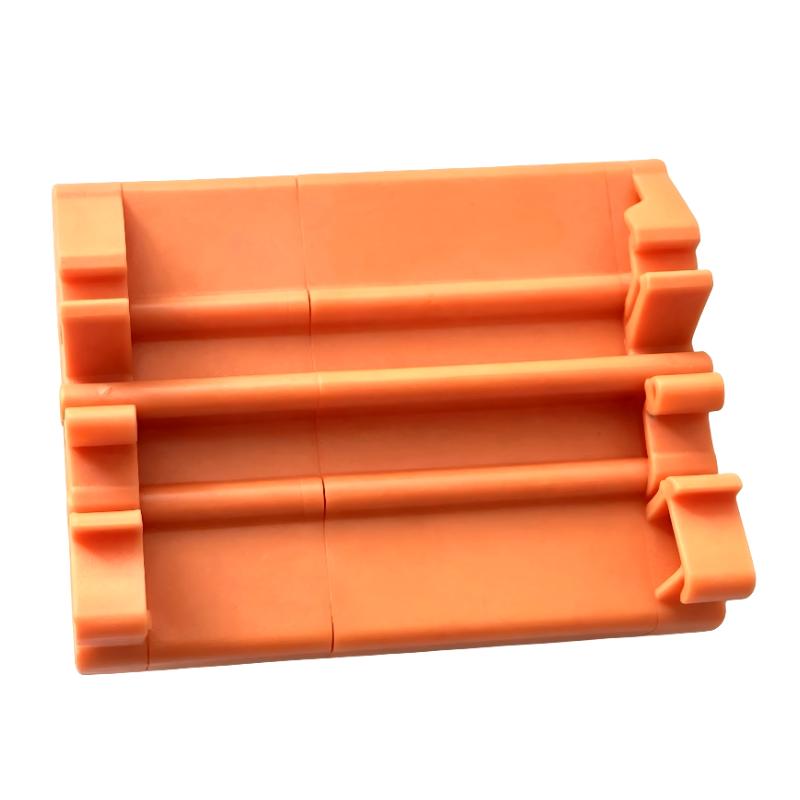

ICS T8290C Trusted Output Power Distribution Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ICS Triplex |
| Product Family | Trusted |
| Model | T8290C |
| Product Type | Trusted Output Power Distribution Unit |
| Main Function | Distribution of field power to Trusted sourcing output modules |
| Supply Voltage Range | 22–120 V DC |
| Maximum Supply Current | 60 A |
| Supply Connection | 2 × M6 × 25 mm studs |
| Power Supply Configuration | Single or dual feed |
| Output Connections | 3 × 6-way AMP MATE-N-LOK connectors |
| 0 V Reference Connection | BLZ 2-part terminals |
| Conductor Clamping Range | 0.5–2.5 mm² |
| Supported Output Modules | Up to 3 Trusted sourcing output modules |
| Compatible Output Modules | T8451, T8461, T8471, T8480 |
| Mounting Method | TS32 / TS35 DIN rail |
| Operating Temperature | 0°C to +60°C |
| Non-Operating Temperature | -25°C to +70°C |
| Relative Humidity | 10–95%, non-condensing |
| System Application | Trusted TMR safety control systems |
| Dimensions | 90 × 50 × 70 mm |
| Weight | 0.106 kg |
FAQ
1. What is the main function of the ICS Triplex T8290C?
The T8290C is a Trusted Output Power Distribution Unit designed to distribute field power and the 0 V reference to compatible Trusted sourcing output modules. It provides a centralized power connection between the field power supply and the output modules.
2. What voltage range does the T8290C support?
The T8290C supports a DC supply range of 22–120 V. This allows it to be used with different Trusted sourcing output module configurations, including 24 V DC and 120 V DC applications.
3. How much current can the T8290C handle?
The maximum supply current is 60 A. The actual operating current must remain within the limits of the selected Trusted output modules, field wiring, and overall system configuration.
4. How many output modules can one T8290C support?
The T8290C can support up to three Trusted sourcing output modules, provided that the total load remains within the unit’s rated capacity.
5. Which Trusted output modules are compatible with the T8290C?
Typical compatible modules include the Trusted T8451, T8461, T8471, and T8480. The exact combination should be checked against the system configuration and the power requirements of the installed modules.
6. Can the T8290C use a redundant power supply configuration?
Yes. The unit has two supply studs and can be configured for either a single-feed or dual-feed power arrangement. A dual-feed configuration can be used when the supply is provided through suitable blocking diodes for improved power availability.
7. What type of mounting is used for the T8290C?
The T8290C is designed for mounting on standard TS32 or TS35 DIN rail. It is normally installed above the relevant Trusted output module I/O connectors to simplify field-power distribution and wiring.
8. What should be checked when troubleshooting a T8290C power distribution problem?
Check the incoming DC supply voltage, both supply connections, output-module connections, 0 V reference wiring, terminal seating, and the total connected load. If the supply is correct but one or more output modules do not receive the expected field power, inspect the associated connectors and wiring before replacing the T8290C.
ICS T8290C Trusted Output Power Distribution Unit is in stock. Please contact us for a quick quote and competitive pricing.
