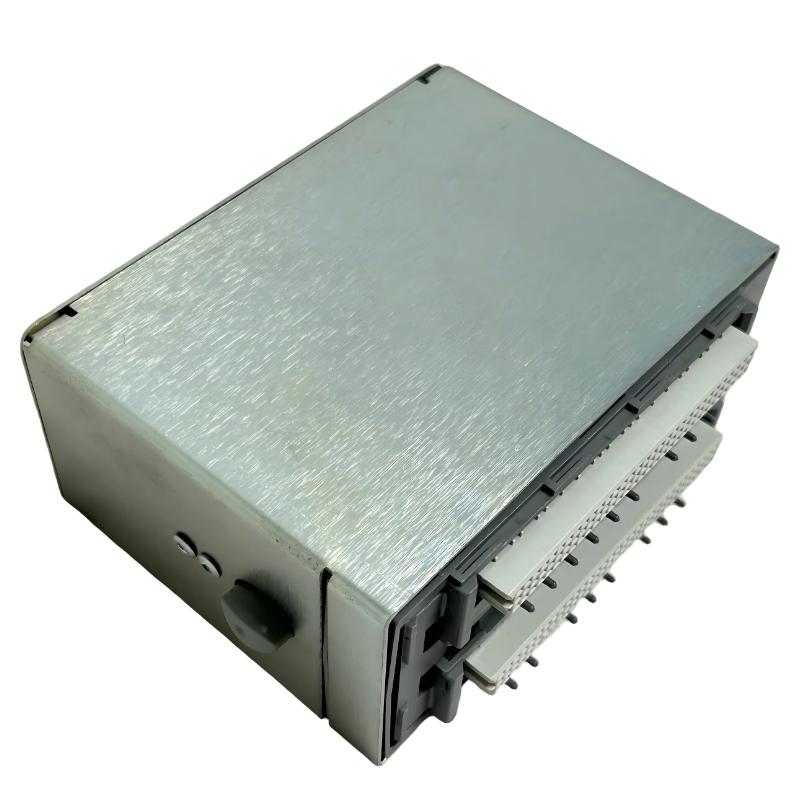

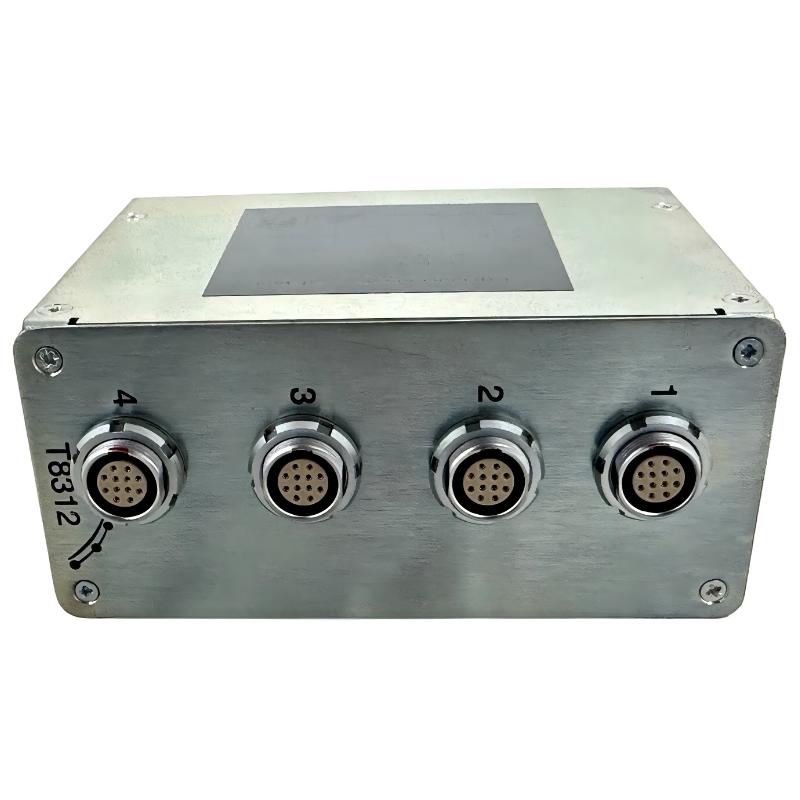

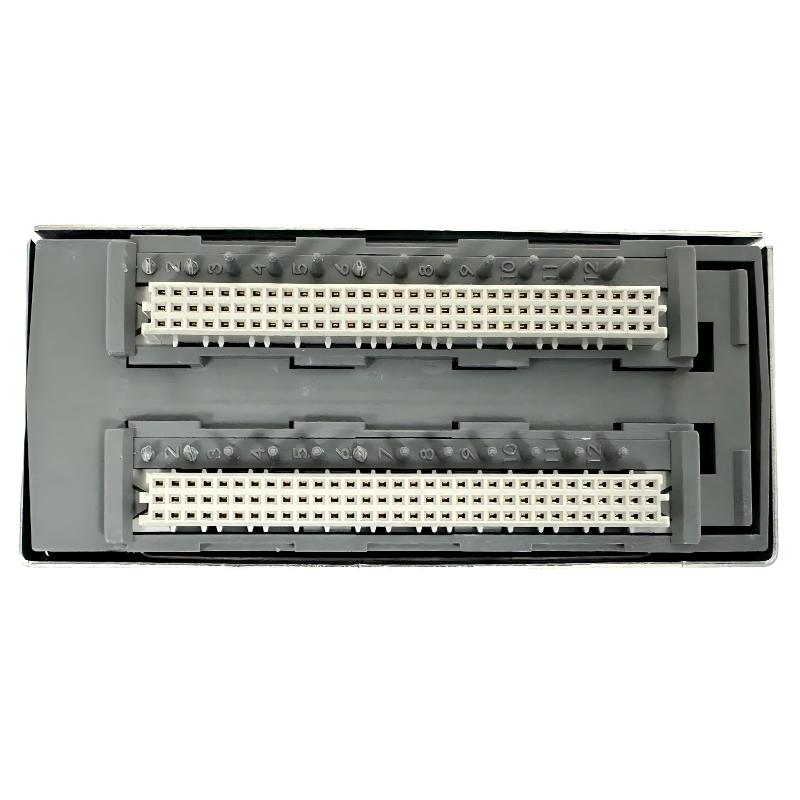

ICS T8312-7 Expansion Interface Adapter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ICS Triplex |
| Product Family | Trusted TMR |
| Model | T8312-7 |
| Product Type | Expander Interface Adapter |
| System Architecture | Trusted Triple Modular Redundant (TMR) |
| Primary Function | Provides the interface between the controller chassis and expansion chassis |
| Compatible System | Trusted Control System |
| Maximum Expansion Chassis | Up to 7 expansion chassis |
| Expansion Bus Data Rate | 250 Mbps |
| Controller Chassis ID | 1 |
| Expansion Chassis IDs | 2–8 |
| Interface Type | Trusted Expander Interface |
| Installation | Mounted in the Trusted system chassis |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 10% to 95%, non-condensing |
| EMC | Designed for industrial electromagnetic environments |
| Dimensions | 130 × 60 × 115 mm |
| Weight | 0.65 kg |
FAQ
1. What is the ICS Triplex T8312-7 used for?
The T8312-7 is an Expander Interface Adapter used in the Trusted TMR system to establish the expansion interface between the controller chassis and expansion chassis.
2. How many expansion chassis can the T8312-7 support?
The T8312-7 supports up to seven expansion chassis within the applicable Trusted system configuration. Expansion chassis are normally assigned IDs from 2 through 8.
3. What is the expansion bus data rate of the T8312-7?
The expansion interface operates at up to 250 Mbps, providing the communication path required for data exchange between the controller chassis and connected expansion chassis.
4. Is the T8312-7 designed for a TMR architecture?
Yes. The T8312-7 is part of the Trusted TMR architecture and is designed to support the high availability and fault-tolerant requirements of safety-related control applications.
5. How are expansion chassis IDs assigned when using the T8312-7?
In a typical configuration, the controller chassis uses ID 1, while connected expansion chassis use IDs 2 through 8. The physical configuration and application software configuration should use matching chassis identification.
6. What should be checked when an expansion chassis is not communicating with the T8312-7?
Check the interface connections first, then verify the expansion chassis ID, chassis configuration, and expansion bus status. The associated interface modules and communication wiring should also be inspected for loose connections or faults.
7. What are common causes of T8312-7 expansion interface faults?
Common causes include incorrect chassis identification, improperly seated connectors, damaged interface wiring, configuration mismatches, or faults in an associated expansion interface module. System diagnostics should be reviewed before replacing the adapter.
8. What precautions should be taken when installing or replacing the T8312-7?
The system should be placed in the appropriate maintenance condition before the module is removed or installed. Use proper ESD protection when handling the adapter, inspect connectors before installation, and verify the system recognizes all configured expansion chassis after commissioning.
ICS T8312-7 Expansion Interface Adapter is in stock. Please contact us for a quick quote and competitive pricing.
