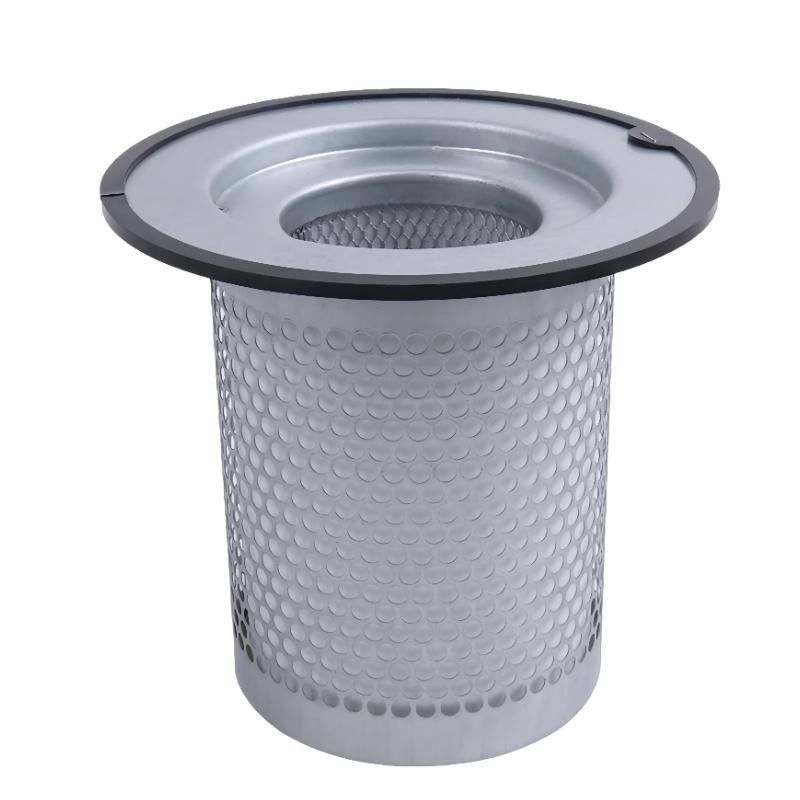

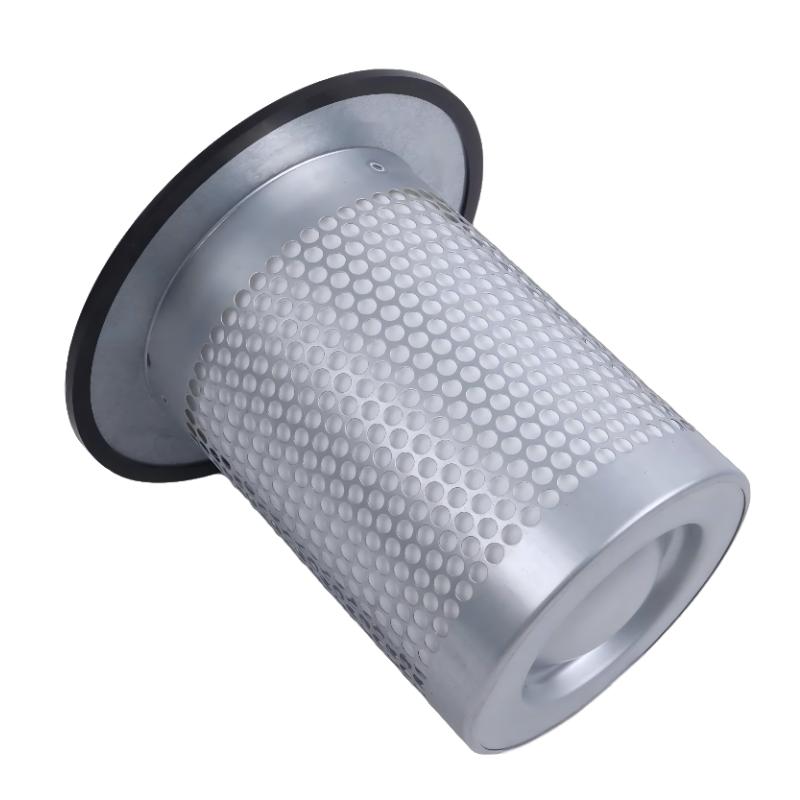

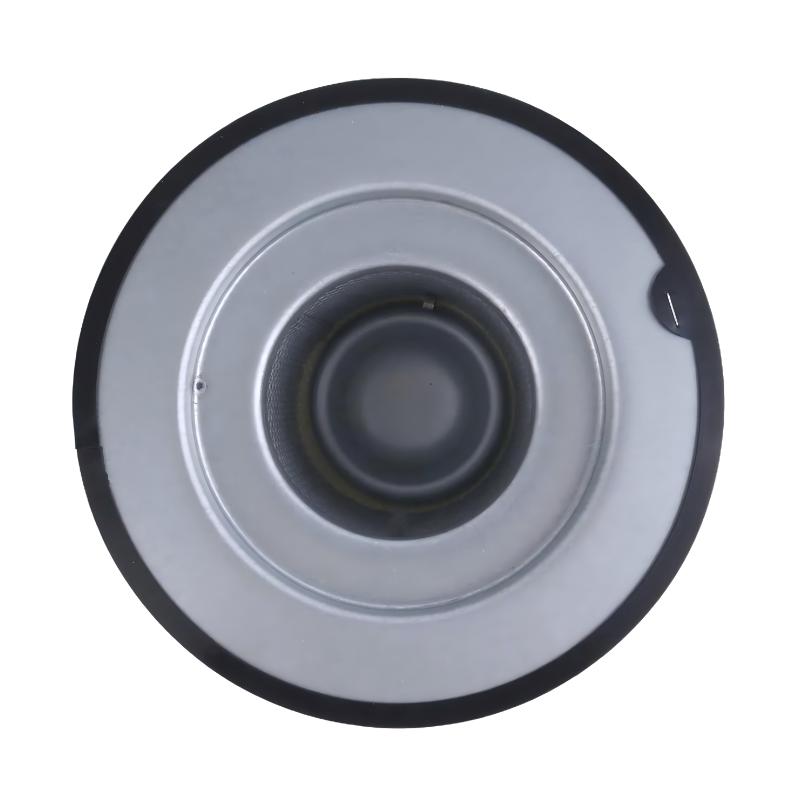

Q1: What is the main function of the Ingersoll Rand 47629377001 air-oil separator?

The air-oil separator removes oil mist from compressed air in an oil-injected rotary screw compressor. During compression, some lubricating oil becomes entrained in the air stream. The separator captures oil droplets and helps return the recovered oil to the lubrication circuit, reducing oil carryover into downstream equipment. This supports compressed-air quality and helps maintain efficient compressor operation.

Q2: What is the difference between model 47629377001 and ordering number 23675010?

For this product, 47629377001 is the model number supplied for identification, while 23675010 is the ordering number used for procurement. Both identifiers should be retained when requesting quotations or replacement parts. Before ordering, compare the numbers with the existing separator label and the compressor’s parts list to avoid receiving an incompatible component.

Q3: Which Ingersoll Rand compressors are compatible with ordering number 23675010?

This separator is listed for selected Ingersoll Rand R37 and R45 rotary screw compressor variants. Compatibility can differ by compressor model, production version, and serial number, so the series name alone is not sufficient to confirm fit. Check the compressor’s parts manual or consult an authorized parts supplier using the full model and serial number before installation.

Q4: What symptoms may indicate that the air-oil separator needs replacement?

Common signs include increased pressure differential across the separator, excessive oil carryover into the compressed-air line, reduced compressor efficiency, or related operating alarms. These symptoms may also result from other faults, such as a blocked oil-return line, excessive oil level, unsuitable lubricant, or problems with the separator housing. Check the compressor’s maintenance instructions and diagnose the cause before replacing the element.

Q5: How often should the 23675010 air-oil separator be replaced?

The replacement interval depends on the compressor model, operating hours, oil condition, air-filter condition, and working environment. Some Ingersoll Rand compressor maintenance schedules specify replacement at a defined operating-hour interval or annually, whichever comes first. The correct interval for the installed unit should be taken from its service manual. Replace the separator earlier if pressure differential or inspection results indicate that it is restricted or damaged.

Q6: Can a third-party separator replace the original Ingersoll Rand 23675010?

A compatible aftermarket separator may be suitable if it matches the original component’s filtration performance, pressure rating, flow capacity, sealing arrangement, and installation requirements. Physical fit alone does not guarantee equivalent performance. An unsuitable element can increase pressure drop, allow excess oil into the compressed-air system, or interfere with compressor operation. Verify the replacement cross-reference and technical specifications before use.

Q7: What precautions should be taken when installing a replacement separator?

Stop the compressor, isolate the power supply, and allow the system to cool. Fully depressurize the separator vessel and confirm that no hazardous residual pressure remains before opening the housing. Follow the compressor manufacturer’s maintenance procedure, inspect the sealing surfaces, and ensure that the replacement element is seated correctly. After reassembly, check for leaks and confirm normal operating pressure and oil separation performance.

Q8: How can the service life of an air-oil separator be improved?

Follow the recommended maintenance schedule for the compressor’s oil, air filter, and oil filter. Use the specified lubricant, maintain the correct oil level, and keep the oil-return line and associated orifices clear. Monitor the pressure differential across the separator and investigate abnormal increases promptly. Suitable operating conditions and timely maintenance help reduce contamination, unnecessary pressure loss, and premature separator failure.
