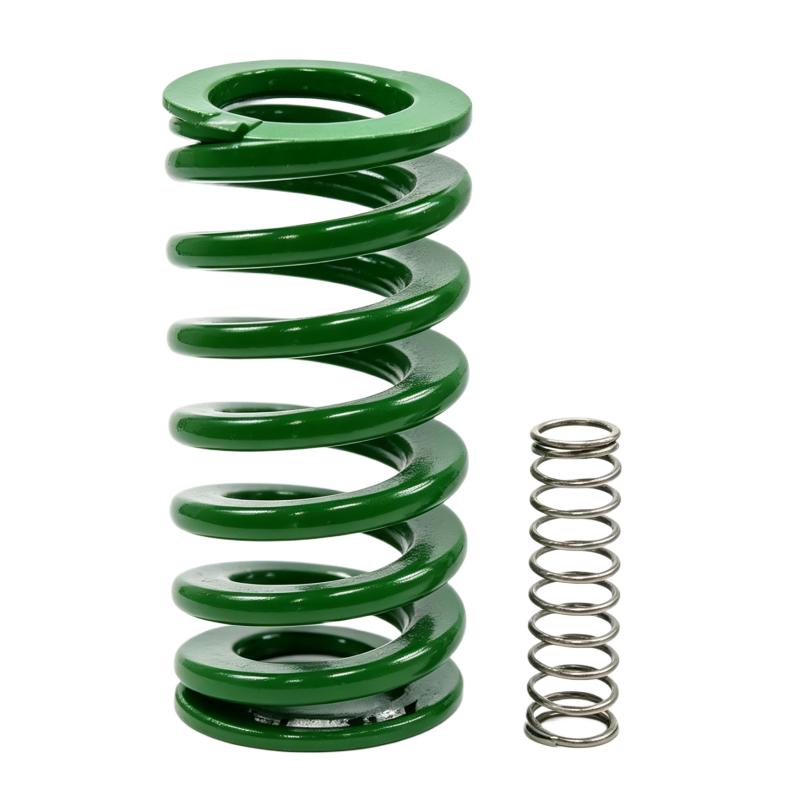

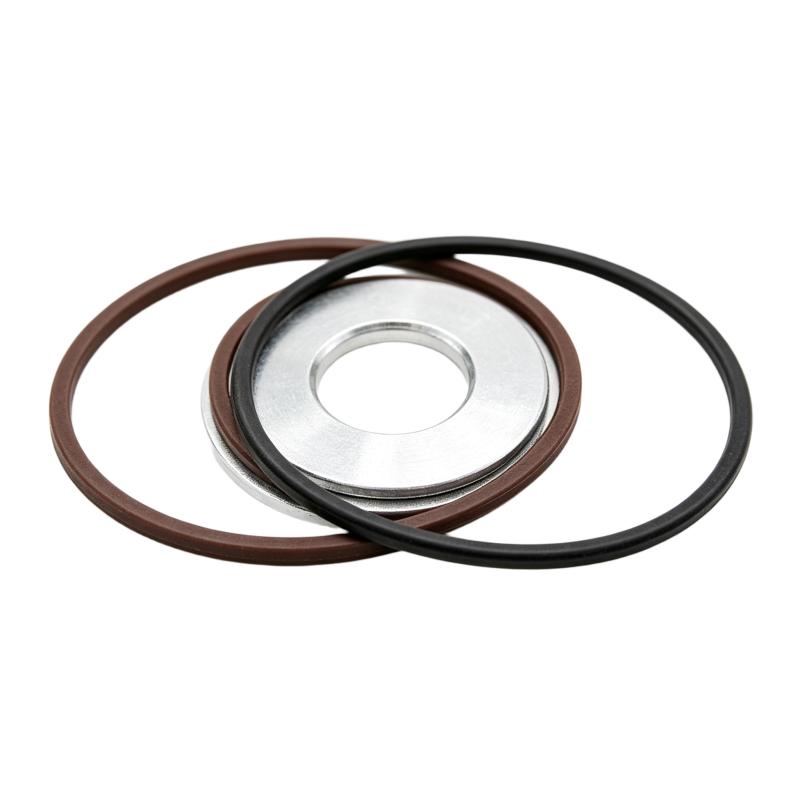

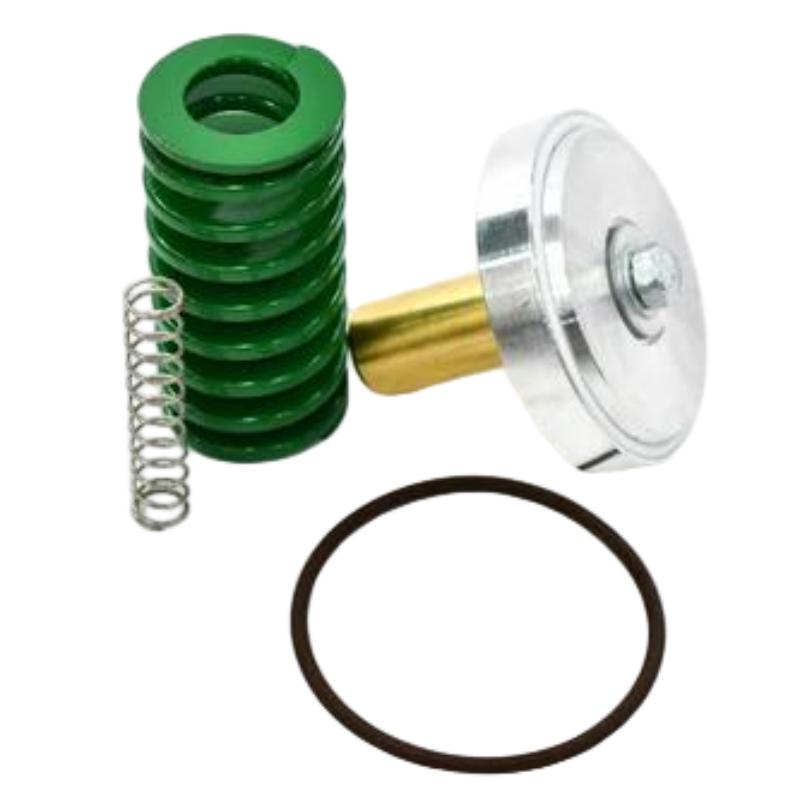

Q1: What is the main function of the Ingersoll Rand 47690462001 Minimum Pressure Valve Kit?

The 47690462001 Minimum Pressure Valve Kit is designed for servicing the minimum pressure check valve assembly in an industrial air compressor. The valve helps maintain a minimum pressure level inside the compressor, particularly during startup and low-pressure operation. In oil-injected rotary screw compressors, sufficient internal pressure is important for proper oil circulation and effective air-oil separation. Maintaining the valve in good condition helps support stable compressor operation and protects related components from abnormal operating conditions.

Q2: What is the difference between model number 47704435001 and order number 47690462001?

47704435001 is the model number provided for this product, while 47690462001 is the order number used to identify the minimum pressure valve service kit. When ordering replacement parts, it is important to provide both numbers together with the compressor model and serial number. This helps confirm the correct kit configuration and reduces the risk of selecting an incompatible component.

Q3: What are the common symptoms of a faulty minimum pressure valve?

A faulty minimum pressure valve may cause slow pressure buildup during startup, unstable internal pressure, abnormal pressure fluctuations, or reduced compressor performance. Other possible symptoms include unexpected pressure-related alarms and irregular oil circulation. A valve that sticks in the closed position may restrict airflow, while one that fails to close properly may allow pressure to drop below the required level. These symptoms should be checked alongside the pressure sensor, control system, and related pneumatic components.

Q4: How does the minimum pressure valve affect the air-oil separation process?

The minimum pressure valve helps maintain the pressure conditions required for the air-oil separator to operate correctly. In an oil-injected compressor, adequate internal pressure supports the separation of oil mist from compressed air and helps drive separated oil through the return circuit. If the valve opens too early, remains partially closed, or fails to regulate pressure properly, oil circulation and separation performance may be affected. This can contribute to increased oil carryover, unstable operating pressure, or reduced system efficiency.

Q5: Can a malfunctioning minimum pressure valve increase compressor energy consumption?

Yes. A malfunctioning valve can create abnormal pressure conditions and reduce overall compressor efficiency. For example, a valve that does not open correctly may cause excessive pressure buildup, while a valve that cannot maintain the required minimum pressure may interfere with normal oil circulation and system operation. These conditions can increase the workload on the compressor or cause unnecessary operating cycles. Checking valve movement, pressure behavior, and sealing performance can help identify the cause of abnormal energy consumption.

Q6: What should technicians check before installing the 47690462001 valve kit?

Before installation, technicians should confirm the kit number and compatibility with the compressor model and serial number. The compressor must be shut down, electrically isolated, and fully depressurized according to the manufacturer’s safety procedures. Inspect the valve housing, internal passages, springs, moving components, sealing surfaces, and O-rings for wear, contamination, corrosion, or damage. Clean the relevant contact areas and replace worn components included in the service kit. After assembly, verify correct valve movement and check the system for leakage and abnormal pressure behavior.

Q7: Can the minimum pressure valve kit be replaced with a generic repair kit?

A generic repair kit should only be considered when its components meet the original equipment requirements. Important factors include valve pressure settings, spring characteristics, sealing dimensions, material compatibility, flow capacity, and operating temperature range. A kit with incorrect specifications may cause unstable pressure regulation, poor oil circulation, leakage, or premature valve failure. Using a compatible Ingersoll Rand replacement kit helps maintain the intended valve performance and reduces the risk of compressor operating problems.

Q8: What maintenance practices help extend the service life of a minimum pressure valve?

Regular maintenance should include checking the valve for sticking, leakage, abnormal wear, and contamination. Keep the compressor oil and air systems clean, replace filters according to the recommended maintenance schedule, and inspect associated seals and connections during servicing. If the compressor experiences slow pressure buildup, unstable pressure, or repeated valve-related alarms, investigate the problem rather than continuing operation without inspection. Correct installation and periodic servicing help maintain reliable pressure regulation and protect the compressor’s lubrication and air-oil separation systems.
