1. What is the main function of the Foxboro RH926JM backplane?

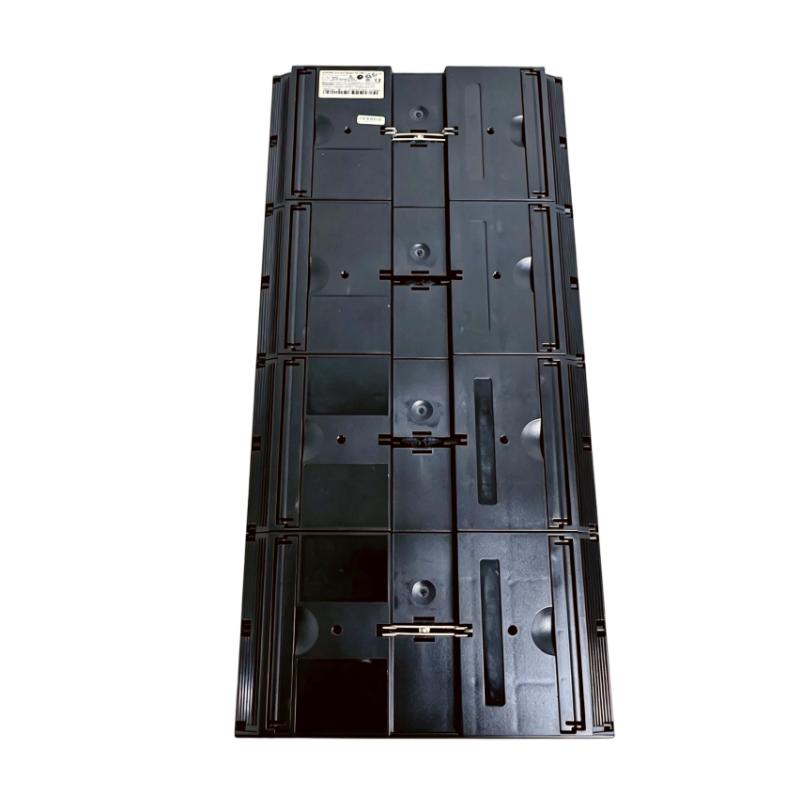

The RH926JM is an 8-slot vertical backplane designed to provide the mechanical mounting structure and electrical interconnection between compatible Foxboro system modules. It forms part of the system rack architecture, allowing installed modules to communicate and receive the required system connections through the backplane.

2. How many modules can the RH926JM accommodate?
The RH926JM is an 8-slot backplane, providing eight module positions for the compatible Foxboro system architecture. The actual module combination should follow the applicable system configuration and engineering requirements.

3. What is the purpose of a backplane in a Foxboro control system?
The backplane provides a common connection point for modules installed in the rack. Instead of wiring every module directly to one another, the backplane provides the required electrical paths between the installed modules and associated system components, helping simplify cabinet construction and maintenance.

4. What should be checked if a module installed on the RH926JM is not recognized by the system?
First check that the module is fully seated and correctly positioned in the assigned slot. Inspect the module connector and corresponding backplane interface for contamination, physical damage, or poor contact. The associated power and system connections should also be checked, followed by system diagnostics to determine whether the problem is caused by the module, backplane connection, or another system component.

5. Can a poor backplane connection cause intermittent system faults?
Yes. Poor contact between a module and the backplane can cause intermittent communication, module dropouts, unstable I/O operation, or repeated diagnostic alarms. If a fault appears or disappears after module movement or cabinet maintenance, the module-to-backplane connection should be inspected carefully.

6. What precautions should be taken when installing modules on the RH926JM?
Before installation or removal, follow the applicable Foxboro maintenance procedure and place the affected system in a safe maintenance condition. Confirm that the module is compatible with the backplane and that it is installed in the correct slot. Avoid excessive mechanical force and use appropriate ESD protection when handling electronic modules.

7. How should the RH926JM be maintained?
Maintenance should include checking the backplane mounting, module connectors, slot interfaces, and visible signs of contamination, corrosion, overheating, or mechanical damage. The cabinet environment should also be kept clean and dry. If several modules experience similar communication or connection problems, the backplane and common system connections should be investigated as potential common fault points.

8. What are the common causes of faults associated with the RH926JM?
Common causes can include improperly seated modules, damaged or contaminated connectors, backplane interface problems, wiring or power issues, environmental contamination, and mechanical stress. When multiple modules in different slots show related symptoms at the same time, checking the common backplane and system connections is often more effective than replacing individual modules immediately.
