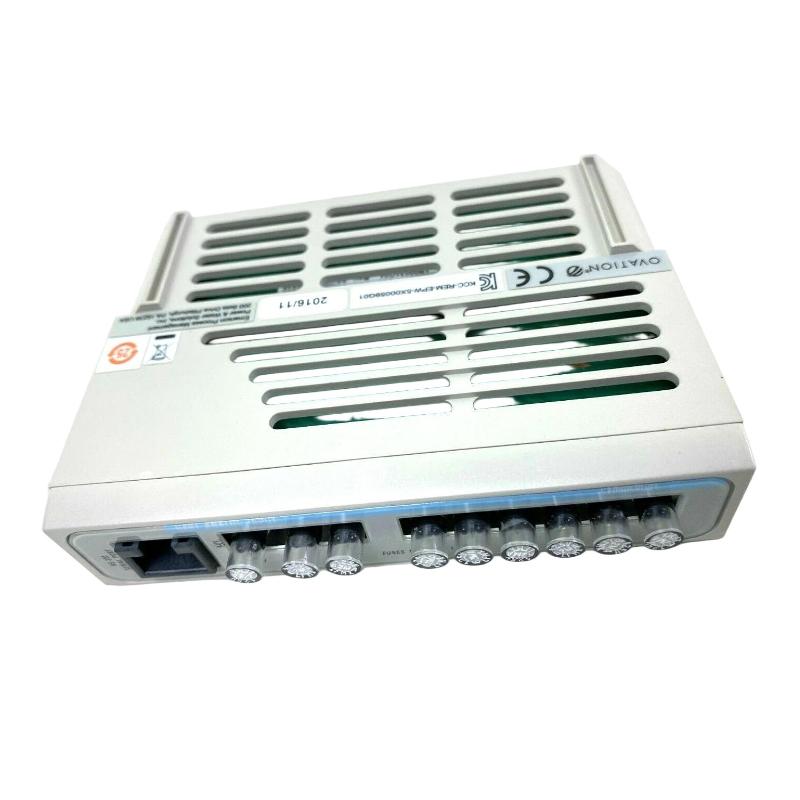

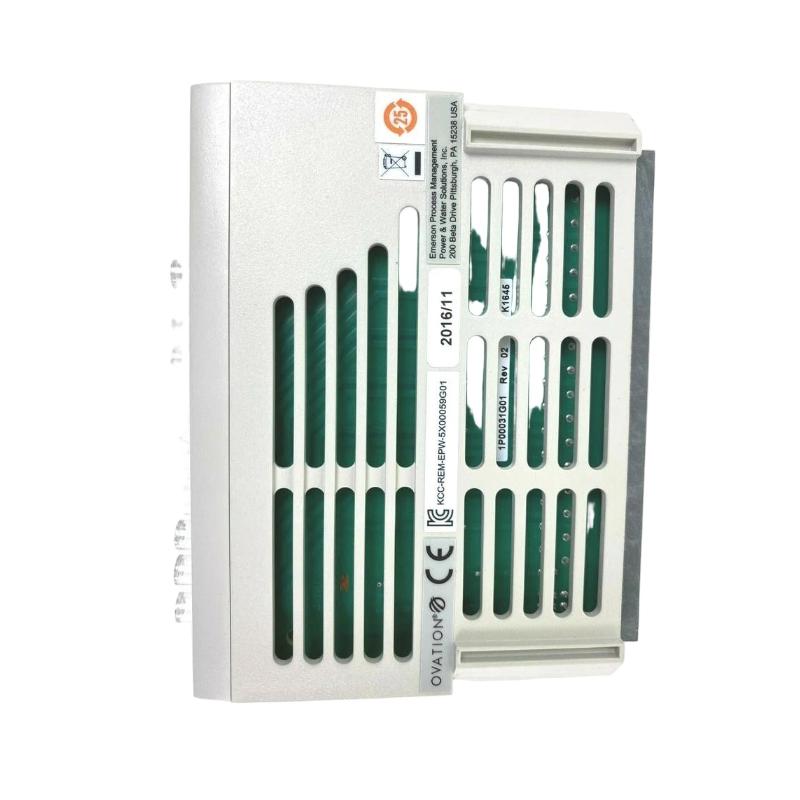

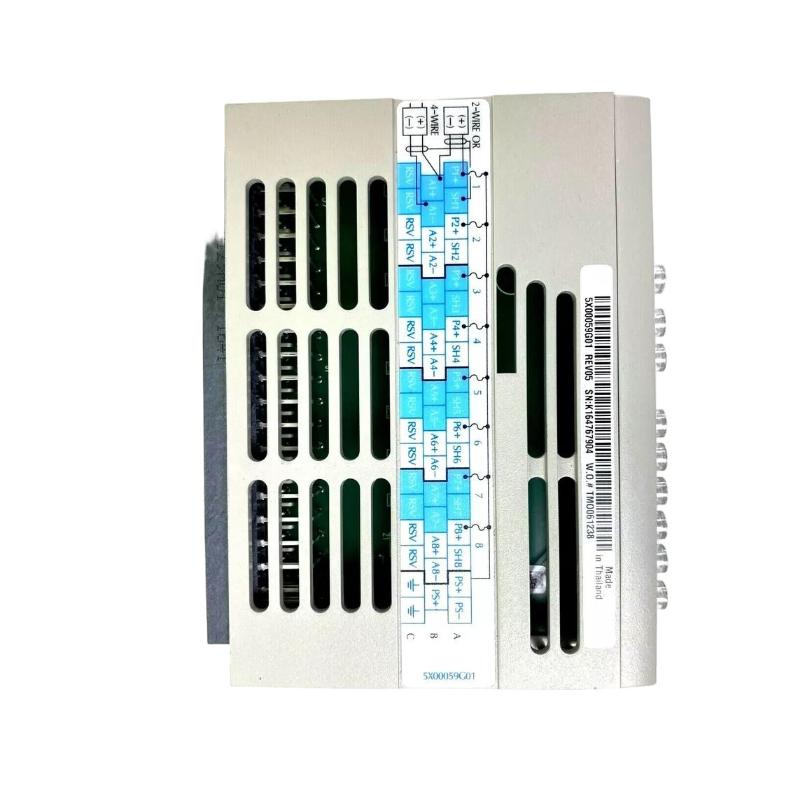

Ovation 5X00059G01 Analog Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 5X00059G01 |
| Product Type | HART Analog Input Module |
| Product Series | Ovation |
| System Compatibility | Emerson Ovation DCS |
| Module Function | HART Analog Signal Acquisition |
| Number of Channels | 8 |
| Input Signal | 4–20 mA |
| Transmitter Type | 2-wire loop-powered or 4-wire active-source transmitters |
| HART Communication | Supported |
| Analog Resolution | 16-bit |
| Electronics Module | 5X00058G01 |
| Personality Module | 5X00059G01 |
| Channel Protection | Individual user-serviceable fuse for each input channel |
| Fuse Rating | 0.063 A, 125 V, fast-acting micro-fuse |
| Auxiliary Power Protection | Fuses protect the auxiliary power supply for two-wire loop-powered inputs |
| Self-Diagnostics | Internal module operating fault and input diagnostic functions |
| Open-Loop Detection | Supported for current inputs |
| Power Consumption | Approximately 0.64 W/VA per locally powered channel and 0.41 W/VA per field-powered channel |
| Main Module Power | Approximately 1.6 W/VA |
| Operating Temperature | 0–60 °C |
| Relative Humidity | 5–95%, non-condensing |
| Isolation | Designed for the Ovation I/O subsystem isolation architecture |
| Installation | Ovation I/O rack / I/O subsystem |
| Certification | CE Mark certified configuration |
| Dimensions | 133 × 101 × 32 mm |
| Weight | 1.36 kg |
FAQ
1. What is the main function of the Ovation 5X00059G01?
The 5X00059G01 is a personality module used in the Ovation HART analog input subsystem. It provides eight 4–20 mA analog input channels and supports HART communication with compatible field devices.
2. How many analog input channels does the 5X00059G01 provide?
The module provides eight analog input channels. Each channel can be used for compatible 4–20 mA process measurement applications within the Ovation DCS I/O architecture.
3. What type of transmitters can be connected to the 5X00059G01?
The module supports 4–20 mA signals from both two-wire loop-powered transmitters and four-wire active-source transmitters. Proper loop power and wiring configuration must be selected according to the connected field device.
4. What is the relationship between the 5X00058G01 and 5X00059G01?
The 5X00058G01 serves as the electronics module, while the 5X00059G01 functions as the personality module. Together they form the Ovation HART analog input subsystem.
5. Does the 5X00059G01 support HART communication?
Yes. The module is designed for HART-enabled analog input applications. It can acquire the conventional 4–20 mA process signal while allowing digital HART communication with compatible field instruments.
6. What protection is provided for the analog input channels?
Each input channel has an individual user-serviceable fuse. The auxiliary power supply used for two-wire loop-powered transmitters is also protected. If an input suddenly stops receiving a valid signal, checking the associated fuse should be part of the initial troubleshooting procedure.
7. What should be checked if a 4–20 mA signal is not detected?
Check the transmitter power supply, loop wiring, terminal connections, signal polarity, channel fuse, and transmitter output current. If the electrical loop is correct, verify the Ovation channel configuration and check for an open-loop or module diagnostic indication.
8. Can the 5X00059G01 operate as a standalone analog input module?
The 5X00059G01 is intended to operate as part of the Ovation HART analog input subsystem rather than as an independent standalone module. It should be used with the corresponding 5X00058G01 electronics module and the appropriate Ovation I/O hardware.
Ovation 5X00059G01 Analog Input Module is in stock. Please contact us for a quick quote and competitive pricing.
