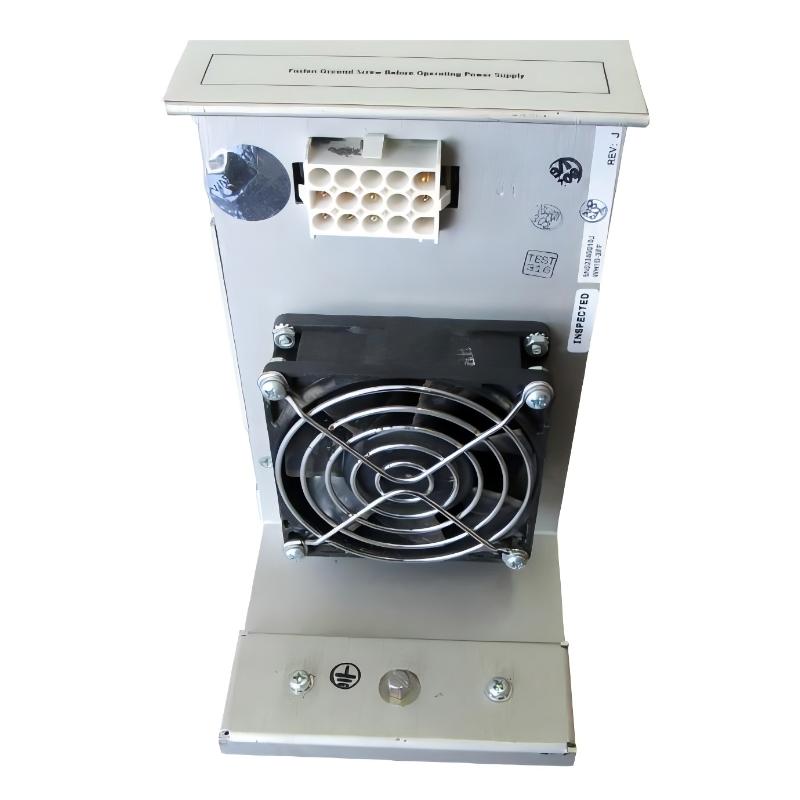

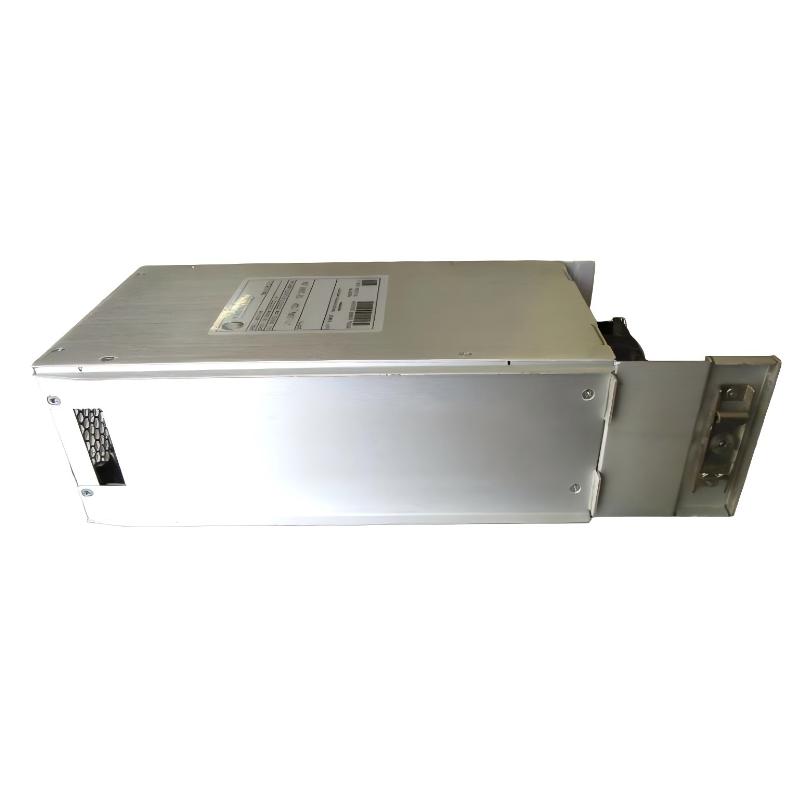

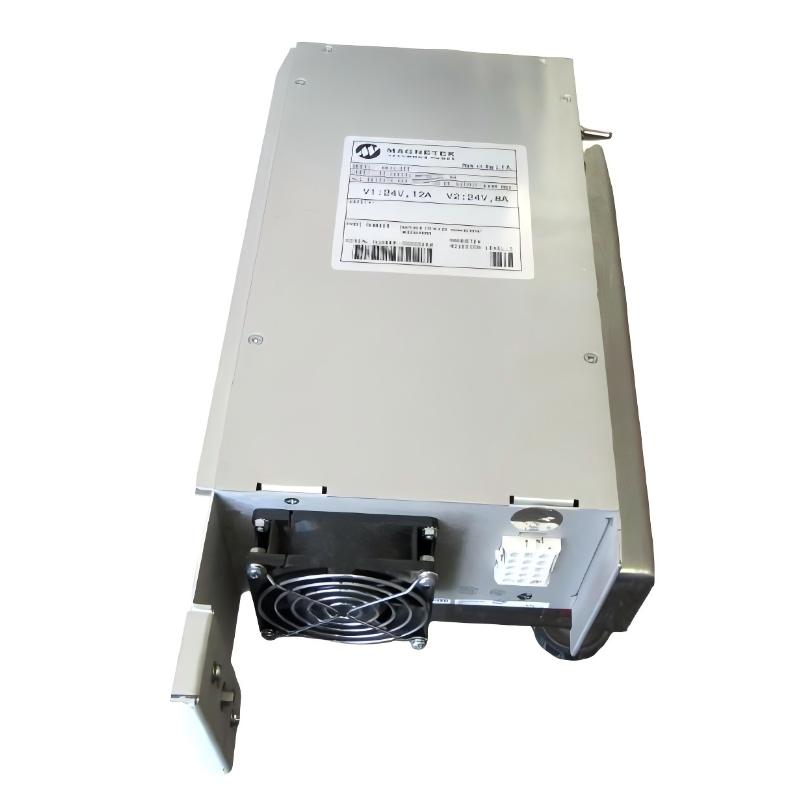

Ovation 1X00024H04 Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ovation |
| Model | 1X00024H04 |
| Product Type | Power Supply Module |
| Power Supply Type | DC Power Supply Module |
| Input Voltage | 90–250 VDC |
| Main Output | 24 VDC |
| Main Power Rating | 300 W |
| Auxiliary Output | 24 VDC |
| Auxiliary Power Rating | 200 W |
| Output Configuration | Dual Output – Single Main / Single Auxiliary |
| Main Power Application | Provides +24 VDC power for Controllers and I/O Modules |
| Auxiliary Power Application | Provides power for Relay Panels, Field Transmitters, and selected Digital Input Modules |
| Auxiliary Output Isolation | Auxiliary output includes an isolation diode |
| Input Type | DC |
| Installation Application | Ovation DCS Controller Cabinet |
| System Application | Ovation Distributed Control System |
| Typical Applications | Power plant control, process control, Ovation DCS control cabinets, and I/O systems |
| Replacement Information | Supersedes 4D33925G09 and 4D33925G10 for new applications and replacements |
| Dimensions | 310 × 220 × 100 mm |
| Weight | 1.6 kg |
FAQ
1. What is the main function of the Ovation 1X00024H04 Power Supply Module?
The 1X00024H04 is a DC power supply module designed for Ovation DCS installations. It provides both main and auxiliary 24 VDC power from a DC input source. The main output supplies Ovation controllers and I/O modules, while the auxiliary output can be used for supported field devices and auxiliary control equipment.
2. What is the input voltage range of the 1X00024H04?
The 1X00024H04 is designed for a DC input voltage range of 90–250 VDC. The incoming DC supply should remain within this specified range to ensure stable power conversion and reliable system operation. Input wiring and polarity should also be verified carefully during installation or replacement.
3. What is the rated output power of the main supply?
The main power section provides 24 VDC with a rated capacity of 300 W. This output is intended to supply Ovation controllers and connected I/O modules. When designing or expanding a control cabinet, the combined power demand of the connected equipment should remain within the available main output capacity.
4. What is the purpose of the auxiliary power output?
The auxiliary section provides 24 VDC with a rated capacity of 200 W. It is intended for applications such as relay panels, field transmitters, and supported digital input modules. The auxiliary load should be evaluated separately from the main controller and I/O load to ensure the auxiliary output is not overloaded.
5. Can the 1X00024H04 provide main and auxiliary power at the same time?
Yes. The 1X00024H04 is configured with both a 300 W main 24 VDC output and a 200 W auxiliary 24 VDC output. This dual-output design allows one power supply module to support Ovation control electronics and designated auxiliary field loads simultaneously.
6. What should be checked before replacing a 1X00024H04?
Before replacement, verify the DC input voltage, power distribution wiring, output requirements, connectors, grounding, and the total load connected to both outputs. The replacement unit should also be matched to the existing Ovation cabinet configuration. The incoming power should be isolated according to the site’s electrical safety procedures before removing the existing module.
7. What are common symptoms of a faulty 1X00024H04 power supply?
Common symptoms can include loss of controller power, I/O communication problems, unexpected controller resets, field-device power loss, or unstable 24 VDC output. Troubleshooting should begin by checking the incoming DC voltage, wiring, connections, and output status. If the input is normal but one or both outputs are abnormal, the power supply module should be inspected for an internal fault.
8. How should the power capacity of the 1X00024H04 be calculated in an Ovation DCS cabinet?
The main and auxiliary outputs should be evaluated independently. The combined power consumption of controllers and connected I/O modules should remain within the 300 W main output capacity. Loads connected to the auxiliary output, such as relay panels and field transmitters, should remain within the 200 W auxiliary capacity. Proper load calculation is especially important when expanding an existing Ovation DCS cabinet.
Ovation 1X00024H04 Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
