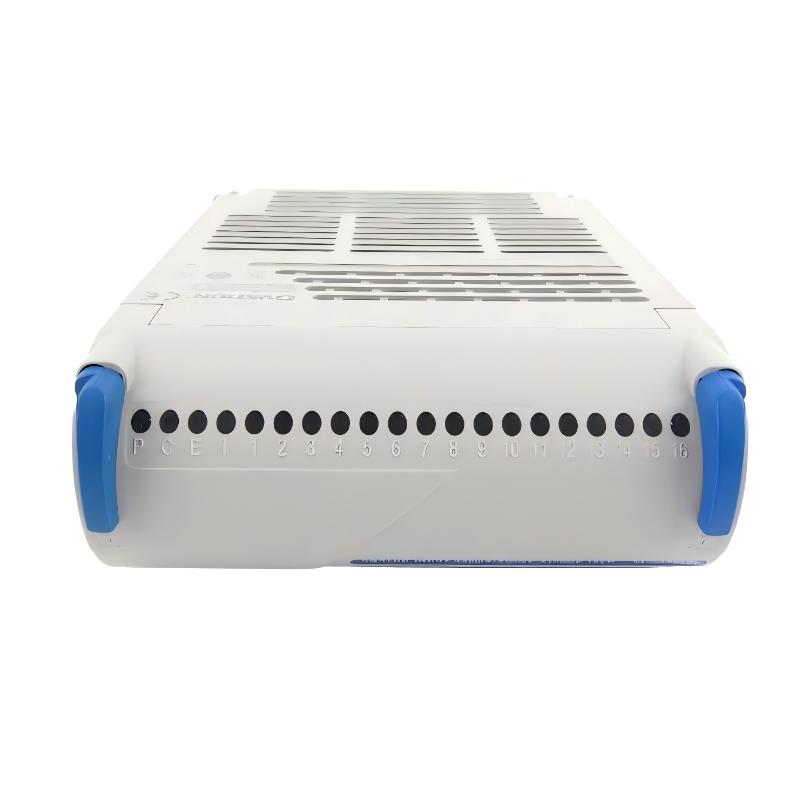

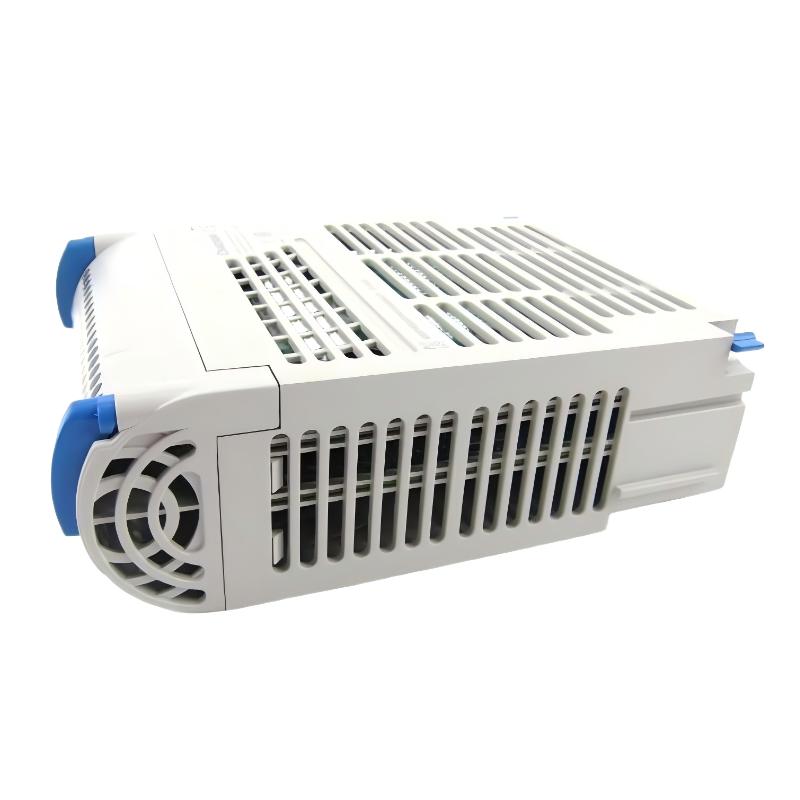

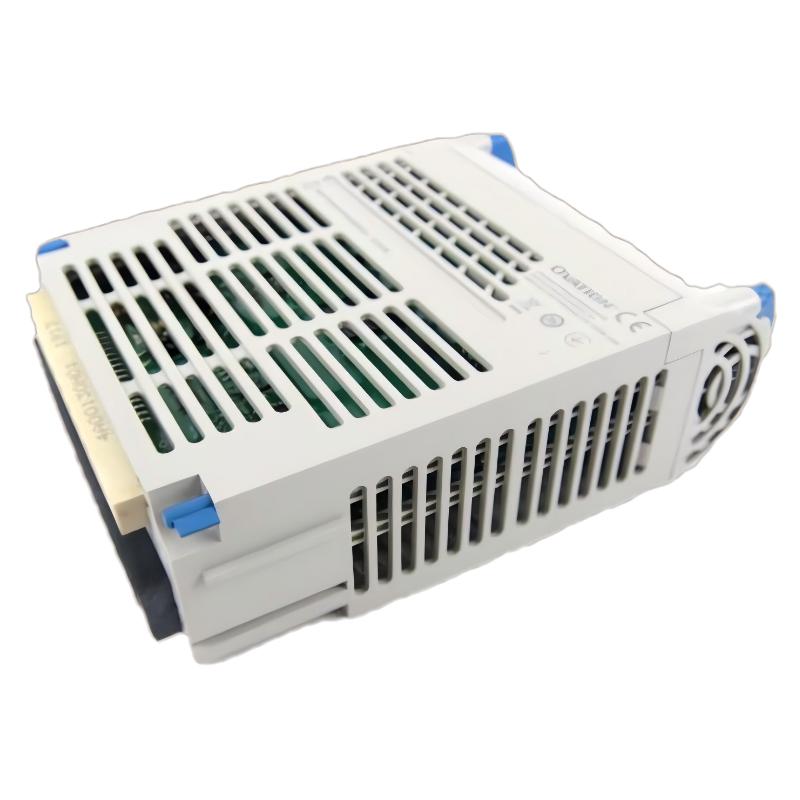

Ovation 1X00055H01 Media Converter Rack-Mount Chassis
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ovation |
| Model | 1X00055H01 |
| Product Type | Media Converter Rack-Mount Chassis |
| Equipment Type | Rack-Mount Media Converter Chassis |
| System Application | Ovation DCS |
| Function | Provides a rack-mounted platform for installing and organizing media converter modules |
| Installation Type | Rack Mount |
| Media Converter Support | Compatible media converter modules |
| Network Media | Supports conversion between applicable copper and fiber Ethernet media through installed converter modules |
| Application | Industrial Ethernet and DCS communication infrastructure |
| System Integration | Ovation control system communication networks |
| Typical Applications | DCS network cabinets, industrial Ethernet networks, fiber communication links, and control-system infrastructure |
| Power Arrangement | Dependent on the installed media converter configuration |
| Maintenance | Modular access for media converter replacement and servicing |
| Dimensions | 190 × 50 × 160 mm |
| Weight | 0.85 kg |
FAQ
1. What is the main function of the Ovation 1X00055H01?
The 1X00055H01 is a rack-mount chassis designed to accommodate compatible media converter modules within an Ovation DCS environment. It provides a structured mounting platform for communication hardware and helps organize media conversion equipment inside a control or network cabinet.
2. Is the 1X00055H01 itself a media converter?
No. The 1X00055H01 is a rack-mount chassis rather than the active media conversion electronics themselves. Its function is to provide the physical mounting and system integration platform for compatible media converter modules installed in the chassis.
3. What type of communication applications is the 1X00055H01 used for?
The chassis is intended for industrial communication infrastructure where media converter modules are required. Depending on the installed converter, the system can provide communication between different Ethernet media, such as copper and fiber. This can be useful for extending network distances or providing fiber links between control-system cabinets.
4. Where is the 1X00055H01 typically installed?
The 1X00055H01 is designed for installation in an equipment or control cabinet as part of an Ovation DCS communication system. Its rack-mount construction provides an organized way to install media converter hardware together with other network equipment.
5. What should be checked when installing a media converter module into the 1X00055H01?
The installed media converter should be confirmed as compatible with the chassis and the intended Ovation system configuration. Engineers should also check the module’s power requirements, communication interfaces, fiber or copper media type, connector configuration, and network parameters before commissioning the system.
6. What are common problems associated with a media converter installed in the 1X00055H01?
Typical communication problems may result from incorrect fiber connections, damaged Ethernet cables, incompatible optical modules, incorrect network settings, or loss of power to the converter. Troubleshooting should begin with the power and physical connections, followed by checking link indicators and communication parameters on both sides of the media conversion path.
7. How does the 1X00055H01 help with Ovation DCS maintenance?
The rack-mount chassis provides an organized installation arrangement for media converter modules, making inspection and replacement easier during system maintenance. A properly arranged chassis also helps technicians identify communication hardware and trace network connections during troubleshooting.
8. Can the 1X00055H01 be used in fiber-based industrial Ethernet networks?
Yes, when equipped with compatible media converter modules that support fiber communication. The chassis itself does not perform optical conversion; the installed converter module provides that function. In a fiber-based Ovation network, engineers should verify the converter’s fiber type, transmission specifications, connector type, and compatibility with the equipment at the opposite end of the link.
Ovation 1X00055H01 Media Converter Rack-Mount Chassis is in stock. Please contact us for a quick quote and competitive pricing.
