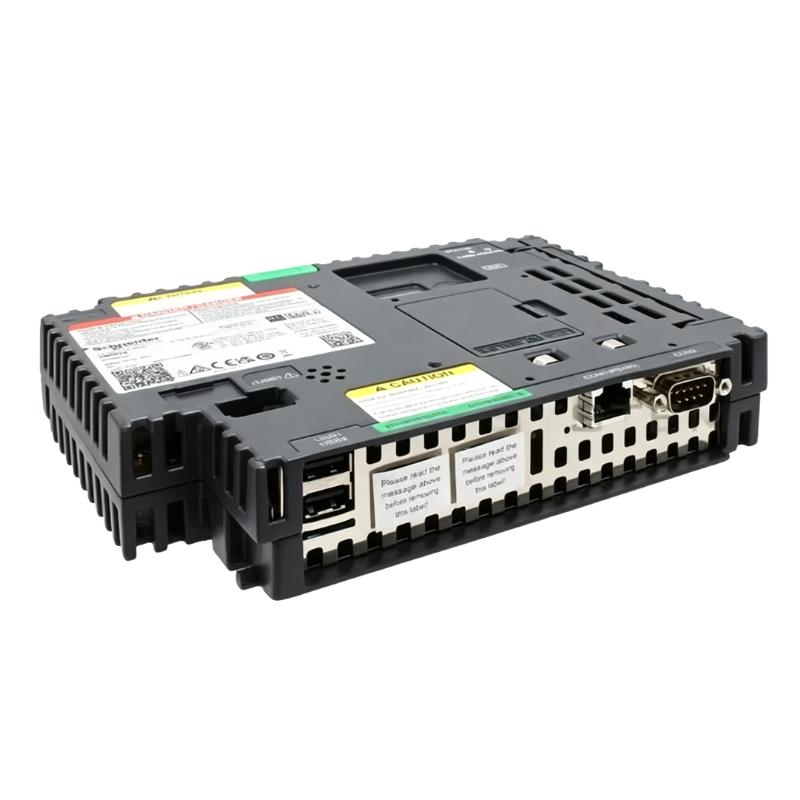

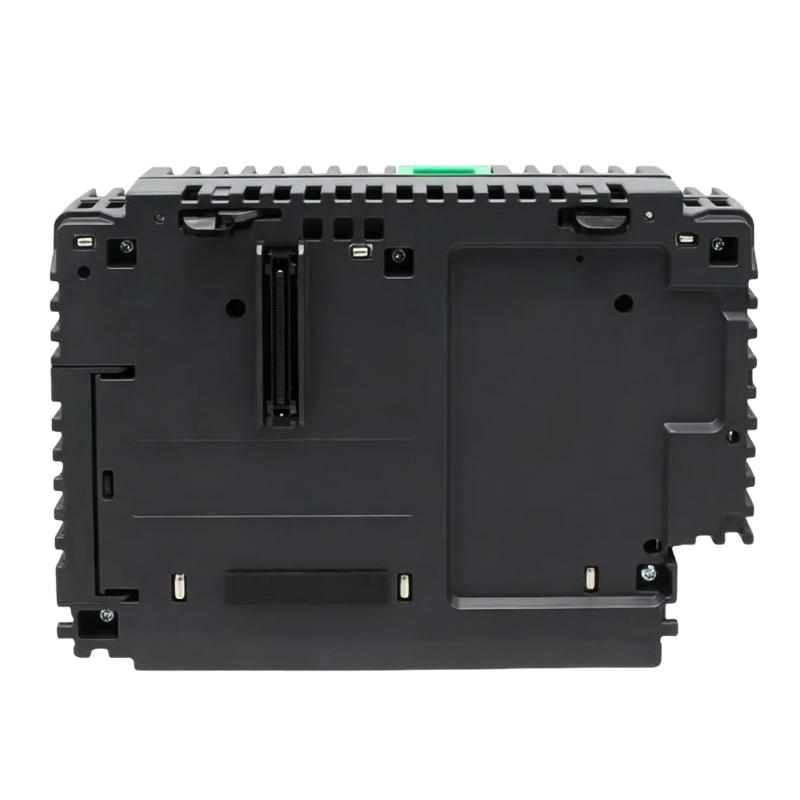

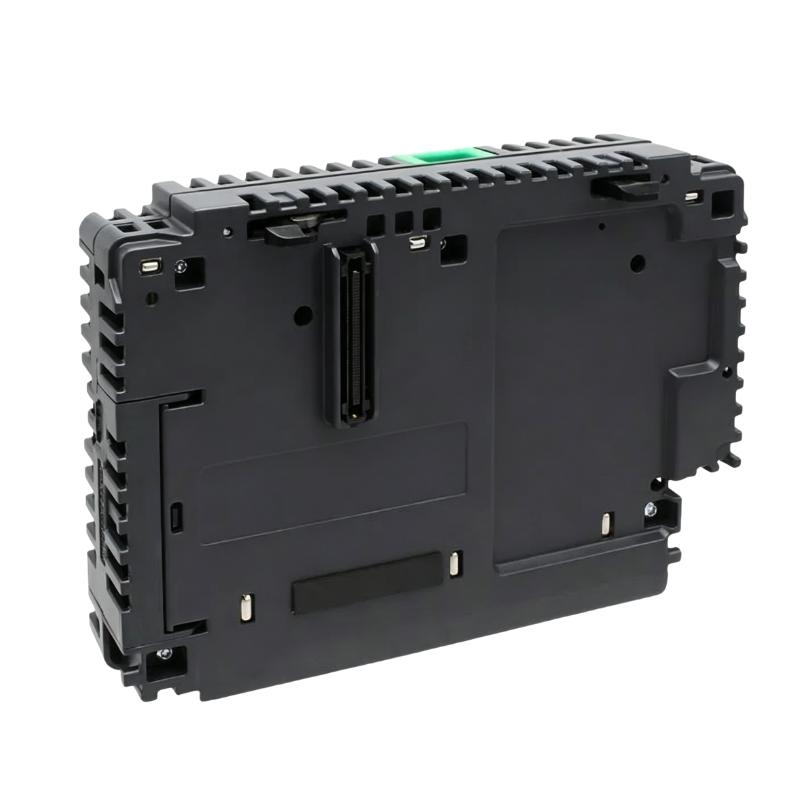

Schneider HMIG3X Basic Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||

Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Schneider Electric |
| Model | HMIG3X |
| Product Name | Harmony GTUX Basic Unit |
| Product Type | HMI Base Unit |
| Product Series | Harmony GTUX |
| Device Type | eXtreme Box |
| Operating System | Harmony |
| Processor | 600 MHz RISC CPU |
| Engineering Software | Vijeo Designer / compatible EcoStruxure Operator Terminal Expert configuration, depending on project requirements |
| Rated Input Voltage | 12 V DC, supplied through the compatible display module |
| Maximum Power Consumption | 20 W |
| Internal Memory | 256 MB RAM |
| Backup Memory | 512 KB NVRAM |
| Storage | 1 GB SD card |
| SD Card Slots | 2 |
| Ethernet Interfaces | 2 × RJ45, 10/100/1000BASE-T |
| COM1 Serial Interface | RJ45, RS-485 |
| COM2 Serial Interface | 9-pin SUB-D, RS-232C / RS-422 / RS-485 |
| USB Interfaces | 2 × USB 2.0 Type-A, 1 × USB 2.0 Mini-B |
| Additional Interfaces | Auxiliary terminal block and expansion fieldbus card interface |
| Supported Communication Protocols | Modbus TCP/IP, Modbus Serial, Uni-Telway |
| Compatible Display Modules | Harmony GTUX compatible display modules |
| Cooling Method | Natural air circulation |
| Design Features | Rugged construction, conformal-coated electronics for demanding environments |
| Typical Applications | Outdoor HMI systems, industrial equipment monitoring, PLC communication, and process control |
| Dimensions | 188 × 45 × 131 mm |
| Weight | 0.9 kg |
FAQ
Q1: What is the main function of the Schneider HMIG3X Basic Unit?
A: The HMIG3X is the processing unit of the Harmony GTUX modular HMI system. It handles HMI application execution and communication with industrial controllers. A compatible display module is required to provide the operator interface.
Q2: Which display modules can be used with the HMIG3X?
A: The HMIG3X is designed for compatible Harmony GTUX display modules. Confirm the exact display model and hardware compatibility before installation to ensure the complete HMI system operates correctly.
Q3: What power supply does the HMIG3X require?
A: The HMIG3X uses a rated input of 12 V DC supplied through the compatible display module. The power supply and wiring arrangement should follow the system installation requirements.
Q4: Which communication protocols does the HMIG3X support?
A: The unit supports Modbus TCP/IP, Modbus Serial, and Uni-Telway. Communication depends on the connected PLC, selected interface, software configuration, and correct protocol parameters.
Q5: Can the HMIG3X connect to PLCs from different manufacturers?
A: Yes, provided the PLC supports a compatible communication protocol and interface. Ethernet can be used for supported TCP/IP-based communication, while the serial ports support compatible RS-485, RS-232C, or RS-422 connections.
Q6: What should be checked if the HMIG3X loses communication with a PLC?
A: Check the Ethernet or serial cable, interface selection, PLC address, IP configuration, and communication settings. For serial connections, verify the baud rate, parity, and station address. Review diagnostic messages before replacing hardware.
Q7: How does the HMIG3X handle industrial environments?
A: The HMIG3X belongs to the rugged Harmony GTUX product family and uses a robust design with conformal-coated electronics. Environmental suitability still depends on the installation conditions, compatible display module, enclosure arrangement, and applicable product ratings.
Q8: What maintenance is recommended for the HMIG3X?
A: Inspect connectors and cables periodically, keep the unit free from dust and moisture, and ensure that natural airflow is not obstructed. Back up application data before maintenance or replacement, and check compatibility before installing a new base unit.
Schneider HMIG3X Basic Unit is in stock. Please contact us for a quick quote and competitive pricing.
